BLACK THERMOSET MALE/FEMALE CROSS PATTERN HANDWHEEL

Thermoset material provides excellent durability and heat resistance. Male and female threads in BZP mild steel. High gloss appearance.

Find the right option

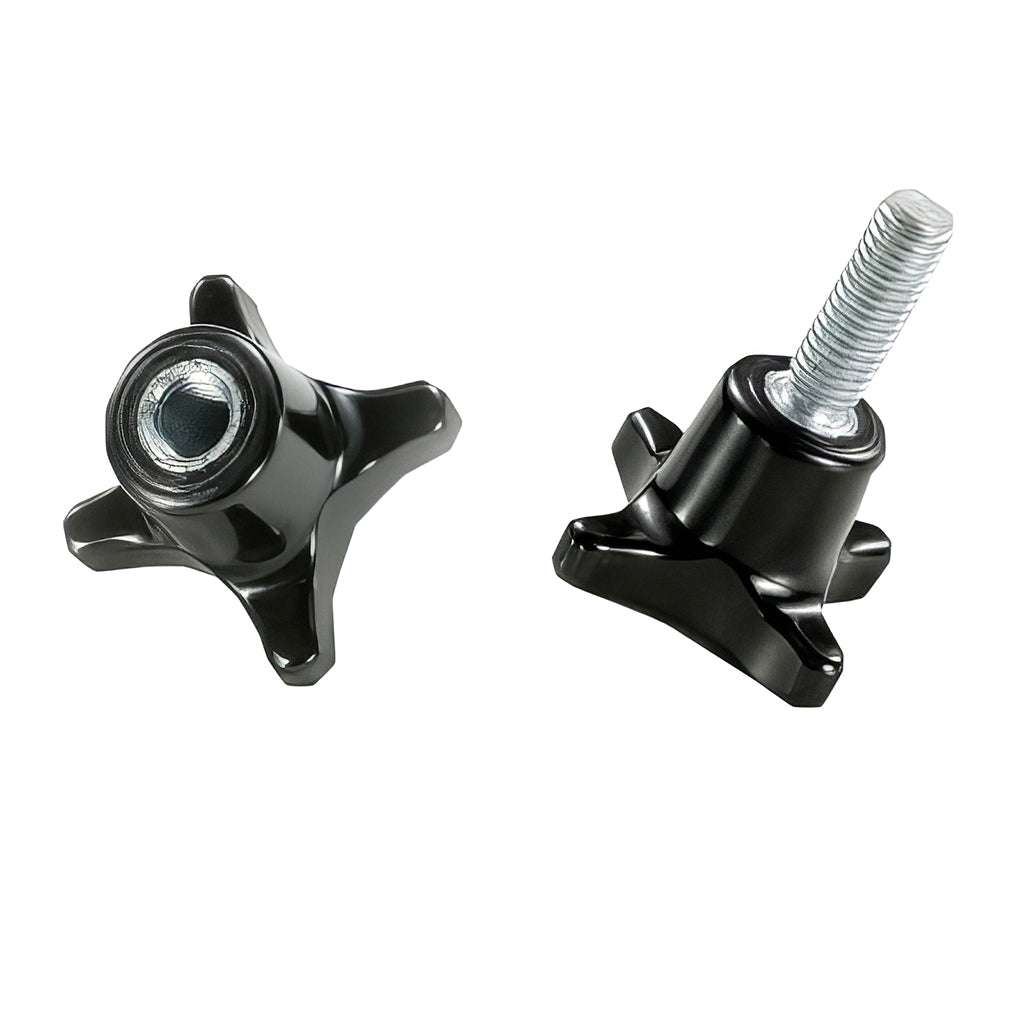

  • Black thermoset male/female cross pattern handwheel with durable heat-resistant material and high gloss finish
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Thermoset material provides excellent durability and heat resistance.
Male and female threads in BZP mild steel.
High gloss appearance.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

19 options
Part numberSize / technical detailOther specificationAction
HH48016 80 / M16 / - —
HH44006020 40 / M6 / 20 —
HH44006 40 / M6 / - —
HH43206030 32 / M6 / 30 —
HH43206015 32 / M6 / 15 —
HH48012 80 / M12 / - —
HH48010 80 / M10 / - —
HH46312 63 / M12 / - —
HH46310 63 / M10 / - —
HH45010040 50 / M10 / 40 —
HH45010030 50 / M10 / 30 —
HH45010020 50 / M10 / 20 —
HH45010 50 / M10 / - —
HH45008 50 / M8 / - —
HH44008030 40 / M8 / 30 —
HH44008020 40 / M8 / 20 —
HH44008 40 / M8 / - —
HH44006035 (nylon) 40 / M6 / 35 —
HH43206 32 / M6 / - —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

BLACK THERMOSET MALE/FEMALE CROSS PATTERN HANDWHEEL
HH48016

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Knob dia (mm) Thread Stud
HH48016 80 M16 -
HH44006020 40 M6 20
HH44006 40 M6 -
HH43206030 32 M6 30
HH43206015 32 M6 15
HH48012 80 M12 -
HH48010 80 M10 -
HH46312 63 M12 -
HH46310 63 M10 -
HH45010040 50 M10 40
HH45010030 50 M10 30
HH45010020 50 M10 20
HH45010 50 M10 -
HH45008 50 M8 -
HH44008030 40 M8 30
HH44008020 40 M8 20
HH44008 40 M8 -
HH44006035 (nylon) 40 M6 35
HH43206 32 M6 -
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.

Talk to the team → Browse all products →
