NYLON BRIDGE HANDLES

Choice of rear or front mount thread.

Find the right option

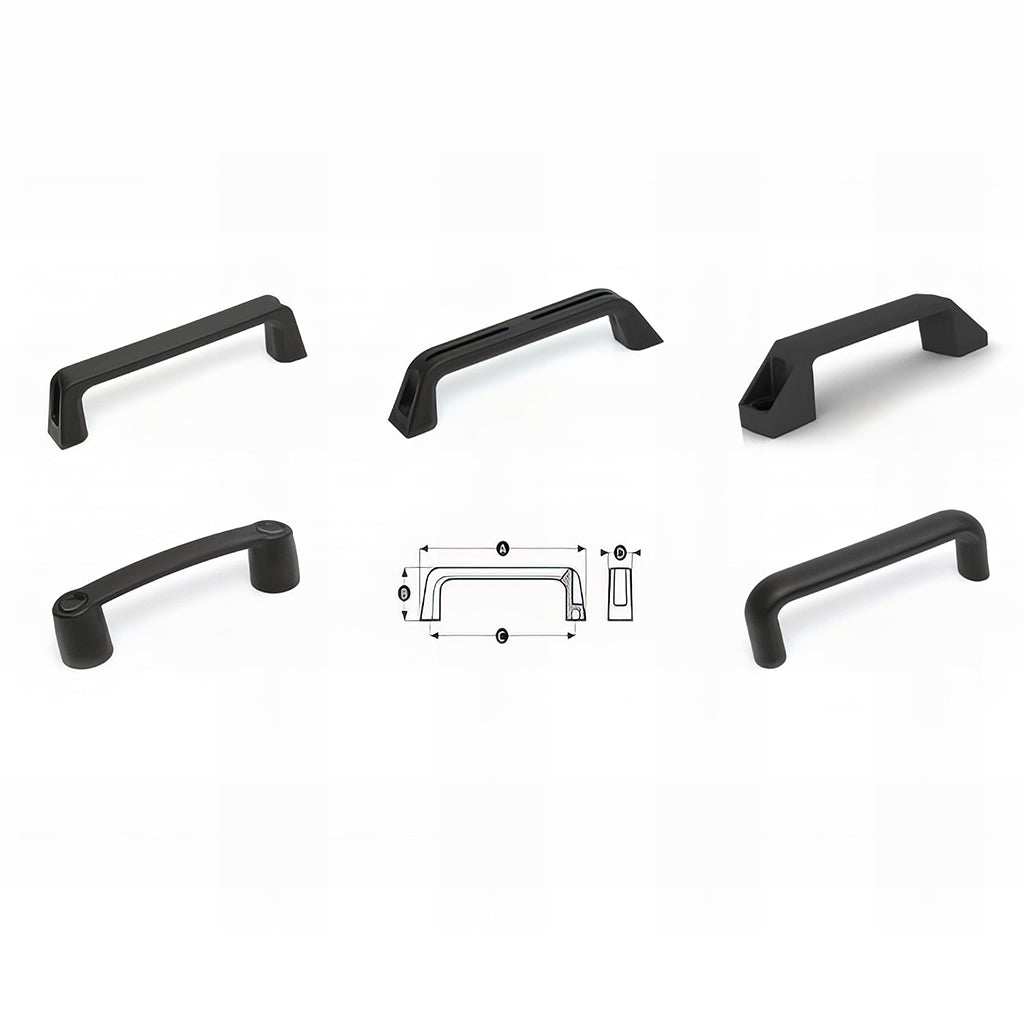

  • Nylon bridge handles with rear and front mount threads
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Choice of rear or front mount thread.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

23 options
Part numberSize / technical detailOther specificationAction
HDR0009191 Rear Mount / Polyamide / 160 | 55 | 132 | 43 | 36 | Black | 2 | M8 | 1 —
HDR1022778 Through mount / Polyamide / 142 | 40 | 122 | 32 | 26 | Black | 2 | 6.2 dia | 3 —
HDR3022778 Through mount / Polyamide / 170 | 52 | 150 | 42 | 28 | Black | 2 | 6.2 dia | 3 —
HDRP15521 Rear Mount / NYLON / 134 | 50 | 117 | 34 | 25 | Black | 2 | M6 | 5 —
HDRP3377 Through mount / NYLON / 145 | 40 | 117 | 34 | 29 | Black | 2 | 8.5 | 4 —
HDRR65521 Through mount / NYLON / 112 | 38 | 92 | 26 | 22 | Black | 2 | 5.3 dia | 2 —
HDRS35521 Rear Mount / NYLON / 148 | 50 | 132 | 34 | 25 | Black | 2 | M6 | 5 —
HDRS9997 Rear Mount / NYLON / 213 | 50 | 179 | 43 | 35 | Black | 2 | M8 | 4 —
HDRT05521 Rear Mount / NYLON / 107 | 41 | 94 | 29 | 20 | Black | 2 | M5 | 5 —
HDRT5677 Through mount / NYLON / 163 | 45 | 132 | 38 | 31 | Black | 2 | 8.5 | 4 —
HDRT8977 Rear Mount / NYLON / 163 | 45 | 132 | 38 | 31 | Black | 2 | M6 | 4 —
HDRU2677 Rear Mount / NYLON / 145 | 40 | 117 | 34 | 29 | Black | 2 | M6 | 4 —
HDRU85521 Through mount / NYLON / 168 | 44 | 145 | 30 | 28 | Black | 2 | 6.5 dia | 2 —
HDRV55521 Rear Mount / NYLON / 197 | 58 | 179 | 40 | 29 | Black | 2 | M8 | 5 —
HDRV9577 Rear Mount / NYLON / 120 | 35 | 93 | 29 | 26 | Black | 2 | M6 | 4 —
HDRW0087 Rear Mount / NYLON / 163 | 45 | 132 | 38 | 31 | Black | 2 | M8 | 4 —
HDRW25521 Rear Mount / NYLON / 137 | 50 | 120 | 34 | 25 | Black | 2 | M6 | 5 —
HDRX7977 Through mount / NYLON / 213 | 50 | 179 | 43 | 35 | Black | 2 | 8.5 | 4 —
HDRX94521 Rear Mount / NYLON / 180 | 46 | 160 | 36 | 27 | Black | 2 | M6 | 1 —
HDRY1677 Rear Mount / NYLON / 145 | 40 | 117 | 34 | 29 | Black | 2 | M8 | 4 —
HDRY75521 Through mount / NYLON / 141 | 38 | 120 | 26 | 24 | Black | 2 | 5.3 dia | 2 —
HDRZ45521 Rear Mount / NYLON / 168 | 58 | 150 | 40 | 29 | Black | 2 | M8 | 5 —
HDRZ8577 Through mount / NYLON / 120 | 35 | 93 | 29 | 26 | Black | 2 | 6.5 | 4 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

NYLON BRIDGE HANDLES
HDR0009191

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Material A B C D E Finish Pack Qty Fixing Image
HDR0009191 Rear Mount Polyamide 160 55 132 43 36 Black 2 M8 1
HDR1022778 Through mount Polyamide 142 40 122 32 26 Black 2 6.2 dia 3
HDR3022778 Through mount Polyamide 170 52 150 42 28 Black 2 6.2 dia 3
HDRP15521 Rear Mount NYLON 134 50 117 34 25 Black 2 M6 5
HDRP3377 Through mount NYLON 145 40 117 34 29 Black 2 8.5 4
HDRR65521 Through mount NYLON 112 38 92 26 22 Black 2 5.3 dia 2
HDRS35521 Rear Mount NYLON 148 50 132 34 25 Black 2 M6 5
HDRS9997 Rear Mount NYLON 213 50 179 43 35 Black 2 M8 4
HDRT05521 Rear Mount NYLON 107 41 94 29 20 Black 2 M5 5
HDRT5677 Through mount NYLON 163 45 132 38 31 Black 2 8.5 4
HDRT8977 Rear Mount NYLON 163 45 132 38 31 Black 2 M6 4
HDRU2677 Rear Mount NYLON 145 40 117 34 29 Black 2 M6 4
HDRU85521 Through mount NYLON 168 44 145 30 28 Black 2 6.5 dia 2
HDRV55521 Rear Mount NYLON 197 58 179 40 29 Black 2 M8 5
HDRV9577 Rear Mount NYLON 120 35 93 29 26 Black 2 M6 4
HDRW0087 Rear Mount NYLON 163 45 132 38 31 Black 2 M8 4
HDRW25521 Rear Mount NYLON 137 50 120 34 25 Black 2 M6 5
HDRX7977 Through mount NYLON 213 50 179 43 35 Black 2 8.5 4
HDRX94521 Rear Mount NYLON 180 46 160 36 27 Black 2 M6 1
HDRY1677 Rear Mount NYLON 145 40 117 34 29 Black 2 M8 4
HDRY75521 Through mount NYLON 141 38 120 26 24 Black 2 5.3 dia 2
HDRZ45521 Rear Mount NYLON 168 58 150 40 29 Black 2 M8 5
HDRZ8577 Through mount NYLON 120 35 93 29 26 Black 2 6.5 4

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
