fasteners

BUTTON FLANGE HEAD SOCKET SCREWS BZP/SC/STAINLESS STEEL

Wide head diameter domed socket screw product

Find the right option

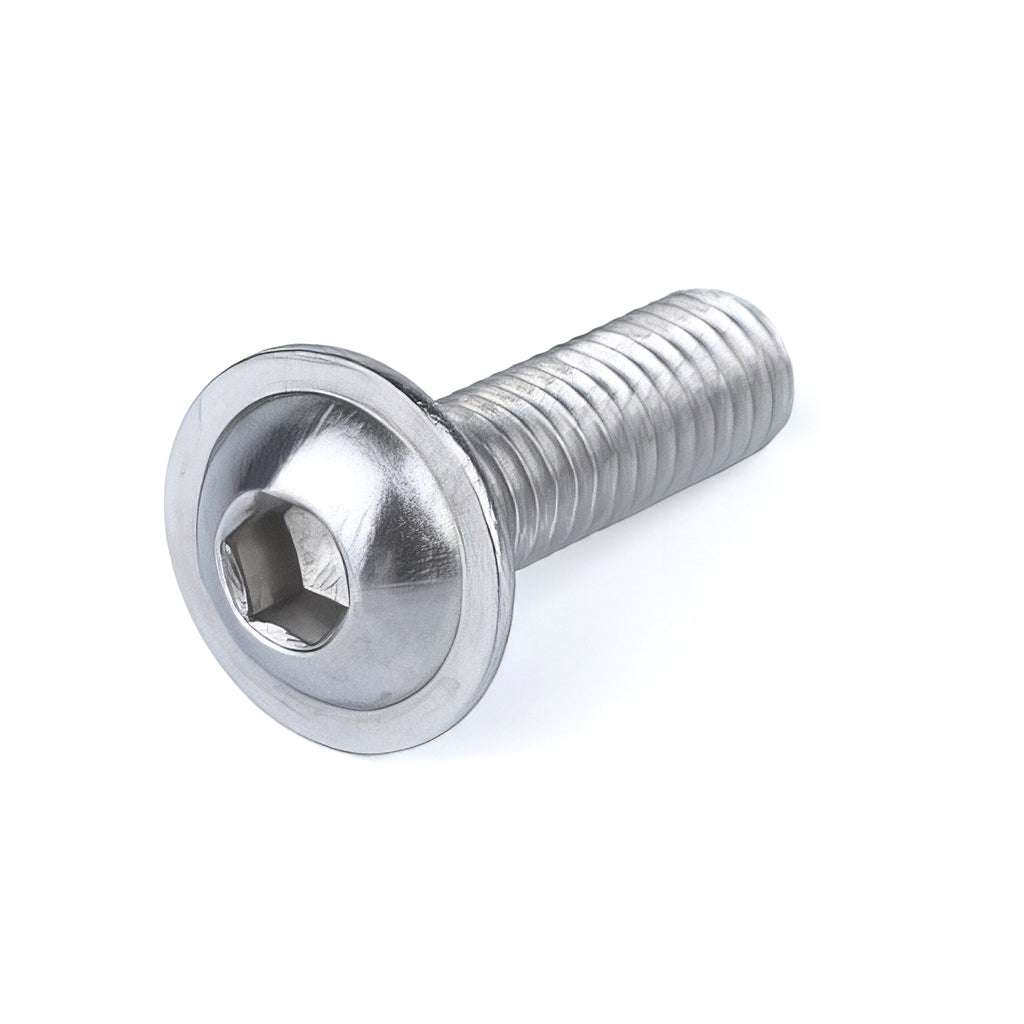

  • Button flange head socket screws in BZP, SC, and stainless steel options
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Wide head diameter domed socket screw product

Material choice of high tensile 10.9 grade steel, high tensile 10.9 grade steel zinc and stainless steel grade A2 (grade A4 also available, please contact the sales office)

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

30 options
Part numberSize / technical detailOther specificationAction
AABFM06012 High tensile steel / self colour / 200 | M6 x 12mm | 13.6 | 4 | 3.3 | 12 —
AABFM06012SS Stainless / A2 / 200 | M6 x 12mm | 13.6 | 4 | 3.3 | 12 —
AABFM06012Z High tensile steel / Zinc / 200 | M6 x 12mm | 13.6 | 4 | 3.3 | 12 —
AABFM06016 High tensile steel / self colour / 200 | M6 x 16mm | 13.6 | 4 | 3.3 | 16 —
AABFM06016SS Stainless / A2 / 200 | M6 x 16mm | 13.6 | 4 | 3.3 | 16 —
AABFM06016Z High tensile steel / Zinc / 200 | M6 x 16mm | 13.6 | 4 | 3.3 | 16 —
AABFM06020 High tensile steel / self colour / 200 | M6 x 20mm | 13.6 | 4 | 3.3 | 20 —
AABFM06020SS Stainless / A2 / 200 | M6 x 20mm | 13.6 | 4 | 3.3 | 20 —
AABFM06020Z High tensile steel / Zinc / 200 | M6 x 20mm | 13.6 | 4 | 3.3 | 20 —
AABFM06025 High tensile steel / self colour / 200 | M6 x 25mm | 13.6 | 4 | 3.3 | 25 —
AABFM06025SS Stainless / A2 / 200 | M6 x 25mm | 13.6 | 4 | 3.3 | 25 —
AABFM06025Z High tensile steel / Zinc / 200 | M6 x 25mm | 13.6 | 4 | 3.3 | 25 —
AABFM06030 High tensile steel / self colour / 200 | M6 x 30mm | 13.6 | 4 | 3.3 | 25 —
AABFM06030SS Stainless / A2 / 200 | M6 x 30mm | 13.6 | 4 | 3.3 | 25 —
AABFM06030Z High tensile steel / Zinc / 200 | M6 x 30mm | 13.6 | 4 | 3.3 | 25 —
AABFM06035 High tensile steel / self colour / 200 | M6 x 35mm | 13.6 | 4 | 3.3 | 25 —
AABFM06035SS Stainless / A2 / 200 | M6 x 35mm | 13.6 | 4 | 3.3 | 25 —
AABFM06035Z High tensile steel / Zinc / 200 | M6 x 35mm | 13.6 | 4 | 3.3 | 25 —
AABFM06040 High tensile steel / self colour / 200 | M6 x 40mm | 13.6 | 4 | 3.3 | 25 —
AABFM06040SS Stainless / A2 / 200 | M6 x 40mm | 13.6 | 4 | 3.3 | 25 —
AABFM06040Z High tensile steel / Zinc / 200 | M6 x 40mm | 13.6 | 4 | 3.3 | 25 —
AABFM08025 High tensile steel / self colour / 200 | M8 x 25mm | 17.8 | 5 | 4.4 | 25 —
AABFM08025SS Stainless / A2 / 200 | M8 x 25mm | 17.8 | 5 | 4.4 | 25 —
AABFM08025Z High tensile steel / Zinc / 200 | M8 x 25mm | 17.8 | 5 | 4.4 | 25 —
AABFM08030 High tensile steel / self colour / 200 | M8 x 30MM | 17.8 | 5 | 4.4 | 25 —
AABFM08030SS Stainless / A2 / 200 | M8 x 30MM | 17.8 | 5 | 4.4 | 25 —
AABFM08030Z High tensile steel / Zinc / 200 | M8 x 30MM | 17.8 | 5 | 4.4 | 25 —
AABFM08040 High tensile steel / self colour / 200 | M8 x 40mm | 17.8 | 5 | 4.4 | 25 —
AABFM08040SS Stainless / A2 / 200 | M8 x 40mm | 17.8 | 5 | 4.4 | 25 —
AABFM08040Z High tensile steel / Zinc / 200 | M8 x 40mm | 17.8 | 5 | 4.4 | 25 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

BUTTON FLANGE HEAD SOCKET SCREWS BZP/SC/STAINLESS STEEL
AABFM06012

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Finish Pack Qty Size Head dia Wrench key size Head height Threaded length
AABFM06012 High tensile steel self colour 200 M6 x 12mm 13.6 4 3.3 12
AABFM06012SS Stainless A2 200 M6 x 12mm 13.6 4 3.3 12
AABFM06012Z High tensile steel Zinc 200 M6 x 12mm 13.6 4 3.3 12
AABFM06016 High tensile steel self colour 200 M6 x 16mm 13.6 4 3.3 16
AABFM06016SS Stainless A2 200 M6 x 16mm 13.6 4 3.3 16
AABFM06016Z High tensile steel Zinc 200 M6 x 16mm 13.6 4 3.3 16
AABFM06020 High tensile steel self colour 200 M6 x 20mm 13.6 4 3.3 20
AABFM06020SS Stainless A2 200 M6 x 20mm 13.6 4 3.3 20
AABFM06020Z High tensile steel Zinc 200 M6 x 20mm 13.6 4 3.3 20
AABFM06025 High tensile steel self colour 200 M6 x 25mm 13.6 4 3.3 25
AABFM06025SS Stainless A2 200 M6 x 25mm 13.6 4 3.3 25
AABFM06025Z High tensile steel Zinc 200 M6 x 25mm 13.6 4 3.3 25
AABFM06030 High tensile steel self colour 200 M6 x 30mm 13.6 4 3.3 25
AABFM06030SS Stainless A2 200 M6 x 30mm 13.6 4 3.3 25
AABFM06030Z High tensile steel Zinc 200 M6 x 30mm 13.6 4 3.3 25
AABFM06035 High tensile steel self colour 200 M6 x 35mm 13.6 4 3.3 25
AABFM06035SS Stainless A2 200 M6 x 35mm 13.6 4 3.3 25
AABFM06035Z High tensile steel Zinc 200 M6 x 35mm 13.6 4 3.3 25
AABFM06040 High tensile steel self colour 200 M6 x 40mm 13.6 4 3.3 25
AABFM06040SS Stainless A2 200 M6 x 40mm 13.6 4 3.3 25
AABFM06040Z High tensile steel Zinc 200 M6 x 40mm 13.6 4 3.3 25
AABFM08025 High tensile steel self colour 200 M8 x 25mm 17.8 5 4.4 25
AABFM08025SS Stainless A2 200 M8 x 25mm 17.8 5 4.4 25
AABFM08025Z High tensile steel Zinc 200 M8 x 25mm 17.8 5 4.4 25
AABFM08030 High tensile steel self colour 200 M8 x 30MM 17.8 5 4.4 25
AABFM08030SS Stainless A2 200 M8 x 30MM 17.8 5 4.4 25
AABFM08030Z High tensile steel Zinc 200 M8 x 30MM 17.8 5 4.4 25
AABFM08040 High tensile steel self colour 200 M8 x 40mm 17.8 5 4.4 25
AABFM08040SS Stainless A2 200 M8 x 40mm 17.8 5 4.4 25
AABFM08040Z High tensile steel Zinc 200 M8 x 40mm 17.8 5 4.4 25

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
