What are SOCKET GRUB SCREWS and their common applications?

Socket grub screws are headless fasteners used primarily as clamping fasteners in threaded holes or bushes. They are commonly utilized in machinery, electronics, and furniture where a secure, flush fit is required.

What materials are available for SOCKET GRUB SCREWS?

Our socket grub screws are available in stainless steel grades A2 and A4, offering excellent corrosion resistance and durability. Please contact us for availability of specific grades suitable for your application.

What types of points do SOCKET GRUB SCREWS come with, and which is most popular?

The most popular point type for socket grub screws is the plain cup point. However, alternative point types such as cone or flat points are also available upon request to suit different applications.

Can I get SOCKET GRUB SCREWS in custom sizes or specifications?

Yes, we offer a wide range of sizes for socket grub screws beyond those listed in our standard table. Please contact our sales team with your specific requirements, and we will do our best to supply the exact size you need.

How do I choose the right SOCKET GRUB SCREW for my project?

Selecting the right socket grub screw depends on your application's size, material, and point type requirements. Consult with our experts or provide details about your project, and we can recommend the most suitable fastener to ensure optimal performance.

1 1

SOCKET GRUB SCREWS - STAINLESS STEEL

Name: SOCKET GRUB SCREWS - STAINLESS STEEL
Brand: Indifit
SKU: AAGPCM03003SS
Availability: InStock

Also widely known as “grub screw”.

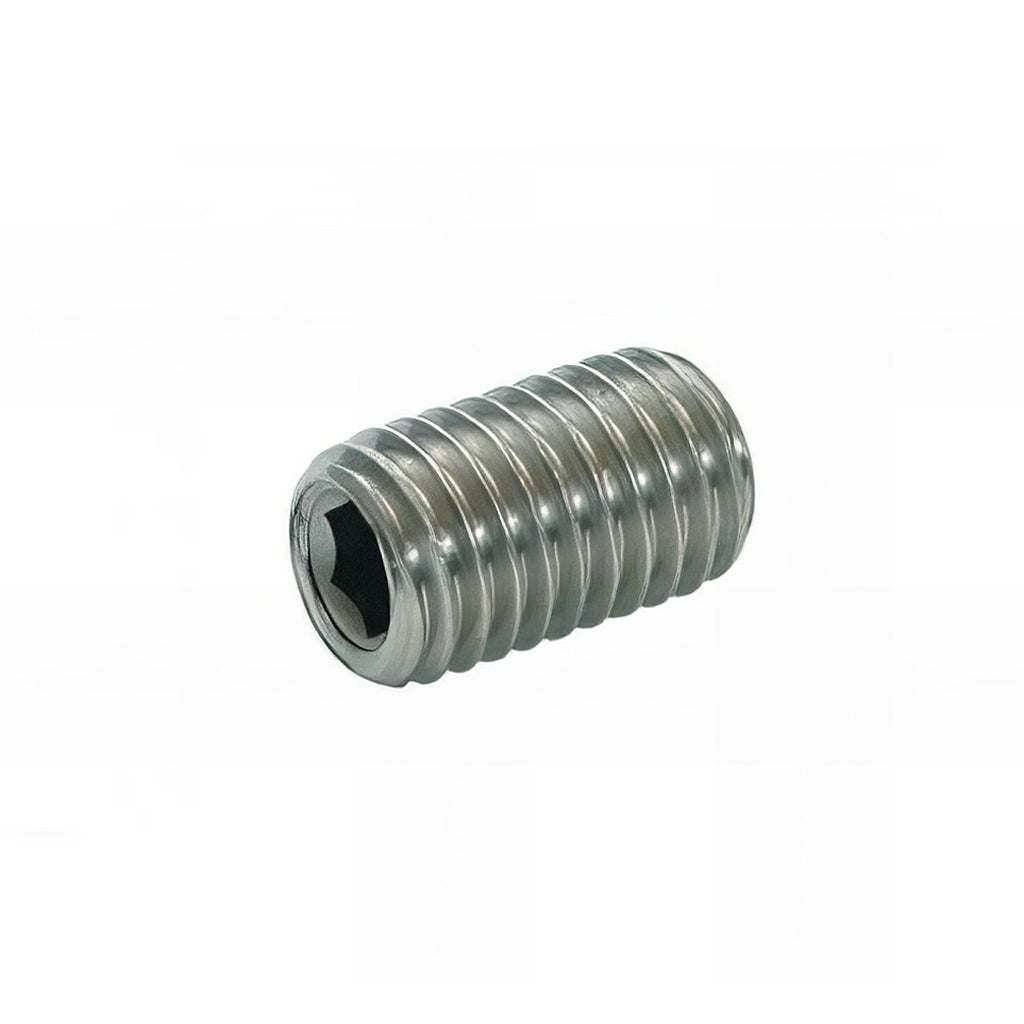

Headless screw with socket key drive at one end and tip at the other. Often used as clamping fastener in a threaded hole or bush.

Material: stainless steel grade A2 Grade A4 also available – please enquire.

Items listed in this table are with “plain cup point”, which is the most popular. Alternative “cone” or “flat” point also available – please enquire.

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Material	Finish	Pack Qty	Size	Wrench key size	Threaded length
AAGPCM03003SS	Stainless	A2	500	M3 x 3mm	1.5	3
AAGPCM03004SS	Stainless	A2	500	M3 x 4mm	1.5	4
AAGPCM03005SS	Stainless	A2	500	M3 x 5mm	1.5	5
AAGPCM03006SS	Stainless	A2	500	M3 x 6mm	1.5	6
AAGPCM03008SS	Stainless	A2	500	M3 x 8mm	1.5	8
AAGPCM03010SS	Stainless	A2	200	M3 x 10mm	1.5	10
AAGPCM03012SS	Stainless	A2	200	M3 x 12mm	1.5	12
AAGPCM03016SS	Stainless	A2	200	M3 x 16mm	1.5	16
AAGPCM04004SS	Stainless	A2	500	M4 x 4mm	2	4
AAGPCM04005SS	Stainless	A2	500	M4 x 5mm	2	5
AAGPCM04006SS	Stainless	A2	500	M4 x 6mm	2	6
AAGPCM04008SS	Stainless	A2	500	M4 x 8mm	2	8
AAGPCM04010SS	Stainless	A2	200	M4 x 10mm	2	10
AAGPCM04012SS	Stainless	A2	200	M4 x 12mm	2	12
AAGPCM04016SS	Stainless	A2	200	M4 x 16mm	2	16
AAGPCM04020SS	Stainless	A2	200	M4 x 20mm	2	20
AAGPCM04025SS	Stainless	A2	200	M4 x 25mm	2	25
AAGPCM05005SS	Stainless	A2	200	M5 x 5mm	2.5	5
AAGPCM05006SS	Stainless	A2	200	M5 x 6mm	2.5	6
AAGPCM05008SS	Stainless	A2	200	M5 x 8mm	2.5	8
AAGPCM05010SS	Stainless	A2	200	M5 x 10mm	2.5	10
AAGPCM05012SS	Stainless	A2	200	M5 x 12mm	2.5	12
AAGPCM05016SS	Stainless	A2	200	M5 x 16mm	2.5	16
AAGPCM06006SS	Stainless	A2	200	M6 x 6mm	3	6
AAGPCM06008SS	Stainless	A2	200	M6 x 8mm	3	8
AAGPCM06010SS	Stainless	A2	200	M6 x 10mm	3	10
AAGPCM06012SS	Stainless	A2	200	M6 x 12mm	3	12
AAGPCM06016SS	Stainless	A2	200	M6 x 16mm	3	16
AAGPCM06020SS	Stainless	A2	200	M6 x 20mm	3	20
AAGPCM06025SS	Stainless	A2	200	M6 x 25mm	3	25
AAGPCM08008SS	Stainless	A2	200	M8 x 8mm	4	8
AAGPCM08010SS	Stainless	A2	200	M8 x 10mm	4	10
AAGPCM08012SS	Stainless	A2	200	M8 x 12mm	4	12
AAGPCM08016SS	Stainless	A2	200	M8 x 16mm	4	16
AAGPCM08020SS	Stainless	A2	200	M8 x 20mm	4	20
AAGPCM10012SS	Stainless	A2	200	M10 x 12mm	5	12
AAGPCM10016SS	Stainless	A2	200	M10 x 16mm	5	16
