Read full product description

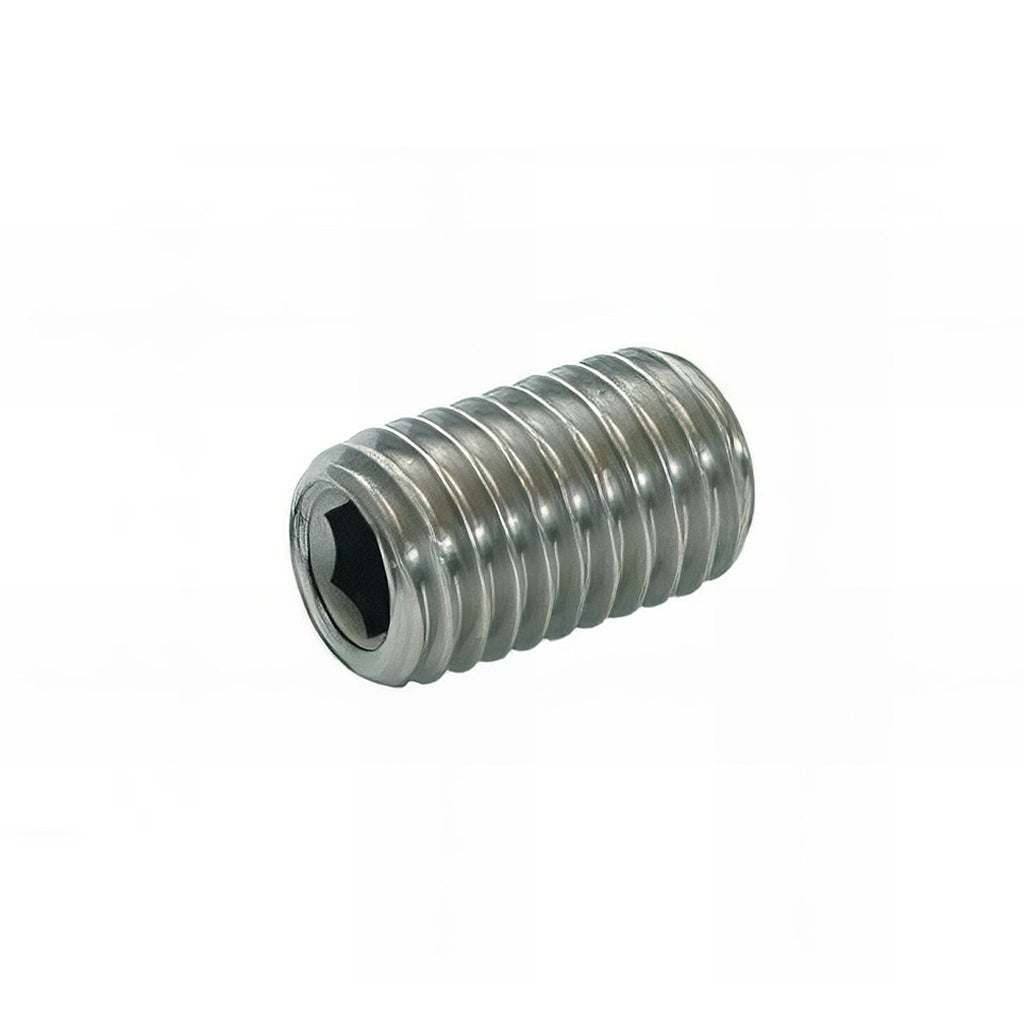

Also widely known as “grub screw”.
Headless screw with socket key drive at one end and tip at the other. Often used as clamping fastener in a threaded hole or bush.
Material: high tensile steel grade 10.9 zinc. Also available in self colour or stainless.
Items listed in this table are with “plain cup point”, which is the most popular. Alternative “cone” or “flat” point also available – please enquire.
Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Material | Finish | Pack Qty | Size | Wrench key size | Threaded length |
|---|---|---|---|---|---|---|
| AAGPCM03003Z | High tensile steel | Zinc | 500 | M3 x 3mm | 1.5 | 3 |
| AAGPCM03004Z | High tensile steel | Zinc | 500 | M3 x 4mm | 1.5 | 4 |
| AAGPCM03005Z | High tensile steel | Zinc | 500 | M3 x 5mm | 1.5 | 5 |
| AAGPCM03006Z | High tensile steel | Zinc | 500 | M3 x 6mm | 1.5 | 6 |
| AAGPCM03008Z | High tensile steel | Zinc | 500 | M3 x 8mm | 1.5 | 8 |
| AAGPCM03010Z | High tensile steel | Zinc | 200 | M3 x 10mm | 1.5 | 10 |
| AAGPCM03012Z | High tensile steel | Zinc | 200 | M3 x 12mm | 1.5 | 12 |
| AAGPCM03016Z | High tensile steel | Zinc | 200 | M3 x 16mm | 1.5 | 16 |
| AAGPCM04004Z | High tensile steel | Zinc | 500 | M4 x 4mm | 2 | 4 |
| AAGPCM04005Z | High tensile steel | Zinc | 500 | M4 x 5mm | 2 | 5 |
| AAGPCM04006Z | High tensile steel | Zinc | 500 | M4 x 6mm | 2 | 6 |
| AAGPCM04008Z | High tensile steel | Zinc | 500 | M4 x 8mm | 2 | 8 |
| AAGPCM04010Z | High tensile steel | Zinc | 200 | M4 x 10mm | 2 | 10 |
| AAGPCM04012Z | High tensile steel | Zinc | 200 | M4 x 12mm | 2 | 12 |
| AAGPCM04016Z | High tensile steel | Zinc | 200 | M4 x 16mm | 2 | 16 |
| AAGPCM04020Z | High tensile steel | Zinc | 200 | M4 x 20mm | 2 | 20 |
| AAGPCM04025Z | High tensile steel | Zinc | 200 | M4 x 25mm | 2 | 25 |
| AAGPCM05005Z | High tensile steel | Zinc | 200 | M5 x 5mm | 2.5 | 5 |
| AAGPCM05006Z | High tensile steel | Zinc | 200 | M5 x 6mm | 2.5 | 6 |
| AAGPCM05008Z | High tensile steel | Zinc | 200 | M5 x 8mm | 2.5 | 8 |
| AAGPCM05010Z | High tensile steel | Zinc | 200 | M5 x 10mm | 2.5 | 10 |
| AAGPCM05012Z | High tensile steel | Zinc | 200 | M5 x 12mm | 2.5 | 12 |
| AAGPCM05016Z | High tensile steel | Zinc | 200 | M5 x 16mm | 2.5 | 16 |
| AAGPCM06006Z | High tensile steel | Zinc | 200 | M6 x 6mm | 3 | 6 |
| AAGPCM06008Z | High tensile steel | Zinc | 200 | M6 x 8mm | 3 | 8 |
| AAGPCM06010Z | High tensile steel | Zinc | 200 | M6 x 10mm | 3 | 10 |
| AAGPCM06012Z | High tensile steel | Zinc | 200 | M6 x 12mm | 3 | 12 |
| AAGPCM06016Z | High tensile steel | Zinc | 200 | M6 x 16mm | 3 | 16 |
| AAGPCM06020Z | High tensile steel | Zinc | 200 | M6 x 20mm | 3 | 20 |
| AAGPCM06025Z | High tensile steel | Zinc | 200 | M6 x 25mm | 3 | 25 |
| AAGPCM08008Z | High tensile steel | Zinc | 200 | M8 x 8mm | 4 | 8 |
| AAGPCM08010Z | High tensile steel | Zinc | 200 | M8 x 10mm | 4 | 10 |
| AAGPCM08012Z | High tensile steel | Zinc | 200 | M8 x 12mm | 4 | 12 |
| AAGPCM08016Z | High tensile steel | Zinc | 200 | M8 x 16mm | 4 | 16 |
| AAGPCM08020Z | High tensile steel | Zinc | 200 | M8 x 20mm | 4 | 20 |
| AAGPCM10012Z | High tensile steel | Zinc | 200 | M10 x 12mm | 5 | 12 |
| AAGPCM10016Z | High tensile steel | Zinc | 200 | M10 x 16mm | 5 | 16 |
Found the correct part number? Select it from the available options above and add it to your quote list.
