SOCKET HEAD CAPSCREWS BZP STEEL

Similar product to ‘Allen cap screw’

Find the right option

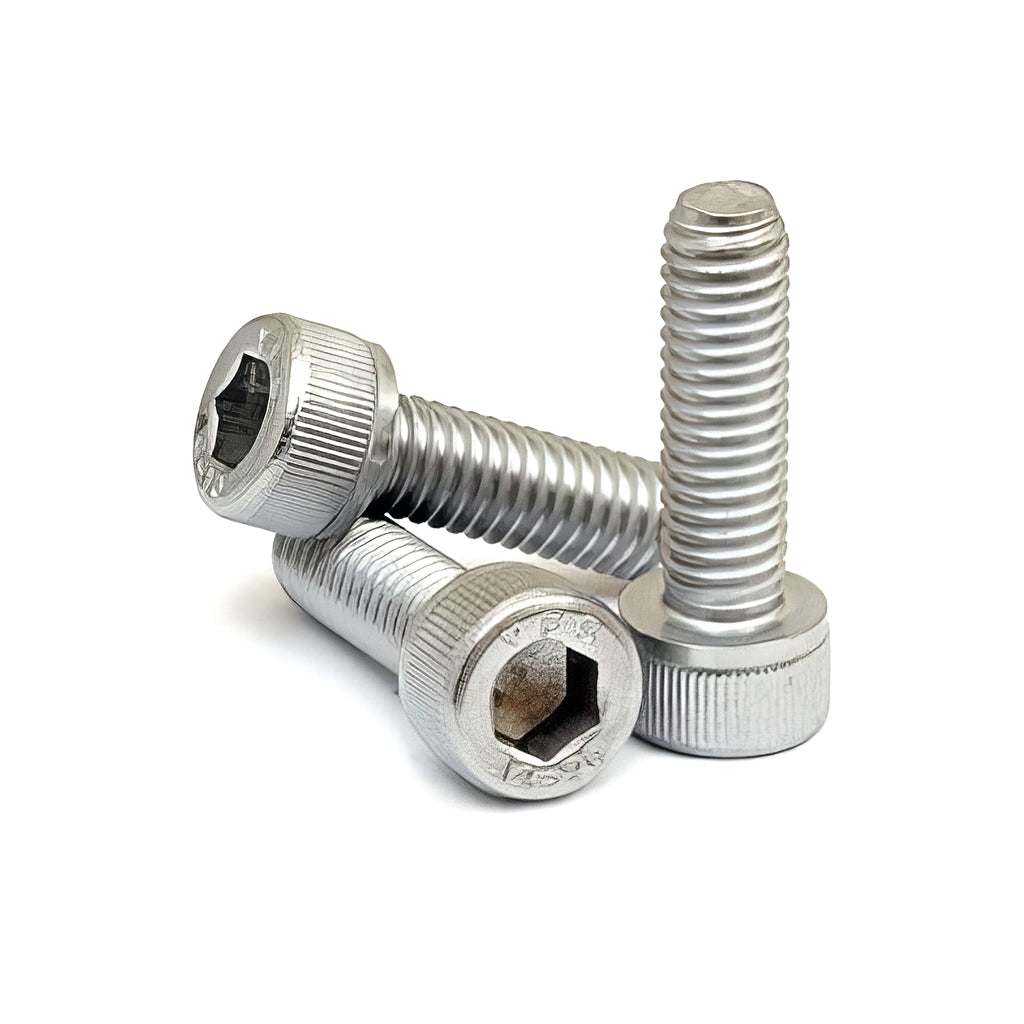

  • Socket head cap screws made of Grade 12.9 high tensile zinc-plated steel with cylindrical heads.
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Similar product to ‘Allen cap screw’

Cylindrical head

Material Grade 12.9 high tensile steel zinc. Please also view our range of steel self colour and stainless steel

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

58 options
Part numberSize / technical detailOther specificationAction
AACM03006Z High tensile steel / Zinc / 200 | M3 x 6mm | 5.5 | 2.5 | 3 | 6 —
AACM03008Z High tensile steel / Zinc / 200 | M3 x 8mm | 5.5 | 2.5 | 3 | 8 —
AACM03010Z High tensile steel / Zinc / 200 | M3 x 10mm | 5.5 | 2.5 | 3 | 10 —
AACM03012Z High tensile steel / Zinc / 200 | M3 x 12mm | 5.5 | 2.5 | 3 | 12 —
AACM03016Z High tensile steel / Zinc / 200 | M3 x 16mm | 5.5 | 2.5 | 3 | 16 —
AACM03020Z High tensile steel / Zinc / 200 | M3 x 20mm | 5.5 | 2.5 | 3 | 18 —
AACM04006Z High tensile steel / Zinc / 200 | M4 x 6mm | 7 | 3 | 4 | 6 —
AACM04008Z High tensile steel / Zinc / 200 | M4 x 8mm | 7 | 3 | 4 | 8 —
AACM04010Z High tensile steel / Zinc / 200 | M4 x 10mm | 7 | 3 | 4 | 10 —
AACM04012Z High tensile steel / Zinc / 200 | M4 x 12mm | 7 | 3 | 4 | 12 —
AACM04016Z High tensile steel / Zinc / 200 | M4 x 16mm | 7 | 3 | 4 | 16 —
AACM04020Z High tensile steel / Zinc / 200 | M4 x 20mm | 7 | 3 | 4 | 20 —
AACM04025Z High tensile steel / Zinc / 200 | M4 x 25mm | 7 | 3 | 4 | 20 —
AACM05010Z High tensile steel / Zinc / 200 | M5 x 10mm | 8.5 | 4 | 5 | 10 —
AACM05012Z High tensile steel / Zinc / 200 | M5 x 12mm | 8.5 | 4 | 5 | 12 —
AACM05016Z High tensile steel / Zinc / 200 | M5 x 16mm | 8.5 | 4 | 5 | 16 —
AACM05020Z High tensile steel / Zinc / 200 | M5 x 20mm | 8.5 | 4 | 5 | 20 —
AACM05025Z High tensile steel / Zinc / 200 | M5 x 25mm | 8.5 | 4 | 5 | 22 —
AACM05030Z High tensile steel / Zinc / 200 | M5 x 30mm | 8.5 | 4 | 5 | 22 —
AACM05035Z High tensile steel / Zinc / 200 | M5 x 35mm | 8.5 | 4 | 5 | 22 —
AACM05040Z High tensile steel / Zinc / 200 | M5 x 40mm | 8.5 | 4 | 5 | 22 —
AACM06010Z High tensile steel / Zinc / 200 | M6 x 10mm | 10 | 5 | 6 | 10 —
AACM06012Z High tensile steel / Zinc / 200 | M6 x 12mm | 10 | 5 | 6 | 12 —
AACM06016Z High tensile steel / Zinc / 200 | M6 x 16mm | 10 | 5 | 6 | 16 —
AACM06020Z High tensile steel / Zinc / 200 | M6 x 20mm | 10 | 5 | 6 | 20 —
AACM06025Z High tensile steel / Zinc / 200 | M6 x 25mm | 10 | 5 | 6 | 24 —
AACM06030Z High tensile steel / Zinc / 200 | M6 x 30mm | 10 | 5 | 6 | 24 —
AACM06035Z High tensile steel / Zinc / 200 | M6 x 35mm | 10 | 5 | 6 | 24 —
AACM06040Z High tensile steel / Zinc / 200 | M6 x 40mm | 10 | 5 | 6 | 24 —
AACM06050Z High tensile steel / Zinc / 200 | M6 x 50mm | 10 | 5 | 6 | 24 —
AACM06060Z High tensile steel / Zinc / 200 | M6 x 60mm | 10 | 5 | 6 | 24 —
AACM08012Z High tensile steel / Zinc / 200 | M8 x 12mm | 13 | 6 | 8 | 12 —
AACM08016Z High tensile steel / Zinc / 200 | M8 x 16mm | 13 | 6 | 8 | 16 —
AACM08020Z High tensile steel / Zinc / 200 | M8 x 20mm | 13 | 6 | 8 | 20 —
AACM08025Z High tensile steel / Zinc / 200 | M8 x 25mm | 13 | 6 | 8 | 25 —
AACM08030Z High tensile steel / Zinc / 200 | M8 x 30MM | 13 | 6 | 8 | 28 —
AACM08035Z High tensile steel / Zinc / 200 | M8 x 35mm | 13 | 6 | 8 | 28 —
AACM08040Z High tensile steel / Zinc / 200 | M8 x 40mm | 13 | 6 | 8 | 28 —
AACM08050Z High tensile steel / Zinc / 100 | M8 x 50mm | 13 | 6 | 8 | 28 —
AACM08060Z High tensile steel / Zinc / 100 | M8 x 60mm | 13 | 6 | 8 | 28 —
AACM10020Z High tensile steel / Zinc / 200 | M10 x 20mm | 16 | 8 | 10 | 20 —
AACM10025Z High tensile steel / Zinc / 200 | M10 x 25mm | 16 | 8 | 10 | 25 —
AACM10030Z High tensile steel / Zinc / 200 | M10 x 30mm | 16 | 8 | 10 | 30 —
AACM10035Z High tensile steel / Zinc / 200 | M10 x 35mm | 16 | 8 | 10 | 32 —
AACM10040Z High tensile steel / Zinc / 100 | M10 x 40mm | 16 | 8 | 10 | 32 —
AACM10045Z High tensile steel / Zinc / 100 | M10 x 45mm | 16 | 8 | 10 | 32 —
AACM10050Z High tensile steel / Zinc / 100 | M10 x 50mm | 16 | 8 | 10 | 32 —
AACM10060Z High tensile steel / Zinc / 100 | M10 x 60mm | 16 | 8 | 10 | 32 —
AACM10070Z High tensile steel / Zinc / 100 | M10 x 70mm | 16 | 8 | 10 | 32 —
AACM12030Z High tensile steel / Zinc / 100 | M12 x 30mm | 18 | 10 | 12 | 30 —
AACM12035Z High tensile steel / Zinc / 100 | M12 x 35mm | 18 | 10 | 12 | 35 —
AACM12040Z High tensile steel / Zinc / 50 | M12 x 40mm | 18 | 10 | 12 | 36 —
AACM12045Z High tensile steel / Zinc / 50 | M12 x 45mm | 18 | 10 | 12 | 36 —
AACM12050Z High tensile steel / Zinc / 50 | M12 x 50mm | 18 | 10 | 12 | 36 —
AACM12060Z High tensile steel / Zinc / 50 | M12 x 60mm | 18 | 10 | 12 | 36 —
AACM12070Z High tensile steel / Zinc / 50 | M12 x 70mm | 18 | 10 | 12 | 36 —
AACM12075Z High tensile steel / Zinc / 50 | M12 x 75mm | 18 | 10 | 12 | 36 —
AACM16040Z High tensile steel / Zinc / 25 | M16 x 40mm | 24 | 14 | 16 | 40 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

SOCKET HEAD CAPSCREWS BZP STEEL
AACM03006Z

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Finish Pack Qty Size Head dia Wrench key size Head height Threaded length
AACM03006Z High tensile steel Zinc 200 M3 x 6mm 5.5 2.5 3 6
AACM03008Z High tensile steel Zinc 200 M3 x 8mm 5.5 2.5 3 8
AACM03010Z High tensile steel Zinc 200 M3 x 10mm 5.5 2.5 3 10
AACM03012Z High tensile steel Zinc 200 M3 x 12mm 5.5 2.5 3 12
AACM03016Z High tensile steel Zinc 200 M3 x 16mm 5.5 2.5 3 16
AACM03020Z High tensile steel Zinc 200 M3 x 20mm 5.5 2.5 3 18
AACM04006Z High tensile steel Zinc 200 M4 x 6mm 7 3 4 6
AACM04008Z High tensile steel Zinc 200 M4 x 8mm 7 3 4 8
AACM04010Z High tensile steel Zinc 200 M4 x 10mm 7 3 4 10
AACM04012Z High tensile steel Zinc 200 M4 x 12mm 7 3 4 12
AACM04016Z High tensile steel Zinc 200 M4 x 16mm 7 3 4 16
AACM04020Z High tensile steel Zinc 200 M4 x 20mm 7 3 4 20
AACM04025Z High tensile steel Zinc 200 M4 x 25mm 7 3 4 20
AACM05010Z High tensile steel Zinc 200 M5 x 10mm 8.5 4 5 10
AACM05012Z High tensile steel Zinc 200 M5 x 12mm 8.5 4 5 12
AACM05016Z High tensile steel Zinc 200 M5 x 16mm 8.5 4 5 16
AACM05020Z High tensile steel Zinc 200 M5 x 20mm 8.5 4 5 20
AACM05025Z High tensile steel Zinc 200 M5 x 25mm 8.5 4 5 22
AACM05030Z High tensile steel Zinc 200 M5 x 30mm 8.5 4 5 22
AACM05035Z High tensile steel Zinc 200 M5 x 35mm 8.5 4 5 22
AACM05040Z High tensile steel Zinc 200 M5 x 40mm 8.5 4 5 22
AACM06010Z High tensile steel Zinc 200 M6 x 10mm 10 5 6 10
AACM06012Z High tensile steel Zinc 200 M6 x 12mm 10 5 6 12
AACM06016Z High tensile steel Zinc 200 M6 x 16mm 10 5 6 16
AACM06020Z High tensile steel Zinc 200 M6 x 20mm 10 5 6 20
AACM06025Z High tensile steel Zinc 200 M6 x 25mm 10 5 6 24
AACM06030Z High tensile steel Zinc 200 M6 x 30mm 10 5 6 24
AACM06035Z High tensile steel Zinc 200 M6 x 35mm 10 5 6 24
AACM06040Z High tensile steel Zinc 200 M6 x 40mm 10 5 6 24
AACM06050Z High tensile steel Zinc 200 M6 x 50mm 10 5 6 24
AACM06060Z High tensile steel Zinc 200 M6 x 60mm 10 5 6 24
AACM08012Z High tensile steel Zinc 200 M8 x 12mm 13 6 8 12
AACM08016Z High tensile steel Zinc 200 M8 x 16mm 13 6 8 16
AACM08020Z High tensile steel Zinc 200 M8 x 20mm 13 6 8 20
AACM08025Z High tensile steel Zinc 200 M8 x 25mm 13 6 8 25
AACM08030Z High tensile steel Zinc 200 M8 x 30MM 13 6 8 28
AACM08035Z High tensile steel Zinc 200 M8 x 35mm 13 6 8 28
AACM08040Z High tensile steel Zinc 200 M8 x 40mm 13 6 8 28
AACM08050Z High tensile steel Zinc 100 M8 x 50mm 13 6 8 28
AACM08060Z High tensile steel Zinc 100 M8 x 60mm 13 6 8 28
AACM10020Z High tensile steel Zinc 200 M10 x 20mm 16 8 10 20
AACM10025Z High tensile steel Zinc 200 M10 x 25mm 16 8 10 25
AACM10030Z High tensile steel Zinc 200 M10 x 30mm 16 8 10 30
AACM10035Z High tensile steel Zinc 200 M10 x 35mm 16 8 10 32
AACM10040Z High tensile steel Zinc 100 M10 x 40mm 16 8 10 32
AACM10045Z High tensile steel Zinc 100 M10 x 45mm 16 8 10 32
AACM10050Z High tensile steel Zinc 100 M10 x 50mm 16 8 10 32
AACM10060Z High tensile steel Zinc 100 M10 x 60mm 16 8 10 32
AACM10070Z High tensile steel Zinc 100 M10 x 70mm 16 8 10 32
AACM12030Z High tensile steel Zinc 100 M12 x 30mm 18 10 12 30
AACM12035Z High tensile steel Zinc 100 M12 x 35mm 18 10 12 35
AACM12040Z High tensile steel Zinc 50 M12 x 40mm 18 10 12 36
AACM12045Z High tensile steel Zinc 50 M12 x 45mm 18 10 12 36
AACM12050Z High tensile steel Zinc 50 M12 x 50mm 18 10 12 36
AACM12060Z High tensile steel Zinc 50 M12 x 60mm 18 10 12 36
AACM12070Z High tensile steel Zinc 50 M12 x 70mm 18 10 12 36
AACM12075Z High tensile steel Zinc 50 M12 x 75mm 18 10 12 36
AACM16040Z High tensile steel Zinc 25 M16 x 40mm 24 14 16 40
