STEEL ZINC BUTTON DOMED HEAD ALLEN SOCKET SCREW

Similar product to ‘Button head Allen screw’

Find the right option

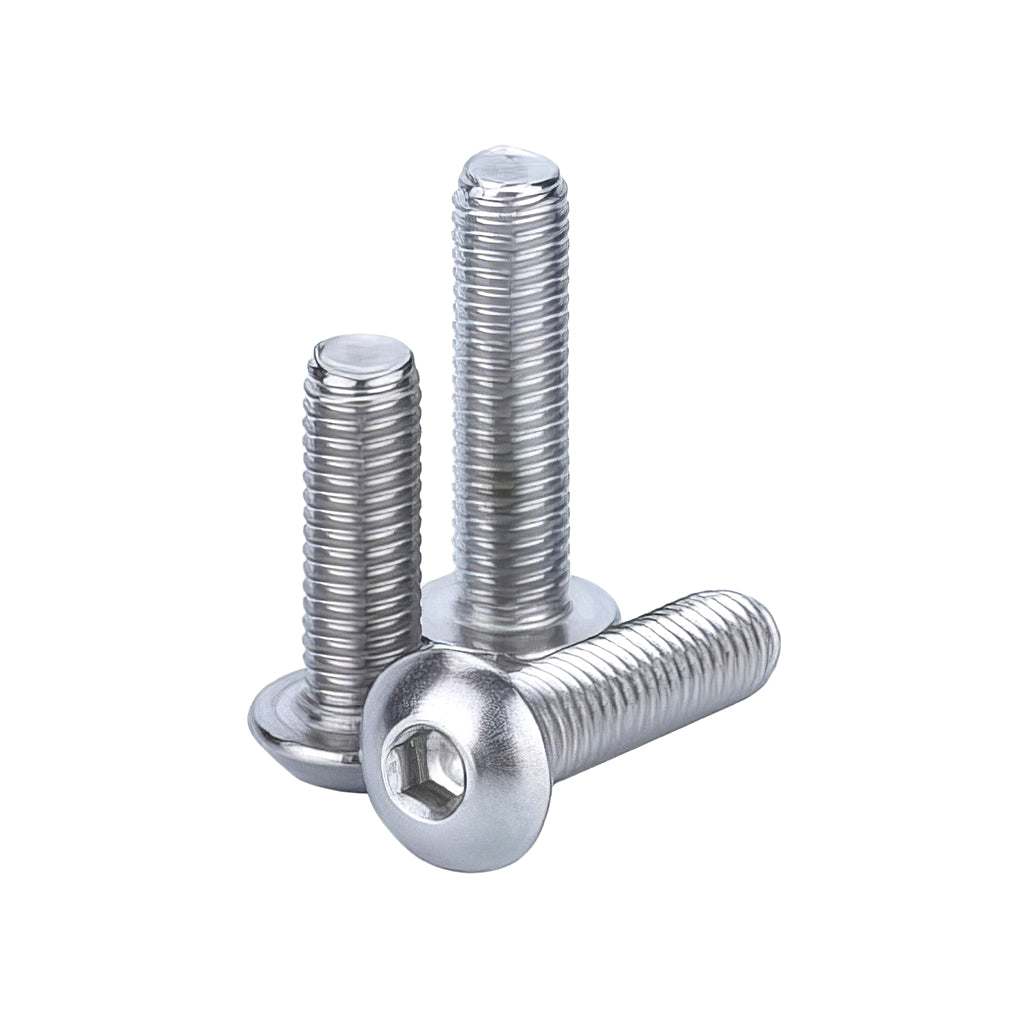

  • Steel zinc button domed head Allen socket screw high tensile grade 10.9
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Similar product to ‘Button head Allen screw’

Button (round dome) head

Material Grade 10.9 high tensile steel zinc. Please also view our range of steel self colour and stainless steel

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

24 options
Part numberSize / technical detailOther specificationAction
AABM03008Z High tensile steel / Zinc / 200 | M3 x 8mm | 5.7 | 2 | 1.65 | 8 —
AABM03010Z High tensile steel / Zinc / 200 | M3 x 10mm | 5.7 | 2 | 1.65 | 10 —
AABM04010Z High tensile steel / Zinc / 200 | M4 x10mm | 7.6 | 2.5 | 2.2 | 10 —
AABM04012Z High tensile steel / Zinc / 200 | M4 x 12mm | 7.6 | 2.5 | 2.2 | 12 —
AABM04016Z High tensile steel / Zinc / 200 | M4 x 16mm | 7.6 | 2.5 | 2.2 | 16 —
AABM04020Z High tensile steel / Zinc / 200 | M4 x 20mm | 7.6 | 2.5 | 2.2 | 20 —
AABM05008Z High tensile steel / Zinc / 200 | M5 x 8mm | 9.5 | 3 | 2.75 | 8 —
AABM05010Z High tensile steel / Zinc / 200 | M5 x 10mm | 9.5 | 3 | 2.75 | 10 —
AABM05012Z High tensile steel / Zinc / 200 | M5 x 12mm | 9.5 | 3 | 2.75 | 12 —
AABM05016Z High tensile steel / Zinc / 200 | M5 x 16mm | 9.5 | 3 | 2.75 | 16 —
AABM05020Z High tensile steel / Zinc / 200 | M5 x 20mm | 9.5 | 3 | 2.75 | 20 —
AABM05025Z High tensile steel / Zinc / 200 | M5 x 25mm | 9.5 | 3 | 2.75 | 25 —
AABM06012Z High tensile steel / Zinc / 200 | M6 x 12mm | 10.5 | 4 | 3.3 | 12 —
AABM06016Z High tensile steel / Zinc / 200 | M6 x 16mm | 10.5 | 4 | 3.3 | 16 —
AABM06020Z High tensile steel / Zinc / 200 | M6 x 20mm | 10.5 | 4 | 3.3 | 20 —
AABM06025Z High tensile steel / Zinc / 200 | M6 x 25mm | 10.5 | 4 | 3.3 | 25 —
AABM06030Z High tensile steel / Zinc / 200 | M6 x 30mm | 10.5 | 4 | 3.3 | 30 —
AABM06035Z High tensile steel / Zinc / 200 | M6 x 35mm | 10.5 | 4 | 3.3 | 35 —
AABM06040Z High tensile steel / Zinc / 200 | M6 x 40mm | 10.5 | 4 | 3.3 | 40 —
AABM08012Z High tensile steel / Zinc / 200 | M8 x 12mm | 14 | 5 | 4.4 | 12 —
AABM08016Z High tensile steel / Zinc / 200 | M8 x 16mm | 14 | 5 | 4.4 | 16 —
AABM08020Z High tensile steel / Zinc / 200 | M8 x 20mm | 14 | 5 | 4.4 | 20 —
AABM08025Z High tensile steel / Zinc / 200 | M8 x 25mm | 14 | 5 | 4.4 | 25 —
AABM08030Z High tensile steel / Zinc / 200 | M8 x 30MM | 14 | 5 | 4.4 | 30 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

STEEL ZINC BUTTON DOMED HEAD ALLEN SOCKET SCREW
AABM03008Z

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Finish Pack Qty Size Head dia Wrench key size Head height Threaded length
AABM03008Z High tensile steel Zinc 200 M3 x 8mm 5.7 2 1.65 8
AABM03010Z High tensile steel Zinc 200 M3 x 10mm 5.7 2 1.65 10
AABM04010Z High tensile steel Zinc 200 M4 x10mm 7.6 2.5 2.2 10
AABM04012Z High tensile steel Zinc 200 M4 x 12mm 7.6 2.5 2.2 12
AABM04016Z High tensile steel Zinc 200 M4 x 16mm 7.6 2.5 2.2 16
AABM04020Z High tensile steel Zinc 200 M4 x 20mm 7.6 2.5 2.2 20
AABM05008Z High tensile steel Zinc 200 M5 x 8mm 9.5 3 2.75 8
AABM05010Z High tensile steel Zinc 200 M5 x 10mm 9.5 3 2.75 10
AABM05012Z High tensile steel Zinc 200 M5 x 12mm 9.5 3 2.75 12
AABM05016Z High tensile steel Zinc 200 M5 x 16mm 9.5 3 2.75 16
AABM05020Z High tensile steel Zinc 200 M5 x 20mm 9.5 3 2.75 20
AABM05025Z High tensile steel Zinc 200 M5 x 25mm 9.5 3 2.75 25
AABM06012Z High tensile steel Zinc 200 M6 x 12mm 10.5 4 3.3 12
AABM06016Z High tensile steel Zinc 200 M6 x 16mm 10.5 4 3.3 16
AABM06020Z High tensile steel Zinc 200 M6 x 20mm 10.5 4 3.3 20
AABM06025Z High tensile steel Zinc 200 M6 x 25mm 10.5 4 3.3 25
AABM06030Z High tensile steel Zinc 200 M6 x 30mm 10.5 4 3.3 30
AABM06035Z High tensile steel Zinc 200 M6 x 35mm 10.5 4 3.3 35
AABM06040Z High tensile steel Zinc 200 M6 x 40mm 10.5 4 3.3 40
AABM08012Z High tensile steel Zinc 200 M8 x 12mm 14 5 4.4 12
AABM08016Z High tensile steel Zinc 200 M8 x 16mm 14 5 4.4 16
AABM08020Z High tensile steel Zinc 200 M8 x 20mm 14 5 4.4 20
AABM08025Z High tensile steel Zinc 200 M8 x 25mm 14 5 4.4 25
AABM08030Z High tensile steel Zinc 200 M8 x 30MM 14 5 4.4 30

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
