fasteners

BUTTON HEAD SOCKET SCREWS SELF COLOUR STEEL

Similar product to ‘Button head Allen screw’

Find the right option

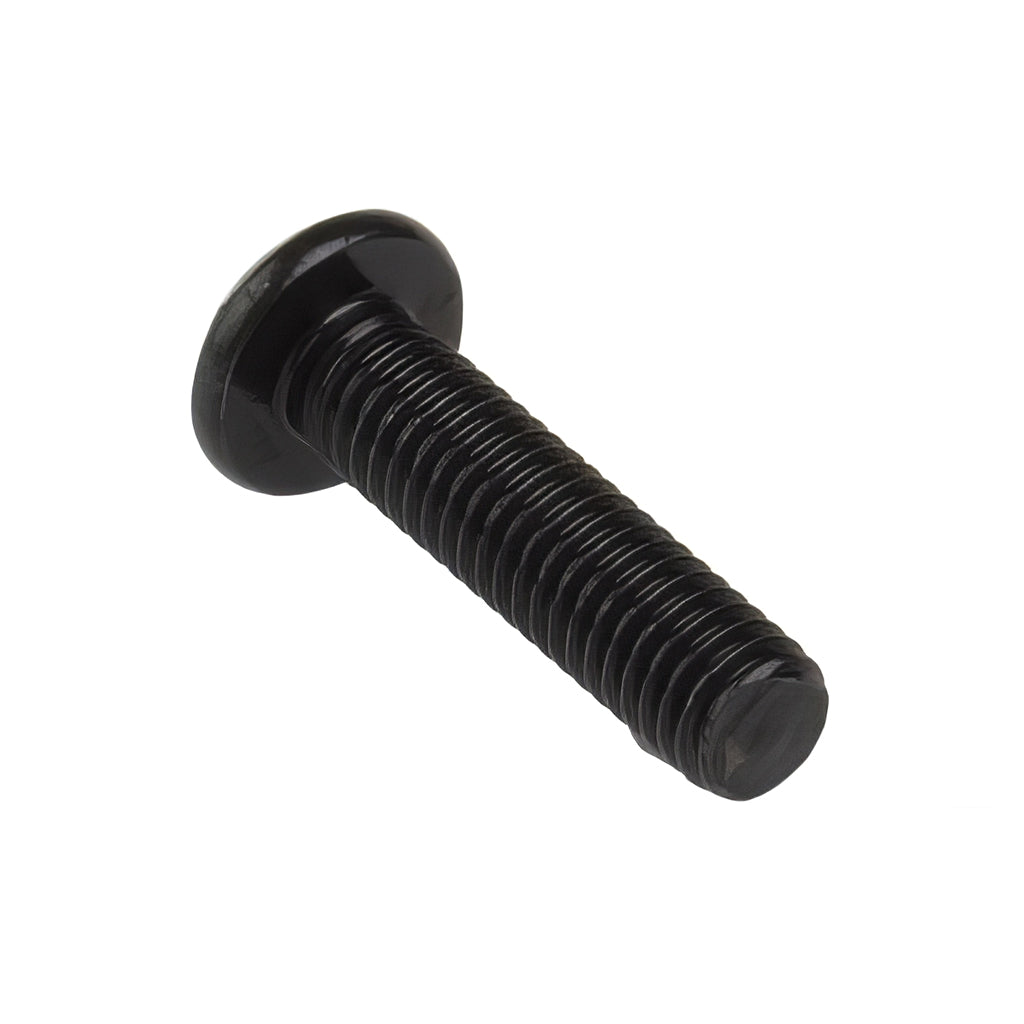

  • Button head socket screws made of grade 10.9 high tensile self-colour steel with round dome head design
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Similar product to ‘Button head Allen screw’

Button (round dome) head

Material Grade 10.9 high tensile steel self colour. Please also view our range of steel zinc and stainless steel

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

24 options
Part numberSize / technical detailOther specificationAction
AABM03008 High tensile steel / self colour / 200 | M3 x 8mm | 5.7 | 2 | 1.65 | 8 —
AABM03010 High tensile steel / self colour / 200 | M3 x 10mm | 5.7 | 2 | 1.65 | 10 —
AABM04010 High tensile steel / self colour / 200 | M4 x10mm | 7.6 | 2.5 | 2.2 | 10 —
AABM04012 High tensile steel / self colour / 200 | M4 x 12mm | 7.6 | 2.5 | 2.2 | 12 —
AABM04016 High tensile steel / self colour / 200 | M4 x 16mm | 7.6 | 2.5 | 2.2 | 16 —
AABM04020 High tensile steel / self colour / 200 | M4 x 20mm | 7.6 | 2.5 | 2.2 | 20 —
AABM05008 High tensile steel / self colour / 200 | M5 x 8mm | 9.5 | 3 | 2.75 | 8 —
AABM05010 High tensile steel / self colour / 200 | M5 x 10mm | 9.5 | 3 | 2.75 | 10 —
AABM05012 High tensile steel / self colour / 200 | M5 x 12mm | 9.5 | 3 | 2.75 | 12 —
AABM05016 High tensile steel / self colour / 200 | M5 x 16mm | 9.5 | 3 | 2.75 | 16 —
AABM05020 High tensile steel / self colour / 200 | M5 x 20mm | 9.5 | 3 | 2.75 | 20 —
AABM05025 High tensile steel / self colour / 200 | M5 x 25mm | 9.5 | 3 | 2.75 | 25 —
AABM06012 High tensile steel / self colour / 200 | M6 x 12mm | 10.5 | 4 | 3.3 | 12 —
AABM06016 High tensile steel / self colour / 200 | M6 x 16mm | 10.5 | 4 | 3.3 | 16 —
AABM06020 High tensile steel / self colour / 200 | M6 x 20mm | 10.5 | 4 | 3.3 | 20 —
AABM06025 High tensile steel / self colour / 200 | M6 x 25mm | 10.5 | 4 | 3.3 | 25 —
AABM06030 High tensile steel / self colour / 200 | M6 x 30mm | 10.5 | 4 | 3.3 | 30 —
AABM06035 High tensile steel / self colour / 200 | M6 x 35mm | 10.5 | 4 | 3.3 | 35 —
AABM06040 High tensile steel / self colour / 200 | M6 x 40mm | 10.5 | 4 | 3.3 | 40 —
AABM08012 High tensile steel / self colour / 200 | M8 x 12mm | 14 | 5 | 4.4 | 12 —
AABM08016 High tensile steel / self colour / 200 | M8 x 16mm | 14 | 5 | 4.4 | 16 —
AABM08020 High tensile steel / self colour / 200 | M8 x 20mm | 14 | 5 | 4.4 | 20 —
AABM08025 High tensile steel / self colour / 200 | M8 x 25mm | 14 | 5 | 4.4 | 25 —
AABM08030 High tensile steel / self colour / 200 | M8 x 30MM | 14 | 5 | 4.4 | 30 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

BUTTON HEAD SOCKET SCREWS SELF COLOUR STEEL
AABM03008

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Finish Pack Qty Size Head dia Wrench key size Head height Threaded length
AABM03008 High tensile steel self colour 200 M3 x 8mm 5.7 2 1.65 8
AABM03010 High tensile steel self colour 200 M3 x 10mm 5.7 2 1.65 10
AABM04010 High tensile steel self colour 200 M4 x10mm 7.6 2.5 2.2 10
AABM04012 High tensile steel self colour 200 M4 x 12mm 7.6 2.5 2.2 12
AABM04016 High tensile steel self colour 200 M4 x 16mm 7.6 2.5 2.2 16
AABM04020 High tensile steel self colour 200 M4 x 20mm 7.6 2.5 2.2 20
AABM05008 High tensile steel self colour 200 M5 x 8mm 9.5 3 2.75 8
AABM05010 High tensile steel self colour 200 M5 x 10mm 9.5 3 2.75 10
AABM05012 High tensile steel self colour 200 M5 x 12mm 9.5 3 2.75 12
AABM05016 High tensile steel self colour 200 M5 x 16mm 9.5 3 2.75 16
AABM05020 High tensile steel self colour 200 M5 x 20mm 9.5 3 2.75 20
AABM05025 High tensile steel self colour 200 M5 x 25mm 9.5 3 2.75 25
AABM06012 High tensile steel self colour 200 M6 x 12mm 10.5 4 3.3 12
AABM06016 High tensile steel self colour 200 M6 x 16mm 10.5 4 3.3 16
AABM06020 High tensile steel self colour 200 M6 x 20mm 10.5 4 3.3 20
AABM06025 High tensile steel self colour 200 M6 x 25mm 10.5 4 3.3 25
AABM06030 High tensile steel self colour 200 M6 x 30mm 10.5 4 3.3 30
AABM06035 High tensile steel self colour 200 M6 x 35mm 10.5 4 3.3 35
AABM06040 High tensile steel self colour 200 M6 x 40mm 10.5 4 3.3 40
AABM08012 High tensile steel self colour 200 M8 x 12mm 14 5 4.4 12
AABM08016 High tensile steel self colour 200 M8 x 16mm 14 5 4.4 16
AABM08020 High tensile steel self colour 200 M8 x 20mm 14 5 4.4 20
AABM08025 High tensile steel self colour 200 M8 x 25mm 14 5 4.4 25
AABM08030 High tensile steel self colour 200 M8 x 30MM 14 5 4.4 30

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
