Castors wheels

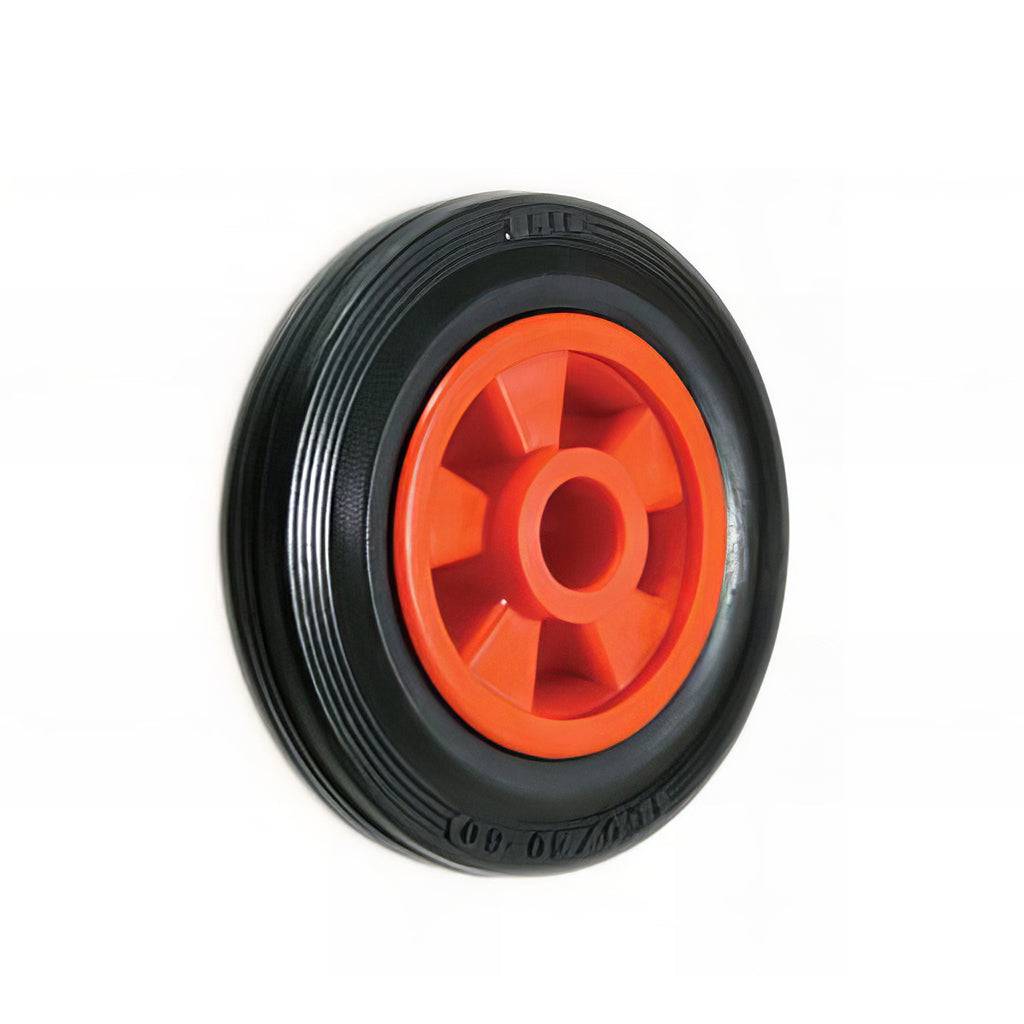

Medium/Heavy Duty Wheel – Black Rubber Tyre with Red Plastic Centre 120–350KG
Medium/Heavy Duty Wheel combines the traction and shock-absorbing benefits of a solid black rubber tyre with a strong, eye-catching red plastic centre, delivering dependable performance across a wide range of material handling equipment. Designed to support loads from approximately 120 kg up to 350 kg per...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Medium/Heavy Duty Wheel combines the traction and shock-absorbing benefits of a solid black rubber tyre with a strong, eye-catching red plastic centre, delivering dependable performance across a wide range of material handling equipment. Designed to support loads from approximately 120 kg up to 350 kg per wheel, this versatile wheel is ideal for trolleys, carts, mobile workstations, racks, and other fabrications where floor protection, cushioned movement, and durability are key.
Key Features & Benefits
Solid Black Rubber Tyre – The rubber tread absorbs vibration, cushion impacts, and provides excellent traction on smooth or slightly uneven surfaces, making movement smoother and quieter. Rubber wheels also help protect floors from scratches and surface damage.
Red Plastic Centre – A durable plastic wheel hub adds structural stability while keeping the wheel lightweight and easy to install. The bright red colour also makes these wheels easy to identify and aesthetically pleasing on equipment.
Medium/Heavy Load Capacity – Engineered to handle loads between 120 kg and 350 kg per wheel, making this wheel suitable for a broad spectrum of workshop, warehouse, and commercial material handling uses.
Balanced Performance – Provides a good mix of load support, floor friendliness, and smooth rolling, perfect for equipment that needs to be moved often without causing noise or surface marks.
Versatile Integration – Can be fitted with standard axles or bearings and integrated into custom builds, replacement castors, or wheel assemblies with ease.
Typical Uses
Tool trolleys and utility carts
Workshop, garage, and warehouse equipment
Mobile workbenches and storage units
Custom transport frames and fixtures
Why Choose Rubber Tyre Wheels?
Rubber tyre wheels like this model offer excellent shock absorption and traction compared with harder wheel materials, making them ideal for environments where equipment needs to move smoothly over different surfaces while also helping to protect floor finishes and reduce operating noise
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Wheel Dia | Wheel Type | Tread Width | Load Cap kg | Bearing | Hub Bore | Hub Width |
|---|---|---|---|---|---|---|---|
| CW160/WPK2051 | 160mm | Black rubber/red polyprop | 40 | 120 | Plain | 20 | 51 |
| CW160/WPK25451 | 160mm | Black rubber/red polyprop | 40 | 120 | Plain | 25.4 | 51 |
| CW200/WPK25451 | 200mm | Black rubber/red polyprop | 50 | 205 | Plain | 25.4 | 51 |
| CW200/WPKR25451 | 200mm | Black rubber/red polyprop | 50 | 205 | Roller | 25.4 | 51 |
| CW250/WPK25451 | 250mm | Black rubber/red polyprop | 60 | 275 | Plain | 25.4 | 51 |
| CW250/WPKR25451 | 250mm | Black rubber/red polyprop | 60 | 275 | Roller | 25.4 | 51 |
| CW250/WPKR2560 | 250mm | Black rubber/red polyprop | 60 | 275 | Roller | 25 | 60 |
| CW260/WPK25459 | 260mm | Black rubber/red polyprop | 95 | 125 | Plain | 25.4 | 59 |
| CW300/WPK25451 | 300mm | Black rubber/red polyprop | 60 | 280 | Plain | 25.4 | 51 |
| CW300/WPKR25451 | 300mm | Black rubber/red polyprop | 60 | 280 | Roller | 25.4 | 51 |
| CW350/WPK25466 | 350mm | Black rubber/red polyprop | 80 | 280 | Plain | 25.4 | 66 |
| CW350/WPKR25466 | 350mm | Black rubber/red polyprop | 80 | 300 | Roller | 25.4 | 66 |
| CW400/WPK25466 | 400mm | Black rubber/red polyprop | 100 | 350 | Plain | 25.4 | 66 |
| CW400/WPKR25466 | 400mm | Black rubber/red polyprop | 100 | 350 | Roller | 25.4 | 66 |
| CW400/WPKR2566 | 400mm | Black rubber/red polyprop | 100 | 350 | Roller | 25 | 66 |
Found the correct part number? Select it from the available options above and add it to your quote list.
