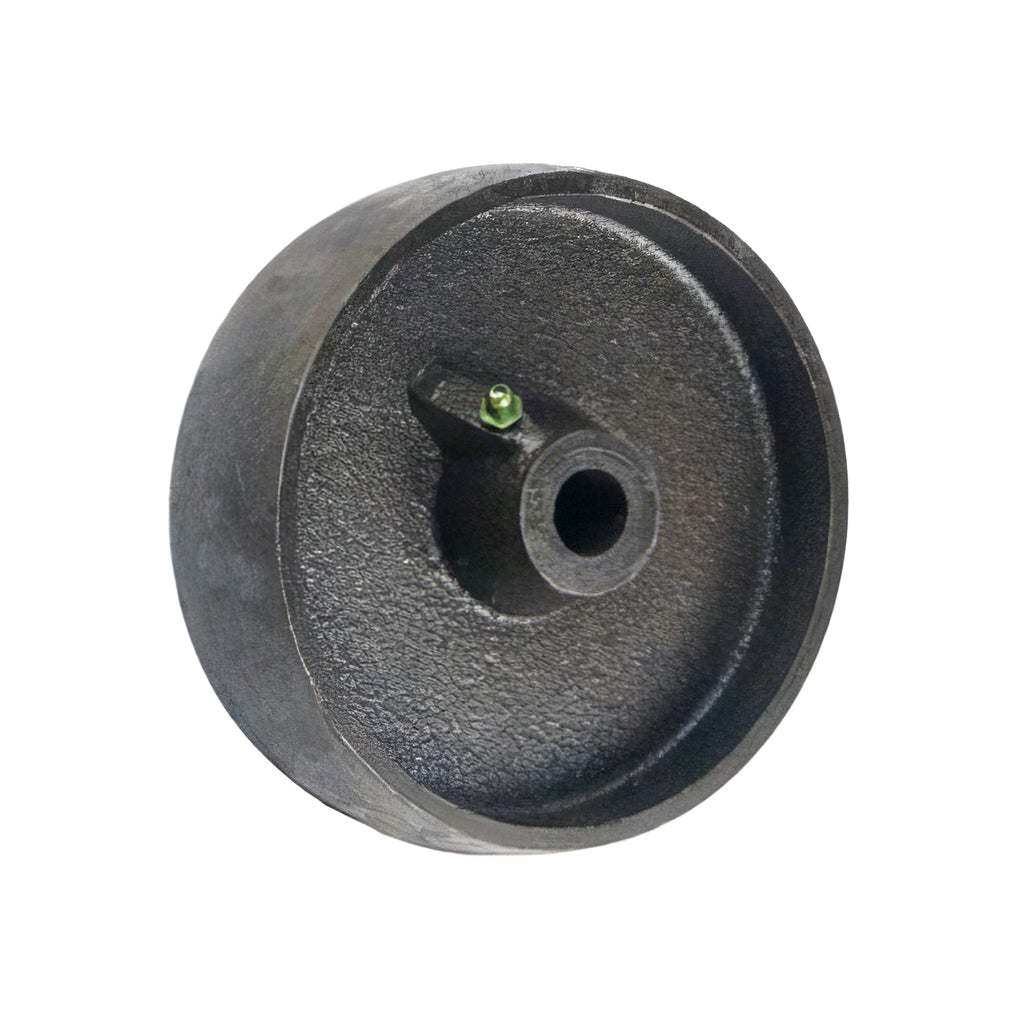

Medium/Heavy Duty Cast Iron Wheels 100-1250KG

Designed for industrial-grade performance and extreme durability, the CWCI Cast Iron Wheel range offers reliable heavy-load support across a wide variety of applications. Made from rugged cast iron, these wheels are ideal for demanding environments where strength, wear resistance, and long service life are essential. Whether...

Find the right option
  • Medium heavy-duty cast iron wheel supporting 100-1250kg for industrial use
  • contact our sale team
  • we won't be beaten on price
1 3

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Designed for industrial-grade performance and extreme durability, the CWCI Cast Iron Wheel range offers reliable heavy-load support across a wide variety of applications. Made from rugged cast iron, these wheels are ideal for demanding environments where strength, wear resistance, and long service life are essential. Whether you’re building heavy equipment trolleys, platform trucks, machinery, or workshop transports, these wheels deliver consistent performance under tough loads.

Key Features & Benefits

High Load-Bearing Strength: Built from solid cast iron, these wheels are engineered to support loads from 100 kg up to 1250 kg per wheel, making them a top choice for medium- to heavy-duty industrial use.

Exceptional Wear Resistance: Cast iron wheels feature a hard tread with excellent abrasion resistance, ensuring longevity even in abrasive workshop and factory environments.

Industrial-Grade Durability: The robust cast iron construction offers remarkable strength and resistance to wear and tear, ideal for harsh working conditions and frequent use.

Low Rolling Resistance: Although very tough, cast iron wheels roll efficiently on firm, debris-free surfaces — reducing the effort needed to move heavy loads.

Versatile Applications: Perfect for heavy trolleys, pallet trucks, machine bases, storage platforms, and material handling systems used in manufacturing, warehouses, garages, and workshops.

Long-Term Reliability: Ideal where longevity and heavy-load performance are paramount — even under continuous or repetitive use.

Why Choose Cast Iron Wheels?

Cast iron wheels are renowned for their strength and durability, delivering excellent performance in industrial settings where wheels must carry heavy loads day after day. They are particularly suited to rigid surfaces like concrete and environments where other softer materials might wear prematurely.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

29 options
Part numberSize / technical detailOther specificationAction
CW075/MMWCI 75mm / Cast iron / 32 | 100 | Plain | 12 | 39 —
CW080/MMWCI 80mm / Cast iron / 32 | 130 | Plain | 12 | 39 —
CW100/HWCI 100mm / Cast iron / 38 | 270 | Plain | 15 | 48 —
CW100/HWCIM23 100mm / Cast iron / 38 | 270 | Plain | 23 | 48 —
CW100/HWCIRBM15 100mm / Cast iron / 38 | 270 | Roller | 15 | 48 —
CW100/MHWCIBJM20 100mm / Cast iron / 38 | 260 | Ball journal | 20 | 45 —
CW100/MHWCIM20 100mm / Cast iron / 38 | 260 | Plain | 20 | 45 —
CW100/MMWCI 100mm / Cast iron / 35 | 240 | Plain | 12 | 39 —
CW100/MMWCIRBM12 100mm / Cast iron / 38 | 260 | Roller | 12 | 45 —
CW100/XHCIBJM20 100mm / Cast iron / 50 | 400 | Ball journal | 20 | 60 —
CW100/XHCIM20 100mm / Cast iron / 50 | 400 | Plain | 20 | 60 —
CW100/XHCIRBM20 100mm / Cast iron / 50 | 400 | Roller | 20 | 60 —
CW125/HWCI 125mm / Cast iron / 38 | 350 | Plain | 15 | 48 —
CW125/HWCIM20 125mm / Cast iron / 38 | 350 | Plain | 23 | 48 —
CW125/HWCIRBM15 125mm / Cast iron / 38 | 350 | Roller | 15 | 48 —
CW125/MHWCI 125mm / Cast iron / 38 | 350 | Plain | 15 | 44 —
CW125/MHWCIBJM20 125mm / Cast iron / 38 | 350 | Ball journal | 20 | 44 —
CW125/MHWCIM20 125mm / Cast iron / 38 | 350 | Plain | 20 | 44 —
CW125/MHWCIRBM12 125mm / Cast iron / 38 | 350 | Roller | 12 | 44 —
CW125/XHWCIBJM20 125mm / Cast iron / 50 | 550 | Ball journal | 20 | 60 —
CW125/XHWCIM20 125mm / Cast iron / 50 | 550 | Plain | 20 | 60 —
CW125/XHWCIRBM20 125mm / Cast iron / 50 | 550 | Roller | 20 | 60 —
CW150/HWCIBJM20 150mm / Cast iron / 50 | 910 | Ball journal | 20 | 60 —
CW150/HWCIM20 150mm / Cast iron / 50 | 910 | Plain | 20 | 60 —
CW150/HWCIRBM20 150mm / Cast iron / 50 | 910 | Roller | 20 | 60 —
CW200/HWCIBJM20 150mm / Cast iron / 50 | 1000 | Ball journal | 20 | 60 —
CW200/HWCIM20 150mm / Cast iron / 50 | 1000 | Plain | 20 | 60 —
CW200/HWCIRBM20 150mm / Cast iron / 50 | 1000 | Roller | 20 | 60 —
CW250/HWCIBJM20 200mm / Cast iron / 50 | 1250 | Ball journal | 20 | 60 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Medium/Heavy Duty Cast Iron Wheels 100-1250KG
CW075/MMWCI

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Wheel Dia Wheel Type Tread Width Load Cap kg Bearing Hub Bore Hub Width
CW075/MMWCI 75mm Cast iron 32 100 Plain 12 39
CW080/MMWCI 80mm Cast iron 32 130 Plain 12 39
CW100/HWCI 100mm Cast iron 38 270 Plain 15 48
CW100/HWCIM23 100mm Cast iron 38 270 Plain 23 48
CW100/HWCIRBM15 100mm Cast iron 38 270 Roller 15 48
CW100/MHWCIBJM20 100mm Cast iron 38 260 Ball journal 20 45
CW100/MHWCIM20 100mm Cast iron 38 260 Plain 20 45
CW100/MMWCI 100mm Cast iron 35 240 Plain 12 39
CW100/MMWCIRBM12 100mm Cast iron 38 260 Roller 12 45
CW100/XHCIBJM20 100mm Cast iron 50 400 Ball journal 20 60
CW100/XHCIM20 100mm Cast iron 50 400 Plain 20 60
CW100/XHCIRBM20 100mm Cast iron 50 400 Roller 20 60
CW125/HWCI 125mm Cast iron 38 350 Plain 15 48
CW125/HWCIM20 125mm Cast iron 38 350 Plain 23 48
CW125/HWCIRBM15 125mm Cast iron 38 350 Roller 15 48
CW125/MHWCI 125mm Cast iron 38 350 Plain 15 44
CW125/MHWCIBJM20 125mm Cast iron 38 350 Ball journal 20 44
CW125/MHWCIM20 125mm Cast iron 38 350 Plain 20 44
CW125/MHWCIRBM12 125mm Cast iron 38 350 Roller 12 44
CW125/XHWCIBJM20 125mm Cast iron 50 550 Ball journal 20 60
CW125/XHWCIM20 125mm Cast iron 50 550 Plain 20 60
CW125/XHWCIRBM20 125mm Cast iron 50 550 Roller 20 60
CW150/HWCIBJM20 150mm Cast iron 50 910 Ball journal 20 60
CW150/HWCIM20 150mm Cast iron 50 910 Plain 20 60
CW150/HWCIRBM20 150mm Cast iron 50 910 Roller 20 60
CW200/HWCIBJM20 150mm Cast iron 50 1000 Ball journal 20 60
CW200/HWCIM20 150mm Cast iron 50 1000 Plain 20 60
CW200/HWCIRBM20 150mm Cast iron 50 1000 Roller 20 60
CW250/HWCIBJM20 200mm Cast iron 50 1250 Ball journal 20 60

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
