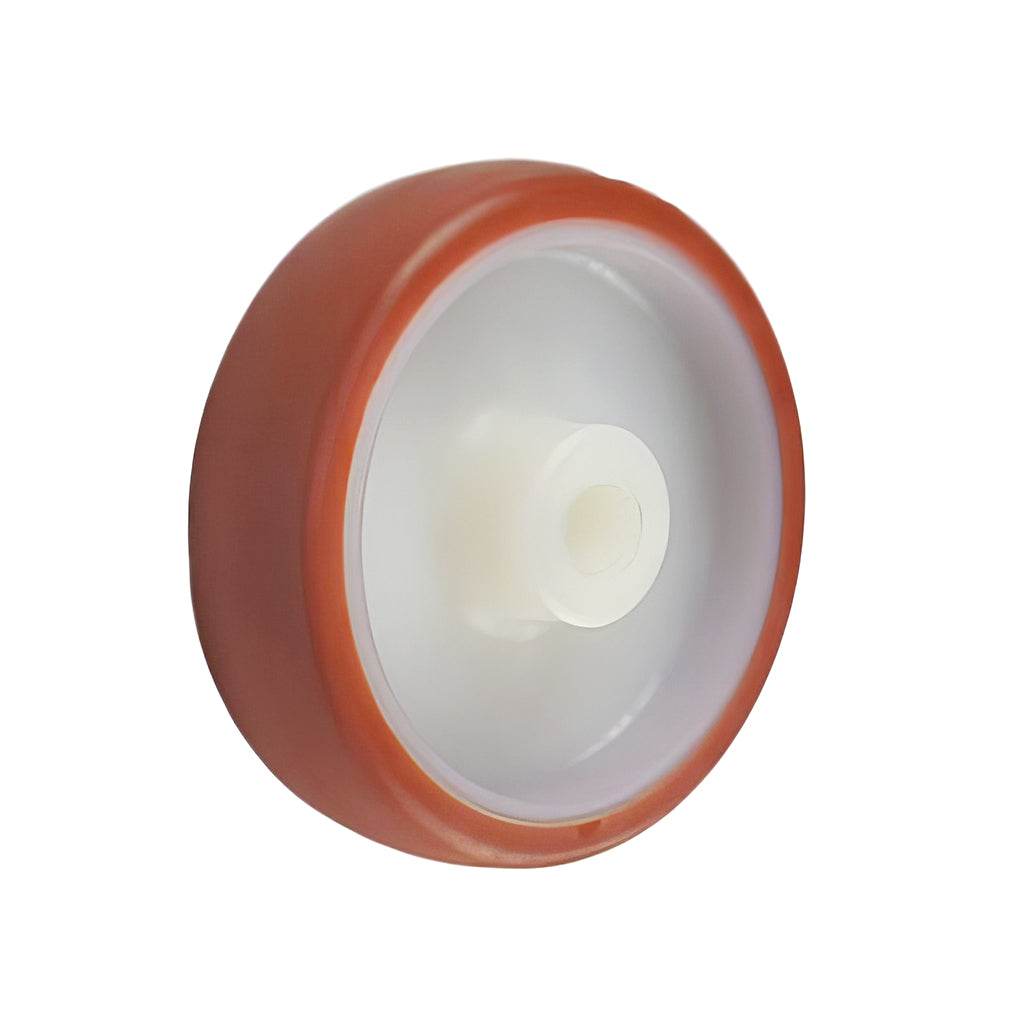

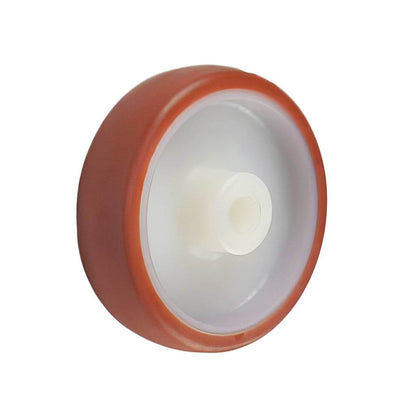

Medium Duty Wheel – Red Polyurethane Tyre with White Nylon Centre 100–365 KG

Durable, High-Performance Wheel for Smooth & Reliable Movement

Find the right option
  • Medium duty wheel with red polyurethane tyre and white nylon centre for 100-365 kg load capacity
  • contact our sale team
  • Medium Duty Nylon Wheel white industrial caster with 100-380 kg load capacity for trolleys and carts
1 3

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Durable, High-Performance Wheel for Smooth & Reliable Movement

Our CWNYB Medium Duty Wheel combines the strength and durability of a white nylon centre with the performance benefits of an orange polyurethane tyre — offering excellent traction, floor protection, and load capacity for everyday industrial and commercial applications. Suitable for loads from approximately 100 kg up to 365 kg per wheel, this wheel is ideal for trolleys, carts, material handling equipment, mobile workstations, and workshop builds.

Key Features & Benefits

High-Quality Polyurethane Tyre: The orange polyurethane tread delivers excellent wear resistance, traction, and shock absorption, providing a smooth, quiet ride while protecting floors from marks and damage — ideal for indoor environments.

Strong Nylon Centre: A white nylon hub gives the wheel strength and durability while keeping overall weight low — perfect for medium duty use and long operational life.

Medium Duty Load Capacity: Designed for loads between 100 kg and 365 kg per wheel, this wheel offers the capacity and reliability needed for many workshop, warehouse, and retail applications.

Floor-Friendly & Non-Marking: Polyurethane tyres are known for leaving minimal marks on floors and reducing noise during movement — making them suitable for environments where floor quality matters.

Reduced Rolling Resistance: Polyurethane offers lower rolling resistance compared with rubber, helping to make movement easier and reduce operator effort.

Versatile Applications: Perfect for use on trolleys, carts, mobile platforms, racks, tool cabinets and handling frames where a balance of load capacity and smooth motion is required.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

5 options
Part numberSize / technical detailOther specificationAction
CW080/NYB 80mm / Red polyurethane/white nylon / 30 | Plain | 12 | 40 | 100 —
CW100/NYB 100mm / Red polyurethane/white nylon / 30 | Plain | 12 | 40 | 130 —
CW125/NYB 125mm / Red polyurethane/white nylon / 39 | Plain | 15 | 44 | 200 —
CW150/NYB 150mm / Red polyurethane/white nylon / 40 | Plain | 20 | 45 | 250 —
CW200/NYB 200mm / Red polyurethane/white nylon / 50 | Plain | 20 | 58 | 365 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

Medium Duty Wheel – Red Polyurethane Tyre with White Nylon Centre 100–365 KG
CW080/NYB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Wheel Dia Wheel Type Tread Width Bearing Hub Bore Hub Width Load Cap kg
CW080/NYB 80mm Red polyurethane/white nylon 30 Plain 12 40 100
CW100/NYB 100mm Red polyurethane/white nylon 30 Plain 12 40 130
CW125/NYB 125mm Red polyurethane/white nylon 39 Plain 15 44 200
CW150/NYB 150mm Red polyurethane/white nylon 40 Plain 20 45 250
CW200/NYB 200mm Red polyurethane/white nylon 50 Plain 20 58 365

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
