Medium Duty Wheel – Black Rubber Tyre with Steel Centre & Roller Bearing 50-300KG
Our CWERS Medium Duty Wheel features a tough black rubber tyre fitted over a pressed steel centre with a roller bearing for reliable, low-resistance movement. Designed for everyday industrial and commercial applications, this wheel supports loads from 50 kg up to 300 kg per wheel, making...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description

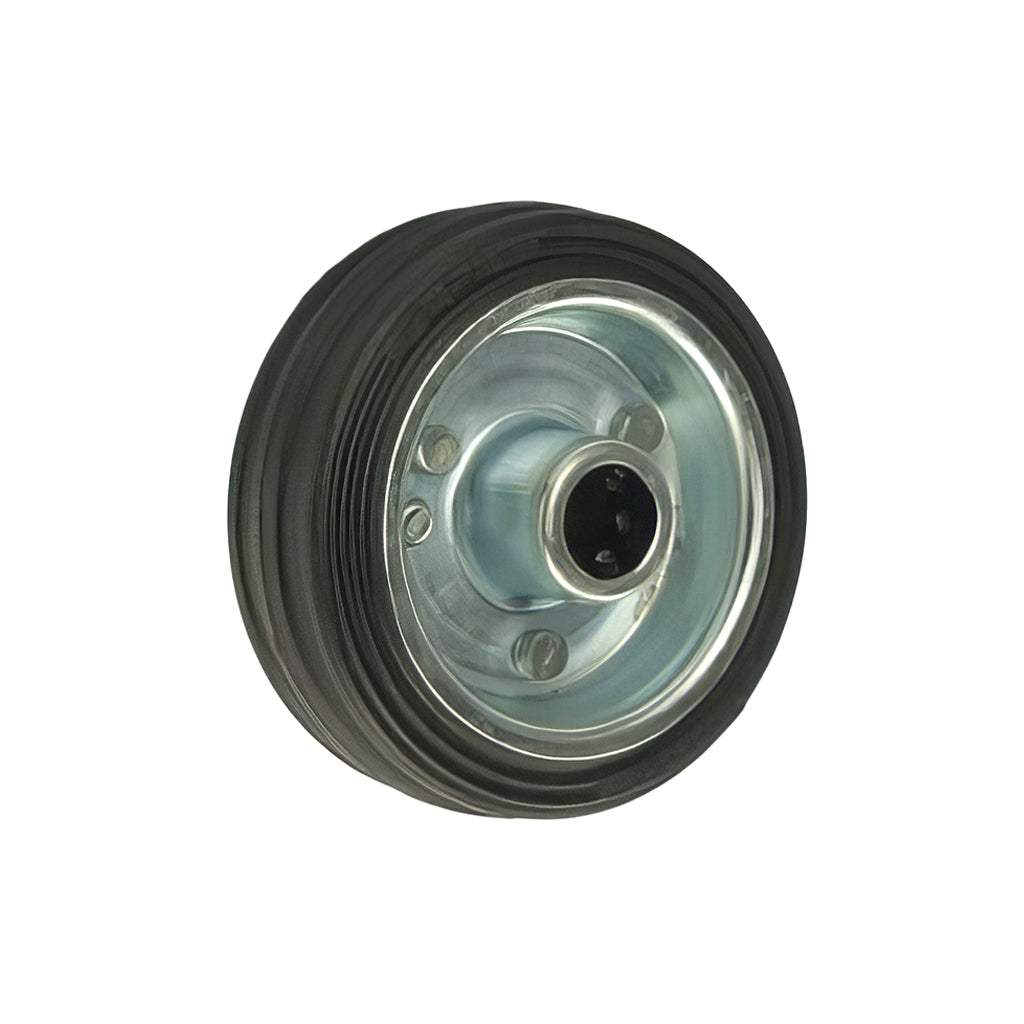

Our CWERS Medium Duty Wheel features a tough black rubber tyre fitted over a pressed steel centre with a roller bearing for reliable, low-resistance movement. Designed for everyday industrial and commercial applications, this wheel supports loads from 50 kg up to 300 kg per wheel, making it a versatile choice for trolleys, carts, mobile workstations, handling frames and general equipment transportation.
Key Features & Benefits
Black Rubber Tyre for Smooth, Cushioned Movement: The solid rubber tread delivers vibration-absorbing performance that helps protect floors and improves comfort when moving equipment over uneven surfaces.
Pressed Steel Centre: A strong steel hub provides excellent structural support and durability for consistent performance in demanding environments.
Roller Bearing for Low Rolling Resistance: Integrated roller bearings reduce friction under load—making it easier to move heavy items with less effort and smoother rolling action.
Medium Duty Load Capacity: Suitable for loads ranging from around 50 kg to 300 kg per wheel, providing flexibility for a wide variety of workshop, warehouse, and industrial uses.
Versatile and Economical: A cost-effective choice for everyday wheel replacements or custom equipment builds — ideal for racks, carts, dollies, supply trolleys, and more.
Typical Applications
✔ Industrial and warehouse trolleys
✔ Material handling carts and frames
✔ Workshop and maintenance equipment
✔ Portable racks and tool cabinets
✔ Dolly replacements and caster upgrades
Why Choose This Wheel?
This medium duty wheel combines the traction and cushioning of a rubber tyre with the strength of a steel centre and smooth action of a roller bearing, giving you a reliable yet cost-effective solution for everyday mobility tasks. Whether you’re building mobile equipment from scratch or replacing worn-out wheels, this product delivers long-lasting performance and smoother movement across a broad range of load-bearing applications.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Wheel Dia | Wheel Type | Tread Width | Load Cap kg | Bearing | Hub Bore | Hub Width |
|---|---|---|---|---|---|---|---|
| CW080/ERS | 80mm | Black rubber/steel | 25 | 50 | Roller | 12 | 39 |
| CW100/ERS | 100mm | Black rubber/steel | 30 | 70 | Roller | 12 | 39 |
| CW125/ERS | 125mm | Black rubber/steel | 37.5 | 100 | Roller | 20 | 44 |
| CW150/ERS | 150mm | Black rubber/steel | 40 | 150 | Roller | 20 | 45 |
| CW200/ERS | 200mm | Black rubber/steel | 50 | 220 | Roller | 20 | 58 |
Found the correct part number? Select it from the available options above and add it to your quote list.
