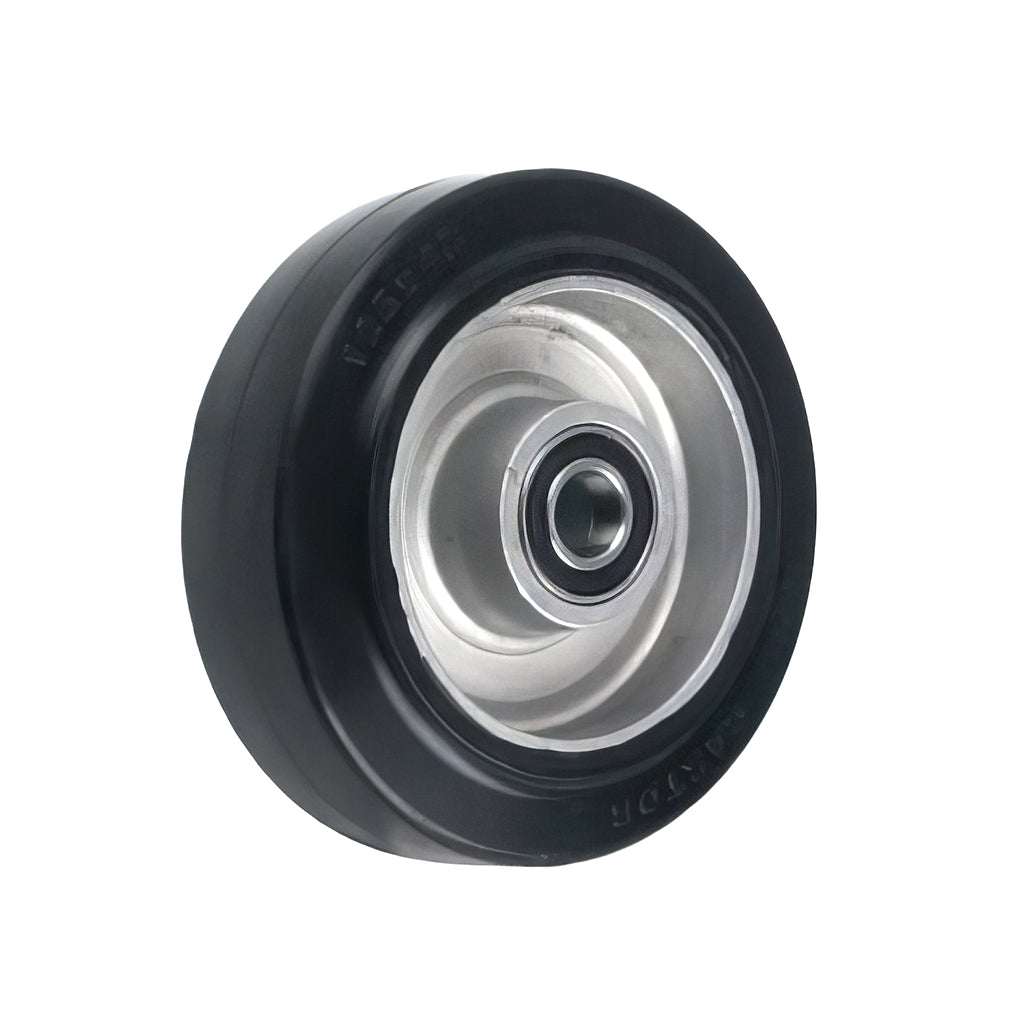

Medium/Heavy Duty Wheel – Elastic Rubber Tyre with Aluminium Centre 125 – 800 KG
Medium/Heavy Duty Wheel combines a resilient elastic rubber tyre with a strong aluminium centre to deliver smooth movement, excellent load-bearing and long-lasting performance for demanding applications. Built to support loads from approximately 125 kg up to 800 kg per wheel, this wheel is ideal for heavy-duty...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Medium/Heavy Duty Wheel combines a resilient elastic rubber tyre with a strong aluminium centre to deliver smooth movement, excellent load-bearing and long-lasting performance for demanding applications. Built to support loads from approximately 125 kg up to 800 kg per wheel, this wheel is ideal for heavy-duty trolleys, industrial carts, machinery platforms, workshop equipment and commercial handling systems.
Key Features & Benefits
Elastic Rubber Tyre: Constructed from a special elastic rubber compound that absorbs shocks, minimises vibration and reduces noise, giving a smooth, quiet rolling experience — even on rough or uneven surfaces.
Aluminium Centre: A lightweight yet strong aluminium wheel hub provides excellent durability, corrosion resistance and stability under load — ideal where both strength and weight savings matter.
High Load Capacity: Engineered to carry loads from 125 kg up to 800 kg per wheel, making this product suitable for medium to heavy duty industrial use.
Floor-Friendly & Quiet: Elastic rubber tyres are gentle on flooring, helping protect surfaces such as concrete, tile, wood or epoxy without marking while reducing noise levels during movement — good for workplaces where quiet operation is needed.
Smooth Performance: The material’s natural flexibility and grip provide good traction and easier manoeuvrability, helping reduce operator fatigue during regular movement tasks.
Versatile Use Cases: Excellent for industrial workshops, warehouses, logistics trolleys, production lines, mobile workstations and heavy-load mobile equipment.
Typical Applications
✔ Heavy-duty trolleys and transport carts
✔ Workshop and factory handling equipment
✔ Industrial machinery platforms
✔ Warehouse racks and mobile storage systems
✔ Equipment that demands smooth, quiet, floor-friendly movement
Why Choose Elastic Rubber Wheels with Aluminium Centres?
Elastic rubber wheels are known for higher load-bearing capacity and operational comfort compared with standard solid rubber while remaining gentle on floors and quieter in motion. Paired with a robust aluminium centre, this wheel strikes a great balance between strength, performance and longevity in demanding environments such as factories, warehouses, workshops and commercial facilities.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Wheel Dia | Wheel Type | Tread Width | Load Cap kg | Bearing | Hub Bore | Hub Width |
|---|---|---|---|---|---|---|---|
| CW075/MWERBJM12 | 75mm | Black rubber/aluminium | 32 | 125 | Ball journal | 12 | 29 |
| CW080/HWERBJM15 | 80mm | Black rubber/aluminium | 40 | 180 | Ball journal | 15 | 40 |
| CW080/HWERGBJM15 | 80mm | Grey rubber/aluminium | 40 | 180 | Ball journal | 15 | 40 |
| CW100/HWERBJM15 | 100mm | Black rubber/aluminium | 40 | 200 | Ball journal | 15 | 40 |
| CW100/HWERGBJM15 | 100mm | Grey rubber/aluminium | 40 | 200 | Ball journal | 15 | 40 |
| CW125/HWERBJM15 | 125mm | Black rubber/aluminium | 40 | 250 | Ball journal | 15 | 45 |
| CW125/HWERBJM20 | 125mm | Black rubber/aluminium | 50 | 270 | Ball journal | 20 | 60 |
| CW125/HWERGBJM15 | 125mm | Grey rubber/aluminium | 40 | 250 | Ball journal | 15 | 45 |
| CW150/HWERBJM15 | 150mm | Black rubber/aluminium | 40 | 300 | Ball journal | 15 | 50 |
| CW150/HWERBJM20 | 150mm | Black rubber/aluminium | 50 | 350 | Ball journal | 20 | 60 |
| CW160/HWERBJM20 | 160mm | Black rubber/aluminium | 50 | 400 | Ball journal | 20 | 60 |
| CW160/HWERGBJM20 | 160mm | Grey rubber/aluminium | 50 | 400 | Ball journal | 20 | 60 |
| CW180/HWERBJM20 | 180mm | Black rubber/aluminium | 50 | 450 | Ball journal | 20 | 60 |
| CW200/HWERBJM20 | 200mm | Black rubber/aluminium | 50 | 500 | Ball journal | 20 | 60 |
| CW200/HWERBJM20WT | 200mm | Black rubber/aluminium | 60 | 500 | Ball journal | 20 | 60 |
| CW200/HWERGBJM20 | 200mm | Grey rubber/aluminium | 50 | 500 | Ball journal | 20 | 60 |
| CW250/HWERBJM20 | 250mm | Black rubber/aluminium | 50 | 650 | Ball journal | 20 | 60 |
| CW250/XHWERBJM25 | 250mm | Black rubber/aluminium | 75 | 625 | Ball journal | 25 | 83 |
| CW300/HWERBJM30 | 300mm | Black rubber/aluminium | 80 | 800 | Ball journal | 30 | 83 |
Found the correct part number? Select it from the available options above and add it to your quote list.
