Castors wheels

HEAVY DUTY PLATE MOUNTED CASTOR C/W CAST IRON WHEEL 910-1250KG

Extra heavy duty plate fitting castor with housing manufactured from fabricated steel, bright zinc plated.

Find the right option

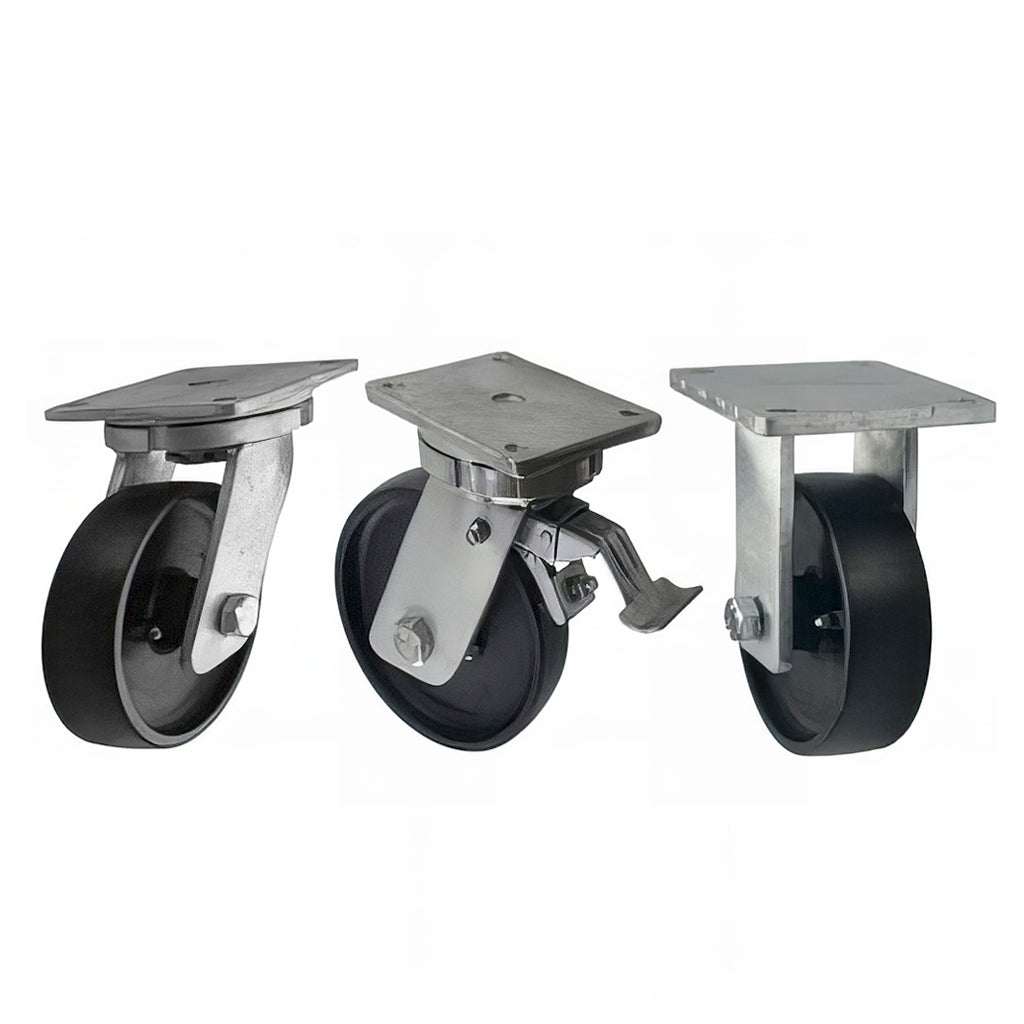

  • Heavy duty plate mounted castor with cast iron wheel and zinc plated steel housing
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Extra heavy duty plate fitting castor with housing manufactured from fabricated steel, bright zinc plated.

Thrust ball/tapered roller bearing swivel head fully sealed, with grease nipple.

Wheels of solid cast iron, ball bearing axles.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

18 options
Part numberSize / technical detailOther specificationAction
C150/QCIBJ Swivel / 150mm / Cast iron | 50 | 130 | 212 | 175x140 | 910 | 140x105 (14) | Ball journal —
C150/QCIJBSWB Swivel braked / 150mm / Cast iron | 50 | 140 | 212 | 175x140 | 910 | 140x105 (14) | Ball journal —
C150/QFCIBJ Fixed / 150mm / Cast iron | 50 | 130 | 212 | 175x140 | 910 | 140x105 (14) | Ball journal —
C150/QFCIBJ Fixed / 150mm / Cast iron | 50 | 140 | 212 | 175x140 | 910 | 140x105 (14) | Ball journal —
C150/QFCIBJ Fixed / 150mm / Cast iron | 50 | 167 | 212 | 175x140 | 910 | 140x105 (14) | Ball journal —
C150/QFCIBJ Fixed / 150mm / Cast iron | 50 | 205 | 212 | 175x140 | 910 | 140x105 (14) | Ball journal —
C200/QCIBJ50 Swivel / 200mm / Cast iron | 50 | 167 | 264 | 175x140 | 1000 | 140x105 (14) | Ball journal —
C200/QCISWB50 Swivel braked / 200mm / Cast iron | 50 | 167 | 264 | 175x140 | 1000 | 140x105 (14) | Plain —
C200/QFBCI50 Fixed / 200mm / Cast iron | 50 | 130 | 264 | 175x140 | 1000 | 140x105 (14) | Roller —
C200/QFBCI50 Fixed / 200mm / Cast iron | 50 | 140 | 264 | 175x140 | 1000 | 140x105 (14) | Roller —
C200/QFBCI50 Fixed / 200mm / Cast iron | 50 | 167 | 264 | 175x140 | 1000 | 140x105 (14) | Roller —
C200/QFBCI50 Fixed / 200mm / Cast iron | 50 | 205 | 264 | 175x140 | 1000 | 140x105 (14) | Roller —
C250/QCIBJ50 Swivel / 250mm / Cast iron | 50 | 205 | 314 | 175x140 | 1250 | 140x105 (14) | Ball journal —
C250/QCISWB50 Swivel braked / 250mm / Cast iron | 50 | 205 | 314 | 175x140 | 1250 | 140x105 (14) | Plain —
C250/QFBCI50 Fixed / 250mm / Cast iron | 50 | 130 | 314 | 175x140 | 1250 | 140x105 (14) | Roller —
C250/QFBCI50 Fixed / 250mm / Cast iron | 50 | 140 | 314 | 175x140 | 1250 | 140x105 (14) | Roller —
C250/QFBCI50 Fixed / 250mm / Cast iron | 50 | 167 | 314 | 175x140 | 1250 | 140x105 (14) | Roller —
C250/QFBCI50 Fixed / 250mm / Cast iron | 50 | 205 | 314 | 175x140 | 1250 | 140x105 (14) | Roller —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

HEAVY DUTY PLATE MOUNTED CASTOR C/W CAST IRON WHEEL 910-1250KG
C150/QCIBJ

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Bearing
C150/QCIBJ Swivel 150mm Cast iron 50 130 212 175x140 910 140x105 (14) Ball journal
C150/QCIJBSWB Swivel braked 150mm Cast iron 50 140 212 175x140 910 140x105 (14) Ball journal
C150/QFCIBJ Fixed 150mm Cast iron 50 130 212 175x140 910 140x105 (14) Ball journal
C150/QFCIBJ Fixed 150mm Cast iron 50 140 212 175x140 910 140x105 (14) Ball journal
C150/QFCIBJ Fixed 150mm Cast iron 50 167 212 175x140 910 140x105 (14) Ball journal
C150/QFCIBJ Fixed 150mm Cast iron 50 205 212 175x140 910 140x105 (14) Ball journal
C200/QCIBJ50 Swivel 200mm Cast iron 50 167 264 175x140 1000 140x105 (14) Ball journal
C200/QCISWB50 Swivel braked 200mm Cast iron 50 167 264 175x140 1000 140x105 (14) Plain
C200/QFBCI50 Fixed 200mm Cast iron 50 130 264 175x140 1000 140x105 (14) Roller
C200/QFBCI50 Fixed 200mm Cast iron 50 140 264 175x140 1000 140x105 (14) Roller
C200/QFBCI50 Fixed 200mm Cast iron 50 167 264 175x140 1000 140x105 (14) Roller
C200/QFBCI50 Fixed 200mm Cast iron 50 205 264 175x140 1000 140x105 (14) Roller
C250/QCIBJ50 Swivel 250mm Cast iron 50 205 314 175x140 1250 140x105 (14) Ball journal
C250/QCISWB50 Swivel braked 250mm Cast iron 50 205 314 175x140 1250 140x105 (14) Plain
C250/QFBCI50 Fixed 250mm Cast iron 50 130 314 175x140 1250 140x105 (14) Roller
C250/QFBCI50 Fixed 250mm Cast iron 50 140 314 175x140 1250 140x105 (14) Roller
C250/QFBCI50 Fixed 250mm Cast iron 50 167 314 175x140 1250 140x105 (14) Roller
C250/QFBCI50 Fixed 250mm Cast iron 50 205 314 175x140 1250 140x105 (14) Roller

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
