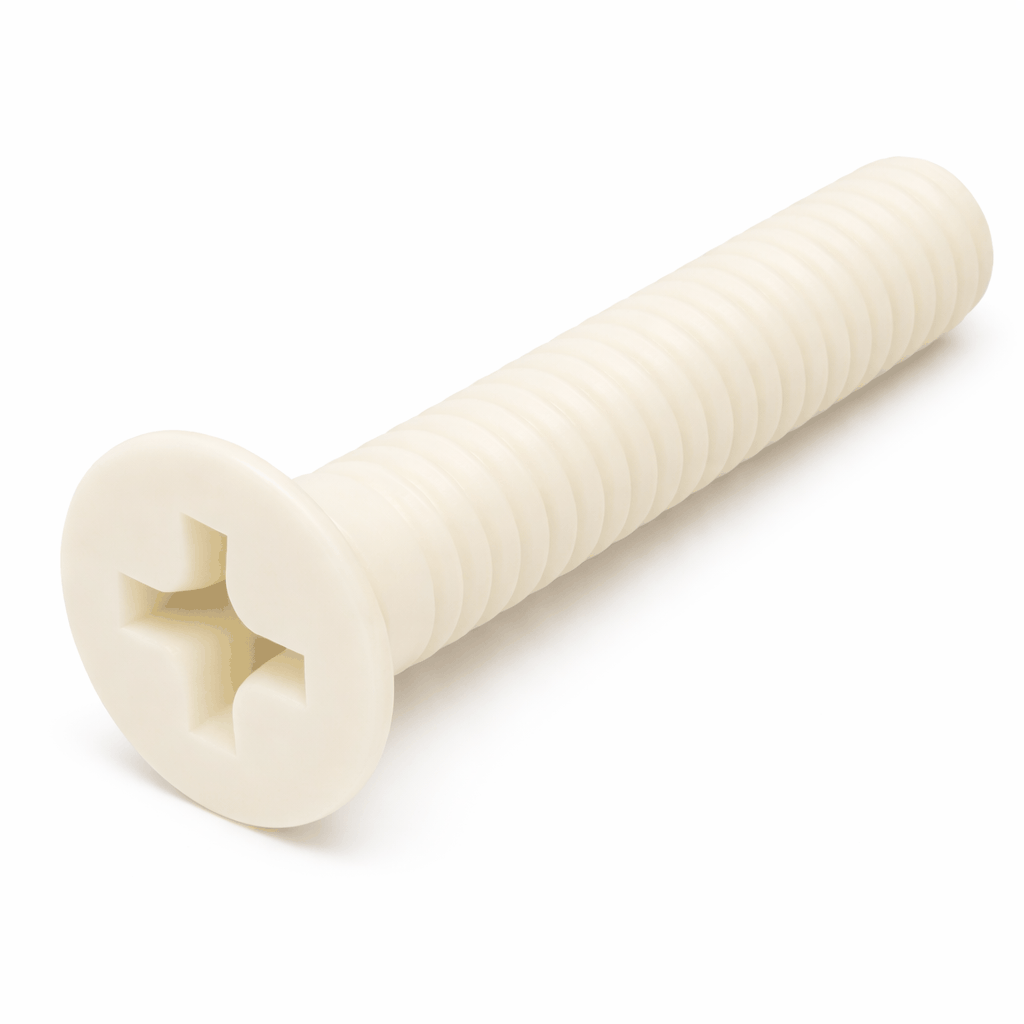

• Countersunk Phillips screw nylon metric DIN 965 plastic machine screw pack of 1000
1 1

Countersunk Phillips Screw - Nylon Metric DIN 965

Countersunk Phillips Screw - Nylon Metric DIN 965

moulded nylon PA66 DIN 965 (EN iSO 7046) metric countersunk Phillips screws provide flush, low-profile finish ideal for precision applications. These plastic machine screws offer excellent corrosion resistance and a high strength-to-weight ratio. Non-magnetic and low in thermal conductivity, DIN 965 nylon screws are suitable for use with Phillips cross-drive tools and are ideal for use in electronics, automotive and light industrial assemblies.

Supplied in packs of 1000

  • Thread M2, M2.5, M3, M4, M5, M6, M8 and M10
  • Lengths: 4-70mm
  • Nylon 66
  • UL94-V2
  • RoHS Compliant
  • Operating Temperature -35 to +85°C
  • Black available to order, please call
How to Request a Quote
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!
View full details
Sku Desc Thread Head Dia Length
MS-M02-004-CSKP005 M2 X 5 M2 3.8mm 5mm
MS-M02-004-CSKP006 M2 X 6 M2 3.8mm 6mm
MS-M02-004-CSKP008 M2 X 8 M2 3.8mm 8mm
MS-M02-004-CSKP010 M2 X 10 M2 3.8mm 10mm
MS-M02-004-CSKP012 M2 X 12 M2 3.8mm 12mm
MS-M02-004-CSKP016 M2 X 16 M2 3.8mm 16mm
MS-M02-004-CSKP020 M2 X 20 M2 3.8mm 20mm
MS-M02-004-CSKP025 M2 X 25 M2 3.8mm 25mm
MS-M025-0045-CSKP005 M2.5 X 5 M2.5 4.7mm 5mm
MS-M025-0045-CSKP006 M2.5 X 6 M2.5 4.7mm 6mm
MS-M025-0045-CSKP008 M2.5 X 8 M2.5 4.7mm 8mm
MS-M025-0045-CSKP010 M2.5 X 10 M2.5 4.7mm 10mm
MS-M025-0045-CSKP012 M2.5 X 12 M2.5 4.7mm 12mm
MS-M025-0045-CSKP016 M2.5 X 16 M2.5 4.7mm 16mm
MS-M025-0045-CSKP020 M2.5 X 20 M2.5 4.7mm 20mm
MS-M025-0045-CSKP025 M2.5 X 25 M2.5 4.7mm 25mm
MS-M03-005-CSKP005 M3 X 5 M3 5.6mm 5mm
MS-M03-005-CSKP006 M3 X 6 M3 5.6mm 6mm
MS-M03-005-CSKP008 M3 X 8 M3 5.6mm 8mm
MS-M03-005-CSKP010 M3 X 10 M3 5.6mm 10mm
MS-M03-005-CSKP012 M3 X 12 M3 5.6mm 12mm
MS-M03-005-CSKP016 M3 X 16 M3 5.6mm 16mm
MS-M03-005-CSKP020 M3 X 20 M3 5.6mm 20mm
MS-M03-005-CSKP025 M3 X 25 M3 5.6mm 25mm
MS-M03-005-CSKP030 M3 X 30 M3 5.6mm 30mm
MS-M03-005-CSKP035 M3 X 35 M3 5.6mm 35mm
MS-M04-007-CSKP006 M4 X 6 M4 7.5mm 6mm
MS-M04-007-CSKP008 M4 X 8 M4 7.5mm 8mm
MS-M04-007-CSKP010 M4 X 10 M4 7.5mm 10mm
MS-M04-007-CSKP012 M4 X 12 M4 7.5mm 12mm
MS-M04-007-CSKP016 M4 X 16 M4 7.5mm 16mm
MS-M04-007-CSKP020 M4 X 20 M4 7.5mm 20mm
MS-M04-007-CSKP025 M4 X 25 M4 7.5mm 25mm
MS-M04-007-CSKP030 M4 X 30 M4 7.5mm 30mm
MS-M04-007-CSKP035 M4 X 35 M4 7.5mm 35mm
MS-M05-008-CSKP010 M5 X 10 M5 9.2mm 10mm
MS-M05-008-CSKP012 M5 X 12 M5 9.2mm 12mm
MS-M05-008-CSKP016 M5 X 16 M5 9.2mm 16mm
MS-M05-008-CSKP020 M5 X 20 M5 9.2mm 20mm
MS-M05-008-CSKP025 M5 X 25 M5 9.2mm 25mm
MS-M05-008-CSKP030 M5 X 30 M5 9.2mm 30mm
MS-M05-008-CSKP035 M5 X 35 M5 9.2mm 35mm
MS-M06-010-CSKP010 M6 X 10 M6 11mm 10mm
MS-M06-010-CSKP012 M6 X 12 M6 11mm 12mm
MS-M06-010-CSKP016 M6 X 16 M6 11mm 16mm
MS-M06-010-CSKP020 M6 X 20 M6 11mm 20mm
MS-M06-010-CSKP025 M6 X 25 M6 11mm 25mm
MS-M06-010-CSKP030 M6 X 30 M6 11mm 30mm
MS-M06-010-CSKP035 M6 X 35 M6 11mm 35mm
MS-M06-010-CSKP040 M6 X 40 M6 11mm 40mm
MS-M08-0125-CSKP010 M8 X 10 M8 14.5mm 10mm
MS-M08-0125-CSKP012 M8 X 12 M8 14.5mm 12mm
MS-M08-0125-CSKP016 M8 X 16 M8 14.5mm 16mm
MS-M08-0125-CSKP020 M8 X 20 M8 14.5mm 20mm
MS-M08-0125-CSKP025 M8 X 25 M8 14.5mm 25mm
MS-M08-0125-CSKP030 M8 X 30 M8 14.5mm 30mm
MS-M08-0125-CSKP035 M8 X 35 M8 14.5mm 35mm
MS-M08-0125-CSKP040 M8 X 40 M8 14.5mm 40mm

Why shop with us?

  • Best priced trade discounts

    Indifit is a leading supplier of industrial components with a reputation for top quality at competitive, affordable prices for your organisation. For pricing and availability of specific items, feel free to browse our online catalogue and reach out to us if you’d like a quotation for a component.

    Create a trade account

  • Huge range of engineering components

    Finding the right industrial component for your specific application can be a frustrating experience, but it doesn’t have to be. Our guarantee to you is that you’ll always be received by friendly, helpful, and efficient experts. Take advantage of our product and industry expertise to find exactly what you’re looking for.

    Browse our stock

  • Fast next-day delivery

    We offer fast next-day delivery on all in-stock products from our warehouse in the UK. We never charge for minimum orders nor do we have minimum order quantities, so whether it’s a packet of fasteners or bulk quantities you can depend on our speedy next-day delivery to your address.

    Our delivery options

Related Products

  • Decades of experience

  • Huge range of engineering finishing components

  • Best priced trade discounts

  • Fast next day delivery

Frequently Asked Questions

What are the main benefits of using nylon countersunk Phillips screws in my project?
Nylon countersunk Phillips screws offer excellent corrosion resistance, a high strength-to-weight ratio, and a flush, low-profile finish. They are ideal for precision applications and environments where non-magnetic and thermal insulation properties are beneficial.
What sizes and lengths are available for these countersunk Phillips screws?
These nylon screws are available in thread sizes M2, M2.5, M3, M4, M5, M6, M8, and M10, with lengths ranging from 4mm to 70mm, providing versatile options for various assembly needs.
Are these nylon screws suitable for use in electronics and automotive assemblies?
Yes, these DIN 965 nylon countersunk Phillips screws are perfect for electronics, automotive, and light industrial assemblies due to their excellent electrical insulation, corrosion resistance, and low thermal conductivity.
Can these screws withstand high temperatures or harsh environments?
These screws operate effectively within a temperature range of -35°C to +85°C, making them suitable for many harsh environments, though they may not be ideal for extremely high-temperature applications.
Are these countersunk Phillips screws available in different colors or finishes?
The standard color for these screws is black, which can be ordered in bulk. For other colors or finishes, please contact us directly to discuss custom options.
What are the main benefits of using nylon countersunk Phillips screws in my project?
Nylon countersunk Phillips screws offer excellent corrosion resistance, a high strength-to-weight ratio, and a flush, low-profile finish, making them ideal for precision applications in electronics, automotive, and light industrial assemblies.
Are these nylon countersunk Phillips screws suitable for high-temperature environments?
Yes, these nylon screws operate effectively within a temperature range of -35°C to +85°C, making them suitable for many applications that require moderate heat resistance.
What sizes and lengths are available for the Countersunk Phillips Screw?
These screws come in different thread sizes from M2 to M10 and lengths ranging from 4mm to 70mm, providing versatility for various assembly needs.
Can I use these screws with standard Phillips screwdrivers?
Yes, these screws are designed for use with Phillips cross-drive tools, ensuring compatibility with standard Phillips screwdrivers for easy installation and removal.
Are these nylon countersunk Phillips screws environmentally friendly and safe?
Yes, these screws are RoHS compliant, indicating they meet environmental standards for hazardous substance restrictions, making them a safe choice for eco-conscious projects.
