Castors wheels

MEDIUM SINGLE BOLT HOLE CASTOR C/W RED POLYEUTHANE TYRE/WHITE NYLON WHEEL 100-300KG

Available in swivel and swivel/braked configurations this EU manufactured range is very economically priced.

Find the right option

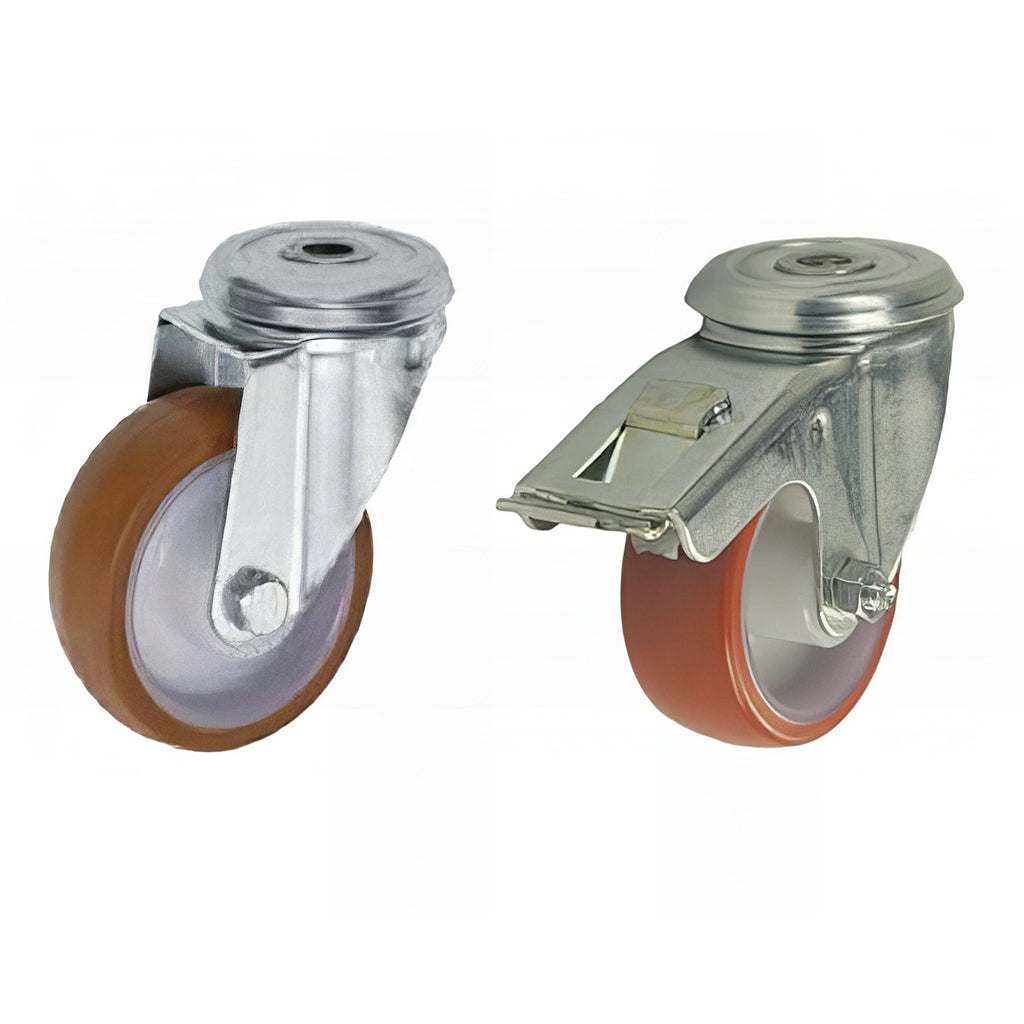

  • Medium single bolt hole castor with red polyurethane tyre and white nylon wheel for industrial use
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Available in swivel and swivel/braked configurations this EU manufactured range is very economically priced.

Double ballrace swivel, wheels of polyurethane tyre/white nylon with plain bearing axle.

Ideal for wide range of medium duty materials handling and industrial applications.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

10 options
Part numberSize / technical detailOther specificationAction
C080/NYOBX Swivel / 80mm / Polyurethane/white nylon | 30 | 72 | 108 | 100 | 12.2 | Plain —
C080/NYOBX/2 Swivel braked / 80mm / Polyurethane/white nylon | 30 | 110 | 108 | 100 | 12.2 | Plain —
C100/NYOBX Swivel / 100mm / Polyurethane/white nylon | 30 | 82 | 127 | 130 | 12.2 | Plain —
C100/NYOBX/2 Swivel braked / 100mm / Polyurethane/white nylon | 30 | 110 | 127 | 130 | 12.2 | Plain —
C125/NYOBX Swivel / 125mm / Polyurethane/white nylon | 35 | 113 | 155 | 130 | 12.2 | Plain —
C125/NYOB/2 Swivel braked / 125mm / Polyurethane/white nylon | 35 | 113 | 155 | 130 | 12.2 | Plain —
C150/NYOB Swivel / 150mm / Polyurethane/white nylon | 40 | 122 | 184 | 130 | 16 | Plain —
C150/NYOB/2 Swivel braked / 150mm / Polyurethane/white nylon | 40 | 144 | 184 | 130 | 16 | Plain —
C200/NYOB Swivel / 200mm / Polyurethane/white nylon | 50 | 156 | 240 | 150 | 16 | Plain —
C200/NYOB/2 Swivel braked / 200mm / Polyurethane/white nylon | 50 | 158 | 240 | 150 | 16 | Plain —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM SINGLE BOLT HOLE CASTOR C/W RED POLYEUTHANE TYRE/WHITE NYLON WHEEL 100-300KG
C080/NYOBX

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Load Cap kg Bolthole Bearing
C080/NYOBX Swivel 80mm Polyurethane/white nylon 30 72 108 100 12.2 Plain
C080/NYOBX/2 Swivel braked 80mm Polyurethane/white nylon 30 110 108 100 12.2 Plain
C100/NYOBX Swivel 100mm Polyurethane/white nylon 30 82 127 130 12.2 Plain
C100/NYOBX/2 Swivel braked 100mm Polyurethane/white nylon 30 110 127 130 12.2 Plain
C125/NYOBX Swivel 125mm Polyurethane/white nylon 35 113 155 130 12.2 Plain
C125/NYOB/2 Swivel braked 125mm Polyurethane/white nylon 35 113 155 130 12.2 Plain
C150/NYOB Swivel 150mm Polyurethane/white nylon 40 122 184 130 16 Plain
C150/NYOB/2 Swivel braked 150mm Polyurethane/white nylon 40 144 184 130 16 Plain
C200/NYOB Swivel 200mm Polyurethane/white nylon 50 156 240 150 16 Plain
C200/NYOB/2 Swivel braked 200mm Polyurethane/white nylon 50 158 240 150 16 Plain

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
