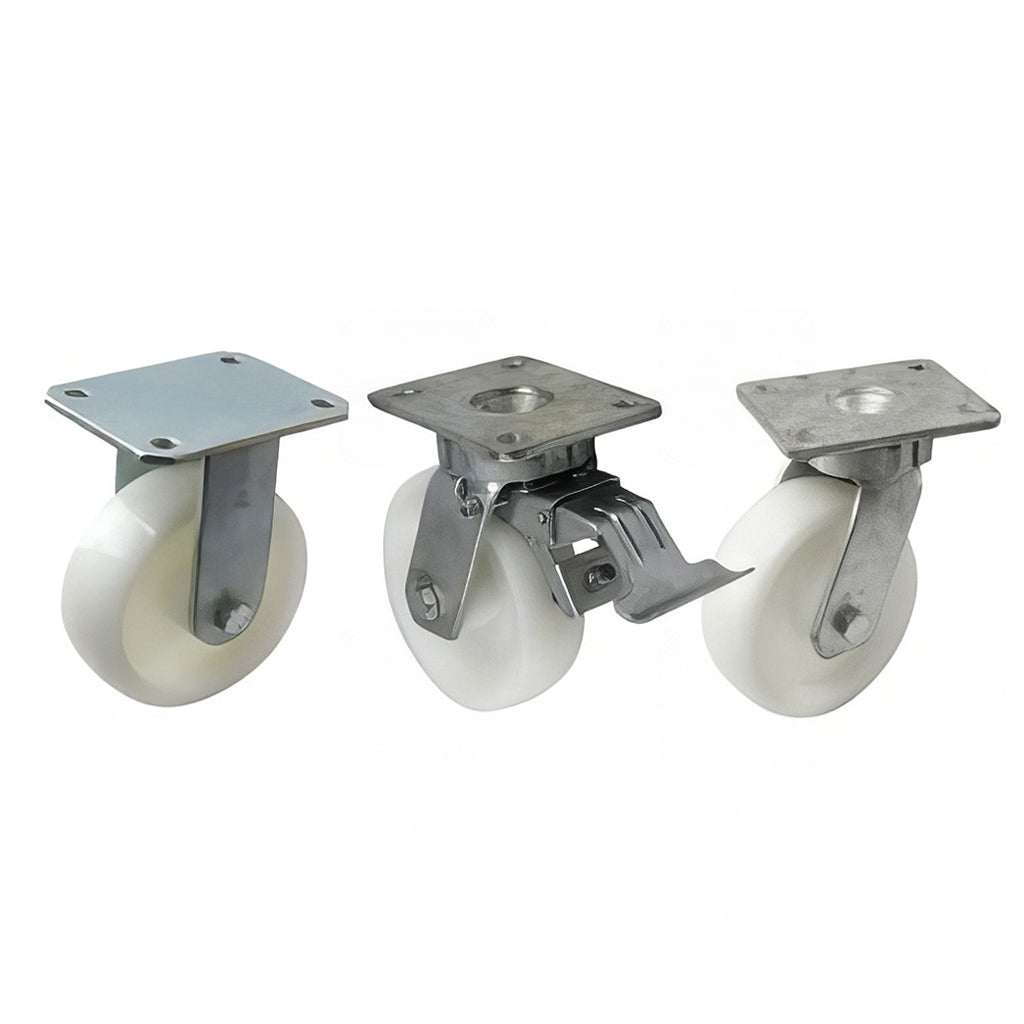

HEAVY DUTY FABRICATED PLATE FITTING CASTOR C/W NYLON WHEEL 400-900KG

Plate fitting castor with fabricated, bright zinc plated fork, in swivel, swivel braked and fixed configurations.

Find the right option

1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Plate fitting castor with fabricated, bright zinc plated fork, in swivel, swivel braked and fixed configurations.

Solid white nylon wheel with plain, roller or ball bearing axles.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

88 options

Part number	Size / technical detail	Other specification
C100/KLNY	Swivel / 100mm / White Nylon \| 35 \| 77 \| 140 \| 138X110 \| 400 \| 105X75/80 (10) \| Plain	—
C100/KLNYBJ	Swivel / 100mm / White Nylon \| 40 \| 77 \| 140 \| 138X110 \| 650 \| 105X75/80 (10) \| Ball journal	—
C100/KLNYSWB	Swivel braked / 100mm / White Nylon \| 35 \| 110 \| 140 \| 138X110 \| 400 \| 105X75/80 (10) \| Plain	—
C100/KLNYJBSWB	Swivel braked / 100mm / White Nylon \| 40 \| 110 \| 140 \| 138X110 \| 650 \| 105X75/80 (10) \| Ball journal	—
C100/KLFNY	Fixed / 100mm / White Nylon \| 35 \| 110 \| 140 \| 138X110 \| 400 \| 105X75/80 (10) \| Plain	—
C100/KLFNY	Fixed / 100mm / White Nylon \| 35 \| 115 \| 140 \| 138X110 \| 400 \| 105X75/80 (10) \| Plain	—
C100/KLFNY	Fixed / 100mm / White Nylon \| 35 \| 150 \| 140 \| 138X110 \| 400 \| 105X75/80 (10) \| Plain	—
C100/KLFNY	Fixed / 100mm / White Nylon \| 35 \| 155 \| 140 \| 138X110 \| 400 \| 105X75/80 (10) \| Plain	—
C100/KLFNY	Fixed / 100mm / White Nylon \| 35 \| 77 \| 140 \| 138X110 \| 400 \| 105X75/80 (10) \| Plain	—
C100/KLFNY	Fixed / 100mm / White Nylon \| 35 \| 95 \| 140 \| 138X110 \| 400 \| 105X75/80 (10) \| Plain	—
C100/KLFNYBJ	Fixed / 100mm / White Nylon \| 40 \| 110 \| 140 \| 138X110 \| 650 \| 105X75/80 (10) \| Ball journal	—
C100/KLFNYBJ	Fixed / 100mm / White Nylon \| 40 \| 115 \| 140 \| 138X110 \| 650 \| 105X75/80 (10) \| Ball journal	—
C100/KLFNYBJ	Fixed / 100mm / White Nylon \| 40 \| 150 \| 140 \| 138X110 \| 650 \| 105X75/80 (10) \| Ball journal	—
C100/KLFNYBJ	Fixed / 100mm / White Nylon \| 40 \| 155 \| 140 \| 138X110 \| 650 \| 105X75/80 (10) \| Ball journal	—
C100/KLFNYBJ	Fixed / 100mm / White Nylon \| 40 \| 77 \| 140 \| 138X110 \| 650 \| 105X75/80 (10) \| Ball journal	—
C100/KLFNYBJ	Fixed / 100mm / White Nylon \| 40 \| 95 \| 140 \| 138X110 \| 650 \| 105X75/80 (10) \| Ball journal	—
C125/KLNY	Swivel / 125mm / White Nylon \| 45 \| 95 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Plain	—
C125/KLNYB	Swivel / 125mm / White Nylon \| 45 \| 95 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Roller	—
C125/KLNYBJ	Swivel / 125mm / White Nylon \| 45 \| 95 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Ball journal	—
C125/KLNYSWB	Swivel braked / 125mm / White Nylon \| 45 \| 110 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Plain	—
C125/KLNYBSWB	Swivel braked / 125mm / White Nylon \| 45 \| 110 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Roller	—
C125/KLNYJBSWB	Swivel braked / 125mm / White Nylon \| 45 \| 110 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Ball journal	—
C125/KLFNY	Fixed / 125mm / White Nylon \| 45 \| 110 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Plain	—
C125/KLFNY	Fixed / 125mm / White Nylon \| 45 \| 115 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Plain	—
C125/KLFNY	Fixed / 125mm / White Nylon \| 45 \| 150 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Plain	—
C125/KLFNY	Fixed / 125mm / White Nylon \| 45 \| 155 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Plain	—
C125/KLFNY	Fixed / 125mm / White Nylon \| 45 \| 77 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Plain	—
C125/KLFNY	Fixed / 125mm / White Nylon \| 45 \| 95 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Plain	—
C125/KLFBNY	Fixed / 125mm / White Nylon \| 45 \| 110 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Roller	—
C125/KLFBNY	Fixed / 125mm / White Nylon \| 45 \| 115 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Roller	—
C125/KLFBNY	Fixed / 125mm / White Nylon \| 45 \| 150 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Roller	—
C125/KLFBNY	Fixed / 125mm / White Nylon \| 45 \| 155 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Roller	—
C125/KLFBNY	Fixed / 125mm / White Nylon \| 45 \| 77 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Roller	—
C125/KLFBNY	Fixed / 125mm / White Nylon \| 45 \| 95 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Roller	—
C125/KLFNYBJ	Fixed / 125mm / White Nylon \| 45 \| 110 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Ball journal	—
C125/KLFNYBJ	Fixed / 125mm / White Nylon \| 45 \| 115 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Ball journal	—
C125/KLFNYBJ	Fixed / 125mm / White Nylon \| 45 \| 150 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Ball journal	—
C125/KLFNYBJ	Fixed / 125mm / White Nylon \| 45 \| 155 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Ball journal	—
C125/KLFNYBJ	Fixed / 125mm / White Nylon \| 45 \| 77 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Ball journal	—
C125/KLFNYBJ	Fixed / 125mm / White Nylon \| 45 \| 95 \| 165 \| 138X110 \| 600 \| 105X75/80 (10) \| Ball journal	—
C150/KLNY	Swivel / 150mm / White Nylon \| 45 \| 115 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Plain	—
C150/KLNYB	Swivel / 150mm / White Nylon \| 45 \| 115 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Roller	—
C150/KLNYBJ	Swivel / 150mm / White Nylon \| 45 \| 115 \| 195 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C150/KLNYSWB	Swivel braked / 150mm / White Nylon \| 45 \| 150 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Plain	—
C150/KLNYBSWB	Swivel braked / 150mm / White Nylon \| 45 \| 150 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Roller	—
C150/KLNYJBSWB	Swivel braked / 150mm / White Nylon \| 45 \| 150 \| 195 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C150/KLFNY	Fixed / 150mm / White Nylon \| 45 \| 110 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Plain	—
C150/KLFNY	Fixed / 150mm / White Nylon \| 45 \| 115 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Plain	—
C150/KLFNY	Fixed / 150mm / White Nylon \| 45 \| 150 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Plain	—
C150/KLFNY	Fixed / 150mm / White Nylon \| 45 \| 155 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Plain	—
C150/KLFNY	Fixed / 150mm / White Nylon \| 45 \| 77 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Plain	—
C150/KLFNY	Fixed / 150mm / White Nylon \| 45 \| 95 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Plain	—
C150/KLFBNY	Fixed / 150mm / White Nylon \| 45 \| 110 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Roller	—
C150/KLFBNY	Fixed / 150mm / White Nylon \| 45 \| 115 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Roller	—
C150/KLFBNY	Fixed / 150mm / White Nylon \| 45 \| 150 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Roller	—
C150/KLFBNY	Fixed / 150mm / White Nylon \| 45 \| 155 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Roller	—
C150/KLFBNY	Fixed / 150mm / White Nylon \| 45 \| 77 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Roller	—
C150/KLFBNY	Fixed / 150mm / White Nylon \| 45 \| 95 \| 195 \| 138X110 \| 800 \| 105X75/80 (10) \| Roller	—
C150/KLFNYBJ	Fixed / 150mm / White Nylon \| 45 \| 110 \| 195 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C150/KLFNYBJ	Fixed / 150mm / White Nylon \| 45 \| 115 \| 195 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C150/KLFNYBJ	Fixed / 150mm / White Nylon \| 45 \| 150 \| 195 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C150/KLFNYBJ	Fixed / 150mm / White Nylon \| 45 \| 155 \| 195 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C150/KLFNYBJ	Fixed / 150mm / White Nylon \| 45 \| 77 \| 195 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C150/KLFNYBJ	Fixed / 150mm / White Nylon \| 45 \| 95 \| 195 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C200/KLNY	Swivel / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Plain	—
C200/KLNYB	Swivel / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Roller	—
C200/KLNYBJ	Swivel / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C200/KLNYSWB	Swivel braked / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Plain	—
C200/KLNYBSWB	Swivel braked / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Roller	—
C200/KLNYJBSWB	Swivel braked / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C200/KLFNY	Fixed / 200mm / White Nylon \| 50 \| 110 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Plain	—
C200/KLFNY	Fixed / 200mm / White Nylon \| 50 \| 115 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Plain	—
C200/KLFNY	Fixed / 200mm / White Nylon \| 50 \| 150 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Plain	—
C200/KLFNY	Fixed / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Plain	—
C200/KLFNY	Fixed / 200mm / White Nylon \| 50 \| 77 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Plain	—
C200/KLFNY	Fixed / 200mm / White Nylon \| 50 \| 95 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Plain	—
C200/KLFBNY	Fixed / 200mm / White Nylon \| 50 \| 110 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Roller	—
C200/KLFBNY	Fixed / 200mm / White Nylon \| 50 \| 115 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Roller	—
C200/KLFBNY	Fixed / 200mm / White Nylon \| 50 \| 150 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Roller	—
C200/KLFBNY	Fixed / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Roller	—
C200/KLFBNY	Fixed / 200mm / White Nylon \| 50 \| 77 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Roller	—
C200/KLFBNY	Fixed / 200mm / White Nylon \| 50 \| 95 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Roller	—
C200/KLFNYBJ	Fixed / 200mm / White Nylon \| 50 \| 110 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C200/KLFNYBJ	Fixed / 200mm / White Nylon \| 50 \| 115 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C200/KLFNYBJ	Fixed / 200mm / White Nylon \| 50 \| 150 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C200/KLFNYBJ	Fixed / 200mm / White Nylon \| 50 \| 155 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C200/KLFNYBJ	Fixed / 200mm / White Nylon \| 50 \| 77 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—
C200/KLFNYBJ	Fixed / 200mm / White Nylon \| 50 \| 95 \| 245 \| 138X110 \| 900 \| 105X75/80 (10) \| Ball journal	—

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

HEAVY DUTY FABRICATED PLATE FITTING CASTOR C/W NYLON WHEEL 400-900KG

C100/KLNY

Selected part number

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options

SKU	Type	Wheel Dia	Wheel Type	Tread Width	Swivel Radius	O Height	Plate Size	Load Cap kg	Bolthole Spacing	Bearing
C100/KLNY	Swivel	100mm	White Nylon	35	77	140	138X110	400	105X75/80 (10)	Plain
C100/KLNYBJ	Swivel	100mm	White Nylon	40	77	140	138X110	650	105X75/80 (10)	Ball journal
C100/KLNYSWB	Swivel braked	100mm	White Nylon	35	110	140	138X110	400	105X75/80 (10)	Plain
C100/KLNYJBSWB	Swivel braked	100mm	White Nylon	40	110	140	138X110	650	105X75/80 (10)	Ball journal
C100/KLFNY	Fixed	100mm	White Nylon	35	110	140	138X110	400	105X75/80 (10)	Plain
C100/KLFNY	Fixed	100mm	White Nylon	35	115	140	138X110	400	105X75/80 (10)	Plain
C100/KLFNY	Fixed	100mm	White Nylon	35	150	140	138X110	400	105X75/80 (10)	Plain
C100/KLFNY	Fixed	100mm	White Nylon	35	155	140	138X110	400	105X75/80 (10)	Plain
C100/KLFNY	Fixed	100mm	White Nylon	35	77	140	138X110	400	105X75/80 (10)	Plain
C100/KLFNY	Fixed	100mm	White Nylon	35	95	140	138X110	400	105X75/80 (10)	Plain
C100/KLFNYBJ	Fixed	100mm	White Nylon	40	110	140	138X110	650	105X75/80 (10)	Ball journal
C100/KLFNYBJ	Fixed	100mm	White Nylon	40	115	140	138X110	650	105X75/80 (10)	Ball journal
C100/KLFNYBJ	Fixed	100mm	White Nylon	40	150	140	138X110	650	105X75/80 (10)	Ball journal
C100/KLFNYBJ	Fixed	100mm	White Nylon	40	155	140	138X110	650	105X75/80 (10)	Ball journal
C100/KLFNYBJ	Fixed	100mm	White Nylon	40	77	140	138X110	650	105X75/80 (10)	Ball journal
C100/KLFNYBJ	Fixed	100mm	White Nylon	40	95	140	138X110	650	105X75/80 (10)	Ball journal
C125/KLNY	Swivel	125mm	White Nylon	45	95	165	138X110	600	105X75/80 (10)	Plain
C125/KLNYB	Swivel	125mm	White Nylon	45	95	165	138X110	600	105X75/80 (10)	Roller
C125/KLNYBJ	Swivel	125mm	White Nylon	45	95	165	138X110	600	105X75/80 (10)	Ball journal
C125/KLNYSWB	Swivel braked	125mm	White Nylon	45	110	165	138X110	600	105X75/80 (10)	Plain
C125/KLNYBSWB	Swivel braked	125mm	White Nylon	45	110	165	138X110	600	105X75/80 (10)	Roller
C125/KLNYJBSWB	Swivel braked	125mm	White Nylon	45	110	165	138X110	600	105X75/80 (10)	Ball journal
C125/KLFNY	Fixed	125mm	White Nylon	45	110	165	138X110	600	105X75/80 (10)	Plain
C125/KLFNY	Fixed	125mm	White Nylon	45	115	165	138X110	600	105X75/80 (10)	Plain
C125/KLFNY	Fixed	125mm	White Nylon	45	150	165	138X110	600	105X75/80 (10)	Plain
C125/KLFNY	Fixed	125mm	White Nylon	45	155	165	138X110	600	105X75/80 (10)	Plain
C125/KLFNY	Fixed	125mm	White Nylon	45	77	165	138X110	600	105X75/80 (10)	Plain
C125/KLFNY	Fixed	125mm	White Nylon	45	95	165	138X110	600	105X75/80 (10)	Plain
C125/KLFBNY	Fixed	125mm	White Nylon	45	110	165	138X110	600	105X75/80 (10)	Roller
C125/KLFBNY	Fixed	125mm	White Nylon	45	115	165	138X110	600	105X75/80 (10)	Roller
C125/KLFBNY	Fixed	125mm	White Nylon	45	150	165	138X110	600	105X75/80 (10)	Roller
C125/KLFBNY	Fixed	125mm	White Nylon	45	155	165	138X110	600	105X75/80 (10)	Roller
C125/KLFBNY	Fixed	125mm	White Nylon	45	77	165	138X110	600	105X75/80 (10)	Roller
C125/KLFBNY	Fixed	125mm	White Nylon	45	95	165	138X110	600	105X75/80 (10)	Roller
C125/KLFNYBJ	Fixed	125mm	White Nylon	45	110	165	138X110	600	105X75/80 (10)	Ball journal
C125/KLFNYBJ	Fixed	125mm	White Nylon	45	115	165	138X110	600	105X75/80 (10)	Ball journal
C125/KLFNYBJ	Fixed	125mm	White Nylon	45	150	165	138X110	600	105X75/80 (10)	Ball journal
C125/KLFNYBJ	Fixed	125mm	White Nylon	45	155	165	138X110	600	105X75/80 (10)	Ball journal
C125/KLFNYBJ	Fixed	125mm	White Nylon	45	77	165	138X110	600	105X75/80 (10)	Ball journal
C125/KLFNYBJ	Fixed	125mm	White Nylon	45	95	165	138X110	600	105X75/80 (10)	Ball journal
C150/KLNY	Swivel	150mm	White Nylon	45	115	195	138X110	800	105X75/80 (10)	Plain
C150/KLNYB	Swivel	150mm	White Nylon	45	115	195	138X110	800	105X75/80 (10)	Roller
C150/KLNYBJ	Swivel	150mm	White Nylon	45	115	195	138X110	900	105X75/80 (10)	Ball journal
C150/KLNYSWB	Swivel braked	150mm	White Nylon	45	150	195	138X110	800	105X75/80 (10)	Plain
C150/KLNYBSWB	Swivel braked	150mm	White Nylon	45	150	195	138X110	800	105X75/80 (10)	Roller
C150/KLNYJBSWB	Swivel braked	150mm	White Nylon	45	150	195	138X110	900	105X75/80 (10)	Ball journal
C150/KLFNY	Fixed	150mm	White Nylon	45	110	195	138X110	800	105X75/80 (10)	Plain
C150/KLFNY	Fixed	150mm	White Nylon	45	115	195	138X110	800	105X75/80 (10)	Plain
C150/KLFNY	Fixed	150mm	White Nylon	45	150	195	138X110	800	105X75/80 (10)	Plain
C150/KLFNY	Fixed	150mm	White Nylon	45	155	195	138X110	800	105X75/80 (10)	Plain
C150/KLFNY	Fixed	150mm	White Nylon	45	77	195	138X110	800	105X75/80 (10)	Plain
C150/KLFNY	Fixed	150mm	White Nylon	45	95	195	138X110	800	105X75/80 (10)	Plain
C150/KLFBNY	Fixed	150mm	White Nylon	45	110	195	138X110	800	105X75/80 (10)	Roller
C150/KLFBNY	Fixed	150mm	White Nylon	45	115	195	138X110	800	105X75/80 (10)	Roller
C150/KLFBNY	Fixed	150mm	White Nylon	45	150	195	138X110	800	105X75/80 (10)	Roller
C150/KLFBNY	Fixed	150mm	White Nylon	45	155	195	138X110	800	105X75/80 (10)	Roller
C150/KLFBNY	Fixed	150mm	White Nylon	45	77	195	138X110	800	105X75/80 (10)	Roller
C150/KLFBNY	Fixed	150mm	White Nylon	45	95	195	138X110	800	105X75/80 (10)	Roller
C150/KLFNYBJ	Fixed	150mm	White Nylon	45	110	195	138X110	900	105X75/80 (10)	Ball journal
C150/KLFNYBJ	Fixed	150mm	White Nylon	45	115	195	138X110	900	105X75/80 (10)	Ball journal
C150/KLFNYBJ	Fixed	150mm	White Nylon	45	150	195	138X110	900	105X75/80 (10)	Ball journal
C150/KLFNYBJ	Fixed	150mm	White Nylon	45	155	195	138X110	900	105X75/80 (10)	Ball journal
C150/KLFNYBJ	Fixed	150mm	White Nylon	45	77	195	138X110	900	105X75/80 (10)	Ball journal
C150/KLFNYBJ	Fixed	150mm	White Nylon	45	95	195	138X110	900	105X75/80 (10)	Ball journal
C200/KLNY	Swivel	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Plain
C200/KLNYB	Swivel	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Roller
C200/KLNYBJ	Swivel	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Ball journal
C200/KLNYSWB	Swivel braked	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Plain
C200/KLNYBSWB	Swivel braked	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Roller
C200/KLNYJBSWB	Swivel braked	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Ball journal
C200/KLFNY	Fixed	200mm	White Nylon	50	110	245	138X110	900	105X75/80 (10)	Plain
C200/KLFNY	Fixed	200mm	White Nylon	50	115	245	138X110	900	105X75/80 (10)	Plain
C200/KLFNY	Fixed	200mm	White Nylon	50	150	245	138X110	900	105X75/80 (10)	Plain
C200/KLFNY	Fixed	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Plain
C200/KLFNY	Fixed	200mm	White Nylon	50	77	245	138X110	900	105X75/80 (10)	Plain
C200/KLFNY	Fixed	200mm	White Nylon	50	95	245	138X110	900	105X75/80 (10)	Plain
C200/KLFBNY	Fixed	200mm	White Nylon	50	110	245	138X110	900	105X75/80 (10)	Roller
C200/KLFBNY	Fixed	200mm	White Nylon	50	115	245	138X110	900	105X75/80 (10)	Roller
C200/KLFBNY	Fixed	200mm	White Nylon	50	150	245	138X110	900	105X75/80 (10)	Roller
C200/KLFBNY	Fixed	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Roller
C200/KLFBNY	Fixed	200mm	White Nylon	50	77	245	138X110	900	105X75/80 (10)	Roller
C200/KLFBNY	Fixed	200mm	White Nylon	50	95	245	138X110	900	105X75/80 (10)	Roller
C200/KLFNYBJ	Fixed	200mm	White Nylon	50	110	245	138X110	900	105X75/80 (10)	Ball journal
C200/KLFNYBJ	Fixed	200mm	White Nylon	50	115	245	138X110	900	105X75/80 (10)	Ball journal
C200/KLFNYBJ	Fixed	200mm	White Nylon	50	150	245	138X110	900	105X75/80 (10)	Ball journal
C200/KLFNYBJ	Fixed	200mm	White Nylon	50	155	245	138X110	900	105X75/80 (10)	Ball journal
C200/KLFNYBJ	Fixed	200mm	White Nylon	50	77	245	138X110	900	105X75/80 (10)	Ball journal
C200/KLFNYBJ	Fixed	200mm	White Nylon	50	95	245	138X110	900	105X75/80 (10)	Ball journal

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options

CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.

Talk to the team → Browse all products →

Item added to your cart

HEAVY DUTY FABRICATED PLATE FITTING CASTOR C/W NYLON WHEEL 400-900KG

Available product options.

Available options

Your selected product

Check the dimensions. Find your part number.

Full technical specifications compare sizes & part numbers

Product specifications.

Challenge Indifit.

HEAVY DUTY FABRICATED PLATE FITTING CASTOR C/W BROWN POLYURETHANE TYRE/CAST IRON WHEEL 300-900KG

HEAVY DUTY FABRICATED PLATE FITTING CASTOR C/W BROWN POLYURETHANE TYRE/CAST IRON WHEEL 300-900KG

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W BROWN POLYURETHANE TYRE/CAST IRON WHEEL 1500-2400KG

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W BROWN POLYURETHANE TYRE/CAST IRON WHEEL 1500-2400KG

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W BROWN POLYURETHANE TYRE/BLACK NYLON WHEEL 800-1500KG

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W BROWN POLYURETHANE TYRE/BLACK NYLON WHEEL 800-1500KG

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W NYLON WHEEL 3000KG

HEAVY DUTY PLATE MOUNTED TWIN WHEEL CASTOR C/W NYLON WHEEL 3000KG

HEAVY DUTY FABRICATED PLATE FITTING CASTOR C/W NYLON WHEEL 400-900KG

Available product options.

Available options

◈ Your selected product

Check the dimensions. Find your part number.

Full technical specifications — compare sizes & part numbers

Product specifications.

Challenge Indifit.

Related Products

Your selected product

Full technical specifications compare sizes & part numbers
