Castors wheels

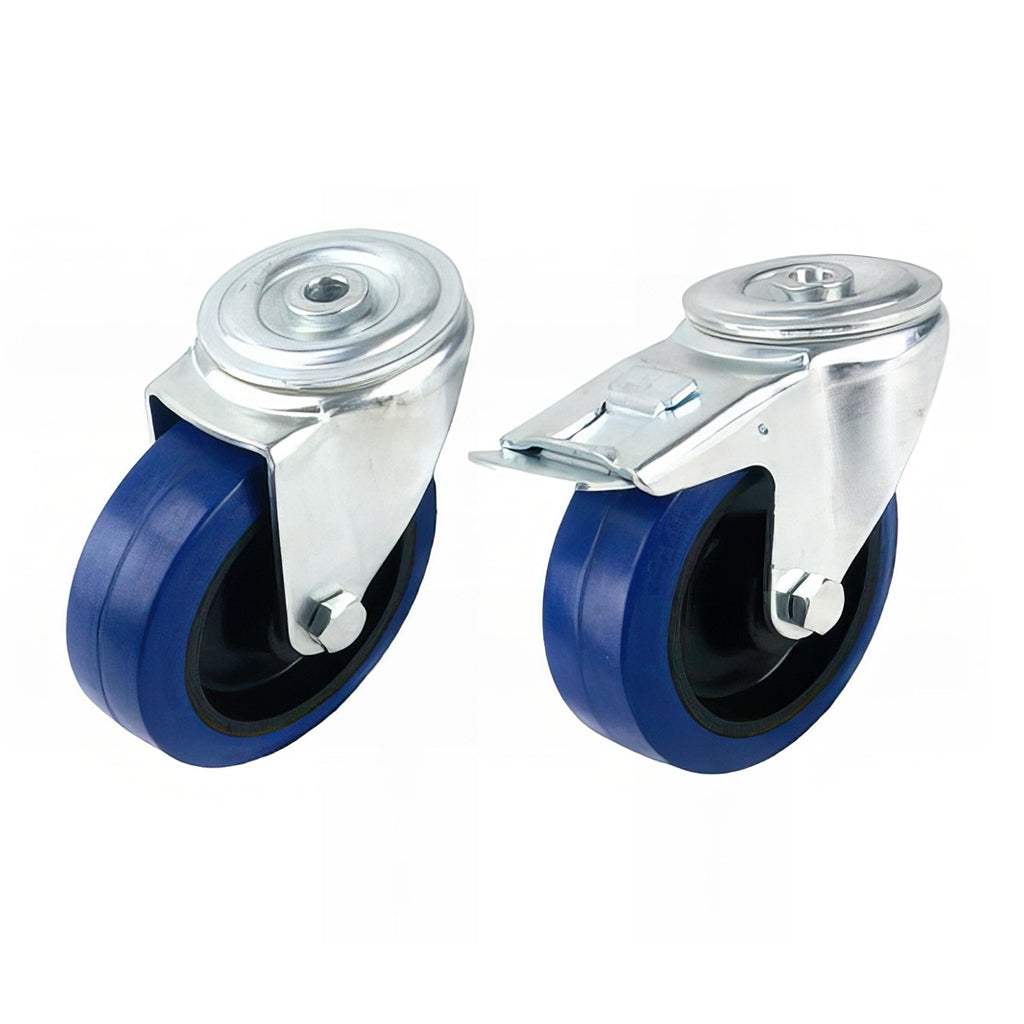

MEDIUM SINGLE BOLT HOLE CASTOR C/W BLUE ELASTIC RUBBER TYRE /BLACK NYLON WHEEL 120-400KG

Pressed steel single bolthole fitting castor in swivel and swivel braked configurations.

Find the right option
  • Medium single bolt hole castor with blue elastic rubber tyre and black nylon wheel, swivel and swivel braked options, 120-400kg capacity
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Pressed steel single bolthole fitting castor in swivel and swivel braked configurations.

Blue elastic rubber tyre/black nylon wheel with plain or roller bearing axles.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

10 options
Part numberSize / technical detailOther specificationAction
C100/HRNBBH12 Swivel / 100mm / Blue rubber/black nylon | 32 | 98 | 128 | 250 | 12.2 | Roller —
C100/HRNBBH12SWB Swivel brake / 100mm / Blue rubber/black nylon | 32 | 128 | 128 | 250 | 12.2 | Roller —
C100/HRNBH12 Swivel / 100mm / Blue rubber/black nylon | 32 | 98 | 128 | 250 | 12.2 | Plain —
C100/HRNBH12SWB Swivel brake / 100mm / Blue rubber/black nylon | 32 | 116 | 128 | 250 | 12.2 | Plain —
C125/HRNBBH12 Swivel / 125mm / Blue rubber/black nylon | 35 | 104 | 155 | 250 | 12.2 | Roller —
C125/HRNBBH12SWB Swivel brake / 125mm / Blue rubber/black nylon | 35 | 128 | 155 | 250 | 12.2 | Roller —
C125/HRNBH12 Swivel / 125mm / Blue rubber/black nylon | 35 | 104 | 155 | 250 | 12.2 | Plain —
C125/HRNBH12SWB Swivel brake / 125mm / Blue rubber/black nylon | 35 | 128 | 155 | 250 | 12.2 | Plain —
C150/HLRNBJBH12 Swivel / 150mm / Blue rubber/black nylon | 40 | 130 | 190 | 300 | 12.2 | Ball journal —
C150/HLRNBJBH12SWB Swivel brake / 150mm / Blue rubber/black nylon | 40 | 130 | 190 | 300 | 12.2 | Ball journal —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM SINGLE BOLT HOLE CASTOR C/W BLUE ELASTIC RUBBER TYRE /BLACK NYLON WHEEL 120-400KG
C100/HRNBBH12

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Load Cap kg Bolthole Bearing
C100/HRNBBH12 Swivel 100mm Blue rubber/black nylon 32 98 128 250 12.2 Roller
C100/HRNBBH12SWB Swivel brake 100mm Blue rubber/black nylon 32 128 128 250 12.2 Roller
C100/HRNBH12 Swivel 100mm Blue rubber/black nylon 32 98 128 250 12.2 Plain
C100/HRNBH12SWB Swivel brake 100mm Blue rubber/black nylon 32 116 128 250 12.2 Plain
C125/HRNBBH12 Swivel 125mm Blue rubber/black nylon 35 104 155 250 12.2 Roller
C125/HRNBBH12SWB Swivel brake 125mm Blue rubber/black nylon 35 128 155 250 12.2 Roller
C125/HRNBH12 Swivel 125mm Blue rubber/black nylon 35 104 155 250 12.2 Plain
C125/HRNBH12SWB Swivel brake 125mm Blue rubber/black nylon 35 128 155 250 12.2 Plain
C150/HLRNBJBH12 Swivel 150mm Blue rubber/black nylon 40 130 190 300 12.2 Ball journal
C150/HLRNBJBH12SWB Swivel brake 150mm Blue rubber/black nylon 40 130 190 300 12.2 Ball journal

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
