What are the main uses of the spoked control handwheel?

The spoked control handwheel is ideal for moving machine axes, closing vices, and making small or large adjustments on manual tools, drills, packaging machinery, and catering equipment, providing precise control and ease of operation.

What materials are the spoked control handwheel made of, and are they resistant to oil and grease?

The wheel is made of durable thermoplastic with a zinc-plated steel insert, making it strong, resistant to oil and grease, and suitable for demanding industrial environments.

Can I get a spoked control handwheel with different handle options for better control?

Yes, for applications requiring greater control over rotational speed, force, or fine adjustments, you can choose a spoked control handwheel featuring a handle, folding handle, or flush folding handle.

What sizes are available for the spoked control handwheels, and what bore sizes do they accommodate?

Our spoked control handwheels come in diameters ranging from 100mm to 250mm and are supplied with an 8mm pilot bore, compatible with bore sizes of 16mm or 20mm maximum.

How do I select the right size of spoked control handwheel for my machine?

Choose a size based on the required precision and amount of manual force needed, ensuring the bore size fits your machine’s shaft and the diameter suits your control needs; our range offers options from 100mm to 250mm for versatility.

1 1

Spoked Control Handwheel

Name: Spoked Control Handwheel
Brand: Indifit
SKU: HCW5265X
Availability: InStock

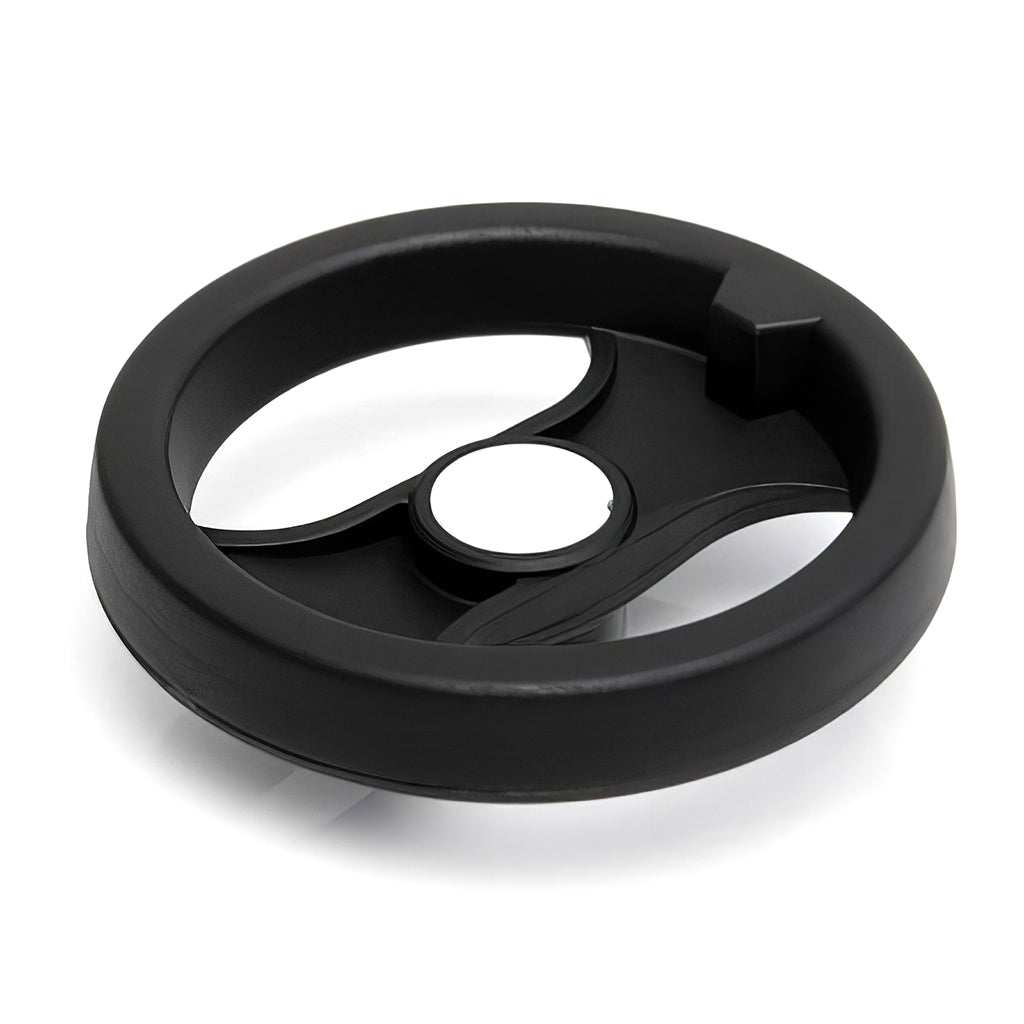

Spoked Control Handwheel

These spoked control hand wheels are well suited to moving the axis of a machine, closing a vice or for small or large adjustments on manual machine tools, drills, drilling machines, packaging machines, mechanical saws, bandsaws and various types of catering equipment.

The thermoplastic wheel and zinc plated steel insert are strong, durable and oil & grease resistant.

For applications which require a greater degree of control over rotational speed and force, or fine adjustment, consider a spoked control hand wheel with a handle, folding handle or flush folding handle.

We offer a comprehensive range of wheel diameters; ranging from 100mm up to 250mm. All handwheels are supplied with an 8mm pilot bore and will accommodate either 16mm or 20mm maximum bore.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	A	B	C	D	E	Pilot Bore	Maximum Bore
HCW5265X	100mm	44mm	28mm	33mm	16mm	8mm	16mm
HCW5266P	130mm	49mm	31mm	35mm	20mm	8mm	16mm
HCW5267S	160mm	56mm	40mm	40mm	24mm	8mm	20mm
HCW5268V	200mm	61mm	50mm	40mm	28mm	8mm	20mm
HCW5269Y	250mm	70mm	56mm	44mm	32mm	8mm	20mm
