Light Duty Castors

LIGHT DUTY TWIN WHEEL SINGLE BOLT HOLE CASTORS 60KG LOAD RATING

Bolt Hole castors with a Pressed Steel castor bracket, fitted with a Synthetic Non-Marking Rubber wheel.

Find the right option

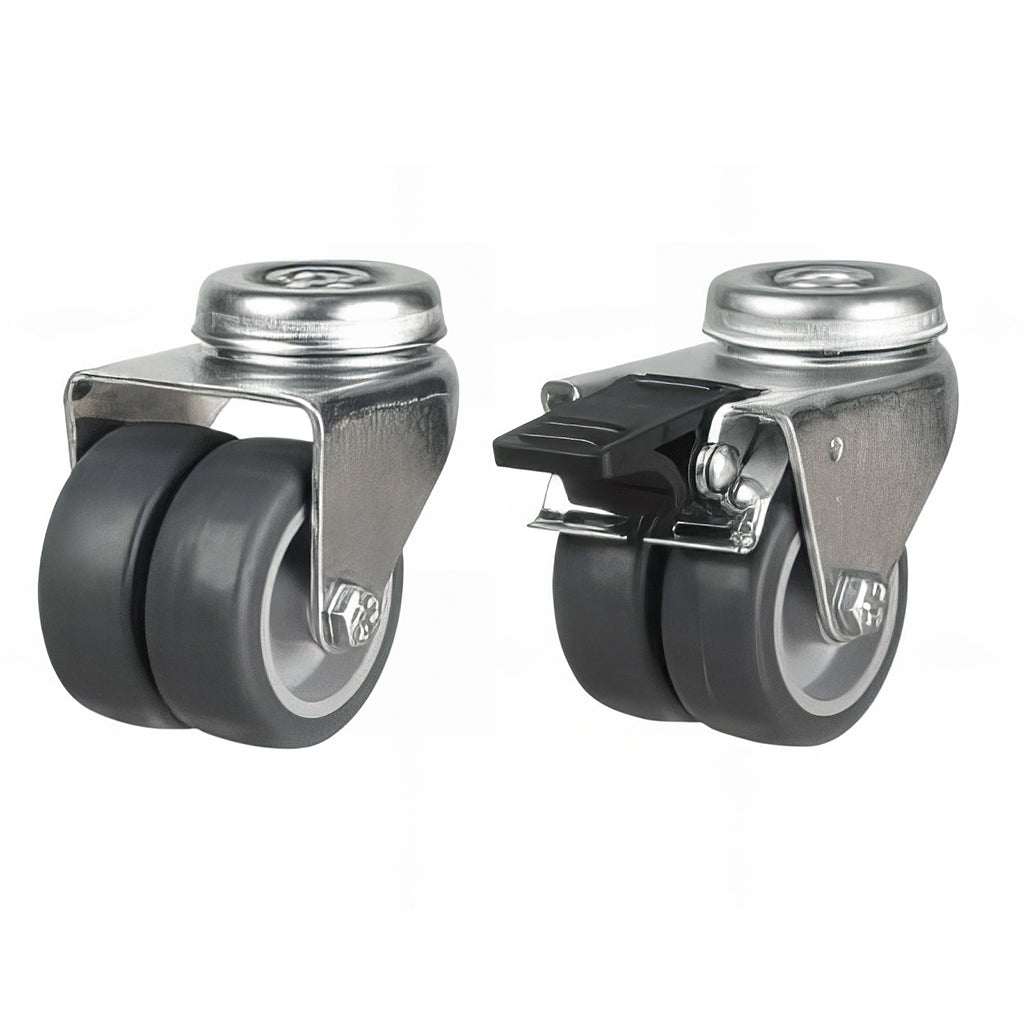

  • Light duty twin wheel single bolt hole castor with synthetic non-marking rubber wheels and zinc-plated steel bracket, 60kg load rating
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Bolt Hole castors with a Pressed Steel castor bracket, fitted with a Synthetic Non-Marking Rubber wheel.

These Bolt Hole casters range from 50mm and have a capacity up to 60 Kg per caster. Grey non-marking thermoplastic rubber, TPR, Tyres offer quiet running and protect floors from damage.

They are bonded to plastic or nylon centres and are used a lot for medical castors and furniture castors.

  • Zinc-Plated Finish
  • Single Hole Fixing
  • Twin Wheel Synthetic Rubber-Elastomer (TPE)
  • 85° shore A Non Marking
  • Nut and Bolt Axle
  • Plain Bearing Wheel
  • - 20°C - + 60°C
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

2 options
Part numberSize / technical detailOther specificationAction
C050/DR2BH10TPR Swivel / 20mm / 32mm | 10.5mm | Plain | 71mm | 60KG —
C050/DR2BH10TPRSWB Swivel braked / 20mm / 32mm | 10.5mm | Plain | 71mm | 60KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

LIGHT DUTY TWIN WHEEL SINGLE BOLT HOLE CASTORS 60KG LOAD RATING
C050/DR2BH10TPR

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Diameter Tread Width Bolt Hole Size Bearing Type Overall Height Weight Loading
C050/DR2BH10TPR Swivel 20mm 32mm 10.5mm Plain 71mm 60KG
C050/DR2BH10TPRSWB Swivel braked 20mm 32mm 10.5mm Plain 71mm 60KG

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
