Castors wheels

LIGHT DUTY TWIN WHEEL NYLON SINGLE BOLT HOLE CASTORS 60KG LOAD RATING

Bolt hole castors with a pressed steel castor bracket, fitted with a nylon wheel.

Find the right option

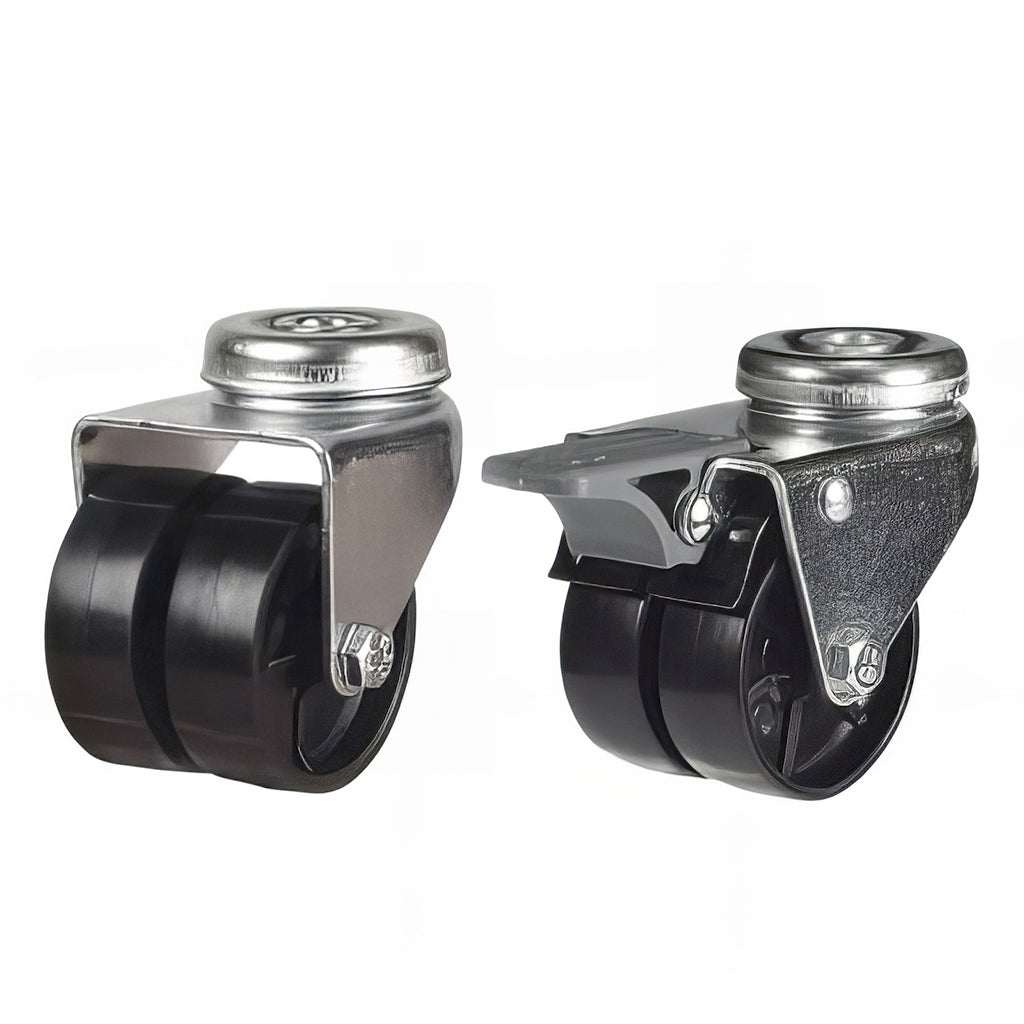

  • Light duty twin wheel nylon single bolt hole castor with 60kg load rating and zinc-plated finish
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Bolt hole castors with a pressed steel castor bracket, fitted with a nylon wheel.

These bolt hole casters range from 50mm and have a capacity up to 60KG per castor.

Solid Nylon Wheels are most often white although alternative colours are available, less friendly to floors but do offer incredible load capacity compared to many wheel materials.

They are light in weight and very hard wearing and priced competitively.

  • Zinc-Plated Finish
  • Single Hole Fixing
  • Black or White Nylon Wheel
  • 70° shore D Non Marking
  • Nut and Bolt Axle
  • Non Marking
  • Plain Bearing Wheel
  • - 20°C - + 80°C
FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

2 options
Part numberSize / technical detailOther specificationAction
C050/DR2BH10NY Swivel / 20mm / 17mm | 10.5mm | Plain | 71mm | 60KG —
C050/DR2BH10NYSWB Swivel braked / 20mm / 17mm | 10.5mm | Plain | 71mm | 60KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

LIGHT DUTY TWIN WHEEL NYLON SINGLE BOLT HOLE CASTORS 60KG LOAD RATING
C050/DR2BH10NY

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Diameter Tread Width Bolt Hole Size Bearing Type Overall Height Weight Loading
C050/DR2BH10NY Swivel 20mm 17mm 10.5mm Plain 71mm 60KG
C050/DR2BH10NYSWB Swivel braked 20mm 17mm 10.5mm Plain 71mm 60KG

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
