Castors wheels

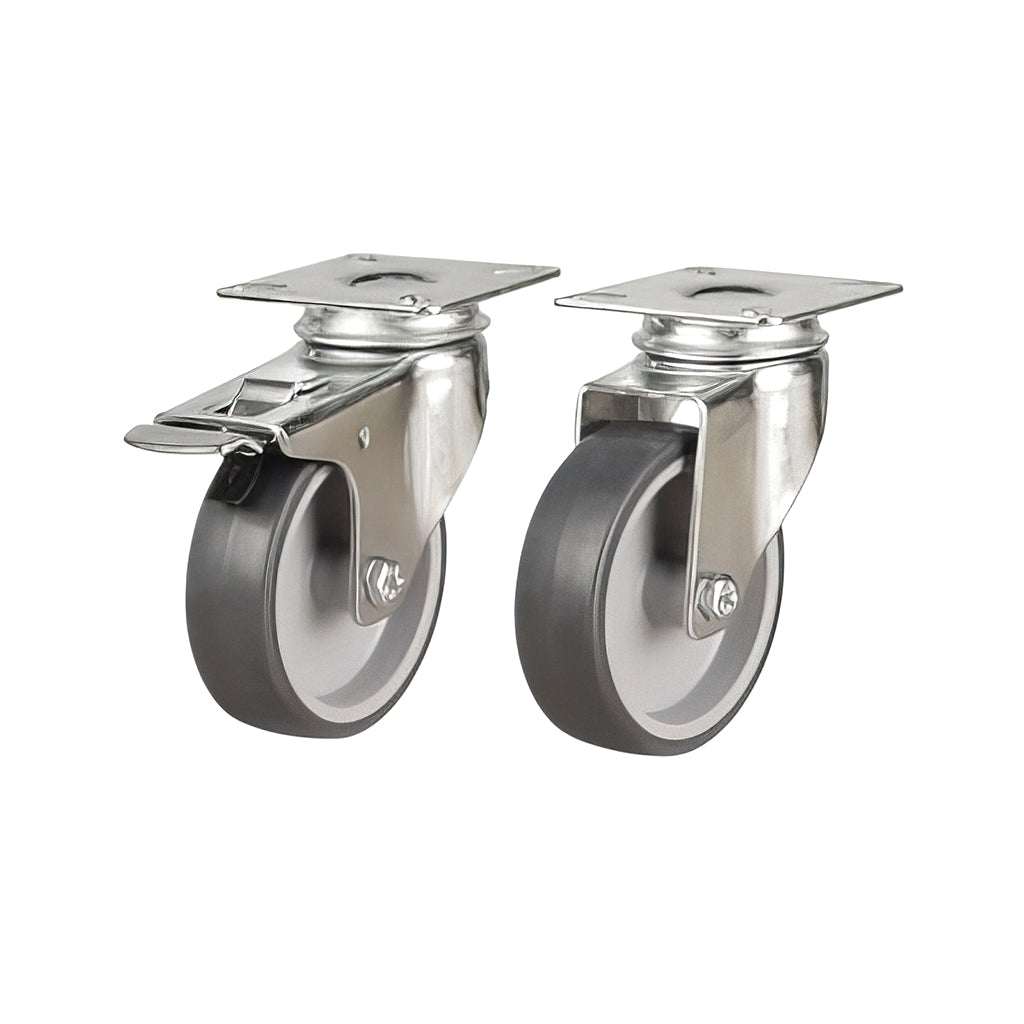

Light Duty Non-Marking Rubber Castors – 40 – 90 kg Load Capacity
The Light Duty Non-Marking Rubber Castors are ideal for adding easy, reliable movement to lightweight trolleys, display units, furniture, workshop carts and small equipment. Built with grey non-marking rubber tyres bonded to sturdy centres and mounted on a pressed steel bracket, these castors provide quiet rolling,...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
The Light Duty Non-Marking Rubber Castors are ideal for adding easy, reliable movement to lightweight trolleys, display units, furniture, workshop carts and small equipment. Built with grey non-marking rubber tyres bonded to sturdy centres and mounted on a pressed steel bracket, these castors provide quiet rolling, excellent floor protection and dependable support for loads up to 90 kg per castor — perfect for environments where appearance and surface care matter.
Key Features & Benefits
Wide Load Range: Designed to handle light-to-medium duty loads from 40 kg up to 90 kg per castor, making them versatile across a range of applications where smooth movement is essential.
Non-Marking Rubber Wheels: The grey thermoplastic rubber (TPR) tyres roll quietly and help protect floors — preventing scuffs, marks and scratches on timber, laminate, tile or vinyl surfaces.
Smooth Rolling Performance: Rubber tyres absorb vibration and shock, offering a more comfortable and quieter movement experience than harder castor wheels.
Plate Mounted Design: The secure top plate fixing ensures a stable and durable mount to equipment bases or furniture frames, helping to distribute weight evenly and improve load support.
Indoor Versatility: Perfect for use in offices, retail displays, workshops, studios, medical facilities or homes — anywhere you need smooth, floor-friendly mobility for light equipment.
Why Choose Non-Marking Rubber Castors?
Non-marking rubber castors are designed to protect your flooring while providing quiet, traction-rich movement, making them an excellent choice where floor aesthetics and smooth operation are priorities. These castors are especially suited to indoor environments with wood, tile or polished surfaces.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Type | Wheel Diameter | Tread Width | Plate Size | Hole centre distance | Overall Height | Bearing Type | Weight Loading |
|---|---|---|---|---|---|---|---|---|
| C050/DRL4TPR | Swivel | 50mm | 20 | 50 x 50 | 35x35 | 73mm | Plain | 40KG |
| C050/DRL4TPRSWB | Swivel braked | 50mm | 20 | 50 x 50 | 35x35 | 73mm | Plain | 40KG |
| C075/DRL4TPR | Swivel | 75mm | 23 | 60x60 | 43x43 | 100mm | Plain | 50KG |
| C075/DRL4TPRSWB | Swivel braked | 75mm | 23 | 60x60 | 43x43 | 100mm | Plain | 50KG |
| C100/DRL4TPR | Swivel | 100mm | 27 | 75x75 | 57x57 | 130mm | Plain | 75KG |
| 100DRL4TPRSWB | Swivel braked | 100mm | 27 | 75x75 | 57x57 | 130mm | Plain | 75KG |
| C125/DRL4TPR | Swivel | 125mm | 27 | 75x75 | 57x57 | 153mm | Plain | 90KG |
| C125/DRL4TPRSWB | Swivel braked | 125mm | 27 | 75x75 | 57x57 | 153mm | Plain | 90KG |
Found the correct part number? Select it from the available options above and add it to your quote list.
Choose this part in Available optionsChallenge Indifit.
