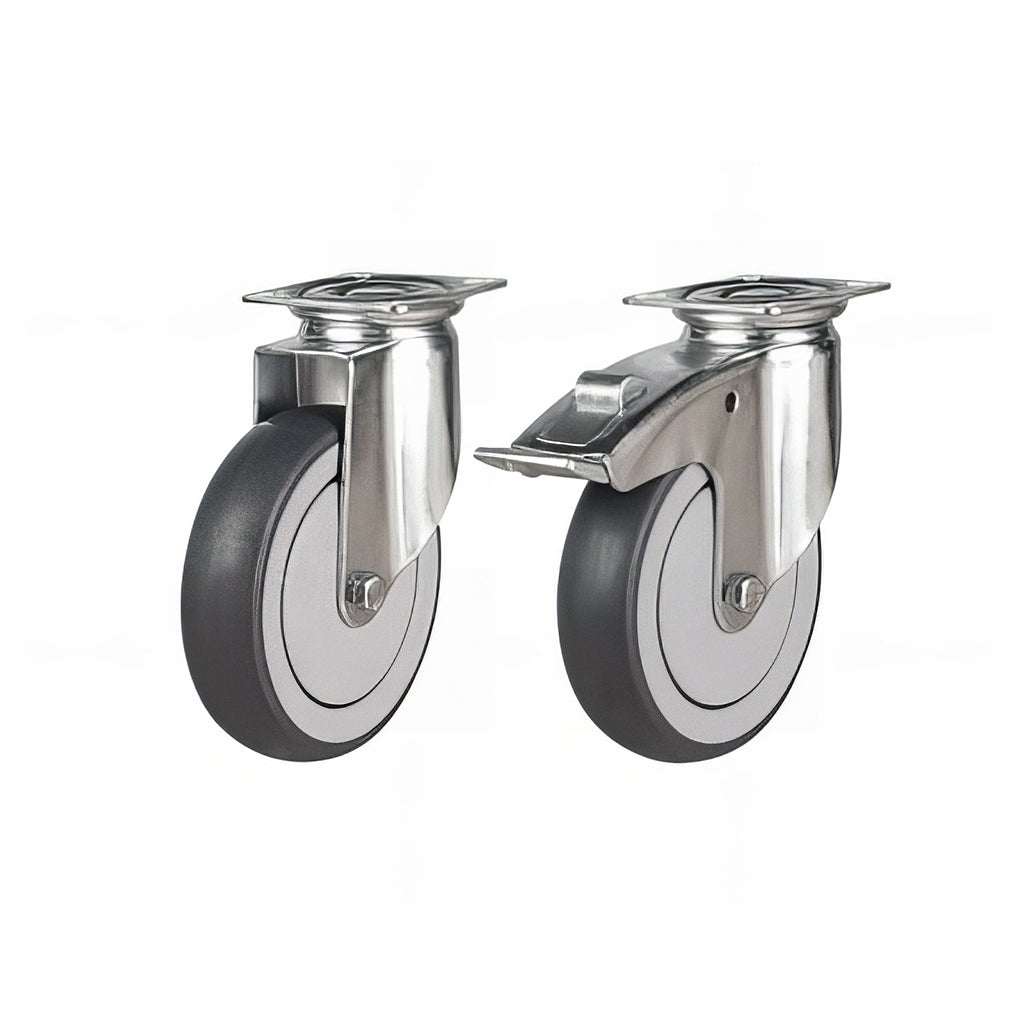

Light Duty Grey Synthetic Rubber Plate Mounted Castors – 90 – 130 kg Load Capacity
Light Duty Grey Synthetic Rubber Plate Mounted Castors. Built with grey synthetic non-marking rubber tyres bonded to quality wheel centres and plate-mount brackets, these castors deliver quiet operation, floor protection and strong load capacity up to 130 kg per castor — making them perfect for workshop,...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Light Duty Grey Synthetic Rubber Plate Mounted Castors. Built with grey synthetic non-marking rubber tyres bonded to quality wheel centres and plate-mount brackets, these castors deliver quiet operation, floor protection and strong load capacity up to 130 kg per castor — making them perfect for workshop, retail, office and domestic applications.
Key Features & Benefits
High Load Capacity: Engineered to support loads from approximately 90 kg up to 130 kg per castor, these wheels offer dependable performance for medium-density carts and mobile units.
Grey Synthetic Rubber Tyres: The non-marking, thermoplastic rubber (TPR) tyres provide quiet, cushioned movement and help protect delicate floors from marks, scratches and impact damage.
Plate Mounted Bracket: The robust top plate fixing ensures a secure, stable mount to equipment bases and furniture, helping distribute load evenly and improve handling.
Precision Ball Bearings: Fitted with ball bearings for smoother rolling action and reduced effort, which is especially helpful when manoeuvring loaded trolleys or delicate furniture.
Versatile Use: Ideal for use on light-duty trolleys, workshop carts, storage cabinets, display racks, AV stands, medical equipment and portable furniture where mobility and floor protection matter.
Why Choose Synthetic Rubber Castors?
Synthetic rubber wheels combine good grip, shock absorption and quiet performance with a floor-friendly, non-marking tread — great for indoor environments with wood, laminate, tile or carpeted flooring. The cushioned rubber tread also helps reduce vibration and noise as equipment moves, making them a popular choice for offices, studios and retail settings.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Type | Wheel Diameter | Tread Width | Plate Size | Hole centre distance | Bearing Type | Overall Height | Weight Loading |
|---|---|---|---|---|---|---|---|---|
| C100/LWA4TPRBJG | Swivel | 100mm | 32mm | 67x77 | 51.5x61.5 | Ball Bearing | 135mm | 90KG |
| C100/LWA4TPRBJGSWB | Swivel braked | 100mm | 32mm | 67x77 | 51.5x61.5 | Ball Bearing | 135mm | 90KG |
| C125/LWA4TPRBJG | Swivel | 125mm | 32mm | 67x77 | 51.5x61.5 | Ball Bearing | 160mm | 110KG |
| C125/LWA4TPRBJGSWB | Swivel braked | 125mm | 32mm | 67x77 | 51.5x61.5 | Ball Bearing | 160mm | 110KG |
| C150/LWA4TPRBJG | Swivel | 150mm | 32mm | 67x77 | 51.5x61.5 | Ball Bearing | 184.5mm | 130KG |
| C150/LWA4TPRBJGSWB | Swivel braked | 150mm | 32mm | 67x77 | 51.5x61.5 | Ball Bearing | 184.5mm | 130KG |
Found the correct part number? Select it from the available options above and add it to your quote list.
