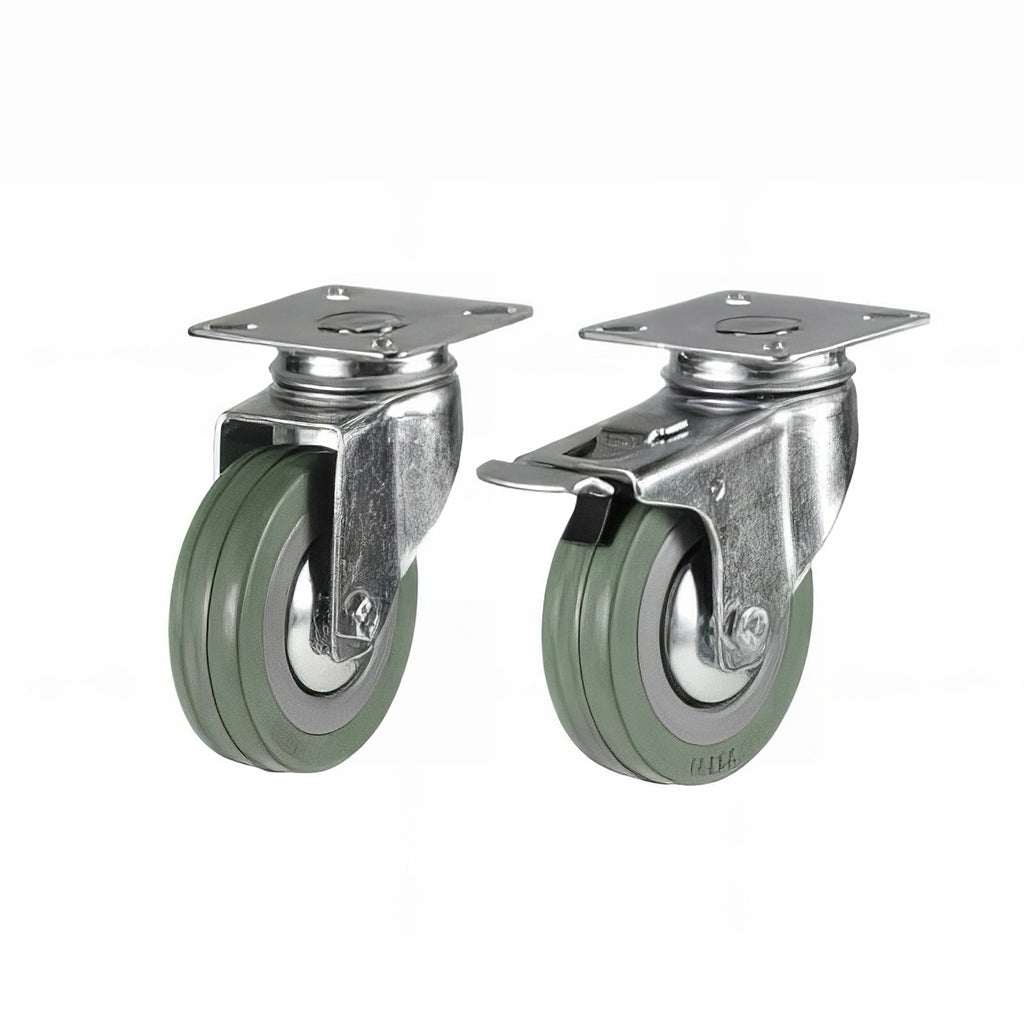

Light Duty Grey Non-Marking Rubber Plate Mounted Castors – 40 – 100 kg Load Capacity
Light Duty Grey Non-Marking Rubber Plate Mounted Castors. Designed for applications where quiet operation, floor protection and smooth movement really matter, these castors feature high-quality grey non-marking rubber tyres bonded to sturdy pressed steel plates — allowing you to move loads between 40 kg and 100...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Light Duty Grey Non-Marking Rubber Plate Mounted Castors. Designed for applications where quiet operation, floor protection and smooth movement really matter, these castors feature high-quality grey non-marking rubber tyres bonded to sturdy pressed steel plates — allowing you to move loads between 40 kg and 100 kg per castor with ease and minimal floor wear.
Key Features & Benefits
Non-Marking Grey Rubber Wheels: The soft, non-marking rubber tyres are engineered to protect delicate surfaces such as hardwood, laminate, tile and vinyl from scuffs or unsightly marks — ideal for indoor use.
Plate Mounted Strength: Durable plate-mounted bracket with slotted holes ensures a secure and stable connection to your equipment base, improving load distribution and reducing stress on fixtures.
Smooth, Quiet Rolling: Rubber tread provides cushioned movement with reduced noise — a great choice for shops, offices, workshops and homes where quiet operation is desirable.
Versatile Load Range: Rated to handle loads from 40 kg up to 100 kg per castor, making them suitable for a wide variety of light-duty trolleys, furniture and portable gear.
All-Purpose Use: Perfect for point-of-sale stands, display racks, storage units, work trolleys and other mobile equipment across retail, commercial and domestic environments.
Why Choose Non-Marking Rubber Castors?
Non-marking rubber castors are specifically designed to protect floor surfaces while delivering excellent grip and quiet performance. Unlike harder wheels that can leave streaks or scuffs, these grey rubber tyres help keep interior floors clean and pristine — a key advantage in offices, retail spaces, healthcare facilities and homes.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Type | Wheel Diameter | Tread Width | Plate Size | Hole centre distance | Bearing Type | Overall Height | Weight Loading |
|---|---|---|---|---|---|---|---|---|
| CO50/DRL4GRG | Swivel | 50mm | 17mm | 50x50 | 35x35 | Plain | 73mm | 40KG |
| C050/DRL4GRGSWB | Swivel braked | 50mm | 17mm | 50x50 | 35x35 | Plain | 73mm | 40KG |
| C075/DRL4GRG | Swivel | 75mm | 21mm | 60x60 | 43x43 | Plain | 100mm | 50KG |
| C075/DRL4GRGSWB | Swivel braked | 75mm | 21mm | 60x60 | 43x43 | Plain | 100mm | 50KG |
| C100/DRL4GRGSWB | Swivel braked | 100mm | 27mm | 75x75 | 57x57 | Plain | 130mm | 80KG |
| C100/DRL4GRG | Swivel | 100mm | 27mm | 75x75 | 57x57 | Plain | 130mm | 80KG |
| C125/DRL4GRGSWB | Swivel braked | 125mm | 27mm | 75x75 | 57x57 | Plain | 150mm | 100KG |
| C125/DRL4GRG | Swivel | 125mm | 27mm | 75x75 | 57x57 | Plain | 153mm | 100KG |
Found the correct part number? Select it from the available options above and add it to your quote list.
Choose this part in Available optionsChallenge Indifit.
Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
Talk to the team → Browse all products →
