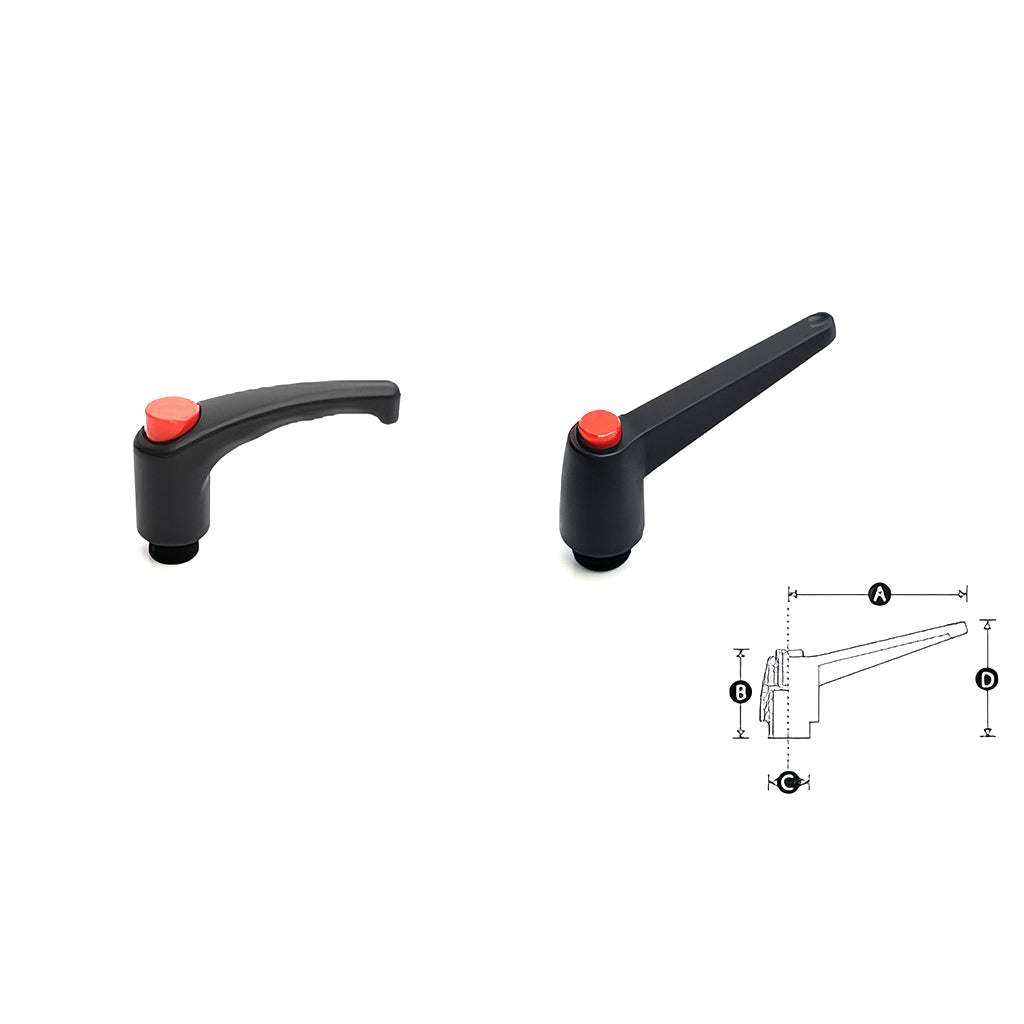

NYLON PUSH BUTTON INDEX CLAMPING LEVER C/W MALE THREAD
Male threaded push button style clamping lever.
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Male threaded push button style clamping lever.
User simply presses the finger button, disengages knurl, pulls the handle and turns.
Handle material made of reinforced nylon.
The standard push button colour red, with special options of black, blue, yellow, orange, red, green and grey. We can also supply with stainless steel thread rather than steel zinc. Please contact the sales office for details.
Also available in die cast material - please enquire
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Insert Material | A | B | C | D | Thread Size | Stem Length | Image |
|---|---|---|---|---|---|---|---|---|
| HCL043/04016RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M4 | 16 | 1 |
| HCL043/04020RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M4 | 20 | 1 |
| HCL043/04030RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M4 | 30 | 1 |
| HCL043/05016RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M5 | 16 | 1 |
| HCL043/05020RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M5 | 20 | 1 |
| HCL043/05030RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M5 | 30 | 1 |
| HCL043/06016RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M6 | 16 | 1 |
| HCL043/06020RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M6 | 20 | 1 |
| HCL043/06025RBRE | Zinc plated steel | 43 | 26 | 12 | 32 | M6 | 25 | 2 |
| HCL043/06030RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M6 | 30 | 1 |
| HCL043/06040RB | Zinc plated steel | 43 | 29 | 11.5 | 33 | M6 | 40 | 1 |
| HCL052/06016RB | Zinc plated steel | 52 | 36 | 15 | 41 | M6 | 16 | 1 |
| HCL052/06020RB | Zinc plated steel | 52 | 36 | 15 | 41 | M6 | 20 | 1 |
| HCL052/06030RB | Zinc plated steel | 52 | 36 | 15 | 41 | M6 | 30 | 1 |
| HCL052/06040RB | Zinc plated steel | 52 | 36 | 15 | 41 | M6 | 40 | 1 |
| HCL052/10016RB | Zinc plated steel | 52 | 36 | 15 | 41 | M10 | 16 | 1 |
| HCL052/10020RB | Zinc plated steel | 52 | 36 | 15 | 41 | M10 | 20 | 1 |
| HCL052/10030RB | Zinc plated steel | 52 | 36 | 15 | 41 | M10 | 30 | 1 |
| HCL052/10040RB | Zinc plated steel | 52 | 36 | 15 | 41 | M10 | 40 | 1 |
| HCL065/06016RB | Zinc plated steel | 65 | 36 | 15 | 43 | M6 | 16 | 1 |
| HCL065/06020RB | Zinc plated steel | 65 | 36 | 15 | 43 | M6 | 20 | 1 |
| HCL065/06030RB | Zinc plated steel | 65 | 36 | 15 | 43 | M6 | 30 | 1 |
| HCL065/06040RB | Zinc plated steel | 65 | 36 | 15 | 43 | M6 | 40 | 1 |
| HCL065/08016RB | Zinc plated steel | 65 | 36 | 15 | 43 | M8 | 16 | 1 |
| HCL065/08020RB | Zinc plated steel | 65 | 36 | 15 | 43 | M8 | 20 | 1 |
| HCL065/08020RBRE | Zinc plated steel | 65 | 37 | 15 | 46 | M8 | 20 | 2 |
| HCL065/08030RB | Zinc plated steel | 65 | 36 | 15 | 43 | M8 | 30 | 1 |
| HCL065/08030RBRE | Zinc plated steel | 65 | 37 | 15 | 46 | M8 | 30 | 2 |
| HCL065/08040RB | Zinc plated steel | 65 | 36 | 15 | 43 | M8 | 40 | 1 |
| HCL065/10016RB | Zinc plated steel | 65 | 36 | 15 | 43 | M10 | 16 | 1 |
| HCL065/10020RB | Zinc plated steel | 65 | 36 | 15 | 43 | M10 | 20 | 1 |
| HCL065/10030RB | Zinc plated steel | 65 | 36 | 15 | 43 | M10 | 30 | 1 |
| HCL065/10040RB | Zinc plated steel | 65 | 36 | 15 | 43 | M10 | 40 | 1 |
| HCL080/08016RB | Zinc plated steel | 80 | 44 | 19 | 54 | M8 | 16 | 1 |
| HCL080/08020RB | Zinc plated steel | 80 | 44 | 19 | 54 | M8 | 20 | 1 |
| HCL080/08030RB | Zinc plated steel | 80 | 44 | 19 | 54 | M8 | 30 | 1 |
| HCL080/08040RB | Zinc plated steel | 80 | 44 | 19 | 54 | M8 | 40 | 1 |
| HCL080/08050RB | Zinc plated steel | 80 | 44 | 19 | 54 | M8 | 50 | 1 |
| HCL080/10020RB | Zinc plated steel | 80 | 44 | 19 | 54 | M10 | 20 | 1 |
| HCL080/10030RB | Zinc plated steel | 80 | 44 | 19 | 54 | M10 | 30 | 1 |
| HCL080/10040RB | Zinc plated steel | 80 | 44 | 19 | 54 | M10 | 40 | 1 |
| HCL080/10050RB | Zinc plated steel | 80 | 44 | 19 | 54 | M10 | 50 | 1 |
| HCL080/12020RB | Zinc plated steel | 80 | 44 | 19 | 54 | M12 | 20 | 1 |
| HCL080/12030RB | Zinc plated steel | 80 | 44 | 19 | 54 | M12 | 30 | 1 |
| HCL080/12040RB | Zinc plated steel | 80 | 44 | 19 | 54 | M12 | 40 | 1 |
| HCL080/12050RB | Zinc plated steel | 80 | 44 | 19 | 54 | M12 | 50 | 1 |
| HCL083/10040RBRE | Zinc plated steel | 83 | 46 | 19 | 57 | M10 | 40 | 2 |
| HCL094/08020RB | Zinc plated steel | 94 | 45 | 19 | 56 | M08 | 20 | 1 |
| HCL094/08030RB | Zinc plated steel | 94 | 45 | 19 | 56 | M08 | 30 | 1 |
| HCL094/08040RB | Zinc plated steel | 94 | 45 | 19 | 56 | M08 | 40 | 1 |
| HCL094/08050RB | Zinc plated steel | 94 | 45 | 19 | 56 | M08 | 50 | 1 |
| HCL094/10020RB | Zinc plated steel | 94 | 45 | 19 | 56 | M10 | 20 | 1 |
| HCL094/10030RB | Zinc plated steel | 94 | 45 | 19 | 56 | M10 | 30 | 1 |
| HCL094/10040RB | Zinc plated steel | 94 | 45 | 19 | 56 | M10 | 40 | 1 |
| HCL094/10050RB | Zinc plated steel | 94 | 45 | 19 | 56 | M10 | 50 | 1 |
| HCL094/12020RB | Zinc plated steel | 94 | 45 | 19 | 56 | M12 | 20 | 1 |
| HCL094/12030RB | Zinc plated steel | 94 | 45 | 19 | 56 | M12 | 30 | 1 |
| HCL094/12040RB | Zinc plated steel | 94 | 45 | 19 | 56 | M12 | 40 | 1 |
| HCL094/12050RB | Zinc plated steel | 94 | 45 | 19 | 56 | M12 | 50 | 1 |
| HCL108/12020RB | Zinc plated steel | 108 | 51 | 24 | 65 | M12 | 20 | 1 |
| HCL108/12030RB | Zinc plated steel | 108 | 51 | 24 | 65 | M12 | 30 | 1 |
| HCL108/12040RB | Zinc plated steel | 108 | 51 | 24 | 65 | M12 | 40 | 1 |
| HCL108/12050RB | Zinc plated steel | 108 | 51 | 24 | 65 | M12 | 50 | 1 |
| HCL108/14020RB | Zinc plated steel | 108 | 51 | 24 | 65 | M14 | 20 | 1 |
| HCL108/14030RB | Zinc plated steel | 108 | 51 | 24 | 65 | M14 | 30 | 1 |
| HCL108/14040RB | Zinc plated steel | 108 | 51 | 24 | 65 | M14 | 40 | 1 |
| HCL108/14050RB | Zinc plated steel | 108 | 51 | 24 | 65 | M14 | 50 | 1 |
| HCL108/16020RB | Zinc plated steel | 108 | 51 | 24 | 65 | M16 | 20 | 1 |
| HCL108/16030RB | Zinc plated steel | 108 | 51 | 24 | 65 | M16 | 30 | 1 |
| HCL108/16040RB | Zinc plated steel | 108 | 51 | 24 | 65 | M16 | 40 | 1 |
| HCL108/16050RB | Zinc plated steel | 108 | 51 | 24 | 65 | M16 | 50 | 1 |
