ALLEN KEY PUSH BUTTON INDEX CLAMPING LEVER

2 material options to choose from (reinforced nylon or die cast steel) in male or female. User simply presses the finger button with a socket wrench (allen key), pulls the handle and turns. The allen key option within the button head allows the end user the...

Find the right option

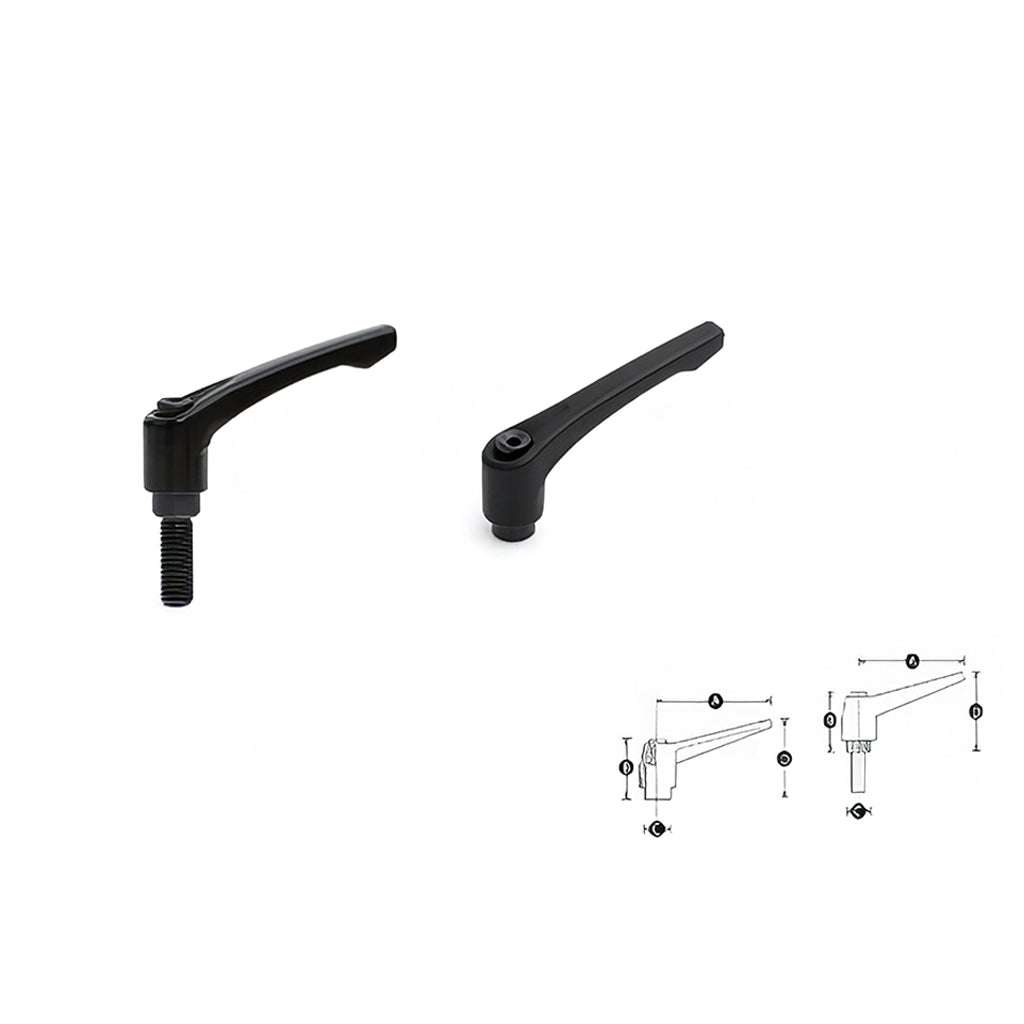

  • Allen key push button index clamping lever with reinforced nylon and die cast steel options
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

2 material options to choose from (reinforced nylon or die cast steel) in male or female.
User simply presses the finger button with a socket wrench (allen key), pulls the handle and turns.
The allen key option within the button head allows the end user the choice to dismantle the handle and remove from the equipment (ie in a tight access area).

We can also supply this range with stainless steel thread rather than steel zinc. Please contact the sales office for details.
Please also view our range of simple thumb push button (non-allen key) version.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

74 options
Part numberSize / technical detailOther specificationAction
HCL042/04DCABB Black / Die cast / Blackened steel | 42 | 25 | 10 | 37 | M4 | n/a (female) | 2 | 2 —
HCL042/05016DCABB Black / Die cast / Blackened steel | 42 | 25 | 10 | 37 | M5 | 16 | 2 | 1 —
HCL042/05020DCABB Black / Die cast / Blackened steel | 42 | 25 | 10 | 37 | M5 | 20 | 2 | 1 —
HCL042/05BB Black / Reinforced nylon / Blackened steel | 42 | 25 | 10 | 38 | M5 | n/a (female) | 2 | 2 —
HCL042/05DCABB Black / Die cast / Blackened steel | 42 | 25 | 10 | 37 | M5 | n/a (female) | 2 | 2 —
HCL042/06016BB Black / Reinforced nylon / Blackened steel | 42 | 25 | 10 | 38 | M6 | 16 | 2 | 1 —
HCL042/06016DCABB Black / Die cast / Blackened steel | 42 | 25 | 10 | 37 | M6 | 16 | 2 | 1 —
HCL042/06016DCABBSS Black / Die cast / Stainless steel | 42 | 25 | 10 | 37 | M6 | 16 | 2 | 1 —
HCL042/06020BB Black / Reinforced nylon / Blackened steel | 42 | 25 | 10 | 38 | M6 | 20 | 2 | 1 —
HCL042/06020DCABB Black / Die cast / Blackened steel | 42 | 25 | 10 | 37 | M6 | 20 | 2 | 1 —
HCL042/06020DCABBSS Black / Die cast / Stainless steel | 42 | 25 | 10 | 37 | M6 | 20 | 2 | 1 —
HCL042/06032BB Black / Reinforced nylon / Blackened steel | 42 | 25 | 10 | 38 | M6 | 32 | 2 | 1 —
HCL042/06032DCABB Black / Die cast / Blackened steel | 42 | 25 | 10 | 37 | M6 | 32 | 2 | 1 —
HCL042/06032DCABBSS Black / Die cast / Stainless steel | 42 | 25 | 10 | 37 | M6 | 32 | 2 | 1 —
HCL042/06BB Black / Reinforced nylon / Blackened steel | 42 | 25 | 10 | 38 | M6 | n/a (female) | 2 | 2 —
HCL042/06DCABB Black / Die cast / Blackened steel | 42 | 25 | 10 | 37 | M6 | n/a (female) | 2 | 2 —
HCL042/06DCABBSS Black / Die cast / Stainless steel | 42 | 25 | 10 | 37 | M6 | n/a (female) | 2 | 2 —
HCL065/06BB Black / Reinforced nylon / Blackened steel | 65 | 31 | 14 | 50 | M6 | n/a (female) | 2 | 2 —
HCL065/06DCABB Black / Die cast / Blackened steel | 65 | 31 | 14 | 49 | M6 | n/a (female) | 2 | 2 —
HCL065/06DCABBSS Black / Die cast / Stainless steel | 65 | 31 | 14 | 49 | M6 | n/a (female) | 2 | 2 —
HCL065/08016BB Black / Reinforced nylon / Blackened steel | 65 | 31 | 14 | 50 | M8 | 16 | 2 | 1 —
HCL065/08016DCABB Black / Die cast / Blackened steel | 65 | 31 | 14 | 49 | M8 | 16 | 2 | 1 —
HCL065/08020BB Black / Reinforced nylon / Blackened steel | 65 | 31 | 14 | 50 | M8 | 20 | 2 | 1 —
HCL065/08020DCABB Black / Die cast / Blackened steel | 65 | 31 | 14 | 49 | M8 | 20 | 2 | 1 —
HCL065/08020DCABBSS Black / Die cast / Stainless steel | 65 | 31 | 14 | 49 | M8 | 20 | 2 | 1 —
HCL065/08025BB Black / Reinforced nylon / Blackened steel | 65 | 31 | 14 | 50 | M8 | 25 | 2 | 1 —
HCL065/08025DCABB Black / Die cast / Blackened steel | 65 | 31 | 14 | 49 | M8 | 25 | 2 | 1 —
HCL065/08025DCABBSS Black / Die cast / Stainless steel | 65 | 31 | 14 | 49 | M8 | 25 | 2 | 1 —
HCL065/08032BB Black / Reinforced nylon / Blackened steel | 65 | 31 | 14 | 50 | M8 | 32 | 2 | 1 —
HCL065/08032DCABB Black / Die cast / Blackened steel | 65 | 31 | 14 | 49 | M8 | 32 | 2 | 1 —
HCL065/08032DCABBSS Black / Die cast / Stainless steel | 65 | 31 | 14 | 49 | M8 | 32 | 2 | 1 —
HCL065/08040BB Black / Reinforced nylon / Blackened steel | 65 | 31 | 14 | 50 | M8 | 40 | 2 | 1 —
HCL065/08040DCABB Black / Die cast / Blackened steel | 65 | 31 | 14 | 49 | M8 | 40 | 2 | 1 —
HCL065/08040DCABBSS Black / Die cast / Stainless steel | 65 | 31 | 14 | 49 | M8 | 40 | 2 | 1 —
HCL065/08050DCABB Black / Die cast / Blackened steel | 65 | 31 | 14 | 49 | M8 | 50 | 2 | 1 —
HCL065/08050DCABBSS Black / Die cast / Stainless steel | 65 | 31 | 14 | 49 | M8 | 50 | 2 | 1 —
HCL065/08BB Black / Reinforced nylon / Blackened steel | 65 | 31 | 14 | 50 | M8 | n/a (female) | 2 | 2 —
HCL078/08DCABB Black / Die cast / Blackened steel | 78 | 36 | 16 | 57 | M8 | n/a (female) | 2 | 2 —
HCL078/08DCABBSS Black / Die cast / Stainless steel | 78 | 36 | 16 | 57 | M8 | n/a (female) | 2 | 2 —
HCL078/10020DCABB Black / Die cast / Blackened steel | 78 | 36 | 16 | 57 | M10 | 20 | 2 | 1 —
HCL078/10020DCABBSS Black / Die cast / Stainless steel | 78 | 36 | 16 | 57 | M10 | 20 | 2 | 1 —
HCL078/10032DCABB Black / Die cast / Blackened steel | 78 | 36 | 16 | 57 | M10 | 32 | 2 | 1 —
HCL078/10032DCABBSS Black / Die cast / Stainless steel | 78 | 36 | 16 | 57 | M10 | 32 | 2 | 1 —
HCL078/10040DCABB Black / Die cast / Blackened steel | 78 | 36 | 16 | 57 | M10 | 40 | 2 | 1 —
HCL078/10040DCABBSS Black / Die cast / Stainless steel | 78 | 36 | 16 | 57 | M10 | 40 | 2 | 1 —
HCL078/10050DCABB Black / Die cast / Blackened steel | 78 | 36 | 16 | 57 | M10 | 50 | 2 | 1 —
HCL078/10DCABB Black / Die cast / Blackened steel | 78 | 36 | 16 | 57 | M10 | n/a (female) | 2 | 2 —
HCL078/10DCABBSS Black / Die cast / Stainless steel | 78 | 36 | 16 | 57 | M10 | n/a (female) | 2 | 2 —
HCL083/08BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M8 | n/a (female) | 2 | 2 —
HCL083/10020BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M10 | 20 | 2 | 1 —
HCL083/10032BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M10 | 32 | 2 | 1 —
HCL083/10040BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M10 | 40 | 2 | 1 —
HCL083/10050BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M10 | 50 | 2 | 1 —
HCL083/10BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M10 | n/a (female) | 2 | 2 —
HCL083/12050BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M12 | 50 | 2 | 1 —
HCL083/12063BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M12 | 63 | 2 | 1 —
HCL083/12BB Black / Reinforced nylon / Blackened steel | 83 | 36 | 16 | 60 | M12 | n/a (female) | 2 | 2 —
HCL085/08DCABB Black / Die cast / Blackened steel | 65 | 31 | 14 | 49 | M8 | n/a (female) | 2 | 2 —
HCL085/08DCABBSS Black / Die cast / Stainless steel | 65 | 31 | 14 | 49 | M8 | n/a (female) | 2 | 2 —
HCL092/10020DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M10 | 20 | 2 | 1 —
HCL092/10032DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M10 | 32 | 2 | 1 —
HCL092/10040DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M10 | 40 | 2 | 1 —
HCL092/10050DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M10 | 50 | 2 | 1 —
HCL092/10050DCABBSS Black / Die cast / Stainless steel | 92 | 43 | 19 | 65 | M10 | 50 | 2 | 1 —
HCL092/10DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M10 | n/a (female) | 2 | 2 —
HCL092/10DCABBSS Black / Die cast / Stainless steel | 92 | 43 | 19 | 65 | M10 | n/a (female) | 2 | 2 —
HCL092/12032DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M12 | 32 | 2 | 1 —
HCL092/12032DCABBSS Black / Die cast / Stainless steel | 92 | 43 | 19 | 65 | M12 | 32 | 2 | 1 —
HCL092/12040DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M12 | 40 | 2 | 1 —
HCL092/12040DCABBSS Black / Die cast / Stainless steel | 92 | 43 | 19 | 65 | M12 | 40 | 2 | 1 —
HCL092/12050DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M12 | 50 | 2 | 1 —
HCL092/12050DCABBSS Black / Die cast / Stainless steel | 92 | 43 | 19 | 65 | M12 | 50 | 2 | 1 —
HCL092/12063DCABB Black / Die cast / Blackened steel | 92 | 43 | 19 | 65 | M12 | 63 | 2 | 1 —
HCL092/12063DCABBSS Black / Die cast / Stainless steel | 92 | 43 | 19 | 65 | M12 | 63 | 2 | 1 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

ALLEN KEY PUSH BUTTON INDEX CLAMPING LEVER
HCL042/04DCABB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Colour Handle Material Insert Material A B C D Thread Size Thread Length Pack Qty Image
HCL042/04DCABB Black Die cast Blackened steel 42 25 10 37 M4 n/a (female) 2 2
HCL042/05016DCABB Black Die cast Blackened steel 42 25 10 37 M5 16 2 1
HCL042/05020DCABB Black Die cast Blackened steel 42 25 10 37 M5 20 2 1
HCL042/05BB Black Reinforced nylon Blackened steel 42 25 10 38 M5 n/a (female) 2 2
HCL042/05DCABB Black Die cast Blackened steel 42 25 10 37 M5 n/a (female) 2 2
HCL042/06016BB Black Reinforced nylon Blackened steel 42 25 10 38 M6 16 2 1
HCL042/06016DCABB Black Die cast Blackened steel 42 25 10 37 M6 16 2 1
HCL042/06016DCABBSS Black Die cast Stainless steel 42 25 10 37 M6 16 2 1
HCL042/06020BB Black Reinforced nylon Blackened steel 42 25 10 38 M6 20 2 1
HCL042/06020DCABB Black Die cast Blackened steel 42 25 10 37 M6 20 2 1
HCL042/06020DCABBSS Black Die cast Stainless steel 42 25 10 37 M6 20 2 1
HCL042/06032BB Black Reinforced nylon Blackened steel 42 25 10 38 M6 32 2 1
HCL042/06032DCABB Black Die cast Blackened steel 42 25 10 37 M6 32 2 1
HCL042/06032DCABBSS Black Die cast Stainless steel 42 25 10 37 M6 32 2 1
HCL042/06BB Black Reinforced nylon Blackened steel 42 25 10 38 M6 n/a (female) 2 2
HCL042/06DCABB Black Die cast Blackened steel 42 25 10 37 M6 n/a (female) 2 2
HCL042/06DCABBSS Black Die cast Stainless steel 42 25 10 37 M6 n/a (female) 2 2
HCL065/06BB Black Reinforced nylon Blackened steel 65 31 14 50 M6 n/a (female) 2 2
HCL065/06DCABB Black Die cast Blackened steel 65 31 14 49 M6 n/a (female) 2 2
HCL065/06DCABBSS Black Die cast Stainless steel 65 31 14 49 M6 n/a (female) 2 2
HCL065/08016BB Black Reinforced nylon Blackened steel 65 31 14 50 M8 16 2 1
HCL065/08016DCABB Black Die cast Blackened steel 65 31 14 49 M8 16 2 1
HCL065/08020BB Black Reinforced nylon Blackened steel 65 31 14 50 M8 20 2 1
HCL065/08020DCABB Black Die cast Blackened steel 65 31 14 49 M8 20 2 1
HCL065/08020DCABBSS Black Die cast Stainless steel 65 31 14 49 M8 20 2 1
HCL065/08025BB Black Reinforced nylon Blackened steel 65 31 14 50 M8 25 2 1
HCL065/08025DCABB Black Die cast Blackened steel 65 31 14 49 M8 25 2 1
HCL065/08025DCABBSS Black Die cast Stainless steel 65 31 14 49 M8 25 2 1
HCL065/08032BB Black Reinforced nylon Blackened steel 65 31 14 50 M8 32 2 1
HCL065/08032DCABB Black Die cast Blackened steel 65 31 14 49 M8 32 2 1
HCL065/08032DCABBSS Black Die cast Stainless steel 65 31 14 49 M8 32 2 1
HCL065/08040BB Black Reinforced nylon Blackened steel 65 31 14 50 M8 40 2 1
HCL065/08040DCABB Black Die cast Blackened steel 65 31 14 49 M8 40 2 1
HCL065/08040DCABBSS Black Die cast Stainless steel 65 31 14 49 M8 40 2 1
HCL065/08050DCABB Black Die cast Blackened steel 65 31 14 49 M8 50 2 1
HCL065/08050DCABBSS Black Die cast Stainless steel 65 31 14 49 M8 50 2 1
HCL065/08BB Black Reinforced nylon Blackened steel 65 31 14 50 M8 n/a (female) 2 2
HCL078/08DCABB Black Die cast Blackened steel 78 36 16 57 M8 n/a (female) 2 2
HCL078/08DCABBSS Black Die cast Stainless steel 78 36 16 57 M8 n/a (female) 2 2
HCL078/10020DCABB Black Die cast Blackened steel 78 36 16 57 M10 20 2 1
HCL078/10020DCABBSS Black Die cast Stainless steel 78 36 16 57 M10 20 2 1
HCL078/10032DCABB Black Die cast Blackened steel 78 36 16 57 M10 32 2 1
HCL078/10032DCABBSS Black Die cast Stainless steel 78 36 16 57 M10 32 2 1
HCL078/10040DCABB Black Die cast Blackened steel 78 36 16 57 M10 40 2 1
HCL078/10040DCABBSS Black Die cast Stainless steel 78 36 16 57 M10 40 2 1
HCL078/10050DCABB Black Die cast Blackened steel 78 36 16 57 M10 50 2 1
HCL078/10DCABB Black Die cast Blackened steel 78 36 16 57 M10 n/a (female) 2 2
HCL078/10DCABBSS Black Die cast Stainless steel 78 36 16 57 M10 n/a (female) 2 2
HCL083/08BB Black Reinforced nylon Blackened steel 83 36 16 60 M8 n/a (female) 2 2
HCL083/10020BB Black Reinforced nylon Blackened steel 83 36 16 60 M10 20 2 1
HCL083/10032BB Black Reinforced nylon Blackened steel 83 36 16 60 M10 32 2 1
HCL083/10040BB Black Reinforced nylon Blackened steel 83 36 16 60 M10 40 2 1
HCL083/10050BB Black Reinforced nylon Blackened steel 83 36 16 60 M10 50 2 1
HCL083/10BB Black Reinforced nylon Blackened steel 83 36 16 60 M10 n/a (female) 2 2
HCL083/12050BB Black Reinforced nylon Blackened steel 83 36 16 60 M12 50 2 1
HCL083/12063BB Black Reinforced nylon Blackened steel 83 36 16 60 M12 63 2 1
HCL083/12BB Black Reinforced nylon Blackened steel 83 36 16 60 M12 n/a (female) 2 2
HCL085/08DCABB Black Die cast Blackened steel 65 31 14 49 M8 n/a (female) 2 2
HCL085/08DCABBSS Black Die cast Stainless steel 65 31 14 49 M8 n/a (female) 2 2
HCL092/10020DCABB Black Die cast Blackened steel 92 43 19 65 M10 20 2 1
HCL092/10032DCABB Black Die cast Blackened steel 92 43 19 65 M10 32 2 1
HCL092/10040DCABB Black Die cast Blackened steel 92 43 19 65 M10 40 2 1
HCL092/10050DCABB Black Die cast Blackened steel 92 43 19 65 M10 50 2 1
HCL092/10050DCABBSS Black Die cast Stainless steel 92 43 19 65 M10 50 2 1
HCL092/10DCABB Black Die cast Blackened steel 92 43 19 65 M10 n/a (female) 2 2
HCL092/10DCABBSS Black Die cast Stainless steel 92 43 19 65 M10 n/a (female) 2 2
HCL092/12032DCABB Black Die cast Blackened steel 92 43 19 65 M12 32 2 1
HCL092/12032DCABBSS Black Die cast Stainless steel 92 43 19 65 M12 32 2 1
HCL092/12040DCABB Black Die cast Blackened steel 92 43 19 65 M12 40 2 1
HCL092/12040DCABBSS Black Die cast Stainless steel 92 43 19 65 M12 40 2 1
HCL092/12050DCABB Black Die cast Blackened steel 92 43 19 65 M12 50 2 1
HCL092/12050DCABBSS Black Die cast Stainless steel 92 43 19 65 M12 50 2 1
HCL092/12063DCABB Black Die cast Blackened steel 92 43 19 65 M12 63 2 1
HCL092/12063DCABBSS Black Die cast Stainless steel 92 43 19 65 M12 63 2 1

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.

Talk to the team → Browse all products →

Related Products
