ECONOMICAL HEAVY DUTY TILTING ADJUSTABLE FOOT

Economical range of heavy duty feet for weight loads up to 900 kg per foot.

Find the right option

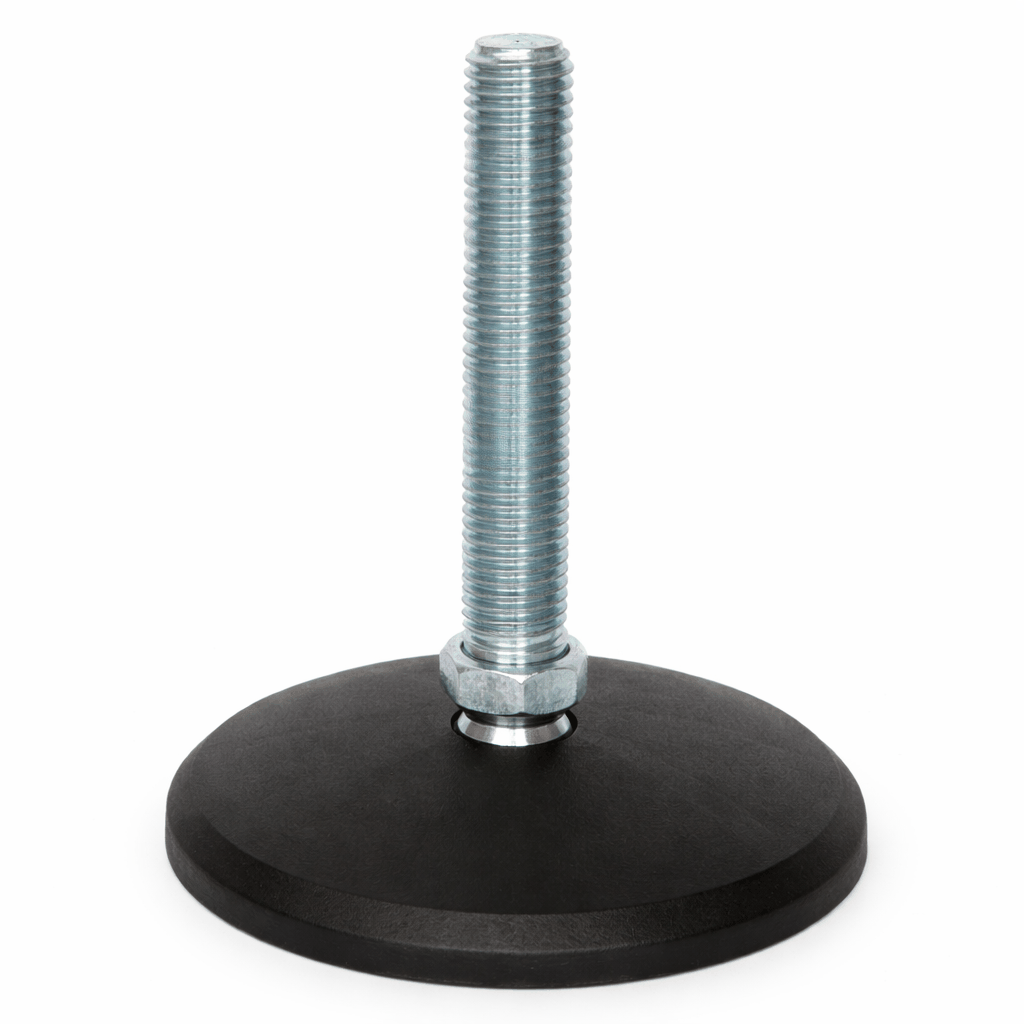

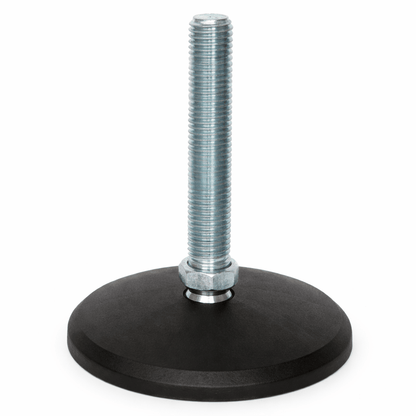

  • Economical heavy duty adjustable tilting foot for up to 900 kg load with bolt down base

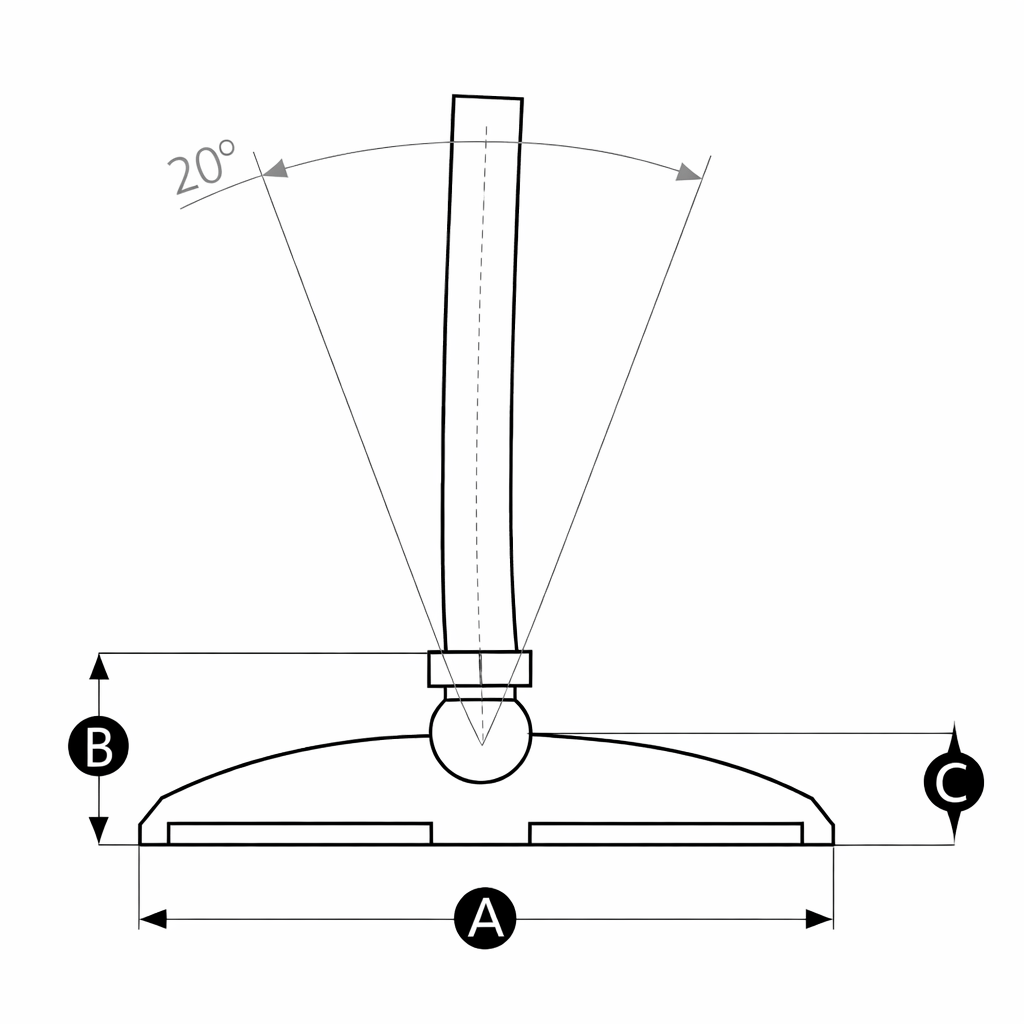

  • Heavy duty foot with adjustable tilting base supporting up to 900 kg load

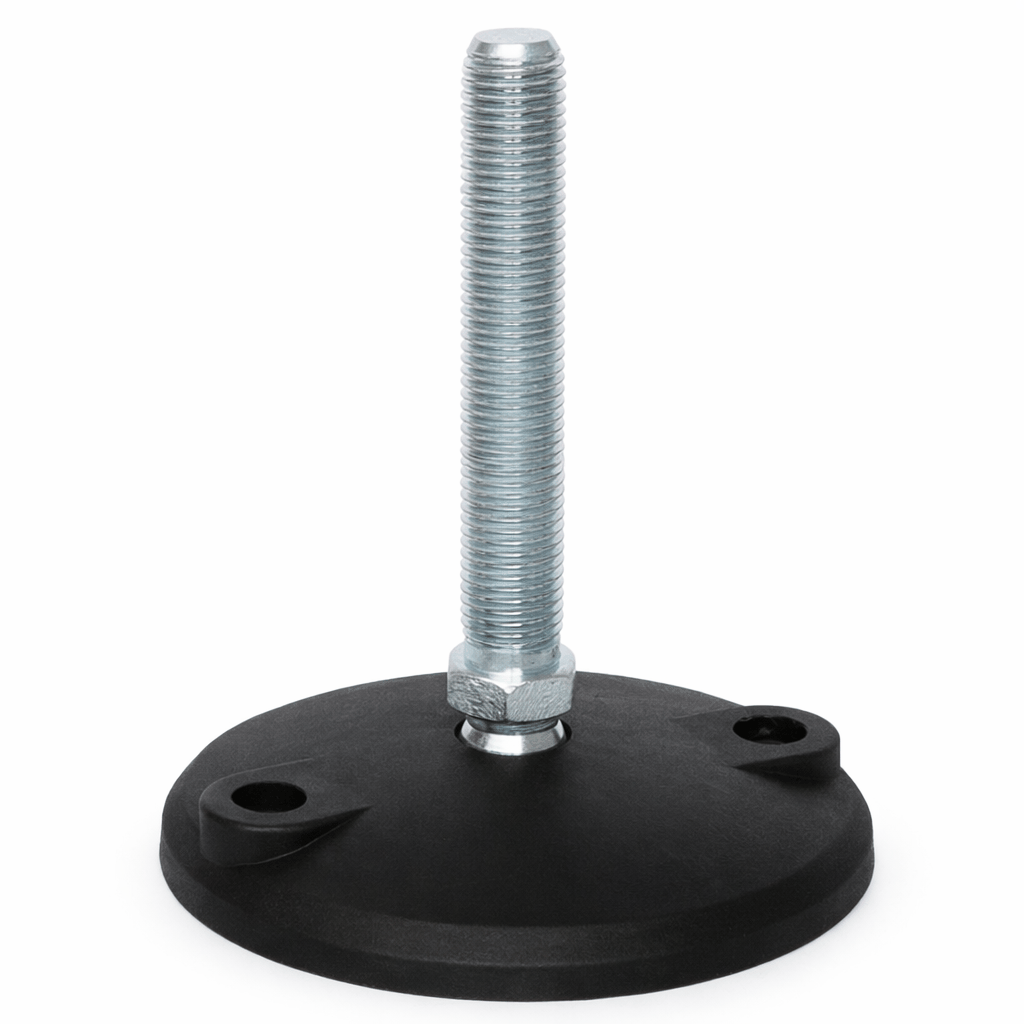

  • Economical heavy duty foot with adjustable tilting base for up to 900 kg load and bolt-down option
  • Heavy duty adjustable tilting foot supporting up to 900 kg with bolt down base
1 4

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Economical range of heavy duty feet for weight loads up to 900 kg per foot.

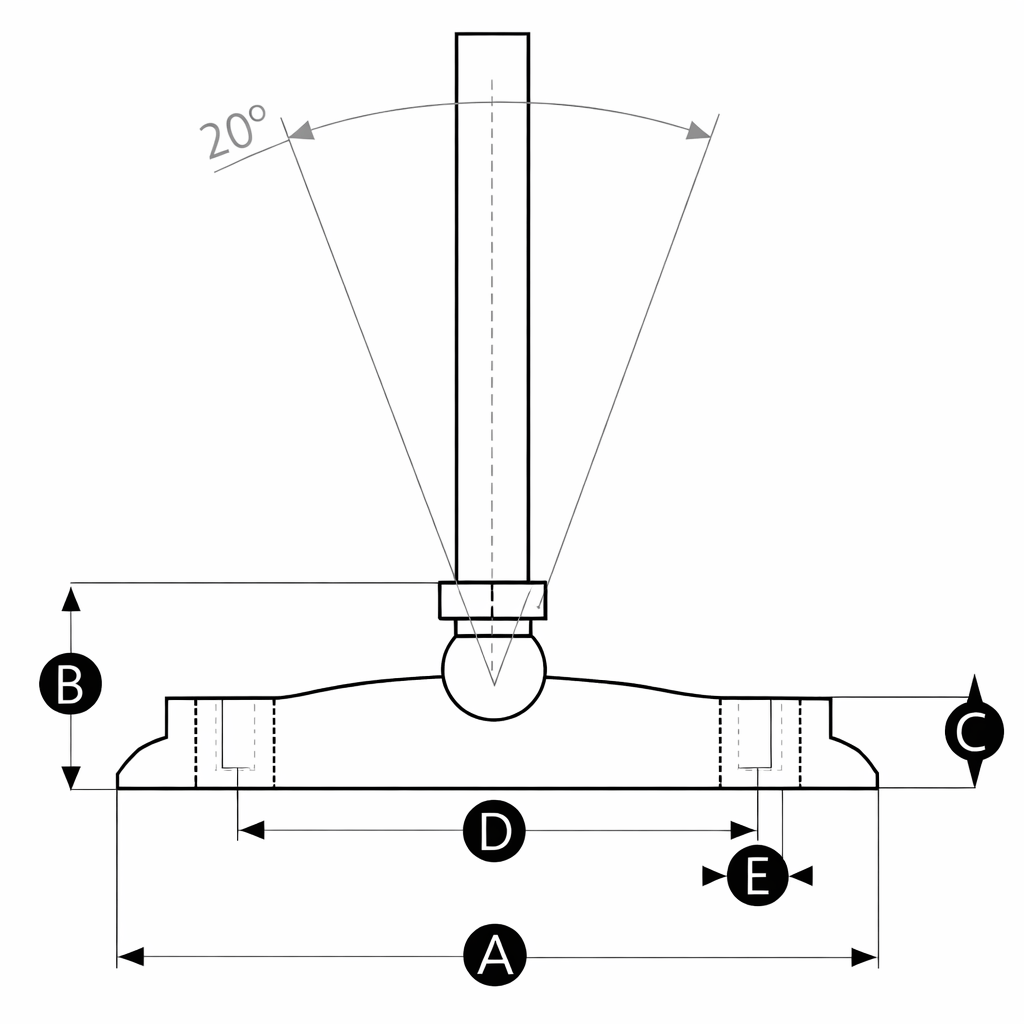

Bolt down (two through holes in base that allow fixing to the ground) version available (as shown as image 2 in illustration / table).

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

34 options
Part numberSize / technical detailOther specificationAction
FTM040/08025/MRE FTM040/08025/MRE —
FTM040/08040/MRE FTM040/08040/MRE —
FTM050/08040/MRE FTM050/08040/MRE —
FTM050/08060/MRE FTM050/08060/MRE —
FTM050/08080/MRE FTM050/08080/MRE —
FTM050/10045/MRE FTM050/10045/MRE —
FTM050/10070/MRE FTM050/10070/MRE —
FTM050/10090/MRE FTM050/10090/MRE —
FTM060/08060/MBRE FTM060/08060/MBRE —
FTM060/10045/MRE FTM060/10045/MRE —
FTM060/10070/MBRE FTM060/10070/MBRE —
FTM060/10070/MRE FTM060/10070/MRE —
FTM060/10125/MBRE FTM060/10125/MBRE —
FTM060/10125/MRE FTM060/10125/MRE —
FTM060/12066/MRE FTM060/12066/MRE —
FTM060/12080/MRE FTM060/12080/MRE —
FTM060/12100/MRE FTM060/12100/MRE —
FTM060/12125/MRE FTM060/12125/MRE —
FTM060/12150/MRE FTM060/12150/MRE —
FTM080/12066/MRE FTM080/12066/MRE —
FTM080/12100/MBRE FTM080/12100/MBRE —
FTM080/12100/MRE FTM080/12100/MRE —
FTM080/12150/MBRE FTM080/12150/MBRE —
FTM080/16066/MRE FTM080/16066/MRE —
FTM080/16100/MBRE FTM080/16100/MBRE —
FTM080/16100/MRE FTM080/16100/MRE —
FTM080/16150/MBRE FTM080/16150/MBRE —
FTM080/16150/MRE FTM080/16150/MRE —
FTM080/20100/MRE FTM080/20100/MRE —
FTM080/20150/MRE FTM080/20150/MRE —
FTM100/16066/MRE FTM100/16066/MRE —
FTM100/16100/MBRE FTM100/16100/MBRE —
FTM100/16150/MRE FTM100/16150/MRE —
FTM120/20150/MRE FTM120/20150/MRE —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

ECONOMICAL HEAVY DUTY TILTING ADJUSTABLE FOOT
FTM040/08025/MRE

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Thread Size Thread Length Base Dia Base height Base fixing distance Base fixing dia Bolt down option Max load
FTM040/08025/MRE M8 25 40 29 n/a n/a No 350
FTM040/08040/MRE M8 40 40 29 n/a n/a No 350
FTM050/08040/MRE M8 40 50 29 n/a n/a No 350
FTM050/08060/MRE M8 60 50 29 n/a n/a No 350
FTM050/08080/MRE M8 80 50 29 n/a n/a No 350
FTM050/10045/MRE M10 45 50 29 n/a n/a No 470
FTM050/10070/MRE M10 70 50 29 n/a n/a No 470
FTM050/10090/MRE M10 90 50 29 n/a n/a No 470
FTM060/08060/MBRE M8 80 60 29 40 6 Yes 350
FTM060/10045/MRE M10 45 60 29 n/a n/a No 470
FTM060/10070/MBRE M10 70 60 29 40 6 Yes 470
FTM060/10070/MRE M10 70 60 29 n/a n/a No 470
FTM060/10125/MBRE M10 125 60 29 40 6 Yes 470
FTM060/10125/MRE M10 125 60 29 n/a n/a No 470
FTM060/12066/MRE M12 66 60 29 n/a n/a No 750
FTM060/12080/MRE M12 80 60 29 n/a n/a No 750
FTM060/12100/MRE M12 100 60 29 n/a n/a No 750
FTM060/12125/MRE M12 125 60 29 n/a n/a No 750
FTM060/12150/MRE M12 150 60 29 n/a n/a No 750
FTM080/12066/MRE M12 66 80 29 n/a n/a No 750
FTM080/12100/MBRE M12 100 80 29 54 6 Yes 750
FTM080/12100/MRE M12 100 80 29 n/a n/a No 750
FTM080/12150/MBRE M12 150 80 29 54 6 Yes 750
FTM080/16066/MRE M16 66 80 29 n/a n/a No 900
FTM080/16100/MBRE M16 100 80 29 54 6 Yes 900
FTM080/16100/MRE M16 100 80 29 n/a n/a No 900
FTM080/16150/MBRE M16 150 80 29 54 6 Yes 900
FTM080/16150/MRE M16 150 80 29 n/a n/a No 900
FTM080/20100/MRE M20 100 80 31 n/a n/a No 900
FTM080/20150/MRE M20 150 80 31 n/a n/a No 900
FTM100/16066/MRE M16 66 100 29 n/a n/a No 900
FTM100/16100/MBRE M16 100 100 29 74 6 Yes 900
FTM100/16150/MRE M16 150 100 29 n/a n/a No 900
FTM120/20150/MRE M20 150 120 31 n/a n/a No 900
