LIGHT DUTY TILTING/ NON ARTICULATING ADJUSTABLE FOOT

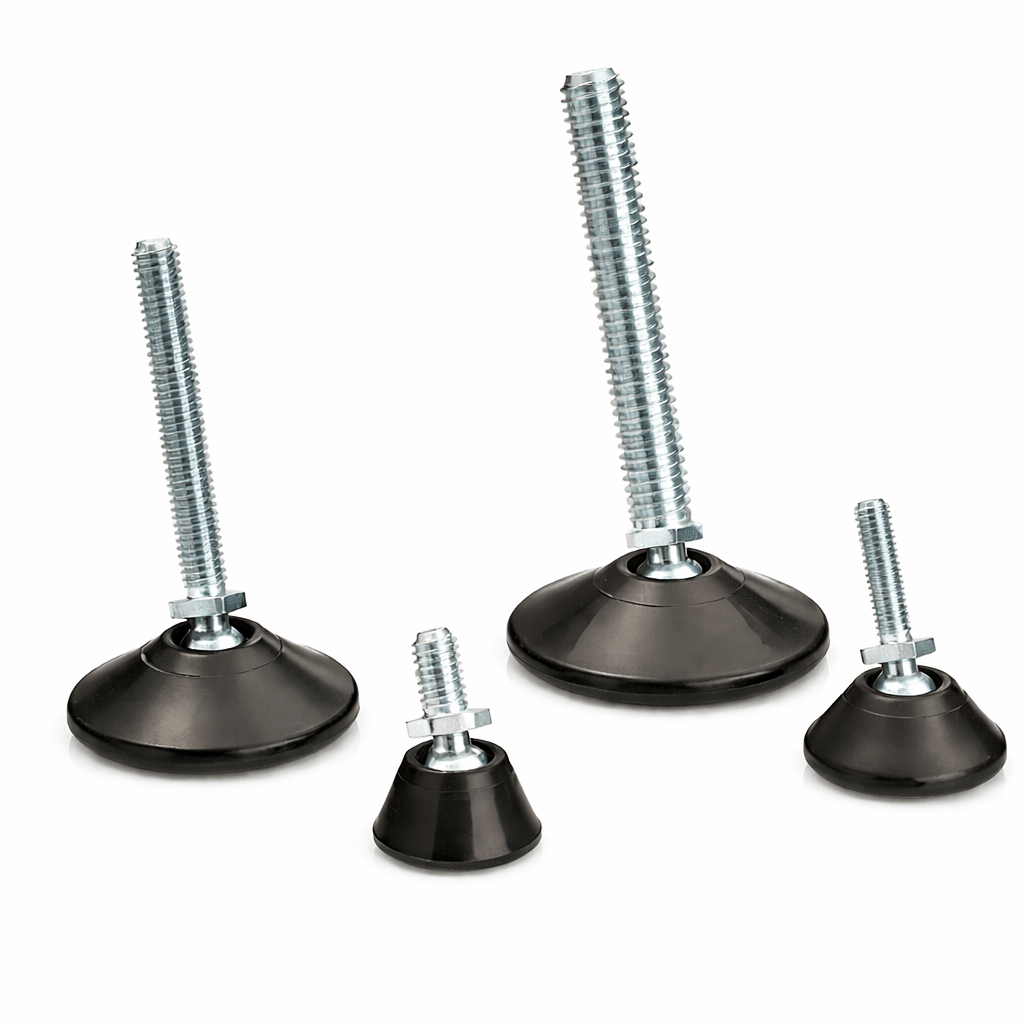

Black polyethylene base with tilting BZP steel stud on ball and socket.
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Black polyethylene base with tilting BZP steel stud on ball and socket.
Ideal for uneven or sloping floors.
Alternative colour bases can be manufactured to special order.
FIND THE RIGHT COMPONENT
QUOTE ONLY · NO PAYMENT
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
FT25/0613
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS
Find part numbers and compare available optionsProduct specifications.
| SKU | Base Dia | Thread Size | Stud | Base Thickness | Static load KG |
|---|---|---|---|---|---|
| FT25/0613 | 25 | M6 | 12.5 | 20 | 50 |
| FT25/0625 | 25 | M6 | 25 | 20 | 50 |
| FT25/0813 | 25 | M8 | 12.5 | 20 | 50 |
| FT25/0825 | 25 | M8 | 25 | 20 | 50 |
| FT25/0838 | 25 | M8 | 37.5 | 20 | 50 |
| FT25/0850 | 25 | M8 | 50 | 20 | 50 |
| FT25/0860 | 25 | M8 | 60 | 20 | 50 |
| FT25/0875 | 25 | M8 | 75 | 20 | 50 |
| FT25/08100 | 25 | M8 | 100 | 20 | 50 |
| FT25/10100 | 25 | M10 | 100 | 20 | 50 |
| FT25/1015 | 25 | M10 | 15 | 20 | 50 |
| FT25/1025 | 25 | M10 | 25 | 20 | 50 |
| FT25/1038 | 25 | M10 | 37.5 | 20 | 50 |
| FT32/0613 | 32 | M6 | 12.5 | 20 | 75 |
| FT25/1050 | 25 | M10 | 50 | 20 | 50 |
| FT32/0625 | 32 | M6 | 25 | 20 | 75 |
| FT25/1075 | 25 | M10 | 75 | 20 | 50 |
| FT32/08100 | 32 | M8 | 100 | 20 | 75 |
| FT25/12100 | 25 | M12 | 100 | 20 | 50 |
| FT32/0813 | 32 | M8 | 12.5 | 20 | 75 |
| FT25/1250 | 25 | M12 | 50 | 20 | 50 |
| FT32/0825 | 32 | M8 | 25 | 20 | 75 |
| FT25/1275 | 25 | M12 | 75 | 20 | 50 |
| FT32/0838 | 32 | M8 | 37.5 | 20 | 75 |
| FT32/0850 | 32 | M8 | 50 | 20 | 75 |
| FT32/0860 | 32 | M8 | 60 | 20 | 75 |
| FT32/0875 | 32 | M8 | 75 | 20 | 75 |
| FT32/1015 | 32 | M10 | 15 | 20 | 75 |
| FT32/1025 | 32 | M10 | 25 | 20 | 75 |
| FT32/1038 | 32 | M10 | 37.5 | 20 | 75 |
| FT32/1050 | 32 | M10 | 50 | 20 | 75 |
| FT32/1075 | 32 | M10 | 75 | 20 | 75 |
| FT32/10100 | 32 | M10 | 100 | 20 | 75 |
| FT32/1250 | 32 | M12 | 50 | 20 | 75 |
| FT32/1275 | 32 | M12 | 75 | 20 | 75 |
| FT32/12100 | 32 | M12 | 100 | 20 | 75 |
| FT40/0613 | 40 | M6 | 12.5 | 20 | 100 |
| FT40/0625 | 40 | M6 | 25 | 20 | 100 |
| FT40/0813 | 40 | M8 | 12.5 | 20 | 100 |
| FT40/0825 | 40 | M8 | 25 | 20 | 100 |
| FT40/0838 | 40 | M8 | 37.5 | 20 | 100 |
| FT40/0850 | 40 | M8 | 50 | 20 | 100 |
| FT40/0860 | 40 | M8 | 60 | 20 | 100 |
| FT40/0875 | 40 | M8 | 75 | 20 | 100 |
| FT40/08100 | 40 | M8 | 100 | 20 | 100 |
| FT40/1015 | 40 | M10 | 15 | 20 | 100 |
| FT40/1025 | 40 | M10 | 25 | 20 | 100 |
| FT40/1038 | 40 | M10 | 37.5 | 20 | 100 |
| FT40/1050 | 40 | M10 | 50 | 20 | 100 |
| FT40/1075 | 40 | M10 | 75 | 20 | 100 |
| FT40/10100 | 40 | M10 | 100 | 20 | 100 |
| FT40/1250 | 40 | M12 | 50 | 20 | 100 |
| FT40/1275 | 40 | M12 | 75 | 20 | 100 |
| FT40/12100 | 40 | M12 | 100 | 20 | 100 |
| FT47/0613 | 47.5 | M6 | 12.5 | 20 | 100 |
| FT47/0625 | 47.5 | M6 | 25 | 20 | 100 |
| FT47/0813 | 47.5 | M8 | 12.5 | 20 | 100 |
| FT47/0825 | 47.5 | M8 | 25 | 20 | 100 |
| FT47/0838 | 47.5 | M8 | 37.5 | 20 | 100 |
| FT47/0850 | 47.5 | M8 | 50 | 20 | 100 |
| FT47/0860 | 47.5 | M8 | 60 | 20 | 100 |
| FT47/0875 | 47.5 | M8 | 75 | 20 | 100 |
| FT47/08100 | 47.5 | M8 | 100 | 20 | 100 |
| FT47/1015 | 47.5 | M10 | 15 | 20 | 250 |
| FT47/1025 | 47.5 | M10 | 25 | 20 | 250 |
| FT47/1038 | 47.5 | M10 | 37.5 | 20 | 250 |
| FT47/1050 | 47.5 | M10 | 50 | 20 | 250 |
| FT47/1075 | 47.5 | M10 | 75 | 20 | 250 |
| FT47/10100 | 47.5 | M10 | 100 | 20 | 250 |
| FT47/1250 | 47.5 | M12 | 50 | 20 | 250 |
| FT47/1275 | 47.5 | M12 | 75 | 20 | 250 |
| FT47/12100 | 47.5 | M12 | 100 | 20 | 250 |
| FT55/0613 | 55 | M6 | 12.5 | 20 | 100 |
| FT55/0625 | 55 | M6 | 25 | 20 | 100 |
| FT55/0813 | 55 | M8 | 12.5 | 20 | 100 |
| FT55/0825 | 55 | M8 | 25 | 20 | 100 |
| FT55/0838 | 55 | M8 | 37.5 | 20 | 100 |
| FT55/0850 | 55 | M8 | 50 | 20 | 100 |
| FT55/0860 | 55 | M8 | 60 | 20 | 100 |
| FT55/0875 | 55 | M8 | 75 | 20 | 100 |
| FT55/08100 | 55 | M8 | 100 | 20 | 100 |
| FT55/1015 | 55 | M10 | 15 | 20 | 250 |
| FT55/1025 | 55 | M10 | 25 | 20 | 250 |
| FT55/1038 | 55 | M10 | 37.5 | 20 | 250 |
| FT55/1050 | 55 | M10 | 50 | 20 | 250 |
| FT55/1075 | 55 | M10 | 75 | 20 | 250 |
| FT55/10100 | 55 | M10 | 100 | 20 | 250 |
| FT55/1250 | 55 | M12 | 50 | 20 | 250 |
| FT55/1275 | 55 | M12 | 75 | 20 | 250 |
| FT55/12100 | 55 | M12 | 100 | 20 | 250 |
