Castors wheels

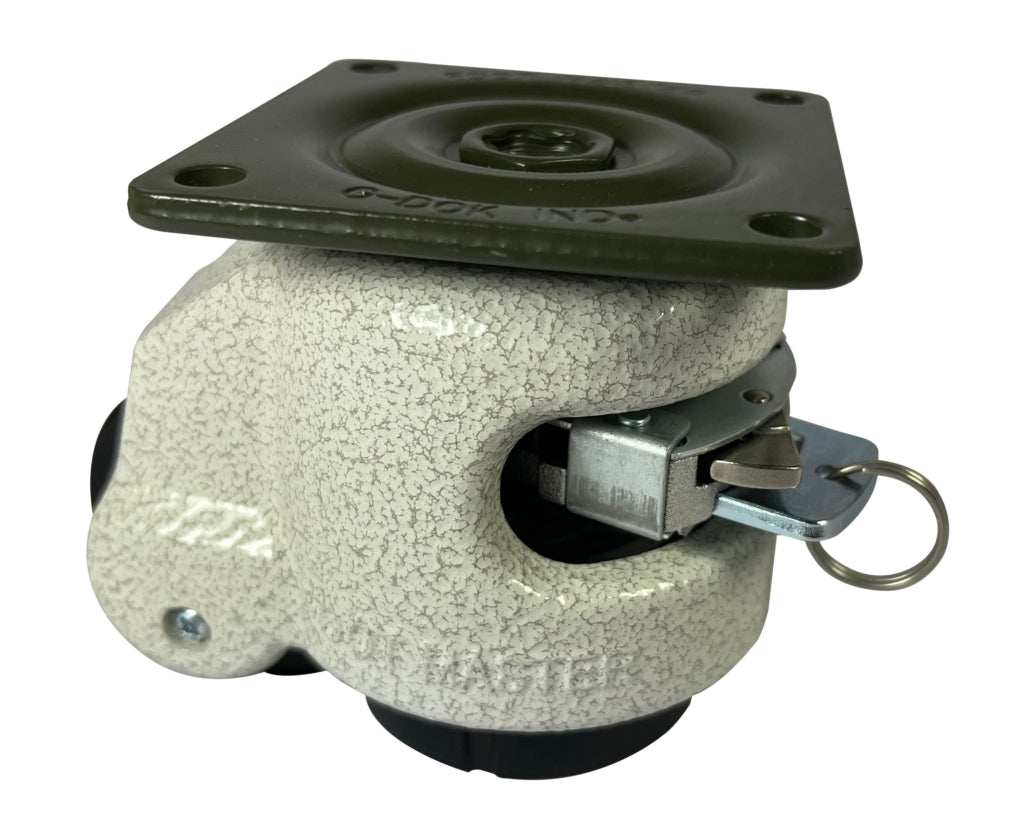

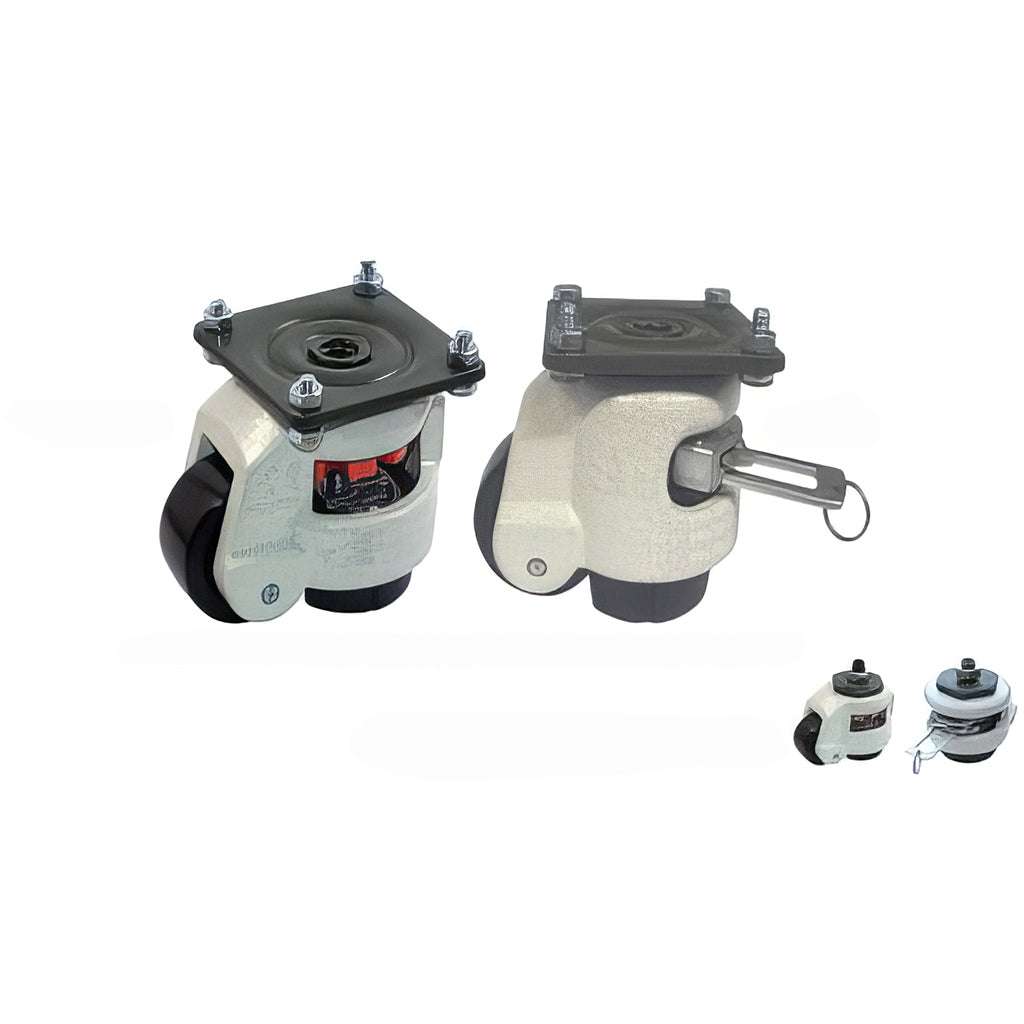

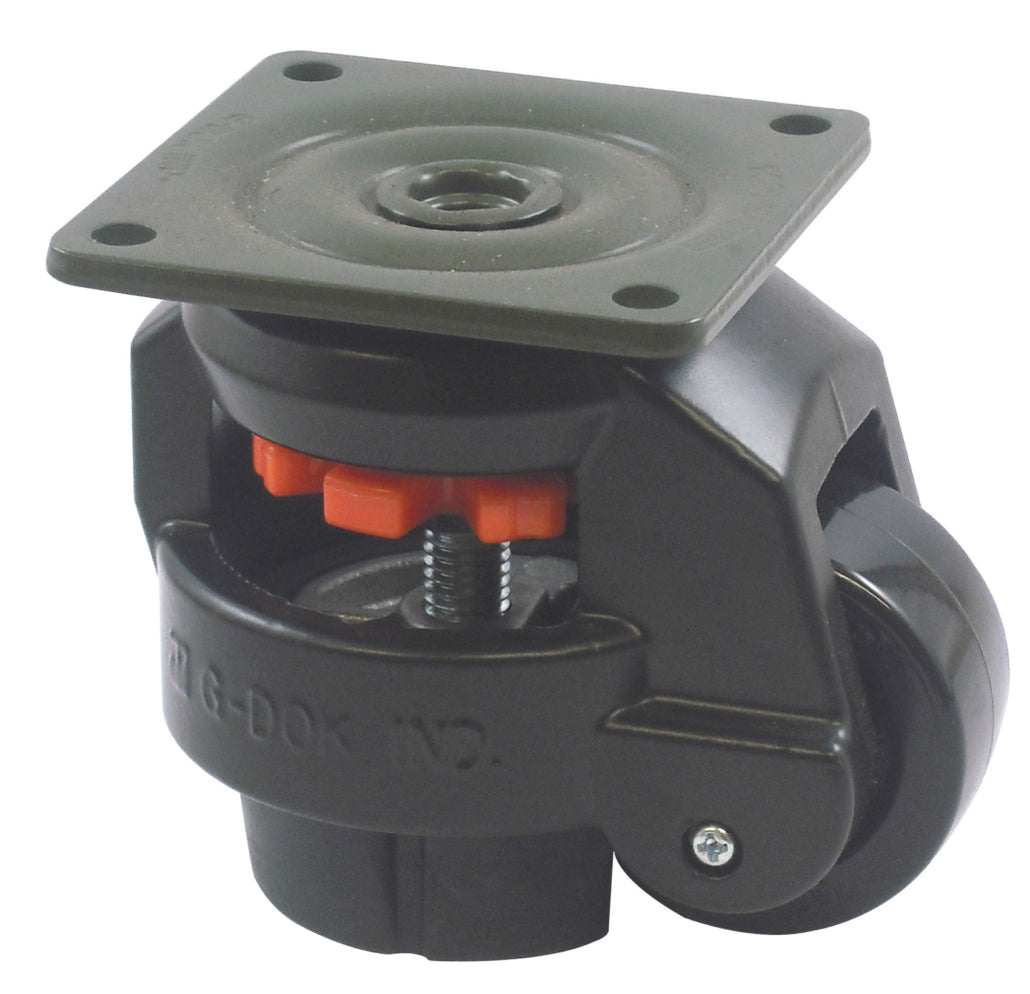

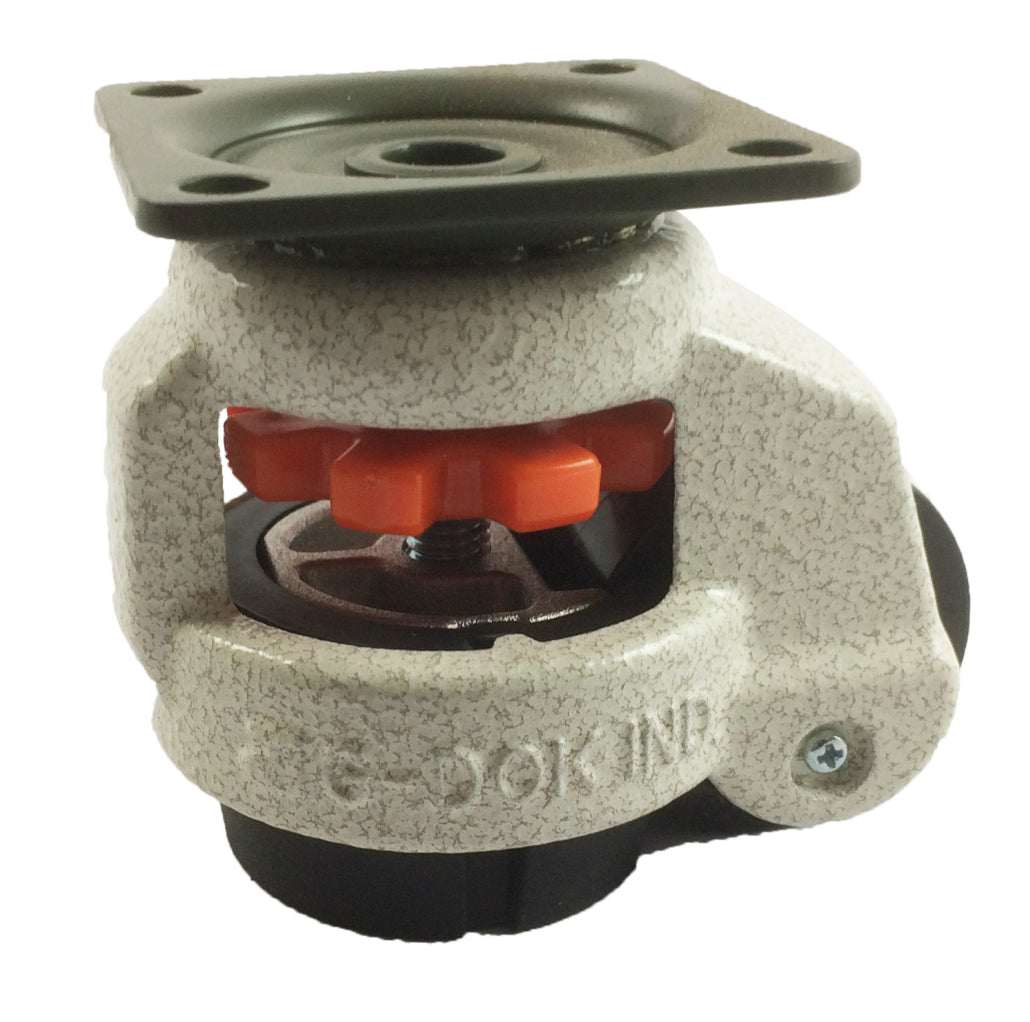

Footmaster Plate Mounted Heavy Duty Levelling Castors
The Footmaster Castors - Plate Mounted Levelling Castors range offers a versatile, heavy-duty mobility solution that combines the benefits of a swivel castor with an integrated adjustable levelling foot — perfect for equipment that needs to be both mobile and precisely positioned. These multifunctional castors are...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
The Footmaster Castors - Plate Mounted Levelling Castors range offers a versatile, heavy-duty mobility solution that combines the benefits of a swivel castor with an integrated adjustable levelling foot — perfect for equipment that needs to be both mobile and precisely positioned. These multifunctional castors are ideal for machinery, workstations, cabinets and industrial units that must be moved easily, then locked securely in place for stable, vibration-free operation.
Key Features & Benefits
Movable & Stable: Combines smooth swivel castor movement with an adjustable foot pad that lifts and lowers to keep equipment level and motion-free once in position.
Plate Mounted for Secure Fit: The plate-mounted design makes installation reliable and stable on flat surfaces such as frames, bases, benches or equipment chassis — ideal where stem mounting isn’t suitable.
Adjustable Levelling Foot: Powered by a built-in handwheel or ratchet mechanism, the levelling foot can be raised or lowered to compensate for uneven floors and secure equipment as needed without additional tools.
Heavy Duty Performance: Designed for industrial and commercial use, providing dependable support and positioning for heavy equipment that needs precision and stability.
Multi-Purpose Use: Suitable for machines, workstations, lab equipment, vending machines, measurement rigs and other heavy mobile units where positioning and levelling matter.
Why Choose Levelling Castors?
Plate mounted levelling castors give you the best of both worlds: full 360° mobility while allowing you to secure and stabilise equipment when needed. The adjustable foot pad absorbs vibration and helps ensure a level setup even on uneven surfaces, improving safety and performance in workshop, lab, or industrial environments.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Wheel Dia | Wheel type | type-2 | O/Height | Extended Height | Plate Size | Bolthole Spacing | Load Cap kg | Operating Method |
|---|---|---|---|---|---|---|---|---|---|
| Part No: C075/FM100F | 75 | Black Nylon | Swivel | 120 | 132 | 95X95 | 70X70 (11) | PLEASE CALL | Handwheel |
| Part No: C075/FM120F | 75 | Black Nylon | Swivel | 120 | 132 | 95X95 | 70X70 (11) | PLEASE CALL | Hex Spanner |
| Part No: C097/FM150F | 97 | Blue Nylon | Swivel | 130 | 145 | 100X100 | 70X70 (13) | PLEASE CALL | Hex Spanner |
| Part No: C063/FMR80F | 63 | Black Nylon | Swivel | 102 | 117 | 90X90 | 70X70 (9) | PLEASE CALL | Ratchet |
| Part No: C063/FM80F | 63 | Black Nylon | Swivel | 102 | 117 | 90X90 | 70X70 (9) | PLEASE CALL | Handwheel |
| Part No: C050/FM60F | 50 | Black Nylon | Swivel | 82 | 92 | 73X73 | 42X42 (6.5) | PLEASE CALL | Handwheel |
| Part No: C050/FMR60F | 50 | Black Nylon | Swivel | 82 | 92 | 73X73 | 42X42 (6.5) | PLEASE CALL | Ratchet |
| Part No: C042/FM40F | 42 | Black Nylon | Swivel | 71 | 81 | 58X58 | 42X42 (6.5) | PLEASE CALL | Handwheel |
Found the correct part number? Select it from the available options above and add it to your quote list.
