Castors wheels

WASTE BIN CASTORS - STEEL CENTRE - 175-205KG LOAD RATING

These castors are designed for use on commercial waste bins. They come in a a variety of sizes from 160mm diameter to 200MM diameter and include a steel roller bearing for a smoother ride.

Find the right option

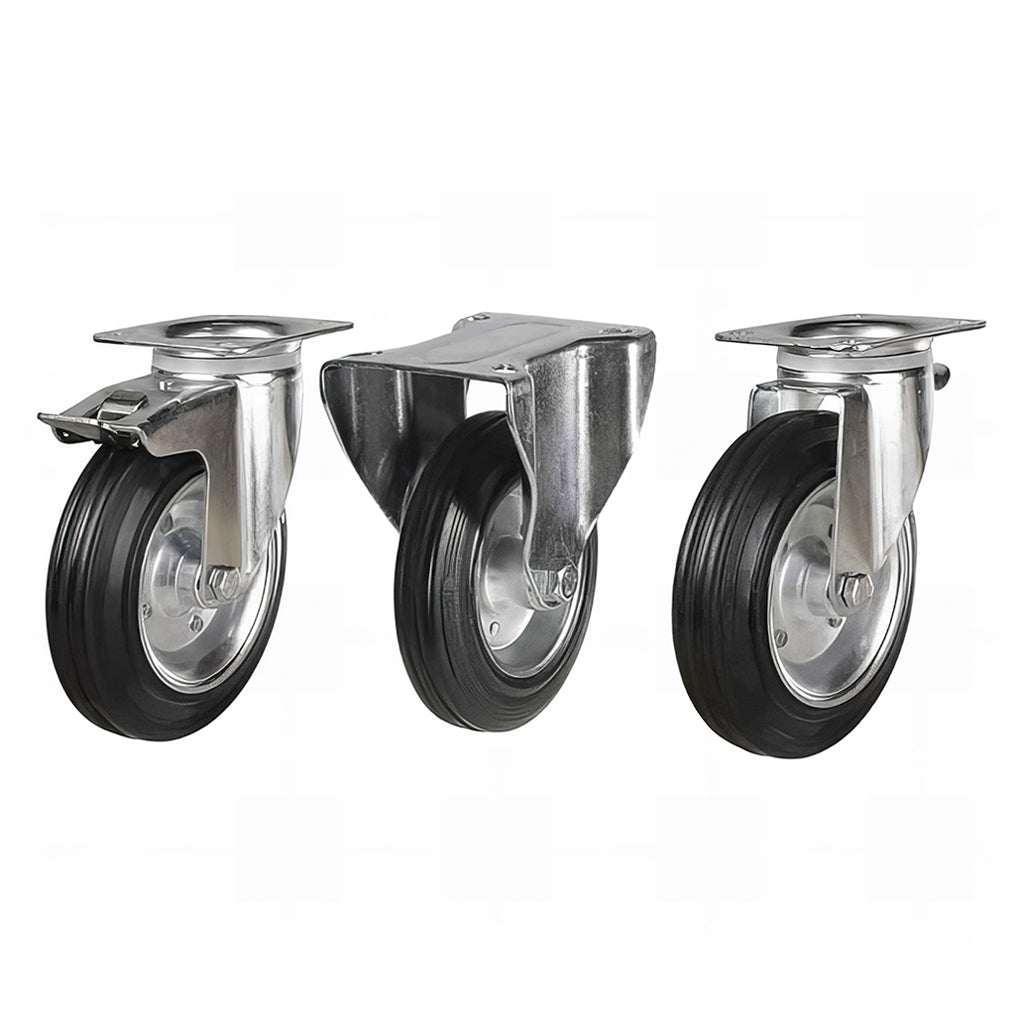

  • Steel centre waste bin castors with black rubber tyres, 175-205kg load rating, suitable for rough ground.
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

These castors are designed for use on commercial waste bins.
They come in a a variety of sizes from 160mm diameter to 200MM diameter and include a steel roller bearing for a smoother ride.

Weight loading on these waste bin castors range from 175-205KG per castor so ideal for medium to heavy duty applications.

The black rubber tyres are ideal for rough ground such as concrete or tarmac.
The wheel centre on these particular castors are steel. If you are looking for a plastic centre wheel then please Click Here.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

6 options
Part numberSize / technical detailOther specificationAction
C160/DRWC8BSB Fixed / 160mm / 40 | 135x110 | Roller Bearing | 105 x 80 | 175KG —
C200/DRWC8BSB Fixed / 200mm / 50 | 135x110 | Roller Bearing | 105 x 80 | 205KG —
C160/DRWC4BSB Swivel / 160mm / 40 | 135x110 | Roller Bearing | 105 x 80 | 175KG —
C200/DRWC4BSB Swivel / 200mm / 50 | 135x110 | Roller Bearing | 105 x 80 | 205KG —
C160/DRWC4BSBSWB Swivel Braked / 160mm / 40 | 135x110 | Roller Bearing | 105 x 80 | 175KG —
C200/DRWC4BSBSWB Swivel Braked / 200mm / 50 | 135x110 | Roller Bearing | 105 x 80 | 205KG —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

WASTE BIN CASTORS - STEEL CENTRE - 175-205KG LOAD RATING
C160/DRWC8BSB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Frame Style Wheel Diameter Tread Width Plate Size Bearing Type Fixing Centres Weight Loading
C160/DRWC8BSB Fixed 160mm 40 135x110 Roller Bearing 105 x 80 175KG
C200/DRWC8BSB Fixed 200mm 50 135x110 Roller Bearing 105 x 80 205KG
C160/DRWC4BSB Swivel 160mm 40 135x110 Roller Bearing 105 x 80 175KG
C200/DRWC4BSB Swivel 200mm 50 135x110 Roller Bearing 105 x 80 205KG
C160/DRWC4BSBSWB Swivel Braked 160mm 40 135x110 Roller Bearing 105 x 80 175KG
C200/DRWC4BSBSWB Swivel Braked 200mm 50 135x110 Roller Bearing 105 x 80 205KG

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
