SELF DRILLING SCREWS

Self tapping screws with their own drill point – no need to pre-drill into light swg sheetmetal.

Find the right option

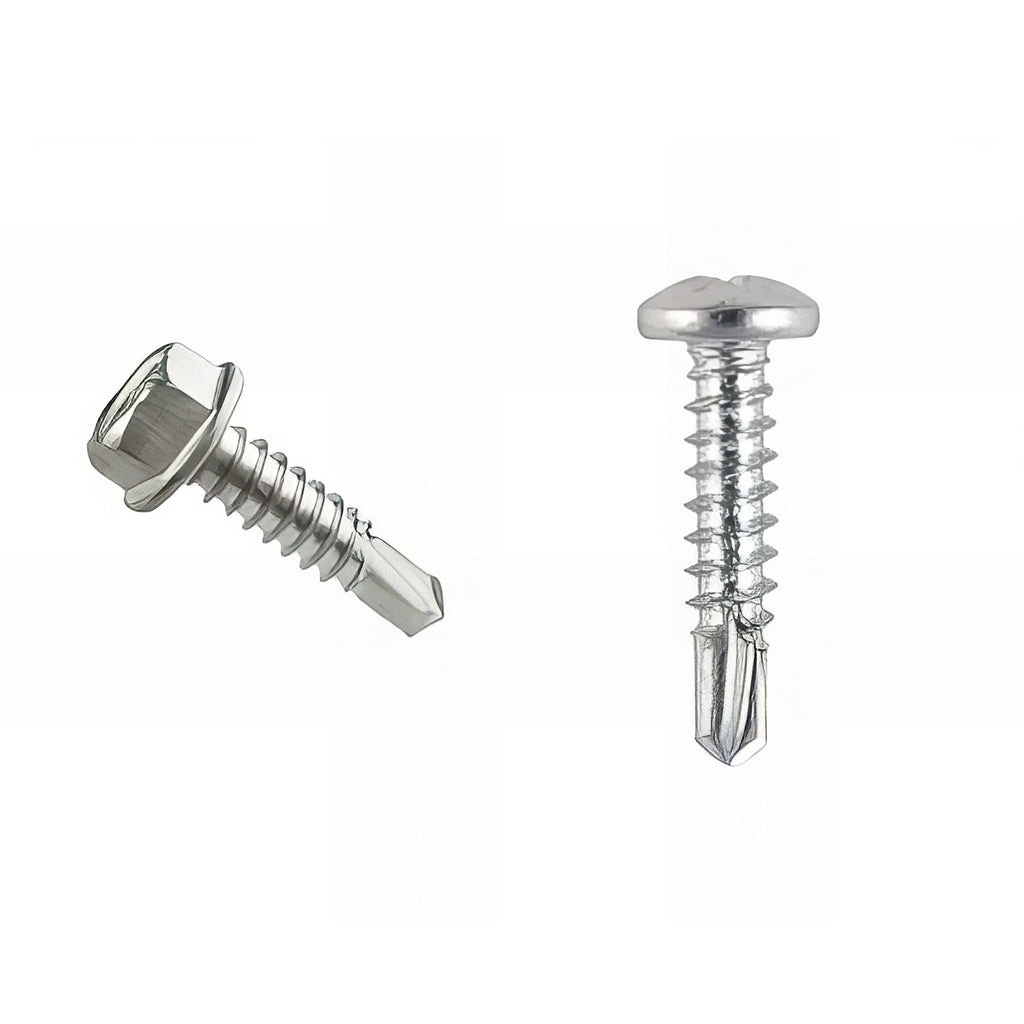

  • Self drilling screws with drill point for sheet metal fastening and rubber faced washers options
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Self tapping screws with their own drill point – no need to pre-drill into light swg sheetmetal.

Please also view our range of light and heavy thread section self drilling screws with captive rubber faced washers.

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

45 options
Part numberSize / technical detailOther specificationAction
ASDSCP06012Z Csk pozi / Steel / Zinc | 1000 | No.6 x 1/2 | 6.8 | 2.1 | 3.5 x 12 —
ASDSCP06016Z Csk pozi / Steel / Zinc | 1000 | No.6 x 5/8 | 6.8 | 2.1 | 3.5 x 16 —
ASDSCP08012Z Csk pozi / Steel / Zinc | 1000 | No.8 x 1/2 | 8.1 | 2.5 | 4.2 x 12 —
ASDSCP08016Z Csk pozi / Steel / Zinc | 1000 | No.8 x 5/8 | 8.1 | 2.5 | 4.2 x 16 —
ASDSCP08019Z Csk pozi / Steel / Zinc | 1000 | No.8 x 3/4 | 8.1 | 2.5 | 4.2 x 20 —
ASDSCP08025Z Csk pozi / Steel / Zinc | 1000 | No.8 x 1 | 8.1 | 2.5 | 4.2 x 25 —
ASDSCP08032Z Csk pozi / Steel / Zinc | 1000 | No.8 x 1.1/4 | 8.1 | 2.5 | 4.2 x 32 —
ASDSCP10016Z Csk pozi / Steel / Zinc | 1000 | No.10 x 5/8 | 9.5 | 3 | 4.8 x 16 —
ASDSCP10019Z Csk pozi / Steel / Zinc | 1000 | No.10 x 3/4 | 9.5 | 3 | 4.8 x 20 —
ASDSCP10025Z Csk pozi / Steel / Zinc | 500 | No.10 x 1 | 9.5 | 3 | 4.8 x 25 —
ASDSCP10032Z Csk pozi / Steel / Zinc | 500 | No.10 x 1.1/4 | 9.5 | 3 | 4.8 x 32 —
ASDSCP10038Z Csk pozi / Steel / Zinc | 500 | No.10 x 1.1/2 | 9.5 | 3 | 4.8 x 38 —
ASDSCP12019Z Csk pozi / Steel / Zinc | 500 | No.12 x 3/4 | 10.8 | 3.4 | 5.5 x 20 —
ASDSCP12025Z Csk pozi / Steel / Zinc | 500 | No.12 x 1 | 10.8 | 3.4 | 5.5 x 25 —
ASDSCP12038Z Csk pozi / Steel / Zinc | 500 | No.12 x 1.1/2 | 10.8 | 3.4 | 5.5 x 38 —
ASDSHW06012Z Hex flange / Steel / Zinc | 1000 | No.6 x 1/2 | 5.5 | 3.5 | 3.5 x 12 —
ASDSHW06016Z Hex flange / Steel / Zinc | 1000 | No.6 x 5/8 | 5.5 | 3.5 | 3.5 x 16 —
ASDSHW08012Z Hex flange / Steel / Zinc | 1000 | No.8 x 1/2 | 7 | 4.25 | 4.2 x 12 —
ASDSHW08016Z Hex flange / Steel / Zinc | 1000 | No.8 x 5/8 | 7 | 4.25 | 4.2 x 16 —
ASDSHW08019Z Hex flange / Steel / Zinc | 1000 | No.8 x 3/4 | 7 | 4.25 | 4.2 x 20 —
ASDSHW08025Z Hex flange / Steel / Zinc | 1000 | No.8 x 1 | 7 | 4.25 | 4.2 x 25 —
ASDSHW08032Z Hex flange / Steel / Zinc | 1000 | No.8 x 1.1/4 | 7 | 4.25 | 4.2 x 32 —
ASDSHW10016Z Hex flange / Steel / Zinc | 1000 | No.10 x 5/8 | 8 | 4.45 | 4.8 x 16 —
ASDSHW10019Z Hex flange / Steel / Zinc | 1000 | No.10 x 3/4 | 8 | 4.45 | 4.8 x 20 —
ASDSHW10025Z Hex flange / Steel / Zinc | 500 | No.10 x 1 | 8 | 4.45 | 4.8 x 25 —
ASDSHW10032Z Hex flange / Steel / Zinc | 500 | No.10 x 1.1/4 | 8 | 4.45 | 4.8 x 32 —
ASDSHW10038Z Hex flange / Steel / Zinc | 500 | No.10 x 1.1/2 | 8 | 4.45 | 4.8 x 38 —
ASDSHW12019Z Hex flange / Steel / Zinc | 500 | No.12 x 3/4 | 8 | 5.45 | 5.5 x 20 —
ASDSHW12025Z Hex flange / Steel / Zinc | 500 | No.12 x 1 | 8 | 5.45 | 5.5 x 25 —
ASDSHW12038Z Hex flange / Steel / Zinc | 500 | No.12 x 1.1/2 | 8 | 5.45 | 5.5 x 38 —
ASDSPP06012Z Pan pozi / Steel / Zinc | 1000 | No.6 x 1/2 | 6.9 | 2.6 | 3.5 x 12 —
ASDSPP06016Z Pan pozi / Steel / Zinc | 1000 | No.6 x 5/8 | 6.9 | 2.6 | 3.5 x 16 —
ASDSPP08012Z Pan pozi / Steel / Zinc | 1000 | No.8 x 1/2 | 8.2 | 3.05 | 4.2 x 12 —
ASDSPP08016Z Pan pozi / Steel / Zinc | 1000 | No.8 x 5/8 | 8.2 | 3.05 | 4.2 x 16 —
ASDSPP08019Z Pan pozi / Steel / Zinc | 1000 | No.8 x 3/4 | 8.2 | 3.05 | 4.2 x 20 —
ASDSPP08025Z Pan pozi / Steel / Zinc | 1000 | No.8 x 1 | 8.2 | 3.05 | 4.2 x 25 —
ASDSPP08032Z Pan pozi / Steel / Zinc | 1000 | No.8 x 1.1/4 | 9.5 | 3.55 | 4.2 x 32 —
ASDSPP10016Z Pan pozi / Steel / Zinc | 1000 | No.10 x 5/8 | 9.5 | 3.55 | 4.8 x 16 —
ASDSPP10019Z Pan pozi / Steel / Zinc | 1000 | No.10 x 3/4 | 9.5 | 3.55 | 4.8 x 20 —
ASDSPP10025Z Pan pozi / Steel / Zinc | 500 | No.10 x 1 | 9.5 | 3.55 | 4.8 x 25 —
ASDSPP10032Z Pan pozi / Steel / Zinc | 500 | No.10 x 1.1/4 | 9.5 | 3.55 | 4.8 x 32 —
ASDSPP10038Z Pan pozi / Steel / Zinc | 500 | No.10 x 1.1/2 | 9.5 | 3.55 | 4.8 x 38 —
ASDSPP12019Z Pan pozi / Steel / Zinc | 500 | No.12 x 3/4 | 10.8 | 4 | 5.5 x 20 —
ASDSPP12025Z Pan pozi / Steel / Zinc | 500 | No.12 x 1 | 10.8 | 4 | 5.5 x 25 —
ASDSPP12038Z Pan pozi / Steel / Zinc | 500 | No.12 x 1.1/2 | 10.8 | 4 | 5.5 x 38 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

SELF DRILLING SCREWS
ASDSCP06012Z

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Material Finish Pack Qty Size head a/f Head height Metric equivalent size
ASDSCP06012Z Csk pozi Steel Zinc 1000 No.6 x 1/2 6.8 2.1 3.5 x 12
ASDSCP06016Z Csk pozi Steel Zinc 1000 No.6 x 5/8 6.8 2.1 3.5 x 16
ASDSCP08012Z Csk pozi Steel Zinc 1000 No.8 x 1/2 8.1 2.5 4.2 x 12
ASDSCP08016Z Csk pozi Steel Zinc 1000 No.8 x 5/8 8.1 2.5 4.2 x 16
ASDSCP08019Z Csk pozi Steel Zinc 1000 No.8 x 3/4 8.1 2.5 4.2 x 20
ASDSCP08025Z Csk pozi Steel Zinc 1000 No.8 x 1 8.1 2.5 4.2 x 25
ASDSCP08032Z Csk pozi Steel Zinc 1000 No.8 x 1.1/4 8.1 2.5 4.2 x 32
ASDSCP10016Z Csk pozi Steel Zinc 1000 No.10 x 5/8 9.5 3 4.8 x 16
ASDSCP10019Z Csk pozi Steel Zinc 1000 No.10 x 3/4 9.5 3 4.8 x 20
ASDSCP10025Z Csk pozi Steel Zinc 500 No.10 x 1 9.5 3 4.8 x 25
ASDSCP10032Z Csk pozi Steel Zinc 500 No.10 x 1.1/4 9.5 3 4.8 x 32
ASDSCP10038Z Csk pozi Steel Zinc 500 No.10 x 1.1/2 9.5 3 4.8 x 38
ASDSCP12019Z Csk pozi Steel Zinc 500 No.12 x 3/4 10.8 3.4 5.5 x 20
ASDSCP12025Z Csk pozi Steel Zinc 500 No.12 x 1 10.8 3.4 5.5 x 25
ASDSCP12038Z Csk pozi Steel Zinc 500 No.12 x 1.1/2 10.8 3.4 5.5 x 38
ASDSHW06012Z Hex flange Steel Zinc 1000 No.6 x 1/2 5.5 3.5 3.5 x 12
ASDSHW06016Z Hex flange Steel Zinc 1000 No.6 x 5/8 5.5 3.5 3.5 x 16
ASDSHW08012Z Hex flange Steel Zinc 1000 No.8 x 1/2 7 4.25 4.2 x 12
ASDSHW08016Z Hex flange Steel Zinc 1000 No.8 x 5/8 7 4.25 4.2 x 16
ASDSHW08019Z Hex flange Steel Zinc 1000 No.8 x 3/4 7 4.25 4.2 x 20
ASDSHW08025Z Hex flange Steel Zinc 1000 No.8 x 1 7 4.25 4.2 x 25
ASDSHW08032Z Hex flange Steel Zinc 1000 No.8 x 1.1/4 7 4.25 4.2 x 32
ASDSHW10016Z Hex flange Steel Zinc 1000 No.10 x 5/8 8 4.45 4.8 x 16
ASDSHW10019Z Hex flange Steel Zinc 1000 No.10 x 3/4 8 4.45 4.8 x 20
ASDSHW10025Z Hex flange Steel Zinc 500 No.10 x 1 8 4.45 4.8 x 25
ASDSHW10032Z Hex flange Steel Zinc 500 No.10 x 1.1/4 8 4.45 4.8 x 32
ASDSHW10038Z Hex flange Steel Zinc 500 No.10 x 1.1/2 8 4.45 4.8 x 38
ASDSHW12019Z Hex flange Steel Zinc 500 No.12 x 3/4 8 5.45 5.5 x 20
ASDSHW12025Z Hex flange Steel Zinc 500 No.12 x 1 8 5.45 5.5 x 25
ASDSHW12038Z Hex flange Steel Zinc 500 No.12 x 1.1/2 8 5.45 5.5 x 38
ASDSPP06012Z Pan pozi Steel Zinc 1000 No.6 x 1/2 6.9 2.6 3.5 x 12
ASDSPP06016Z Pan pozi Steel Zinc 1000 No.6 x 5/8 6.9 2.6 3.5 x 16
ASDSPP08012Z Pan pozi Steel Zinc 1000 No.8 x 1/2 8.2 3.05 4.2 x 12
ASDSPP08016Z Pan pozi Steel Zinc 1000 No.8 x 5/8 8.2 3.05 4.2 x 16
ASDSPP08019Z Pan pozi Steel Zinc 1000 No.8 x 3/4 8.2 3.05 4.2 x 20
ASDSPP08025Z Pan pozi Steel Zinc 1000 No.8 x 1 8.2 3.05 4.2 x 25
ASDSPP08032Z Pan pozi Steel Zinc 1000 No.8 x 1.1/4 9.5 3.55 4.2 x 32
ASDSPP10016Z Pan pozi Steel Zinc 1000 No.10 x 5/8 9.5 3.55 4.8 x 16
ASDSPP10019Z Pan pozi Steel Zinc 1000 No.10 x 3/4 9.5 3.55 4.8 x 20
ASDSPP10025Z Pan pozi Steel Zinc 500 No.10 x 1 9.5 3.55 4.8 x 25
ASDSPP10032Z Pan pozi Steel Zinc 500 No.10 x 1.1/4 9.5 3.55 4.8 x 32
ASDSPP10038Z Pan pozi Steel Zinc 500 No.10 x 1.1/2 9.5 3.55 4.8 x 38
ASDSPP12019Z Pan pozi Steel Zinc 500 No.12 x 3/4 10.8 4 5.5 x 20
ASDSPP12025Z Pan pozi Steel Zinc 500 No.12 x 1 10.8 4 5.5 x 25
ASDSPP12038Z Pan pozi Steel Zinc 500 No.12 x 1.1/2 10.8 4 5.5 x 38

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
