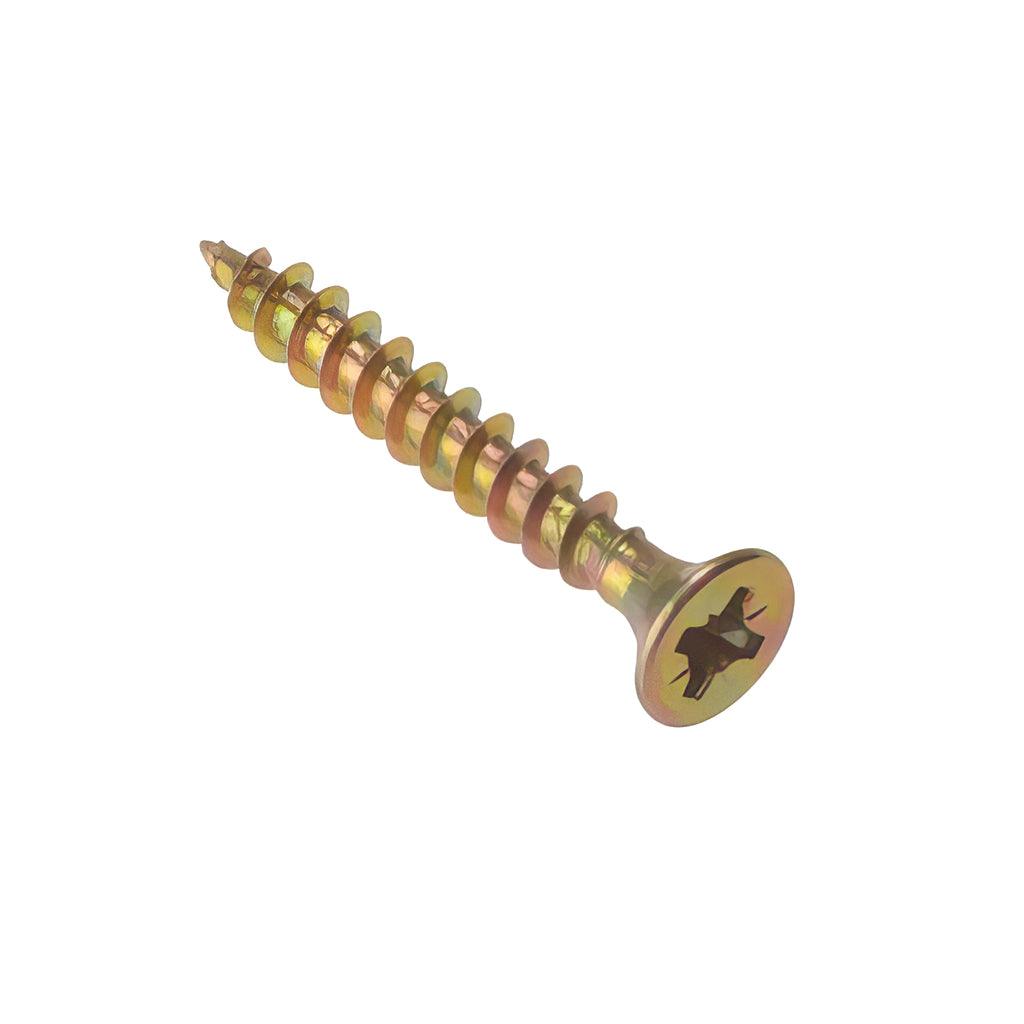

MULTIPURPOSE CHIPBOARD WOODSCREW
For use in most types of woods; hardwood, chipboard, timber, MDF etc.
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
For use in most types of woods; hardwood, chipboard, timber, MDF etc.
Use with a standard pozi head screwdriver or screwdriver bit.
Please also view our range of high performance TF wood screws that are a similar product but with additional benefits such as self cutting ‘gash’ point screw tips, self countersinking ribs, spiral fluted shank ribs, available in both pozi head and torx head drive options and many others.
Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Material | Finish | Pack Qty | Size | Head dia | Head depth | Pozi bit No. |
|---|---|---|---|---|---|---|---|
| ACHIPM35012ZC | Steel | Zinc / Colour | 200 | 3.5 x 12mm | 7 | 2.3 | 2 |
| ACHIPM35015ZC | Steel | Zinc / Colour | 200 | 3.5 x 15mm | 7 | 2.3 | 2 |
| ACHIPM35016ZC | Steel | Zinc / Colour | 200 | 3.5 x 16mm | 7 | 2.3 | 2 |
| ACHIPM35020ZC | Steel | Zinc / Colour | 200 | 3.5 x 20mm | 7 | 2.3 | 2 |
| ACHIPM35025ZC | Steel | Zinc / Colour | 200 | 3.5 x 25mm | 7 | 2.3 | 2 |
| ACHIPM40020ZC | Steel | Zinc / Colour | 200 | 4.0 x 20mm | 8 | 2.6 | 2 |
| ACHIPM40025ZC | Steel | Zinc / Colour | 200 | 4.0 x 25mm | 8 | 2.6 | 2 |
| ACHIPM40030ZC | Steel | Zinc / Colour | 200 | 4.0 x 30mm | 8 | 2.6 | 2 |
| ACHIPM40035ZC | Steel | Zinc / Colour | 200 | 4.0 x 35mm | 8 | 2.6 | 2 |
| ACHIPM40040ZC | Steel | Zinc / Colour | 200 | 4.0 x 40mm | 8 | 2.6 | 2 |
| ACHIPM40045ZC | Steel | Zinc / Colour | 200 | 4.0 x 45mm | 8 | 2.6 | 2 |
| ACHIPM40050ZC | Steel | Zinc / Colour | 200 | 4.0 x 50mm | 8 | 2.6 | 2 |
| ACHIPM40060ZC | Steel | Zinc / Colour | 200 | 4.0 x 60mm | 8 | 2.6 | 2 |
| ACHIPM40070ZC | Steel | Zinc / Colour | 200 | 4.0 x 70mm | 8 | 2.6 | 2 |
| ACHIPM45020ZC | Steel | Zinc / Colour | 200 | 4.5 x 20mm | 9 | 2.9 | 2 |
| ACHIPM45025ZC | Steel | Zinc / Colour | 200 | 4.5 x 25mm | 9 | 2.9 | 2 |
| ACHIPM45030ZC | Steel | Zinc / Colour | 200 | 4.5 x 30mm | 9 | 2.9 | 2 |
| ACHIPM45035ZC | Steel | Zinc / Colour | 200 | 4.5 x 35mm | 9 | 2.9 | 2 |
| ACHIPM45040ZC | Steel | Zinc / Colour | 200 | 4.5 x 40mm | 9 | 2.9 | 2 |
| ACHIPM45050ZC | Steel | Zinc / Colour | 200 | 4.5 x 50mm | 9 | 2.9 | 2 |
| ACHIPM50025ZC | Steel | Zinc / Colour | 200 | 5.0 x 25mm | 10 | 3.2 | 2 |
| ACHIPM50030ZC | Steel | Zinc / Colour | 200 | 5.0 x 30mm | 10 | 3.2 | 2 |
| ACHIPM50035ZC | Steel | Zinc / Colour | 200 | 5.0 x 35mm | 10 | 3.2 | 2 |
| ACHIPM50040ZC | Steel | Zinc / Colour | 200 | 5.0 x 40mm | 10 | 3.2 | 2 |
| ACHIPM50045ZC | Steel | Zinc / Colour | 200 | 5.0 x 45mm | 10 | 3.2 | 2 |
| ACHIPM50050ZC | Steel | Zinc / Colour | 200 | 5.0 x 50mm | 10 | 3.2 | 2 |
| ACHIPM50060ZC | Steel | Zinc / Colour | 100 | 5.0 x 60mm | 10 | 3.2 | 2 |
| ACHIPM50070ZC | Steel | Zinc / Colour | 100 | 5.0 x 70mm | 10 | 3.2 | 2 |
| ACHIPM50080ZC | Steel | Zinc / Colour | 100 | 5.0 x 80mm | 10 | 3.2 | 2 |
| ACHIPM50100ZC | Steel | Zinc / Colour | 100 | 5.0 x 100mm | 10 | 3.2 | 2 |
| ACHIPM60040ZC | Steel | Zinc / Colour | 200 | 6.0 x 40mm | 12 | 3.9 | 3 |
| ACHIPM60045ZC | Steel | Zinc / Colour | 200 | 6.0 x 45mm | 12 | 3.9 | 3 |
| ACHIPM60050ZC | Steel | Zinc / Colour | 200 | 6.0 x 50mm | 12 | 3.9 | 3 |
| ACHIPM60060ZC | Steel | Zinc / Colour | 100 | 6.0 x 60mm | 12 | 3.9 | 3 |
| ACHIPM60070ZC | Steel | Zinc / Colour | 100 | 6.0 x 70mm | 12 | 3.9 | 3 |
| ACHIPM60080ZC | Steel | Zinc / Colour | 100 | 6.0 x 80mm | 12 | 3.9 | 3 |
| ACHIPM60090ZC | Steel | Zinc / Colour | 100 | 6.0 x 90mm | 12 | 3.9 | 3 |
| ACHIPM60100ZC | Steel | Zinc / Colour | 100 | 6.0 x 100mm | 12 | 3.9 | 3 |
Found the correct part number? Select it from the available options above and add it to your quote list.
