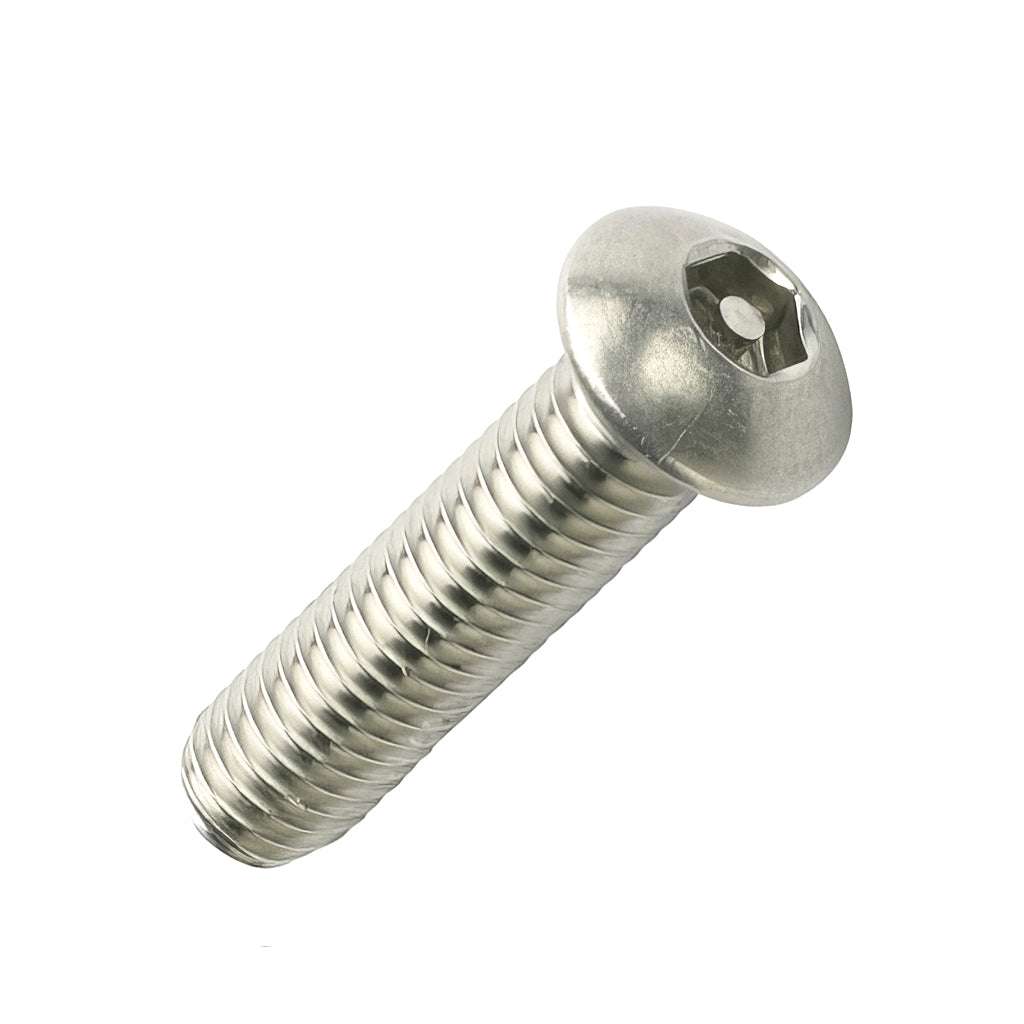

BUTTON / PAN PIN HEX DRIVE MACHINE THREAD STAINLESS SECURITY FASTENER
Socket hexagon (allen type key) head with a pin in the centre of the hexagon to deter vandal tamper. Can be unfastened and re-fastened when used with mating security driver bit that can be utilised with standard screwdriver bit tooling.
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Socket hexagon (allen type key) head with a pin in the centre of the hexagon to deter vandal tamper. Can be unfastened and re-fastened when used with mating security driver bit that can be utilised with standard screwdriver bit tooling.
The screws are made of grade 304 (A2) stainless as standard and are available in both csk and pan (button dome) profiles.
Please also view or range of other security fasteners such as oval head drive, 6 lobe pin drive, snake eye (2 hole / pig nose) fasteners and shear (conical snap off) nuts.
We can also supply special order a range of other security fasteners such security head drive masonry anchors, shear bolts, high security 4 hole drive nuts etc etc. Please contact the sales office for details.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Material | Finish | Length | Head type | Box qty | Dia | Driver size |
|---|---|---|---|---|---|---|---|
| ASECBPHM03010SS | Stainless A2 | self colour | 10 | Button | 200 | M3 | H20 |
| ASECBPHM03012SS | Stainless A2 | self colour | 12 | Button | 200 | M3 | H20 |
| ASECBPHM03016SS | Stainless A2 | self colour | 16 | Button | 200 | M3 | H20 |
| ASECBPHM03020SS | Stainless A2 | self colour | 20 | Button | 200 | M3 | H20 |
| ASECBPHM04008SS | Stainless A2 | self colour | 8 | Button | 200 | M4 | H40 |
| ASECBPHM04010SS | Stainless A2 | self colour | 10 | Button | 200 | M4 | H40 |
| ASECBPHM04012SS | Stainless A2 | self colour | 12 | Button | 200 | M4 | H40 |
| ASECBPHM04016SS | Stainless A2 | self colour | 16 | Button | 200 | M4 | H40 |
| ASECBPHM04020SS | Stainless A2 | self colour | 20 | Button | 200 | M4 | H40 |
| ASECBPHM04025SS | Stainless A2 | self colour | 25 | Button | 200 | M4 | H40 |
| ASECBPHM04030SS | Stainless A2 | self colour | 30 | Button | 200 | M4 | H40 |
| ASECBPHM04040SS | Stainless A2 | self colour | 40 | Button | 200 | M4 | H40 |
| ASECBPHM05008SS | Stainless A2 | self colour | 8 | Button | 200 | M5 | H40 |
| ASECBPHM05010SS | Stainless A2 | self colour | 10 | Button | 200 | M5 | H40 |
| ASECBPHM05012SS | Stainless A2 | self colour | 12 | Button | 200 | M5 | H40 |
| ASECBPHM05016SS | Stainless A2 | self colour | 16 | Button | 200 | M5 | H40 |
| ASECBPHM05020SS | Stainless A2 | self colour | 20 | Button | 200 | M5 | H40 |
| ASECBPHM05025SS | Stainless A2 | self colour | 25 | Button | 200 | M5 | H40 |
| ASECBPHM05030SS | Stainless A2 | self colour | 30 | Button | 200 | M5 | H40 |
| ASECBPHM05040SS | Stainless A2 | self colour | 40 | Button | 200 | M5 | H40 |
| ASECBPHM05050SS | Stainless A2 | self colour | 50 | Button | 200 | M5 | H40 |
| ASECBPHM05060SS | Stainless A2 | self colour | 60 | Button | 200 | M5 | H40 |
| ASECBPHM06010SS | Stainless A2 | self colour | 10 | Button | 200 | M6 | H40 |
| ASECBPHM06012SS | Stainless A2 | self colour | 12 | Button | 200 | M6 | H40 |
| ASECBPHM06016SS | Stainless A2 | self colour | 16 | Button | 200 | M6 | H40 |
| ASECBPHM06020SS | Stainless A2 | self colour | 20 | Button | 200 | M6 | H40 |
| ASECBPHM06025SS | Stainless A2 | self colour | 25 | Button | 200 | M6 | H40 |
| ASECBPHM06030SS | Stainless A2 | self colour | 30 | Button | 200 | M6 | H40 |
| ASECBPHM06040SS | Stainless A2 | self colour | 40 | Button | 100 | M6 | H40 |
| ASECBPHM06050SS | Stainless A2 | self colour | 50 | Button | 100 | M6 | H40 |
| ASECBPHM06060SS | Stainless A2 | self colour | 60 | Button | 100 | M6 | H40 |
| ASECBPHM08012SS | Stainless A2 | self colour | 12 | Button | 100 | M8 | H50 |
| ASECBPHM08016SS | Stainless A2 | self colour | 16 | Button | 100 | M8 | H50 |
| ASECBPHM08020SS | Stainless A2 | self colour | 20 | Button | 100 | M8 | H50 |
| ASECBPHM08025SS | Stainless A2 | self colour | 25 | Button | 100 | M8 | H50 |
| ASECBPHM08030SS | Stainless A2 | self colour | 30 | Button | 100 | M8 | H50 |
| ASECBPHM08035SS | Stainless A2 | self colour | 35 | Button | 100 | M8 | H50 |
| ASECBPHM08040SS | Stainless A2 | self colour | 40 | Button | 100 | M8 | H50 |
| ASECBPHM08050SS | Stainless A2 | self colour | 50 | Button | 100 | M8 | H50 |
| ASECBPHM08060SS | Stainless A2 | self colour | 60 | Button | 100 | M8 | H50 |
| ASECBPHM10020SS | Stainless A2 | self colour | 20 | Button | 100 | M10 | H60 |
| ASECBPHM10025SS | Stainless A2 | self colour | 25 | Button | 100 | M10 | H60 |
| ASECBPHM10030SS | Stainless A2 | self colour | 30 | Button | 100 | M10 | H60 |
| ASECBPHM10040SS | Stainless A2 | self colour | 40 | Button | 100 | M10 | H60 |
| ASECBPHM10050SS | Stainless A2 | self colour | 50 | Button | 100 | M10 | H60 |
| ASECBPHM10060SS | Stainless A2 | self colour | 60 | Button | 100 | M10 | H60 |
| ASECBPHM10100SS | Stainless A2 | self colour | 100 | Button | 100 | M10 | H60 |
| ASECBPHM12020SS | Stainless A2 | self colour | 20 | Button | 50 | M12 | H80 |
| ASECBPHM12025SS | Stainless A2 | self colour | 25 | Button | 50 | M12 | H80 |
| ASECBPHM12030SS | Stainless A2 | self colour | 30 | Button | 50 | M12 | H80 |
| ASECBPHM12040SS | Stainless A2 | self colour | 40 | Button | 50 | M12 | H80 |
| ASECBPHM12050SS | Stainless A2 | self colour | 50 | Button | 50 | M12 | H80 |
| ASECBPHM12060SS | Stainless A2 | self colour | 60 | Button | 50 | M12 | H80 |
| ASECBPHM12080SS | Stainless A2 | self colour | 80 | Button | 50 | M12 | H80 |
| ASECBPHM12120SS | Stainless A2 | self colour | 120 | Button | 50 | M12 | H80 |
Found the correct part number? Select it from the available options above and add it to your quote list.
