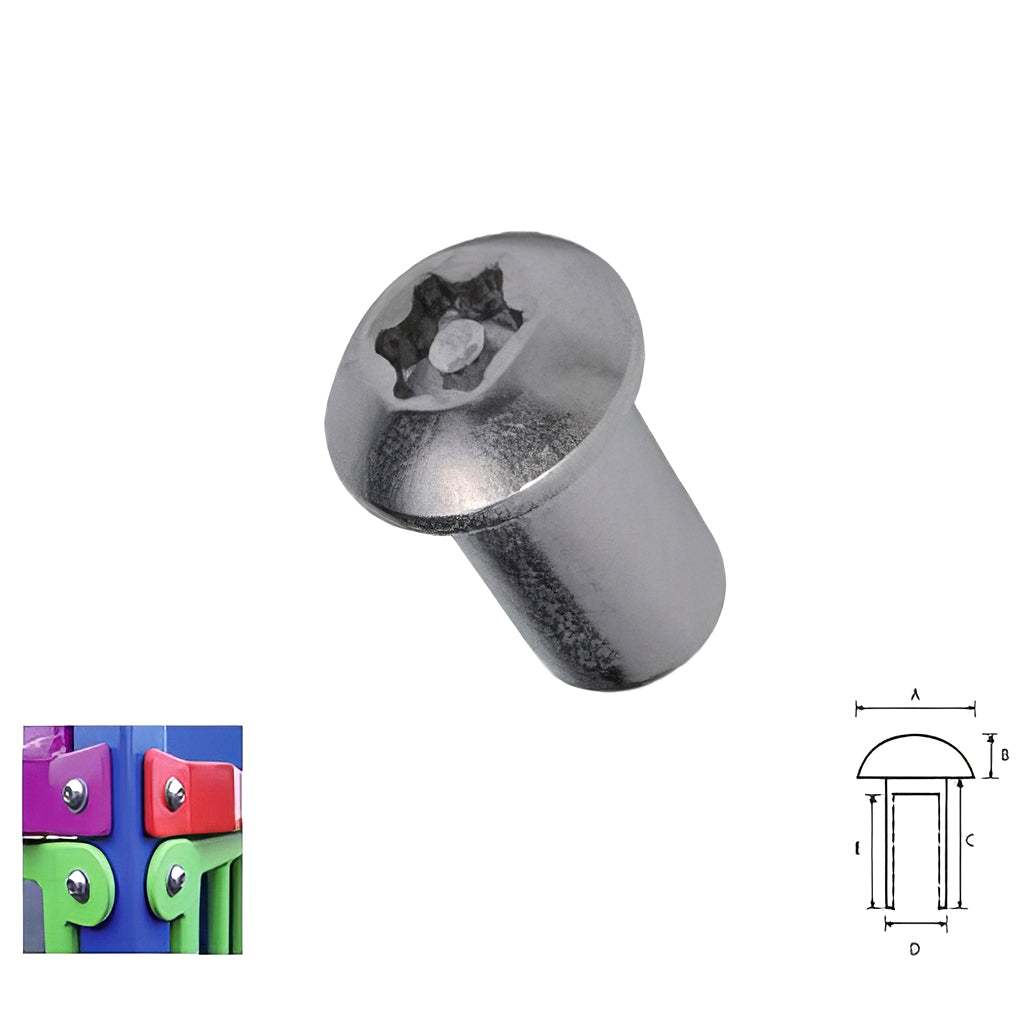

6 Lobe Button Dome Pin Head Security Nuts – Stainless Steel

Blind threaded stainless steel nut with 6 lobe pin head drive to deter vandal tampering. Mates with male threaded fastener.

Find the right option
  • 6 Lobe Button Dome Pin Head Security Nut stainless steel vandal resistant fastener
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Blind threaded stainless steel nut with 6 lobe pin head drive to deter vandal tampering. Mates with male threaded fastener.

Countersink head available special order.

Please note: The size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

7 options
Part numberSize / technical detailOther specificationAction
ASECNBP6LM04010SS Stainless A2 / 10 / 2.8 | M4 | self colour | 100 | T20 | 9 | 5.2 | 6 —
ASECNBP6LM05010SS Stainless A2 / 10 / 3.3 | M5 | self colour | 100 | T25 | 10 | 6.3 | 6 —
ASECNBP6LM06012SS Stainless A2 / 12 / 4.4 | M6 | self colour | 100 | T30 | 12 | 8 | 9 —
ASECNBP6LM06025SS Stainless A2 / 25 / 4.4 | M6 | self colour | 100 | T30 | 25 | 8 | 20 —
ASECNBP6LM08016SS Stainless A2 / 12 / 5 | M8 | self colour | 100 | T40 | 16 | 10 | 12 —
ASECNBP6LM08030SS Stainless A2 / 30 / 14.3 | M8 | self colour | 100 | T40 | 30 | 10 | 25 —
ASECNBP6LM10025SS Stainless A2 / 18 / 5.8 | M10 | self colour | 50 | T45 | 20 | 12.5 | 14 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

6 Lobe Button Dome Pin Head Security Nuts – Stainless Steel
ASECNBP6LM04010SS

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material A B Thread Size Finish Box qty Driver size C D E
ASECNBP6LM04010SS Stainless A2 10 2.8 M4 self colour 100 T20 9 5.2 6
ASECNBP6LM05010SS Stainless A2 10 3.3 M5 self colour 100 T25 10 6.3 6
ASECNBP6LM06012SS Stainless A2 12 4.4 M6 self colour 100 T30 12 8 9
ASECNBP6LM06025SS Stainless A2 25 4.4 M6 self colour 100 T30 25 8 20
ASECNBP6LM08016SS Stainless A2 12 5 M8 self colour 100 T40 16 10 12
ASECNBP6LM08030SS Stainless A2 30 14.3 M8 self colour 100 T40 30 10 25
ASECNBP6LM10025SS Stainless A2 18 5.8 M10 self colour 50 T45 20 12.5 14
