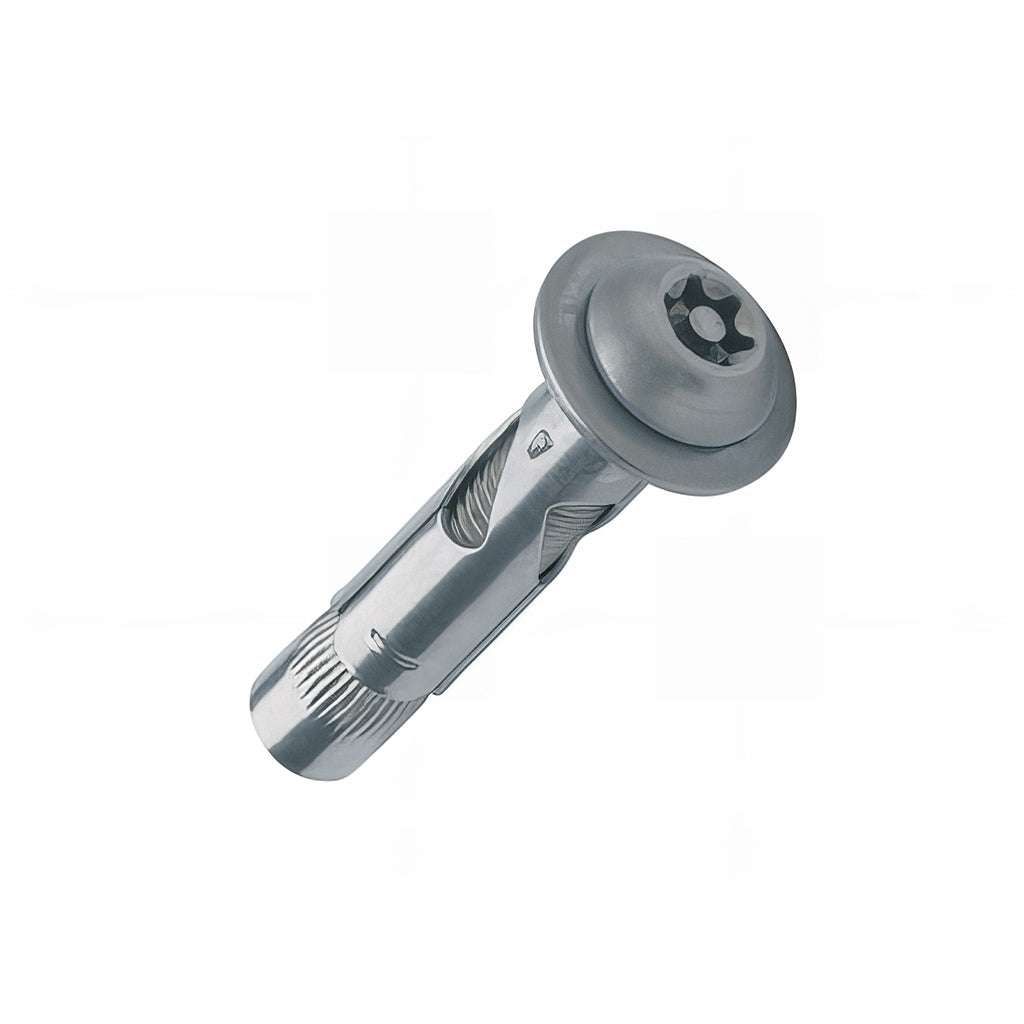

6 LOBE PIN HEAD SECURITY STAINLESS MASONRY SLEEVE ANCHOR

Through fixing sleeve anchor enabling fast and simple installation.

Find the right option
  • 6 lobe pin head stainless steel masonry sleeve anchor for security applications
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Through fixing sleeve anchor enabling fast and simple installation.

Ideal for many security applications in a wide variety of base materials. 6 lobe pin head to deter vandal tamper. Can be unfastened and re-fastened using mating security driver bit.

The 6-Lobe Pin anchors in A2 stainless steel are available in Button Head and Countersunk offering a removable high torque anchor fixing.

Please note: These anchors are not intended for heavy duty structural applications.

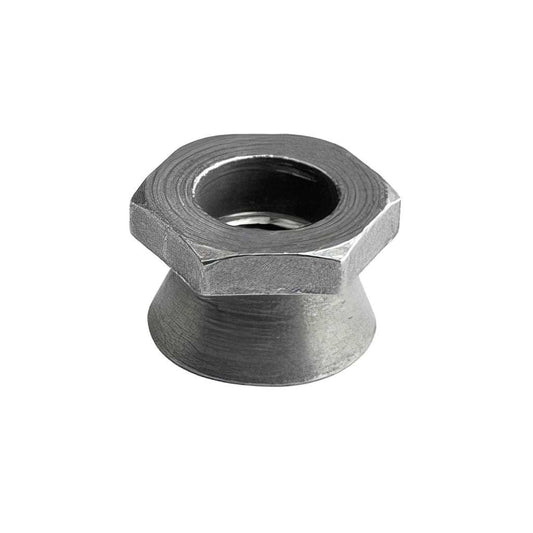

Please also view or range of other security fasteners such as oval head drive, 6 lobe pin drive, pin hex fasteners and shear (conical snap off) nuts.

We can also supply special order a range of other security fasteners such security head drive masonry anchors, shear bolts, high security 4 hole drive nuts etc etc. Please contact the sales office for details.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

13 options
Part numberSize / technical detailOther specificationAction
ASECBT30 - / T30 drive toolbit / - | - | - | 1 | - | - | - | - —
ASECBT40 - / T40 drive toolbit / - | - | - | 1 | - | - | - | - —
ASECBT45 - / T45 drive toolbit / - | - | - | 1 | - | - | - | - —
ASECSABM06045SS Stainless A2 / M6 / self colour | 45 | Button 6 lobe pin | 50 | T30 | 10 | 37 | 8 —
ASECSABM08055SS Stainless A2 / M8 / self colour | 55 | Button 6 lobe pin | 50 | T40 | 10 | 45 | 10 —
ASECSABM08750SS Stainless A2 / M8 / self colour | 75 | Button 6 lobe pin | 25 | T40 | 25 | 45 | 10 —
ASECSABM10065SS Stainless A2 / M10 / self colour | 65 | Button 6 lobe pin | 25 | T45 | 10 | 52 | 12 —
ASECSABM10080SS Stainless A2 / M10 / self colour | 80 | Button 6 lobe pin | 25 | T45 | 25 | 52 | 12 —
ASECSACM06050SS Stainless A2 / M6 / self colour | 50 | Csk 6 lobe pin | 50 | T30 | 10 | 37 | 8 —
ASECSACM08055SS Stainless A2 / M8 / self colour | 55 | Csk 6 lobe pin | 50 | T40 | 10 | 45 | 10 —
ASECSACM08080SS Stainless A2 / M8 / self colour | 80 | Csk 6 lobe pin | 25 | T40 | 25 | 45 | 10 —
ASECSACM10060SS Stainless A2 / M10 / self colour | 60 | Csk 6 lobe pin | 25 | T45 | 10 | 52 | 12 —
ASECSACM10080SS Stainless A2 / M10 / self colour | 80 | Csk 6 lobe pin | 25 | T45 | 25 | 52 | 12 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

6 LOBE PIN HEAD SECURITY STAINLESS MASONRY SLEEVE ANCHOR
ASECBT30

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Thread Size Finish Length Head type Box qty Driver size Max fixture thickness Min hole depth Drill Dia
ASECBT30 - T30 drive toolbit - - - 1 - - - -
ASECBT40 - T40 drive toolbit - - - 1 - - - -
ASECBT45 - T45 drive toolbit - - - 1 - - - -
ASECSABM06045SS Stainless A2 M6 self colour 45 Button 6 lobe pin 50 T30 10 37 8
ASECSABM08055SS Stainless A2 M8 self colour 55 Button 6 lobe pin 50 T40 10 45 10
ASECSABM08750SS Stainless A2 M8 self colour 75 Button 6 lobe pin 25 T40 25 45 10
ASECSABM10065SS Stainless A2 M10 self colour 65 Button 6 lobe pin 25 T45 10 52 12
ASECSABM10080SS Stainless A2 M10 self colour 80 Button 6 lobe pin 25 T45 25 52 12
ASECSACM06050SS Stainless A2 M6 self colour 50 Csk 6 lobe pin 50 T30 10 37 8
ASECSACM08055SS Stainless A2 M8 self colour 55 Csk 6 lobe pin 50 T40 10 45 10
ASECSACM08080SS Stainless A2 M8 self colour 80 Csk 6 lobe pin 25 T40 25 45 10
ASECSACM10060SS Stainless A2 M10 self colour 60 Csk 6 lobe pin 25 T45 10 52 12
ASECSACM10080SS Stainless A2 M10 self colour 80 Csk 6 lobe pin 25 T45 25 52 12

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
