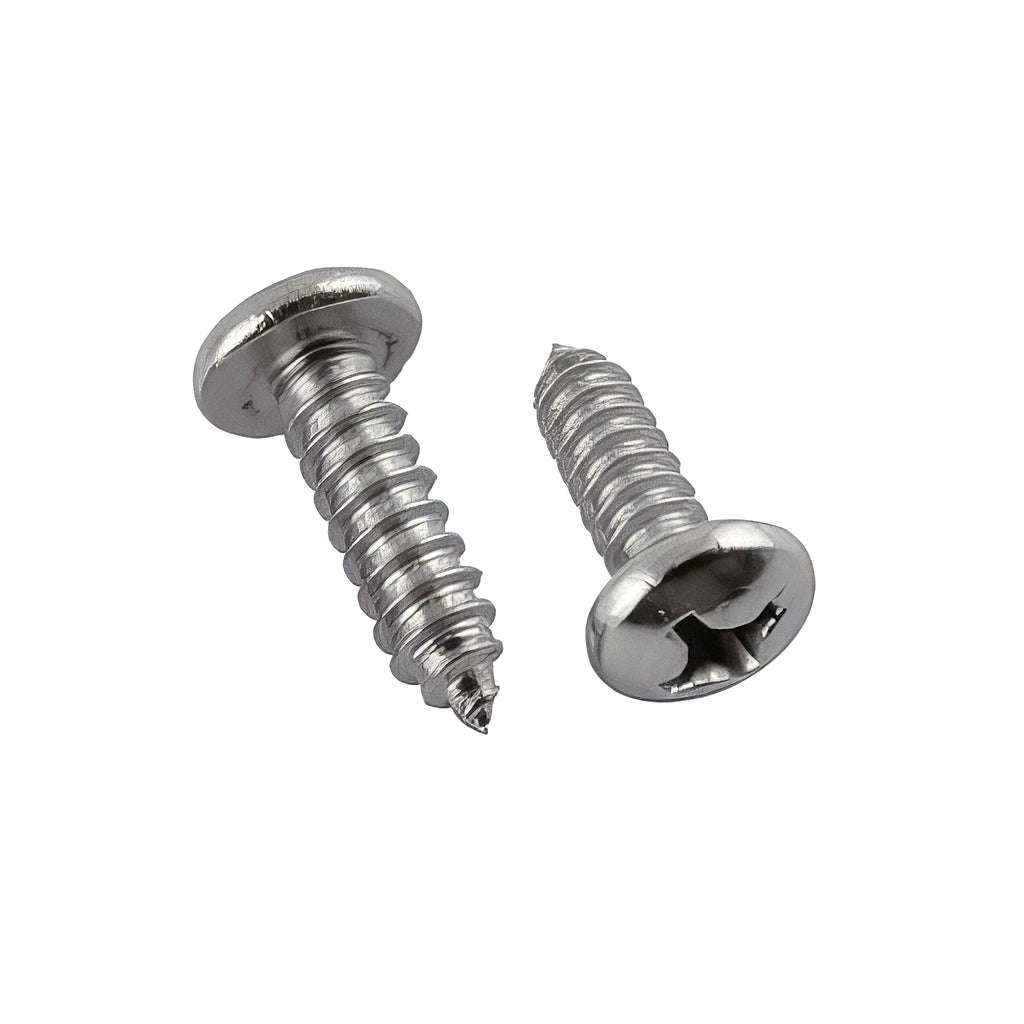

STAINLESS STEEL SELF TAPPING SCREW

For screwing into metal based material with a pre-drilled hole

Find the right option
  • Stainless steel self tapping screw for metal with pre-drilled hole fastener option
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

For screwing into metal based material with a pre-drilled hole

Please also view the same product range in zinc steel material option

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

69 options
Part numberSize / technical detailOther specificationAction
ATCP04009ABSS No.4 x 3/8 / 2.8 x 10 / 5.5 | 1.8 | 2 | Csk pozi | Stainless | A2 | 1000 —
ATCP04012ABSS No.4 x 1/2 / 2.8 x 12 / 5.5 | 1.8 | 2 | Csk pozi | Stainless | A2 | 1000 —
ATCP04016ABSS No.4 x 5/8 / 2.8 x 16 / 5.5 | 1.8 | 2 | Csk pozi | Stainless | A2 | 1000 —
ATCP06009ABSS No.6 x 3/8 / 3.5 x 10 / 7 | 2.2 | 2 | Csk pozi | Stainless | A2 | 1000 —
ATCP06012ABSS No.6 x 1/2 / 3.5 x 12 / 7 | 2.2 | 2 | Csk pozi | Stainless | A2 | 1000 —
ATCP06016ABSS No.6 x 5/8 / 3.5 x 16 / 7 | 2.2 | 2 | Csk pozi | Stainless | A2 | 1000 —
ATCP06019ABSS No.6 x 3/4 / 3.5 x 20 / 7 | 2.2 | 2 | Csk pozi | Stainless | A2 | 1000 —
ATCP06025ABSS No.6 x 1 / 3.5 x 25 / 7 | 2.2 | 2 | Csk pozi | Stainless | A2 | 1000 —
ATCP08009ABSS No.8 x 3/8 / 4.2 x 10 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP08012ABSS No.8 x 1/2 / 4.2 x 12 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP08016ABSS No.8 x 5/8 / 4.2 x 16 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP08019ABSS No.8 x 3/4 / 4.2 x 20 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP08025ABSS No.8 x 1 / 4.2 x 25 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP08032ABSS No.8 x 1.1/4 / 4.2 x 32 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP08038ABSS No.8 x 1.1/2 / 4.2 x 38 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP08045ABSS No.8 x 1.3/4 / 4.2 x 45 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP08050ABSS No.8 x 2 / 4.2 x 50 / 8 | 2.6 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP10012ABSS No.10 x 1/2 / 4.8 x 12 / 9 | 3 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP10016ABSS No.10 x 5/8 / 4.8 x 16 / 9 | 3 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP10019ABSS No.10 x 3/4 / 4.8 x 20 / 9 | 3 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP10025ABSS No.10 x 1 / 4.8 x 25 / 9 | 3 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP10032ABSS No.10 x 1.1/4 / 4.8 x 32 / 9 | 3 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP10038ABSS No.10 x 1.1/2 / 4.8 x 38 / 9 | 3 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP10045ABSS No.10 x 1.3/4 / 4.8 x 45 / 9 | 3 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP10050ABSS No.10 x 2 / 4.8 x 50 / 9 | 3 | 2 | Csk pozi | Stainless | A2 | 500 —
ATCP12032ABSS No.12 x 1.1/4 / 5.5 x 32 / 10.5 | 3.5 | 3 | Csk pozi | Stainless | A2 | 500 —
ATCP12038ABSS No.12 x 1.1/2 / 5.5 x 38 / 10.5 | 3.5 | 3 | Csk pozi | Stainless | A2 | 500 —
ATCP12050ABSS No.12 x 2 / 5.5 x 50 / 10.5 | 3.5 | 3 | Csk pozi | Stainless | A2 | 250 —
ATCP14038ABSS No.14 x 1.1/2 / 6.4 x 38 / 12 | 4 | 3 | Csk pozi | Stainless | A2 | 250 —
ATCP14045ABSS No.14 x 1.3/4 / 6.4 x 45 / 12 | 4 | 3 | Csk pozi | Stainless | A2 | 250 —
ATCP14050ABSS No.14 x 2 / 6.4 x 50 / 12 | 4 | 3 | Csk pozi | Stainless | A2 | 250 —
ATFP06016ABSS No.6 x 5/8 / 3.5 x 16 / 8 | 17 | 2 | Flange pozi | Stainless | A2 | 1000 —
ATFP06025ABSS No.6 x 1 / 3.5 x 25 / 8 | 17 | 2 | Flange pozi | Stainless | A2 | 1000 —
ATFP08009ABSS No.8 x 3/8 / 4.2 x 10 / 9.5 | 2.2 | 2 | Flange pozi | Stainless | A2 | 500 —
ATFP08012ABSS No.8 x 1/2 / 4.2 x 12 / 9.5 | 2.2 | 2 | Flange pozi | Stainless | A2 | 500 —
ATFP08016ABSS No.8 x 5/8 / 4.2 x 16 / 9.5 | 2.2 | 2 | Flange pozi | Stainless | A2 | 500 —
ATFP08019ABSS No.8 x 3/4 / 4.2 x 20 / 9.5 | 2.2 | 2 | Flange pozi | Stainless | A2 | 500 —
ATFP08025ABSS No.8 x 1 / 4.2 x 25 / 9.5 | 2.2 | 2 | Flange pozi | Stainless | A2 | 500 —
ATFP10016ABSS No.10 x 5/8 / 4.8 x 16 / 11 | 2.75 | 2 | Flange pozi | Stainless | A2 | 500 —
ATPP06006ABSS No.6 x 1/4 / 3.5 x 6 / 6.5 | 2.3 | 2 | Pan pozi | Stainless | A2 | 1000 —
ATPP06009ABSS No.6 x 3/8 / 3.5 x 10 / 6.5 | 2.3 | 2 | Pan pozi | Stainless | A2 | 1000 —
ATPP06012ABSS No.6 x 1/2 / 3.5 x 12 / 6.5 | 2.3 | 2 | Pan pozi | Stainless | A2 | 1000 —
ATPP06016ABSS No.6 x 5/8 / 3.5 x 16 / 6.5 | 2.3 | 2 | Pan pozi | Stainless | A2 | 1000 —
ATPP06019ABSS No.6 x 3/4 / 3.5 x 20 / 6.5 | 2.3 | 2 | Pan pozi | Stainless | A2 | 1000 —
ATPP06025ABSS No.6 x 1 / 3.5 x 25 / 6.5 | 2.3 | 2 | Pan pozi | Stainless | A2 | 1000 —
ATPP08009ABSS No.8 x 3/8 / 4.2 x 10 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP08012ABSS No.8 x 1/2 / 4.2 x 12 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP08016ABSS No.8 x 5/8 / 4.2 x 16 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP08019ABSS No.8 x 3/4 / 4.2 x 20 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP08025ABSS No.8 x 1 / 4.2 x 25 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP08032ABSS No.8 x 1.1/4 / 4.2 x 32 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP08038ABSS No.8 x 1.1/2 / 4.2 x 38 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP10012ABSS No.10 x 1/2 / 4.8 x 12 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP10016ABSS No.10 x 5/8 / 4.8 x 16 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP10019ABSS No.10 x 3/4 / 4.8 x 20 / 8 | 2.8 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP10025ABSS No.10 x 1 / 4.8 x 25 / 9.25 | 3.2 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP10032ABSS No.10 x 1.1/4 / 4.8 x 32 / 9.25 | 3.2 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP10038ABSS No.10 x 1.1/2 / 4.8 x 38 / 9.25 | 3.2 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP10045ABSS No.10 x 1.3/4 / 4.8 x 45 / 9.25 | 3.2 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP10050ABSS No.10 x 2 / 4.8 x 50 / 9.25 | 3.2 | 2 | Pan pozi | Stainless | A2 | 500 —
ATPP12016ABSS No.12 x 5/8 / 5.5 x 16 / 10.5 | 3.75 | 3 | Pan pozi | Stainless | A2 | 500 —
ATPP12019ABSS No.12 x 3/4 / 5.5 x 20 / 10.5 | 3.75 | 3 | Pan pozi | Stainless | A2 | 500 —
ATPP12025ABSS No.12 x 1 / 5.5 x 25 / 10.5 | 3.75 | 3 | Pan pozi | Stainless | A2 | 500 —
ATPP12032ABSS No.12 x 1.1/4 / 5.5 x 32 / 10.5 | 3.75 | 3 | Pan pozi | Stainless | A2 | 500 —
ATPP12038ABSS No.12 x 1.1/2 / 5.5 x 38 / 10.5 | 3.75 | 3 | Pan pozi | Stainless | A2 | 500 —
ATPP12045ABSS No.12 x 1.3/4 / 5.5 x 45 / 10.5 | 3.75 | 3 | Pan pozi | Stainless | A2 | 250 —
ATPP12050ABSS No.12 x 2 / 5.5 x 50 / 10.5 | 3.75 | 3 | Pan pozi | Stainless | A2 | 250 —
ATPP14038ABSS No.14 x 1.1/2 / 6.4 x 38 / 12 | 4.3 | 3 | Pan pozi | Stainless | A2 | 250 —
ATPP14050ABSS No.14 x 2 / 6.4 x 50 / 12 | 4.3 | 3 | Pan pozi | Stainless | A2 | 250 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

STAINLESS STEEL SELF TAPPING SCREW
ATCP04009ABSS

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Size Metric equivalent size Head dia Head depth Pozi bit No. Type Material Grade Pack Qty
ATCP04009ABSS No.4 x 3/8 2.8 x 10 5.5 1.8 2 Csk pozi Stainless A2 1000
ATCP04012ABSS No.4 x 1/2 2.8 x 12 5.5 1.8 2 Csk pozi Stainless A2 1000
ATCP04016ABSS No.4 x 5/8 2.8 x 16 5.5 1.8 2 Csk pozi Stainless A2 1000
ATCP06009ABSS No.6 x 3/8 3.5 x 10 7 2.2 2 Csk pozi Stainless A2 1000
ATCP06012ABSS No.6 x 1/2 3.5 x 12 7 2.2 2 Csk pozi Stainless A2 1000
ATCP06016ABSS No.6 x 5/8 3.5 x 16 7 2.2 2 Csk pozi Stainless A2 1000
ATCP06019ABSS No.6 x 3/4 3.5 x 20 7 2.2 2 Csk pozi Stainless A2 1000
ATCP06025ABSS No.6 x 1 3.5 x 25 7 2.2 2 Csk pozi Stainless A2 1000
ATCP08009ABSS No.8 x 3/8 4.2 x 10 8 2.6 2 Csk pozi Stainless A2 500
ATCP08012ABSS No.8 x 1/2 4.2 x 12 8 2.6 2 Csk pozi Stainless A2 500
ATCP08016ABSS No.8 x 5/8 4.2 x 16 8 2.6 2 Csk pozi Stainless A2 500
ATCP08019ABSS No.8 x 3/4 4.2 x 20 8 2.6 2 Csk pozi Stainless A2 500
ATCP08025ABSS No.8 x 1 4.2 x 25 8 2.6 2 Csk pozi Stainless A2 500
ATCP08032ABSS No.8 x 1.1/4 4.2 x 32 8 2.6 2 Csk pozi Stainless A2 500
ATCP08038ABSS No.8 x 1.1/2 4.2 x 38 8 2.6 2 Csk pozi Stainless A2 500
ATCP08045ABSS No.8 x 1.3/4 4.2 x 45 8 2.6 2 Csk pozi Stainless A2 500
ATCP08050ABSS No.8 x 2 4.2 x 50 8 2.6 2 Csk pozi Stainless A2 500
ATCP10012ABSS No.10 x 1/2 4.8 x 12 9 3 2 Csk pozi Stainless A2 500
ATCP10016ABSS No.10 x 5/8 4.8 x 16 9 3 2 Csk pozi Stainless A2 500
ATCP10019ABSS No.10 x 3/4 4.8 x 20 9 3 2 Csk pozi Stainless A2 500
ATCP10025ABSS No.10 x 1 4.8 x 25 9 3 2 Csk pozi Stainless A2 500
ATCP10032ABSS No.10 x 1.1/4 4.8 x 32 9 3 2 Csk pozi Stainless A2 500
ATCP10038ABSS No.10 x 1.1/2 4.8 x 38 9 3 2 Csk pozi Stainless A2 500
ATCP10045ABSS No.10 x 1.3/4 4.8 x 45 9 3 2 Csk pozi Stainless A2 500
ATCP10050ABSS No.10 x 2 4.8 x 50 9 3 2 Csk pozi Stainless A2 500
ATCP12032ABSS No.12 x 1.1/4 5.5 x 32 10.5 3.5 3 Csk pozi Stainless A2 500
ATCP12038ABSS No.12 x 1.1/2 5.5 x 38 10.5 3.5 3 Csk pozi Stainless A2 500
ATCP12050ABSS No.12 x 2 5.5 x 50 10.5 3.5 3 Csk pozi Stainless A2 250
ATCP14038ABSS No.14 x 1.1/2 6.4 x 38 12 4 3 Csk pozi Stainless A2 250
ATCP14045ABSS No.14 x 1.3/4 6.4 x 45 12 4 3 Csk pozi Stainless A2 250
ATCP14050ABSS No.14 x 2 6.4 x 50 12 4 3 Csk pozi Stainless A2 250
ATFP06016ABSS No.6 x 5/8 3.5 x 16 8 17 2 Flange pozi Stainless A2 1000
ATFP06025ABSS No.6 x 1 3.5 x 25 8 17 2 Flange pozi Stainless A2 1000
ATFP08009ABSS No.8 x 3/8 4.2 x 10 9.5 2.2 2 Flange pozi Stainless A2 500
ATFP08012ABSS No.8 x 1/2 4.2 x 12 9.5 2.2 2 Flange pozi Stainless A2 500
ATFP08016ABSS No.8 x 5/8 4.2 x 16 9.5 2.2 2 Flange pozi Stainless A2 500
ATFP08019ABSS No.8 x 3/4 4.2 x 20 9.5 2.2 2 Flange pozi Stainless A2 500
ATFP08025ABSS No.8 x 1 4.2 x 25 9.5 2.2 2 Flange pozi Stainless A2 500
ATFP10016ABSS No.10 x 5/8 4.8 x 16 11 2.75 2 Flange pozi Stainless A2 500
ATPP06006ABSS No.6 x 1/4 3.5 x 6 6.5 2.3 2 Pan pozi Stainless A2 1000
ATPP06009ABSS No.6 x 3/8 3.5 x 10 6.5 2.3 2 Pan pozi Stainless A2 1000
ATPP06012ABSS No.6 x 1/2 3.5 x 12 6.5 2.3 2 Pan pozi Stainless A2 1000
ATPP06016ABSS No.6 x 5/8 3.5 x 16 6.5 2.3 2 Pan pozi Stainless A2 1000
ATPP06019ABSS No.6 x 3/4 3.5 x 20 6.5 2.3 2 Pan pozi Stainless A2 1000
ATPP06025ABSS No.6 x 1 3.5 x 25 6.5 2.3 2 Pan pozi Stainless A2 1000
ATPP08009ABSS No.8 x 3/8 4.2 x 10 8 2.8 2 Pan pozi Stainless A2 500
ATPP08012ABSS No.8 x 1/2 4.2 x 12 8 2.8 2 Pan pozi Stainless A2 500
ATPP08016ABSS No.8 x 5/8 4.2 x 16 8 2.8 2 Pan pozi Stainless A2 500
ATPP08019ABSS No.8 x 3/4 4.2 x 20 8 2.8 2 Pan pozi Stainless A2 500
ATPP08025ABSS No.8 x 1 4.2 x 25 8 2.8 2 Pan pozi Stainless A2 500
ATPP08032ABSS No.8 x 1.1/4 4.2 x 32 8 2.8 2 Pan pozi Stainless A2 500
ATPP08038ABSS No.8 x 1.1/2 4.2 x 38 8 2.8 2 Pan pozi Stainless A2 500
ATPP10012ABSS No.10 x 1/2 4.8 x 12 8 2.8 2 Pan pozi Stainless A2 500
ATPP10016ABSS No.10 x 5/8 4.8 x 16 8 2.8 2 Pan pozi Stainless A2 500
ATPP10019ABSS No.10 x 3/4 4.8 x 20 8 2.8 2 Pan pozi Stainless A2 500
ATPP10025ABSS No.10 x 1 4.8 x 25 9.25 3.2 2 Pan pozi Stainless A2 500
ATPP10032ABSS No.10 x 1.1/4 4.8 x 32 9.25 3.2 2 Pan pozi Stainless A2 500
ATPP10038ABSS No.10 x 1.1/2 4.8 x 38 9.25 3.2 2 Pan pozi Stainless A2 500
ATPP10045ABSS No.10 x 1.3/4 4.8 x 45 9.25 3.2 2 Pan pozi Stainless A2 500
ATPP10050ABSS No.10 x 2 4.8 x 50 9.25 3.2 2 Pan pozi Stainless A2 500
ATPP12016ABSS No.12 x 5/8 5.5 x 16 10.5 3.75 3 Pan pozi Stainless A2 500
ATPP12019ABSS No.12 x 3/4 5.5 x 20 10.5 3.75 3 Pan pozi Stainless A2 500
ATPP12025ABSS No.12 x 1 5.5 x 25 10.5 3.75 3 Pan pozi Stainless A2 500
ATPP12032ABSS No.12 x 1.1/4 5.5 x 32 10.5 3.75 3 Pan pozi Stainless A2 500
ATPP12038ABSS No.12 x 1.1/2 5.5 x 38 10.5 3.75 3 Pan pozi Stainless A2 500
ATPP12045ABSS No.12 x 1.3/4 5.5 x 45 10.5 3.75 3 Pan pozi Stainless A2 250
ATPP12050ABSS No.12 x 2 5.5 x 50 10.5 3.75 3 Pan pozi Stainless A2 250
ATPP14038ABSS No.14 x 1.1/2 6.4 x 38 12 4.3 3 Pan pozi Stainless A2 250
ATPP14050ABSS No.14 x 2 6.4 x 50 12 4.3 3 Pan pozi Stainless A2 250

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.

Talk to the team → Browse all products →

Related Products
