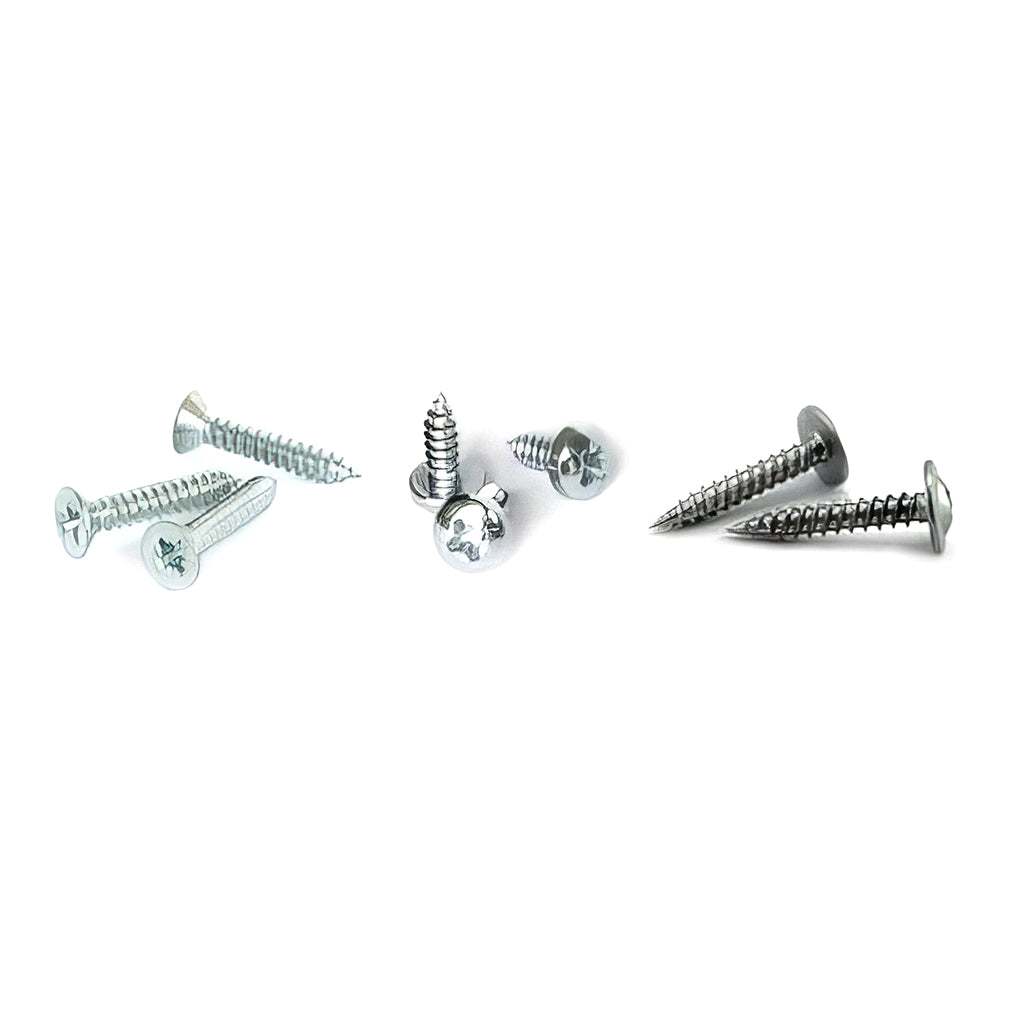

STEEL ZINC SELF TAPPING SCREW

For screwing into metal based material with a pre-drilled hole

Find the right option
  • Steel zinc self tapping screw for metal with pre-drilled hole fastener option
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

For screwing into metal based material with a pre-drilled hole

Please also view the same product range in stainless steel material option

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

69 options
Part numberSize / technical detailOther specificationAction
ATCP04009AB Csk pozi / Steel / Zinc | No.4 x 3/8 | 5.5 | 1.8 | 2 | 2.8 x 10 | 1000 —
ATCP04012AB Csk pozi / Steel / Zinc | No.4 x 1/2 | 5.5 | 1.8 | 2 | 2.8 x 12 | 1000 —
ATCP04016AB Csk pozi / Steel / Zinc | No.4 x 5/8 | 5.5 | 1.8 | 2 | 2.8 x 16 | 1000 —
ATCP06009AB Csk pozi / Steel / Zinc | No.6 x 3/8 | 7 | 2.2 | 2 | 3.5 x 10 | 1000 —
ATCP06012AB Csk pozi / Steel / Zinc | No.6 x 1/2 | 7 | 2.2 | 2 | 3.5 x 12 | 1000 —
ATCP06016AB Csk pozi / Steel / Zinc | No.6 x 5/8 | 7 | 2.2 | 2 | 3.5 x 16 | 1000 —
ATCP06019AB Csk pozi / Steel / Zinc | No.6 x 3/4 | 7 | 2.2 | 2 | 3.5 x 20 | 1000 —
ATCP06025AB Csk pozi / Steel / Zinc | No.6 x 1 | 7 | 2.2 | 2 | 3.5 x 25 | 1000 —
ATCP08009AB Csk pozi / Steel / Zinc | No.8 x 3/8 | 8 | 2.6 | 2 | 4.2 x 10 | 1000 —
ATCP08012AB Csk pozi / Steel / Zinc | No.8 x 1/2 | 8 | 2.6 | 2 | 4.2 x 12 | 1000 —
ATCP08016AB Csk pozi / Steel / Zinc | No.8 x 5/8 | 8 | 2.6 | 2 | 4.2 x 16 | 1000 —
ATCP08019AB Csk pozi / Steel / Zinc | No.8 x 3/4 | 8 | 2.6 | 2 | 4.2 x 20 | 1000 —
ATCP08025AB Csk pozi / Steel / Zinc | No.8 x 1 | 8 | 2.6 | 2 | 4.2 x 25 | 1000 —
ATCP08032AB Csk pozi / Steel / Zinc | No.8 x 1.1/4 | 8 | 2.6 | 2 | 4.2 x 32 | 1000 —
ATCP08038AB Csk pozi / Steel / Zinc | No.8 x 1.1/2 | 8 | 2.6 | 2 | 4.2 x 38 | 1000 —
ATCP08045AB Csk pozi / Steel / Zinc | No.8 x 1.3/4 | 8 | 2.6 | 2 | 4.2 x 45 | 1000 —
ATCP08050AB Csk pozi / Steel / Zinc | No.8 x 2 | 8 | 2.6 | 2 | 4.2 x 50 | 1000 —
ATCP10012AB Csk pozi / Steel / Zinc | No.10 x 1/2 | 9 | 3 | 2 | 4.8 x 12 | 1000 —
ATCP10016AB Csk pozi / Steel / Zinc | No.10 x 5/8 | 9 | 3 | 2 | 4.8 x 16 | 1000 —
ATCP10019AB Csk pozi / Steel / Zinc | No.10 x 3/4 | 9 | 3 | 2 | 4.8 x 20 | 1000 —
ATCP10025AB Csk pozi / Steel / Zinc | No.10 x 1 | 9 | 3 | 2 | 4.8 x 25 | 500 —
ATCP10032AB Csk pozi / Steel / Zinc | No.10 x 1.1/4 | 9 | 3 | 2 | 4.8 x 32 | 500 —
ATCP10038AB Csk pozi / Steel / Zinc | No.10 x 1.1/2 | 9 | 3 | 2 | 4.8 x 38 | 500 —
ATCP10045AB Csk pozi / Steel / Zinc | No.10 x 1.3/4 | 9 | 3 | 2 | 4.8 x 45 | 500 —
ATCP10050AB Csk pozi / Steel / Zinc | No.10 x 2 | 9 | 3 | 2 | 4.8 x 50 | 500 —
ATCP12032AB Csk pozi / Steel / Zinc | No.12 x 1.1/4 | 10.5 | 3.5 | 3 | 5.5 x 32 | 500 —
ATCP12038AB Csk pozi / Steel / Zinc | No.12 x 1.1/2 | 10.5 | 3.5 | 3 | 5.5 x 38 | 500 —
ATCP12050AB Csk pozi / Steel / Zinc | No.12 x 2 | 10.5 | 3.5 | 3 | 5.5 x 50 | 250 —
ATCP14038AB Csk pozi / Steel / Zinc | No.14 x 1.1/2 | 12 | 4 | 3 | 6.4 x 38 | 250 —
ATCP14045AB Csk pozi / Steel / Zinc | No.14 x 1.3/4 | 12 | 4 | 3 | 6.4 x 45 | 250 —
ATCP14050AB Csk pozi / Steel / Zinc | No.14 x 2 | 12 | 4 | 3 | 6.4 x 50 | 250 —
ATFP06016AB Flange pozi / Steel / Zinc | No.6 x 5/8 | 8 | 17 | 2 | 3.5 x 16 | 1000 —
ATFP06025AB Flange pozi / Steel / Zinc | No.6 x 1 | 8 | 17 | 2 | 3.5 x 25 | 1000 —
ATFP08009AB Flange pozi / Steel / Zinc | No.8 x 3/8 | 9.5 | 2.2 | 2 | 4.2 x 10 | 1000 —
ATFP08012AB Flange pozi / Steel / Zinc | No.8 x 1/2 | 9.5 | 2.2 | 2 | 4.2 x 12 | 1000 —
ATFP08016AB Flange pozi / Steel / Zinc | No.8 x 5/8 | 9.5 | 2.2 | 2 | 4.2 x 16 | 1000 —
ATFP08019AB Flange pozi / Steel / Zinc | No.8 x 3/4 | 9.5 | 2.2 | 2 | 4.2 x 20 | 1000 —
ATFP08025AB Flange pozi / Steel / Zinc | No.8 x 1 | 9.5 | 2.2 | 2 | 4.2 x 25 | 1000 —
ATFP10016AB Flange pozi / Steel / Zinc | No.10 x 5/8 | 11 | 2.75 | 2 | 4.8 x 16 | 1000 —
ATPP06006AB Pan pozi / Steel / Zinc | No.6 x 1/4 | 6.5 | 2.3 | 2 | 3.5 x 6 | 1000 —
ATPP06009AB Pan pozi / Steel / Zinc | No.6 x 3/8 | 6.5 | 2.3 | 2 | 3.5 x 10 | 1000 —
ATPP06012AB Pan pozi / Steel / Zinc | No.6 x 1/2 | 6.5 | 2.3 | 2 | 3.5 x 12 | 1000 —
ATPP06016AB Pan pozi / Steel / Zinc | No.6 x 5/8 | 6.5 | 2.3 | 2 | 3.5 x 16 | 1000 —
ATPP06019AB Pan pozi / Steel / Zinc | No.6 x 3/4 | 6.5 | 2.3 | 2 | 3.5 x 20 | 1000 —
ATPP06025AB Pan pozi / Steel / Zinc | No.6 x 1 | 6.5 | 2.3 | 2 | 3.5 x 25 | 1000 —
ATPP08009AB Pan pozi / Steel / Zinc | No.8 x 3/8 | 8 | 2.8 | 2 | 4.2 x 10 | 1000 —
ATPP08012AB Pan pozi / Steel / Zinc | No.8 x 1/2 | 8 | 2.8 | 2 | 4.2 x 12 | 1000 —
ATPP08016AB Pan pozi / Steel / Zinc | No.8 x 5/8 | 8 | 2.8 | 2 | 4.2 x 16 | 1000 —
ATPP08019AB Pan pozi / Steel / Zinc | No.8 x 3/4 | 8 | 2.8 | 2 | 4.2 x 20 | 1000 —
ATPP08025AB Pan pozi / Steel / Zinc | No.8 x 1 | 8 | 2.8 | 2 | 4.2 x 25 | 1000 —
ATPP08032AB Pan pozi / Steel / Zinc | No.8 x 1.1/4 | 8 | 2.8 | 2 | 4.2 x 32 | 1000 —
ATPP08038AB Pan pozi / Steel / Zinc | No.8 x 1.1/2 | 8 | 2.8 | 2 | 4.2 x 38 | 1000 —
ATPP10012AB Pan pozi / Steel / Zinc | No.10 x 1/2 | 8 | 2.8 | 2 | 4.8 x 12 | 1000 —
ATPP10016AB Pan pozi / Steel / Zinc | No.10 x 5/8 | 8 | 2.8 | 2 | 4.8 x 16 | 1000 —
ATPP10019AB Pan pozi / Steel / Zinc | No.10 x 3/4 | 8 | 2.8 | 2 | 4.8 x 20 | 1000 —
ATPP10025AB Pan pozi / Steel / Zinc | No.10 x 1 | 9.25 | 3.2 | 2 | 4.8 x 25 | 500 —
ATPP10032AB Pan pozi / Steel / Zinc | No.10 x 1.1/4 | 9.25 | 3.2 | 2 | 4.8 x 32 | 500 —
ATPP10038AB Pan pozi / Steel / Zinc | No.10 x 1.1/2 | 9.25 | 3.2 | 2 | 4.8 x 38 | 500 —
ATPP10045AB Pan pozi / Steel / Zinc | No.10 x 1.3/4 | 9.25 | 3.2 | 2 | 4.8 x 45 | 500 —
ATPP10050AB Pan pozi / Steel / Zinc | No.10 x 2 | 9.25 | 3.2 | 2 | 4.8 x 50 | 500 —
ATPP12016AB Pan pozi / Steel / Zinc | No.12 x 5/8 | 10.5 | 3.75 | 3 | 5.5 x 16 | 500 —
ATPP12019AB Pan pozi / Steel / Zinc | No.12 x 3/4 | 10.5 | 3.75 | 3 | 5.5 x 20 | 500 —
ATPP12025AB Pan pozi / Steel / Zinc | No.12 x 1 | 10.5 | 3.75 | 3 | 5.5 x 25 | 500 —
ATPP12032AB Pan pozi / Steel / Zinc | No.12 x 1.1/4 | 10.5 | 3.75 | 3 | 5.5 x 32 | 500 —
ATPP12038AB Pan pozi / Steel / Zinc | No.12 x 1.1/2 | 10.5 | 3.75 | 3 | 5.5 x 38 | 500 —
ATPP12045AB Pan pozi / Steel / Zinc | No.12 x 1.3/4 | 10.5 | 3.75 | 3 | 5.5 x 45 | 250 —
ATPP12050AB Pan pozi / Steel / Zinc | No.12 x 2 | 10.5 | 3.75 | 3 | 5.5 x 50 | 250 —
ATPP14038AB Pan pozi / Steel / Zinc | No.14 x 1.1/2 | 12 | 4.3 | 3 | 6.4 x 38 | 250 —
ATPP14050AB Pan pozi / Steel / Zinc | No.14 x 2 | 12 | 4.3 | 3 | 6.4 x 50 | 250 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

STEEL ZINC SELF TAPPING SCREW
ATCP04009AB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Material Finish Size Head dia Head depth Pozi bit No. Metric equivalent size Pack Qty
ATCP04009AB Csk pozi Steel Zinc No.4 x 3/8 5.5 1.8 2 2.8 x 10 1000
ATCP04012AB Csk pozi Steel Zinc No.4 x 1/2 5.5 1.8 2 2.8 x 12 1000
ATCP04016AB Csk pozi Steel Zinc No.4 x 5/8 5.5 1.8 2 2.8 x 16 1000
ATCP06009AB Csk pozi Steel Zinc No.6 x 3/8 7 2.2 2 3.5 x 10 1000
ATCP06012AB Csk pozi Steel Zinc No.6 x 1/2 7 2.2 2 3.5 x 12 1000
ATCP06016AB Csk pozi Steel Zinc No.6 x 5/8 7 2.2 2 3.5 x 16 1000
ATCP06019AB Csk pozi Steel Zinc No.6 x 3/4 7 2.2 2 3.5 x 20 1000
ATCP06025AB Csk pozi Steel Zinc No.6 x 1 7 2.2 2 3.5 x 25 1000
ATCP08009AB Csk pozi Steel Zinc No.8 x 3/8 8 2.6 2 4.2 x 10 1000
ATCP08012AB Csk pozi Steel Zinc No.8 x 1/2 8 2.6 2 4.2 x 12 1000
ATCP08016AB Csk pozi Steel Zinc No.8 x 5/8 8 2.6 2 4.2 x 16 1000
ATCP08019AB Csk pozi Steel Zinc No.8 x 3/4 8 2.6 2 4.2 x 20 1000
ATCP08025AB Csk pozi Steel Zinc No.8 x 1 8 2.6 2 4.2 x 25 1000
ATCP08032AB Csk pozi Steel Zinc No.8 x 1.1/4 8 2.6 2 4.2 x 32 1000
ATCP08038AB Csk pozi Steel Zinc No.8 x 1.1/2 8 2.6 2 4.2 x 38 1000
ATCP08045AB Csk pozi Steel Zinc No.8 x 1.3/4 8 2.6 2 4.2 x 45 1000
ATCP08050AB Csk pozi Steel Zinc No.8 x 2 8 2.6 2 4.2 x 50 1000
ATCP10012AB Csk pozi Steel Zinc No.10 x 1/2 9 3 2 4.8 x 12 1000
ATCP10016AB Csk pozi Steel Zinc No.10 x 5/8 9 3 2 4.8 x 16 1000
ATCP10019AB Csk pozi Steel Zinc No.10 x 3/4 9 3 2 4.8 x 20 1000
ATCP10025AB Csk pozi Steel Zinc No.10 x 1 9 3 2 4.8 x 25 500
ATCP10032AB Csk pozi Steel Zinc No.10 x 1.1/4 9 3 2 4.8 x 32 500
ATCP10038AB Csk pozi Steel Zinc No.10 x 1.1/2 9 3 2 4.8 x 38 500
ATCP10045AB Csk pozi Steel Zinc No.10 x 1.3/4 9 3 2 4.8 x 45 500
ATCP10050AB Csk pozi Steel Zinc No.10 x 2 9 3 2 4.8 x 50 500
ATCP12032AB Csk pozi Steel Zinc No.12 x 1.1/4 10.5 3.5 3 5.5 x 32 500
ATCP12038AB Csk pozi Steel Zinc No.12 x 1.1/2 10.5 3.5 3 5.5 x 38 500
ATCP12050AB Csk pozi Steel Zinc No.12 x 2 10.5 3.5 3 5.5 x 50 250
ATCP14038AB Csk pozi Steel Zinc No.14 x 1.1/2 12 4 3 6.4 x 38 250
ATCP14045AB Csk pozi Steel Zinc No.14 x 1.3/4 12 4 3 6.4 x 45 250
ATCP14050AB Csk pozi Steel Zinc No.14 x 2 12 4 3 6.4 x 50 250
ATFP06016AB Flange pozi Steel Zinc No.6 x 5/8 8 17 2 3.5 x 16 1000
ATFP06025AB Flange pozi Steel Zinc No.6 x 1 8 17 2 3.5 x 25 1000
ATFP08009AB Flange pozi Steel Zinc No.8 x 3/8 9.5 2.2 2 4.2 x 10 1000
ATFP08012AB Flange pozi Steel Zinc No.8 x 1/2 9.5 2.2 2 4.2 x 12 1000
ATFP08016AB Flange pozi Steel Zinc No.8 x 5/8 9.5 2.2 2 4.2 x 16 1000
ATFP08019AB Flange pozi Steel Zinc No.8 x 3/4 9.5 2.2 2 4.2 x 20 1000
ATFP08025AB Flange pozi Steel Zinc No.8 x 1 9.5 2.2 2 4.2 x 25 1000
ATFP10016AB Flange pozi Steel Zinc No.10 x 5/8 11 2.75 2 4.8 x 16 1000
ATPP06006AB Pan pozi Steel Zinc No.6 x 1/4 6.5 2.3 2 3.5 x 6 1000
ATPP06009AB Pan pozi Steel Zinc No.6 x 3/8 6.5 2.3 2 3.5 x 10 1000
ATPP06012AB Pan pozi Steel Zinc No.6 x 1/2 6.5 2.3 2 3.5 x 12 1000
ATPP06016AB Pan pozi Steel Zinc No.6 x 5/8 6.5 2.3 2 3.5 x 16 1000
ATPP06019AB Pan pozi Steel Zinc No.6 x 3/4 6.5 2.3 2 3.5 x 20 1000
ATPP06025AB Pan pozi Steel Zinc No.6 x 1 6.5 2.3 2 3.5 x 25 1000
ATPP08009AB Pan pozi Steel Zinc No.8 x 3/8 8 2.8 2 4.2 x 10 1000
ATPP08012AB Pan pozi Steel Zinc No.8 x 1/2 8 2.8 2 4.2 x 12 1000
ATPP08016AB Pan pozi Steel Zinc No.8 x 5/8 8 2.8 2 4.2 x 16 1000
ATPP08019AB Pan pozi Steel Zinc No.8 x 3/4 8 2.8 2 4.2 x 20 1000
ATPP08025AB Pan pozi Steel Zinc No.8 x 1 8 2.8 2 4.2 x 25 1000
ATPP08032AB Pan pozi Steel Zinc No.8 x 1.1/4 8 2.8 2 4.2 x 32 1000
ATPP08038AB Pan pozi Steel Zinc No.8 x 1.1/2 8 2.8 2 4.2 x 38 1000
ATPP10012AB Pan pozi Steel Zinc No.10 x 1/2 8 2.8 2 4.8 x 12 1000
ATPP10016AB Pan pozi Steel Zinc No.10 x 5/8 8 2.8 2 4.8 x 16 1000
ATPP10019AB Pan pozi Steel Zinc No.10 x 3/4 8 2.8 2 4.8 x 20 1000
ATPP10025AB Pan pozi Steel Zinc No.10 x 1 9.25 3.2 2 4.8 x 25 500
ATPP10032AB Pan pozi Steel Zinc No.10 x 1.1/4 9.25 3.2 2 4.8 x 32 500
ATPP10038AB Pan pozi Steel Zinc No.10 x 1.1/2 9.25 3.2 2 4.8 x 38 500
ATPP10045AB Pan pozi Steel Zinc No.10 x 1.3/4 9.25 3.2 2 4.8 x 45 500
ATPP10050AB Pan pozi Steel Zinc No.10 x 2 9.25 3.2 2 4.8 x 50 500
ATPP12016AB Pan pozi Steel Zinc No.12 x 5/8 10.5 3.75 3 5.5 x 16 500
ATPP12019AB Pan pozi Steel Zinc No.12 x 3/4 10.5 3.75 3 5.5 x 20 500
ATPP12025AB Pan pozi Steel Zinc No.12 x 1 10.5 3.75 3 5.5 x 25 500
ATPP12032AB Pan pozi Steel Zinc No.12 x 1.1/4 10.5 3.75 3 5.5 x 32 500
ATPP12038AB Pan pozi Steel Zinc No.12 x 1.1/2 10.5 3.75 3 5.5 x 38 500
ATPP12045AB Pan pozi Steel Zinc No.12 x 1.3/4 10.5 3.75 3 5.5 x 45 250
ATPP12050AB Pan pozi Steel Zinc No.12 x 2 10.5 3.75 3 5.5 x 50 250
ATPP14038AB Pan pozi Steel Zinc No.14 x 1.1/2 12 4.3 3 6.4 x 38 250
ATPP14050AB Pan pozi Steel Zinc No.14 x 2 12 4.3 3 6.4 x 50 250

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.

Talk to the team → Browse all products →

Related Products
