Castors wheels

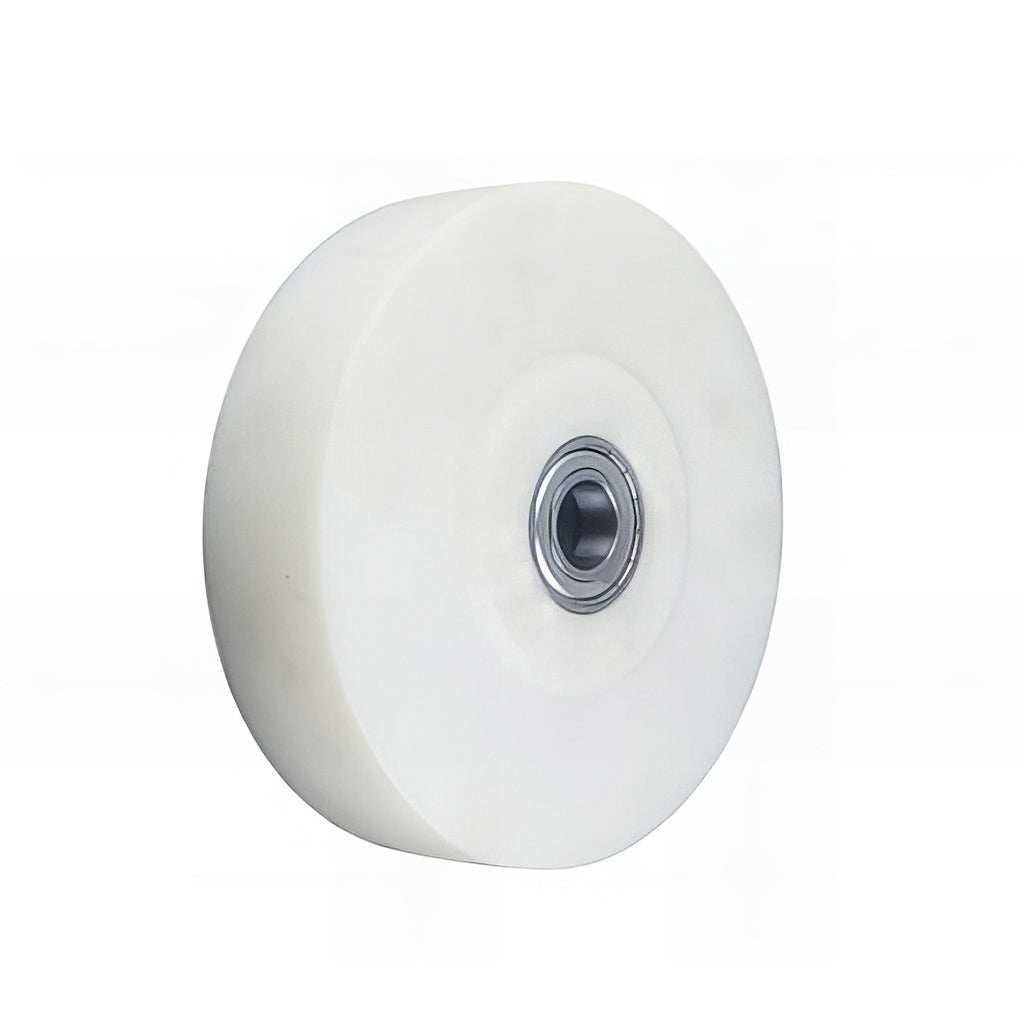

Heavy Duty Nylon Wheel – Ball Journal Bearing 1000 – 7000KG Load Capacity
Heavy Duty Nylon Wheel with ball journal bearing delivers exceptional strength, reliability, and smooth performance for the most demanding industrial and material-handling applications. Designed to support loads from approximately 1000 kg up to 7000 kg per wheel, this wheel is engineered for heavy machines, transport carts,...
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Heavy Duty Nylon Wheel with ball journal bearing delivers exceptional strength, reliability, and smooth performance for the most demanding industrial and material-handling applications. Designed to support loads from approximately 1000 kg up to 7000 kg per wheel, this wheel is engineered for heavy machines, transport carts, industrial trolleys, and facility-level equipment that demand robust load-bearing capability and long lasting durability.
Key Features & Benefits
High Load Capacity: Built to handle very heavy loads — from around 1000 kg to 7000 kg per wheel depending on size — making it ideal for demanding factory, warehouse, manufacturing, and logistics environments.
Ball Journal Bearing: Precision ball journal bearings reduce friction and rolling resistance for smooth, efficient motion even under extreme loads, improving manoeuvrability and reducing wear on equipment.
Premium Nylon Construction: Made from industrial-grade nylon, these wheels offer excellent resistance to abrasion, impact, and wear — with a long service life and dependable day-to-day performance.
Low Rolling Resistance: Nylon’s naturally low friction properties help make heavy loads easier to move, minimising operator effort and enhancing productivity on smooth floors or industrial surfaces.
Smooth & Reliable Operation: Composite nylon construction combined with ball bearings delivers consistent, quiet rotation with minimal vibration — ideal for continuous or repetitive operations.
Versatile Industrial Use: Perfect for heavy trolleys, pallet trucks, machinery bases, mobile platforms, workshop equipment, goods transports, and other high-load applications where durability and performance matter most.
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Wheel Dia | Wheel Type | Tread Width | Load Cap kg | Bearing | Hub Bore | Hub Width |
|---|---|---|---|---|---|---|---|
| CW080/XHWNYBJM20HD | 80mm | White Nylon | 40 | 1000 | Ball jounal | 20 | 45 |
| CW100/XHWNYBJM20HD | 100mm | White Nylon | 40 | 1250 | Ball jounal | 20 | 45 |
| CW125/XHWNYBJM25HD | 125mm | White Nylon | 55 | 2000 | Ball jounal | 25 | 60 |
| CW150/XHWNYBJM25HD | 150mm | White Nylon | 50 | 1500 | Ball jounal | 25 | 60 |
| CW150/XHWNYBJM30HD | 150mm | White Nylon | 55 | 2500 | Ball jounal | 30 | 60 |
| CW150/XHWNYBJM35HD | 150mm | White Nylon | 80 | 3000 | Ball jounal | 35 | 85 |
| CW200/XHWNYBJM25HD | 200mm | White Nylon | 50 | 1500 | Ball jounal | 25 | 60 |
| CW200/XHWNYBJM35HD | 200mm | White Nylon | 55 | 3000 | Ball jounal | 35 | 60 |
| CW200/XHWNYBJM40HD | 200mm | White Nylon | 55 | 3000 | Ball jounal | 40 | 60 |
| CW200/XHWNYBJM50HD | 200mm | White Nylon | 80 | 4500 | Ball jounal | 50 | 90 |
| CW250/XHWNYBJM25HD | 250mm | White Nylon | 50 | 1500 | Ball jounal | 25 | 60 |
| CW250/XHWNYBJM35HD | 250mm | White Nylon | 55 | 2000 | Ball jounal | 35 | 55 |
| CW250/XHWNYBJM50HD | 250mm | White Nylon | 80 | 4500 | Ball jounal | 50 | 90 |
| CW300/XHWNYBJM55HD | 300mm | White Nylon | 80 | 7000 | Ball jounal | 55 | 85 |
Found the correct part number? Select it from the available options above and add it to your quote list.
