Castors wheels

MEDIUM DUTY PLATE FITTING CASTOR C/W PHEUMATIC TYRE/PLASTIC WHEEL 75-120KG

Zinc plated pressed steel frame in fixed, swivel and braked configurations.

Find the right option

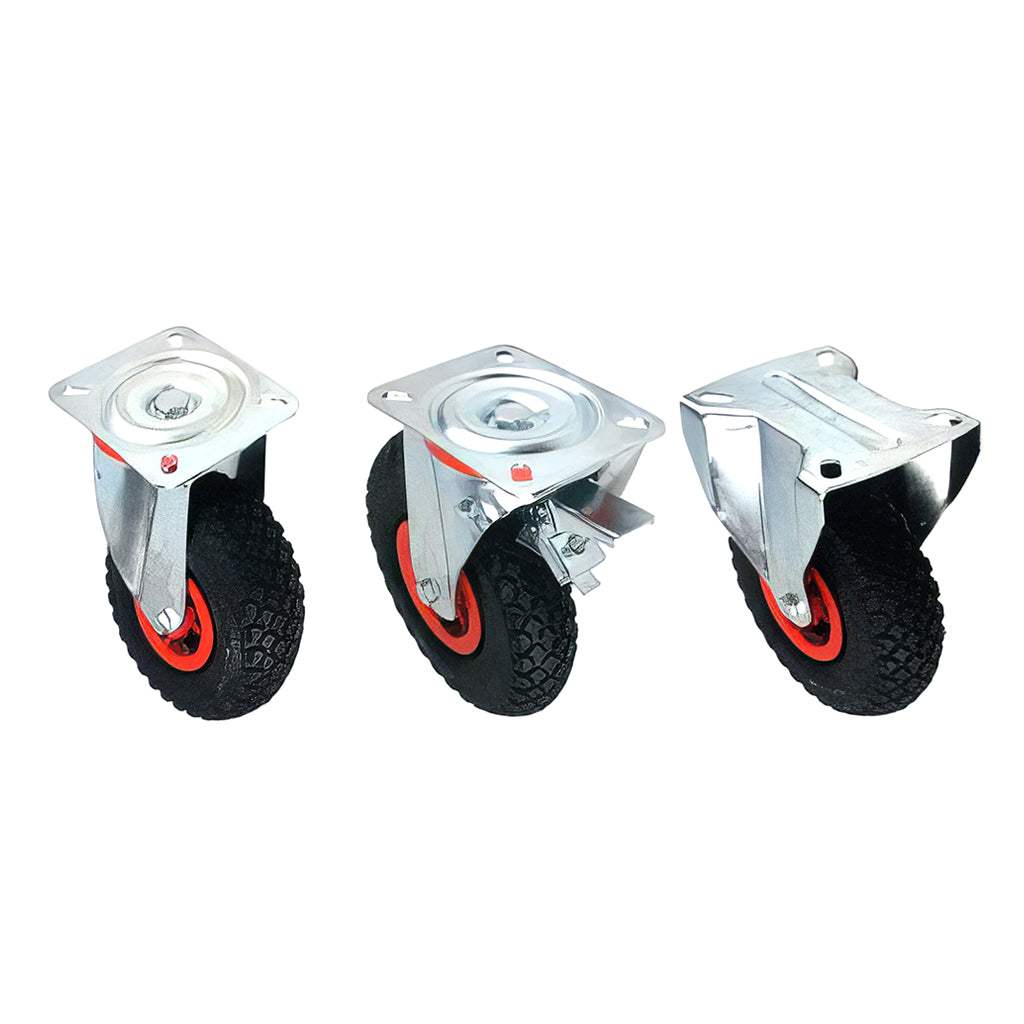

  • Medium duty plate fitting castor with pneumatic tyre and zinc plated steel frame
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Zinc plated pressed steel frame in fixed, swivel and braked configurations.

Pneumatic rubber tyre on polypropylene centre with roller bearing axle.

200mm with ribbed and 260mm with ribbed or diamond tread.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

8 options
Part numberSize / technical detailOther specificationAction
C200/PCPRB Swivel / 200mm / Pneumatic/plastic | 50 | 167 | 238 | 135x110 | 75 | 105X75/80 (10) | Ribbed | Roller —
C200/PCPRBSWB Swivel brake / 200mm / Pneumatic/plastic | 50 | 167 | 238 | 135x110 | 75 | 105X75/80 (10) | Ribbed | Roller —
C200/PCFPRB Fixed / 200mm / Pneumatic/plastic | 50 | 167 | 238 | 135x110 | 75 | 105X75/80 (10) | Ribbed | Roller —
C200/PCFPRB Fixed / 200mm / Pneumatic/plastic | 50 | 215 | 238 | 135x110 | 75 | 105X75/80 (10) | Ribbed | Roller —
C260/PCPRB Swivel / 260mm / Pneumatic/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Diamond | Roller —
C260/PCPRBSWB Swivel/wheel brake (side) / 260mm / Pneumatic/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Diamond | Roller —
C260/PCFPRB Fixed / 260mm / Pneumatic/plastic | 85 | 167 | 302 | 200x140 | 120 | 150x115 (14) | Diamond | Roller —
C260/PCFPRB Fixed / 260mm / Pneumatic/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Diamond | Roller —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY PLATE FITTING CASTOR C/W PHEUMATIC TYRE/PLASTIC WHEEL 75-120KG
C200/PCPRB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Tread Pat Bearing
C200/PCPRB Swivel 200mm Pneumatic/plastic 50 167 238 135x110 75 105X75/80 (10) Ribbed Roller
C200/PCPRBSWB Swivel brake 200mm Pneumatic/plastic 50 167 238 135x110 75 105X75/80 (10) Ribbed Roller
C200/PCFPRB Fixed 200mm Pneumatic/plastic 50 167 238 135x110 75 105X75/80 (10) Ribbed Roller
C200/PCFPRB Fixed 200mm Pneumatic/plastic 50 215 238 135x110 75 105X75/80 (10) Ribbed Roller
C260/PCPRB Swivel 260mm Pneumatic/plastic 85 215 302 200x140 120 150x115 (14) Diamond Roller
C260/PCPRBSWB Swivel/wheel brake (side) 260mm Pneumatic/plastic 85 215 302 200x140 120 150x115 (14) Diamond Roller
C260/PCFPRB Fixed 260mm Pneumatic/plastic 85 167 302 200x140 120 150x115 (14) Diamond Roller
C260/PCFPRB Fixed 260mm Pneumatic/plastic 85 215 302 200x140 120 150x115 (14) Diamond Roller

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
CAN'T FIND THE RIGHT COMPONENT?

Challenge Indifit.

Send us a part number, drawing or specification and our team will help you find the right solution. More than a supplier — an extension of your team.
