MEDIUM PLATE MOUNTED CASTOR C/W PNEUMATIC TYRE/PLASTIC WHEEL 120-200KG

Fabricated steel frame, zinc plated, in swivel and fixed configurations.

Find the right option

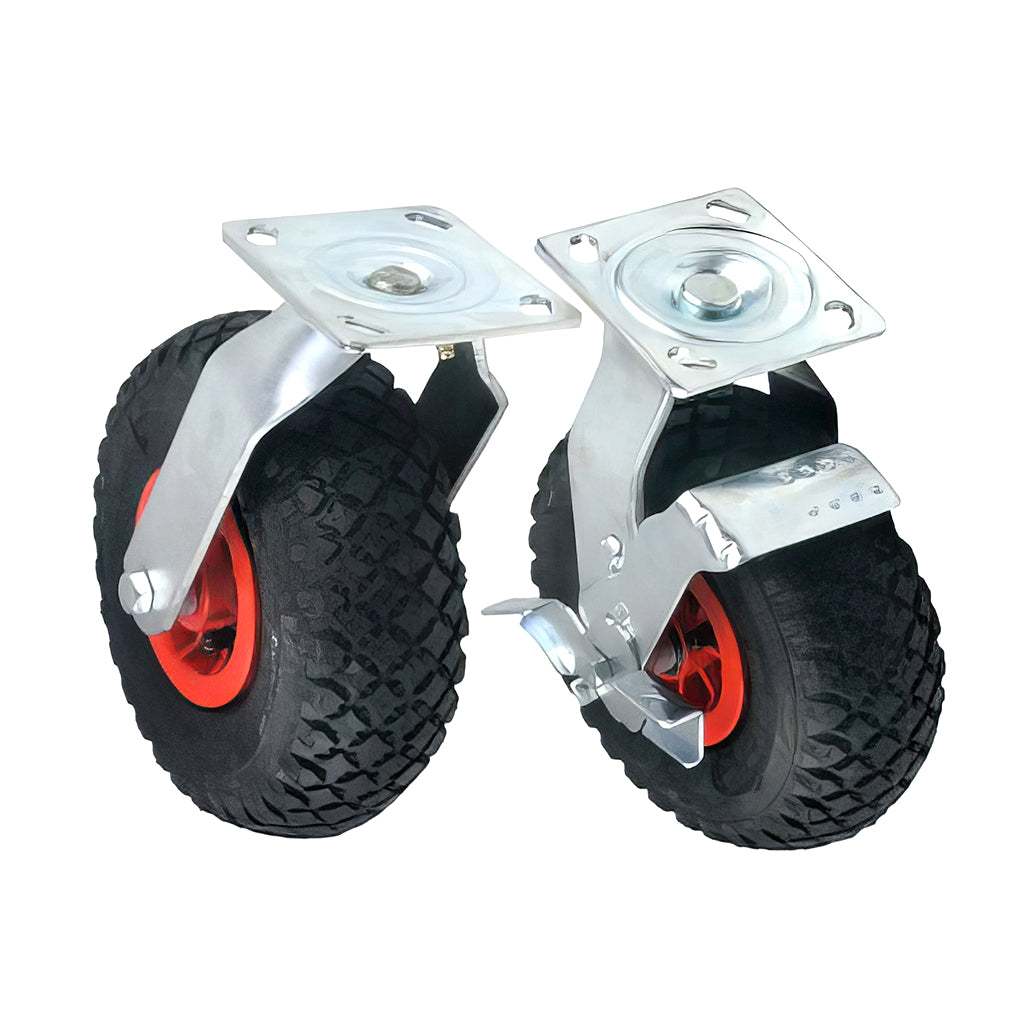

  • Medium plate mounted castor with pneumatic tyre and plastic wheel, zinc plated steel frame, swivel and fixed options, side brake available
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Fabricated steel frame, zinc plated, in swivel and fixed configurations.

Side brake option on swivel, operating on wheel only.

Pneumatic rubber tyre on plastic centre with roller bearing axle.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

4 options
Part numberSize / technical detailOther specificationAction
C260/FPCPRB Swivel / 260mm / Pneumatic/plastic | 85 | 171 | 318 | 115x105 | 120 | 92/76x76/67 (10) | Diamond | Roller —
C260/FPCPRBBK Swivel/wheel brake (side) / 260mm / Pneumatic/plastic | 85 | 171 | 318 | 115x105 | 120 | 92/76x76/67 (10) | Diamond | Roller —
C400/FPCPRB Swivel / 400mm / Pneumatic/plastic | 100 | 290 | 480 | 158x114 | 200 | 131x77 (12) | Ribbed | Roller —
C400/FPCFPRB Fixed / 400mm / Pneumatic/plastic | 100 | 0 | 480 | 158x114 | 200 | 131x77 (12) | Ribbed | Roller —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM PLATE MOUNTED CASTOR C/W PNEUMATIC TYRE/PLASTIC WHEEL 120-200KG
C260/FPCPRB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Tread Pat Bearing
C260/FPCPRB Swivel 260mm Pneumatic/plastic 85 171 318 115x105 120 92/76x76/67 (10) Diamond Roller
C260/FPCPRBBK Swivel/wheel brake (side) 260mm Pneumatic/plastic 85 171 318 115x105 120 92/76x76/67 (10) Diamond Roller
C400/FPCPRB Swivel 400mm Pneumatic/plastic 100 290 480 158x114 200 131x77 (12) Ribbed Roller
C400/FPCFPRB Fixed 400mm Pneumatic/plastic 100 0 480 158x114 200 131x77 (12) Ribbed Roller

Found the correct part number? Select it from the available options above and add it to your quote list.
