Castors wheels

MEDIUM PLATE FITTING CASTOR C/W PHEUMATIC TYRE/STEEL WHEEL 70-270KG

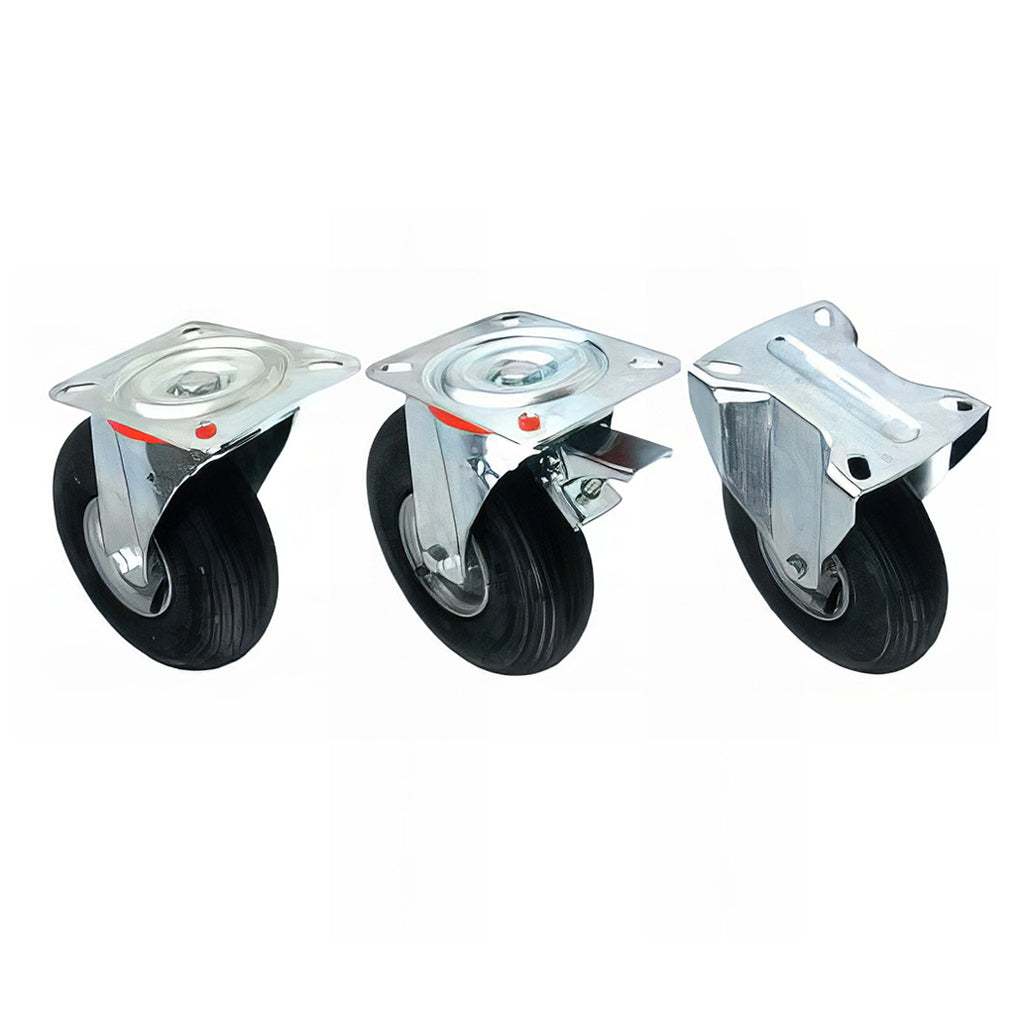

Zinc plated pressed steel frame in fixed, swivel and braked configurations.

Find the right option
  • Medium plate fitting castor with pneumatic tyre and steel wheel, zinc plated pressed steel frame, 200mm ribbed tread and 260mm diamond tread options
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Zinc plated pressed steel frame in fixed, swivel and braked configurations.

Pneumatic rubber tyre on welded steel centre with roller bearing axle.

200mm version with ribbed tread, 260mm with diamond tread.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

12 options
Part numberSize / technical detailOther specificationAction
C200/PCMRB Swivel / 200mm / Pneumatic/steel | 50 | 167 | 238 | 135x110 | 75 | 105X75/80 (10) | Ribbed | Roller —
C200/PCMRBSWB Swivel brake / 200mm / Pneumatic/steel | 50 | 167 | 238 | 135x110 | 75 | 105X75/80 (10) | Ribbed | Roller —
C200/PCFMRB Fixed / 200mm / Pneumatic/steel | 50 | 167 | 238 | 135x110 | 75 | 105X75/80 (10) | Ribbed | Roller —
C200/PCFMRB Fixed / 200mm / Pneumatic/steel | 50 | 215 | 238 | 135x110 | 75 | 105X75/80 (10) | Ribbed | Roller —
C260/PCMRB Swivel / 260mm / Pneumatic/steel | 85 | 215 | 302 | 200x140 | 200 | 150x115 (14) | Diamond | Roller —
C260/PCMRBSWB Swivel/wheel brake (side) / 260mm / Pneumatic/steel | 85 | 215 | 302 | 200x140 | 200 | 150x115 (14) | Diamond | Roller —
C260/PCFMRB Fixed / 260mm / Pneumatic/steel | 85 | 167 | 302 | 200x140 | 200 | 150x115 (14) | Diamond | Roller —
C260/PCFMRB Fixed / 260mm / Pneumatic/steel | 85 | 215 | 302 | 200x140 | 200 | 150x115 (14) | Diamond | Roller —
C260/PCMRB6 Swivel / 260mm / Pneumatic/steel | 85 | 215 | 302 | 200x140 | 270 | 150x115 (14) | Diamond | Roller —
C260/PCMRB6SWB Swivel/wheel brake (side) / 260mm / Pneumatic/steel | 85 | 215 | 302 | 200x140 | 270 | 150x115 (14) | Diamond | Roller —
C260/PCFMRB6 Fixed / 260mm / Pneumatic/steel | 85 | 167 | 302 | 200x140 | 270 | 150x115 (14) | Diamond | Roller —
C260/PCFMRB6 Fixed / 260mm / Pneumatic/steel | 85 | 215 | 302 | 200x140 | 270 | 150x115 (14) | Diamond | Roller —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM PLATE FITTING CASTOR C/W PHEUMATIC TYRE/STEEL WHEEL 70-270KG
C200/PCMRB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Tread Pat Bearing
C200/PCMRB Swivel 200mm Pneumatic/steel 50 167 238 135x110 75 105X75/80 (10) Ribbed Roller
C200/PCMRBSWB Swivel brake 200mm Pneumatic/steel 50 167 238 135x110 75 105X75/80 (10) Ribbed Roller
C200/PCFMRB Fixed 200mm Pneumatic/steel 50 167 238 135x110 75 105X75/80 (10) Ribbed Roller
C200/PCFMRB Fixed 200mm Pneumatic/steel 50 215 238 135x110 75 105X75/80 (10) Ribbed Roller
C260/PCMRB Swivel 260mm Pneumatic/steel 85 215 302 200x140 200 150x115 (14) Diamond Roller
C260/PCMRBSWB Swivel/wheel brake (side) 260mm Pneumatic/steel 85 215 302 200x140 200 150x115 (14) Diamond Roller
C260/PCFMRB Fixed 260mm Pneumatic/steel 85 167 302 200x140 200 150x115 (14) Diamond Roller
C260/PCFMRB Fixed 260mm Pneumatic/steel 85 215 302 200x140 200 150x115 (14) Diamond Roller
C260/PCMRB6 Swivel 260mm Pneumatic/steel 85 215 302 200x140 270 150x115 (14) Diamond Roller
C260/PCMRB6SWB Swivel/wheel brake (side) 260mm Pneumatic/steel 85 215 302 200x140 270 150x115 (14) Diamond Roller
C260/PCFMRB6 Fixed 260mm Pneumatic/steel 85 167 302 200x140 270 150x115 (14) Diamond Roller
C260/PCFMRB6 Fixed 260mm Pneumatic/steel 85 215 302 200x140 270 150x115 (14) Diamond Roller

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
