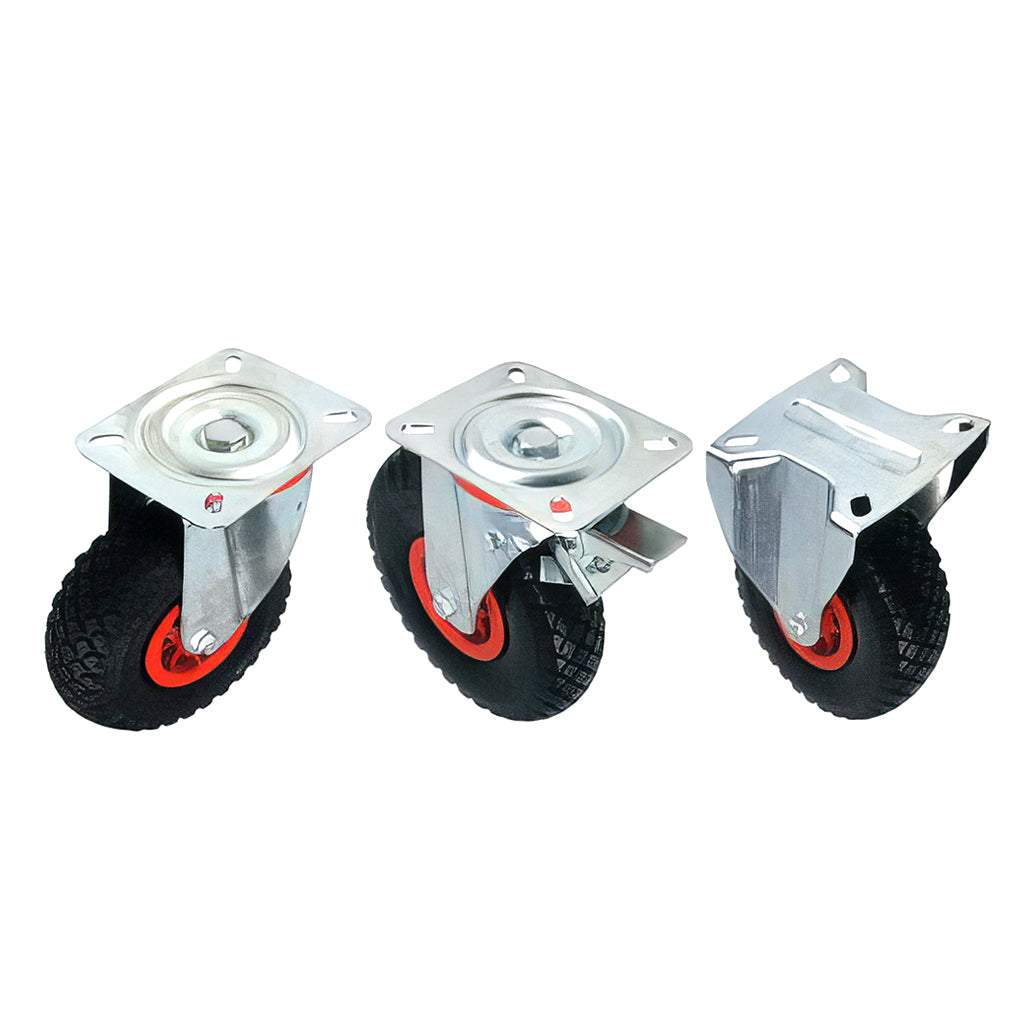

MEDIUM DUTY PLATE FITTING CASTOR C/W PUNCTURE PROOF TYRE/STEEL WHEEL 70-120KG

Zinc plated pressed steel frame in fixed, swivel and braked configurations.

Find the right option
  • Medium duty plate fitting castor with puncture proof tyre and steel wheel 70-120kg zinc plated frame
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Zinc plated pressed steel frame in fixed, swivel and braked configurations.

Micro-cellular puncture proof tyre on welded steel centre with roller bearing axle.

200mm version with ribbed tread, 260mm with ribbed or diamond tread.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

12 options
Part numberSize / technical detailOther specificationAction
C200/PCMPB Swvel / 200mm / Puncture-proof/steel | 50 | 238 | 167 | 135x110 | 70 | 105X75/80 (10) | Ribbed | Roller —
C200/PCMPBSWB Swvel brake / 200mm / Puncture-proof/steel | 50 | 238 | 167 | 135x110 | 70 | 105X75/80 (10) | Ribbed | Roller —
C200/PCFMPB Fixed / 200mm / Puncture-proof/steel | 50 | 215 | 167 | 135x110 | 70 | 105X75/80 (10) | Ribbed | Roller —
C200/PCFMPB Fixed / 200mm / Puncture-proof/steel | 50 | 238 | 167 | 135x110 | 70 | 105X75/80 (10) | Ribbed | Roller —
C260/PCMPB Swivel / 260mm / Puncture-proof/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Ribbed | Roller —
C260/PCMPBSWB Swivel/wheel brake (side) / 260mm / Puncture-proof/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Ribbed | Roller —
C260/PCFMPB Fixed / 260mm / Puncture-proof/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Ribbed | Roller —
C260/PCFMPB Fixed / 260mm / Puncture-proof/plastic | 85 | 238 | 302 | 200x140 | 120 | 150x115 (14) | Ribbed | Roller —
C260/PCMPBD Swivel / 260mm / Puncture-proof/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Diamond | Roller —
C260/PCMPBDSWB Swivel/wheel brake (side) / 260mm / Puncture-proof/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Diamond | Roller —
C260/PCFMPBD Fixed / 260mm / Puncture-proof/plastic | 85 | 215 | 302 | 200x140 | 120 | 150x115 (14) | Diamond | Roller —
C260/PCFMPBD Fixed / 260mm / Puncture-proof/plastic | 85 | 238 | 302 | 200x140 | 120 | 150x115 (14) | Diamond | Roller —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM DUTY PLATE FITTING CASTOR C/W PUNCTURE PROOF TYRE/STEEL WHEEL 70-120KG
C200/PCMPB

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Wheel Dia Wheel Type Tread Width Swivel Radius O Height Plate Size Load Cap kg Bolthole Spacing Tread Pat Bearing
C200/PCMPB Swvel 200mm Puncture-proof/steel 50 238 167 135x110 70 105X75/80 (10) Ribbed Roller
C200/PCMPBSWB Swvel brake 200mm Puncture-proof/steel 50 238 167 135x110 70 105X75/80 (10) Ribbed Roller
C200/PCFMPB Fixed 200mm Puncture-proof/steel 50 215 167 135x110 70 105X75/80 (10) Ribbed Roller
C200/PCFMPB Fixed 200mm Puncture-proof/steel 50 238 167 135x110 70 105X75/80 (10) Ribbed Roller
C260/PCMPB Swivel 260mm Puncture-proof/plastic 85 215 302 200x140 120 150x115 (14) Ribbed Roller
C260/PCMPBSWB Swivel/wheel brake (side) 260mm Puncture-proof/plastic 85 215 302 200x140 120 150x115 (14) Ribbed Roller
C260/PCFMPB Fixed 260mm Puncture-proof/plastic 85 215 302 200x140 120 150x115 (14) Ribbed Roller
C260/PCFMPB Fixed 260mm Puncture-proof/plastic 85 238 302 200x140 120 150x115 (14) Ribbed Roller
C260/PCMPBD Swivel 260mm Puncture-proof/plastic 85 215 302 200x140 120 150x115 (14) Diamond Roller
C260/PCMPBDSWB Swivel/wheel brake (side) 260mm Puncture-proof/plastic 85 215 302 200x140 120 150x115 (14) Diamond Roller
C260/PCFMPBD Fixed 260mm Puncture-proof/plastic 85 215 302 200x140 120 150x115 (14) Diamond Roller
C260/PCFMPBD Fixed 260mm Puncture-proof/plastic 85 238 302 200x140 120 150x115 (14) Diamond Roller

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
