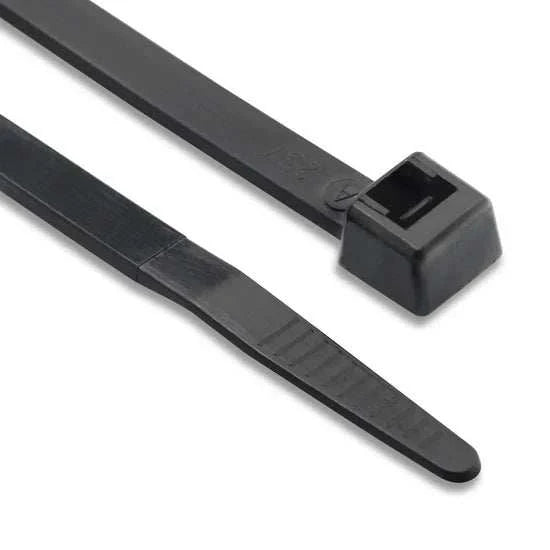

UV STABILISED CABLE TIES
Our high quality nylon 6,6 UV stabilised cable ties are available in black only and come packed in 100's.
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Our high quality nylon 6,6 UV stabilised cable ties are available in black only and come packed in 100's.
They can be tightened by hand or using one of our tensioning tools. Our UV stabilised cable ties are tested before leaving the factory by an outside testing company to ensure the highest levels of quality and strength.
The majority of our UV cable ties are tensile tested randomly before leaving the factory to ensure they areat least meeting, but in the majority of cases well exceeding the minimum tensile strength quoted below:
• 2.5mm Wide Cable Ties – 8.1kg (18lbs)
• 3.6mm Wide Cable Ties – 18.2kg (40lbs)
• 4.8mm Wide Cable Ties – 22.2kg (50lbs)
• 7.6mm Wide Cable Ties – 54.4kg (120lbs)
• 13mm Wide Cable Ties – 114kg (250lbs)
Material Specifications
• Material: Nylon 6,6
• Flammability Rating: UL94-V2
• Installation Temperature: -20oC to +85oC
• Working Temperature: -40oC to +85oC
Our UV stabilised Cable Ties are RoHS compliant, Low Smoke Generating & Zero Halogen
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Size (Length & Width) | Pack Qty | Max Bundle Diameter | Minimum Loop Tensile Strength | Colour |
|---|---|---|---|---|---|
| ACT10025BUV | 100 x 2.5mm | 100 | 22mm | 8KG | Black |
| ACT14036BUV | 140 x 3.6mm | 100 | 33mm | 18KG | Black |
| ACT20036BUV | 200 x 3.6mm | 100 | 50mm | 18KG | Black |
| ATC20048BUV | 200 x 4.8mm | 100 | 50mm | 22KG | Black |
| ATC30048BUV | 300 x 4.8mm | 100 | 80mm | 22KG | Black |
| ATC37048BUV | 370 x 4.8mm | 100 | 102mm | 22KG | Black |
| ACT37076BUV | 370 x 7.6mm | 100 | 102mm | 54.4KG | Black |
| ACT43048BUV | 430 x 4.8mm | 100 | 120mm | 22KG | Black |
| ACT43090BUV | 430 x 9.0mm | 100 | 116mm | 79.4KG | Black |
| ACT58013BUV | 580 x 13mm | 100 | 152mm | 114KG | Black |
| ACT71090BUV | 710 x 9.0mm | 100 | 207mm | 79.4KG | Black |
Found the correct part number? Select it from the available options above and add it to your quote list.
