Castors wheels

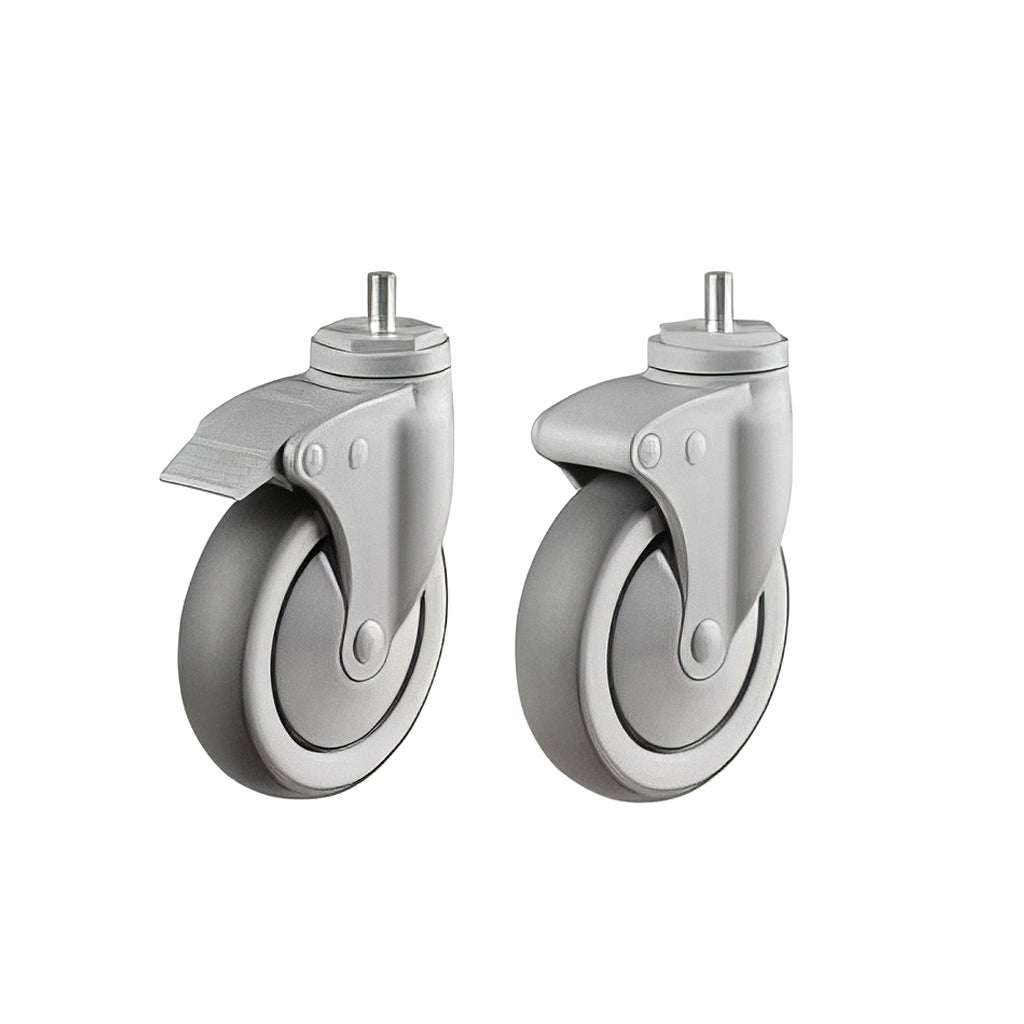

LIGHT DUTY NON MARKING THREADED STEM CASTORS 75-110KG LOAD RATING
Stem castors with a plastic castor bracket, fitted with a Synthetic Non-Marking Rubber wheel.
Find the right option
Technical guidanceExpert support for the right solution
Samples availableGet the right part before you commit
UK & European sourcingAlternatives beyond the catalogue
Trade enquiries welcomeFrom one-off parts to ongoing supply
Read full product description
Stem castors with a plastic castor bracket, fitted with a Synthetic Non-Marking Rubber wheel.
These Stem casters range from 75mm-150mm and have a capacity up to 110 Kg per caster.
Grey non-marking thermoplastic rubber, TPR, Tyres offer quiet running and protect floors from damage.
They are bonded to plastic or nylon centres and are used a lot for medical castors and furniture castors.
- High Quality Impact Resistant Reinforced Nylon
- Centrally Encapsulated Stainless Steel Ball Bearing
- Wheel Synthetic Rubber-Elastomer (TPE)
- Nut and Bolt Axle
- 85° shore A Non Marking
- Precision Ball Bearing Wheel
- - 20°C - + 60°C
Available product options.
Search by size, dimensions or specification, select a matching product and add it to your quotation basket.
Your selected product
How does requesting a quote work?
- Find the size and product code you need from table below.
- Enter product code and quantities required
- Click Add To Quote
- Repeat on any other product pages as needed.
- Once done, submit your quote to our sales team who will be in touch within 1 hour.
Alternatively feel free to call us now on 01279 656189 for an immediate response!
Check the dimensions. Find your part number.
Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.
Full technical specifications compare sizes & part numbers
Find your part in the table below, then select the matching option above to request a quote.
Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.
Product specifications.
| SKU | Type | Wheel Diameter | Tread Width | Bearing Type | Weight Loading | Overall Height |
|---|---|---|---|---|---|---|
| Swivel | 75mm | 32 | Ball Bearing | 75KG | 118mm | |
| Swivel | 75mm | 32 | Ball Bearing | 75KG | 142mm | |
| Swivel | 75mm | 32 | Ball Bearing | 75KG | 168mm | |
| Swivel | 75mm | 32 | Ball Bearing | 75KG | 192mm | |
| C075/DPTSM12TPR | Swivel/wheel brake | 75mm | 32 | Ball Bearing | 75KG | 118mm |
| C075/DPTSM12TPR | Swivel/wheel brake | 75mm | 32 | Ball Bearing | 75KG | 142mm |
| C075/DPTSM12TPR | Swivel/wheel brake | 75mm | 32 | Ball Bearing | 75KG | 168mm |
| C075/DPTSM12TPR | Swivel/wheel brake | 75mm | 32 | Ball Bearing | 75KG | 192mm |
| Swivel | 100mm | 32 | Ball Bearing | 85KG | 118mm | |
| Swivel | 100mm | 32 | Ball Bearing | 85KG | 142mm | |
| Swivel | 100mm | 32 | Ball Bearing | 85KG | 168mm | |
| Swivel | 100mm | 32 | Ball Bearing | 85KG | 192mm | |
| C100/DPTSM12TPR | Swivel/wheel brake | 100mm | 32 | Ball Bearing | 85KG | 118mm |
| C100/DPTSM12TPR | Swivel/wheel brake | 100mm | 32 | Ball Bearing | 85KG | 142mm |
| C100/DPTSM12TPR | Swivel/wheel brake | 100mm | 32 | Ball Bearing | 85KG | 168mm |
| C100/DPTSM12TPR | Swivel/wheel brake | 100mm | 32 | Ball Bearing | 85KG | 192mm |
| Swivel | 125mm | 32 | Ball Bearing | 100KG | 118mm | |
| Swivel | 125mm | 32 | Ball Bearing | 100KG | 142mm | |
| Swivel | 125mm | 32 | Ball Bearing | 100KG | 168mm | |
| Swivel | 125mm | 32 | Ball Bearing | 100KG | 192mm | |
| C125/DPTSM12TPR | Swivel/wheel brake | 125mm | 32 | Ball Bearing | 100KG | 118mm |
| C125/DPTSM12TPR | Swivel/wheel brake | 125mm | 32 | Ball Bearing | 100KG | 142mm |
| C125/DPTSM12TPR | Swivel/wheel brake | 125mm | 32 | Ball Bearing | 100KG | 168mm |
| C125/DPTSM12TPR | Swivel/wheel brake | 125mm | 32 | Ball Bearing | 100KG | 192mm |
| Swivel | 150mm | 32 | Ball Bearing | 110KG | 118mm | |
| Swivel | 150mm | 32 | Ball Bearing | 110KG | 142mm | |
| Swivel | 150mm | 32 | Ball Bearing | 110KG | 168mm | |
| Swivel | 150mm | 32 | Ball Bearing | 110KG | 192mm | |
| C150/DPTSM12TPR | Swivel/wheel brake | 150mm | 32 | Ball Bearing | 110KG | 118mm |
| C150/DPTSM12TPR | Swivel/wheel brake | 150mm | 32 | Ball Bearing | 110KG | 142mm |
| C150/DPTSM12TPR | Swivel/wheel brake | 150mm | 32 | Ball Bearing | 110KG | 168mm |
| C150/DPTSM12TPR | Swivel/wheel brake | 150mm | 32 | Ball Bearing | 110KG | 192mm |
Found the correct part number? Select it from the available options above and add it to your quote list.
