Handwheels

ROUND PATTERN MALE/FEMALE HANDWHEEL

Black nylon head with BZP steel thread.

Find the right option

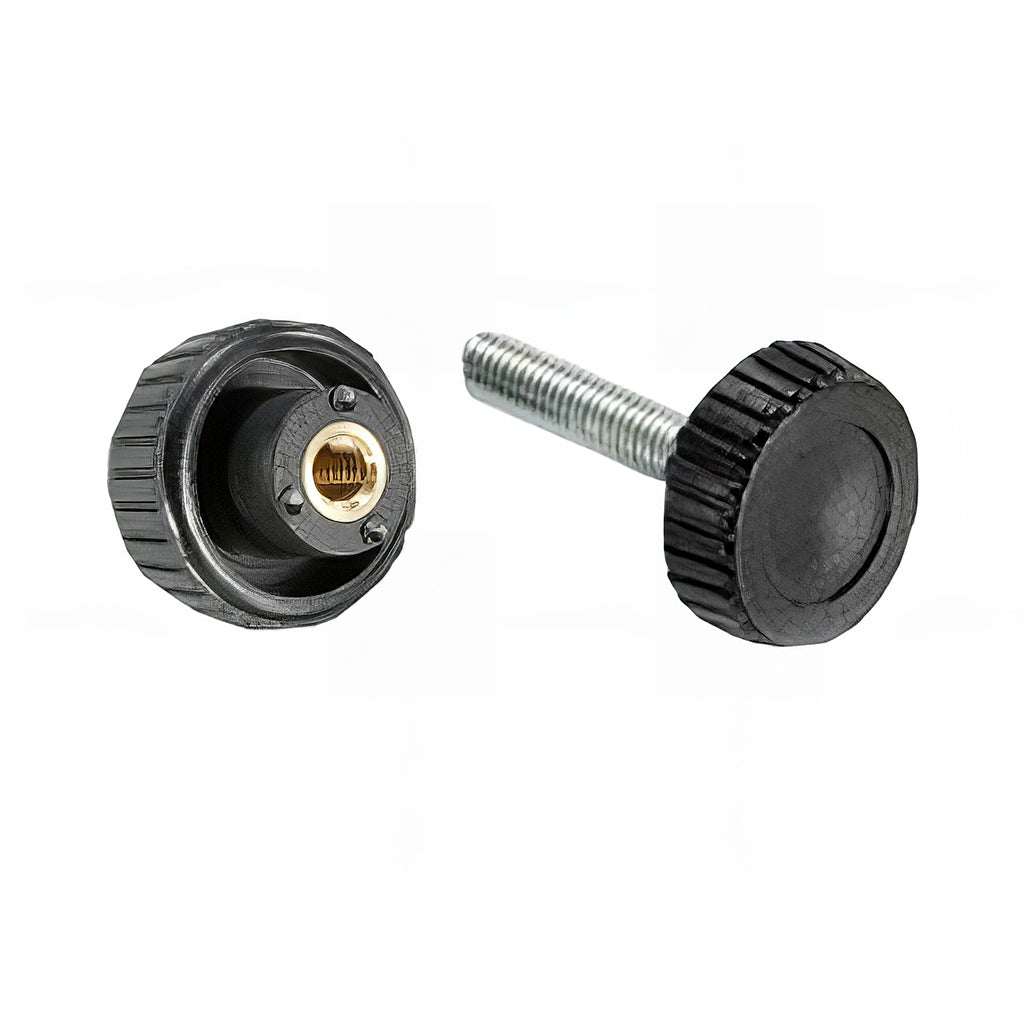

  • Round pattern male/female handwheel with black nylon head and BZP steel thread for locking and adjusting
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Black nylon head with BZP steel thread.

Neat and discrete method of locking/adjusting.

Other sizes/threads available subject to min quantities - please enquire.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

16 options
Part numberSize / technical detailOther specificationAction
HITR14/0408 14 / M4 / 8 —
HITR15/0410 15 / M4 / 10 —
HITR22/05010B 22 / M5 / 10 —
HITR22/05016B 22 / M5 / 16 —
HITR22/05025B 22 / M5 / 25 —
HITR22/06 22 / M6 / - —
HITR22/06010B 22 / M6 / 10 —
HITR22/06015 22 / M6 / 15 —
HITR22/06020 22 / M6 / 20 —
HITR22/06025 22 / M6 / 25 —
HITR22/06030 22 / M6 / 30 —
HITR22/06040 22 / M6 / 40 —
HITR22/08015 22 / M8 / 15 —
HITR26/08 26 / M8 / - —
HITR26/08030 26 / M8 / 30 —
HITR26/08050 26 / M8 / 50 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

ROUND PATTERN MALE/FEMALE HANDWHEEL
HITR14/0408

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Knob dia (mm) Thread Size Stud
HITR14/0408 14 M4 8
HITR15/0410 15 M4 10
HITR22/05010B 22 M5 10
HITR22/05016B 22 M5 16
HITR22/05025B 22 M5 25
HITR22/06 22 M6 -
HITR22/06010B 22 M6 10
HITR22/06015 22 M6 15
HITR22/06020 22 M6 20
HITR22/06025 22 M6 25
HITR22/06030 22 M6 30
HITR22/06040 22 M6 40
HITR22/08015 22 M8 15
HITR26/08 26 M8 -
HITR26/08030 26 M8 30
HITR26/08050 26 M8 50
