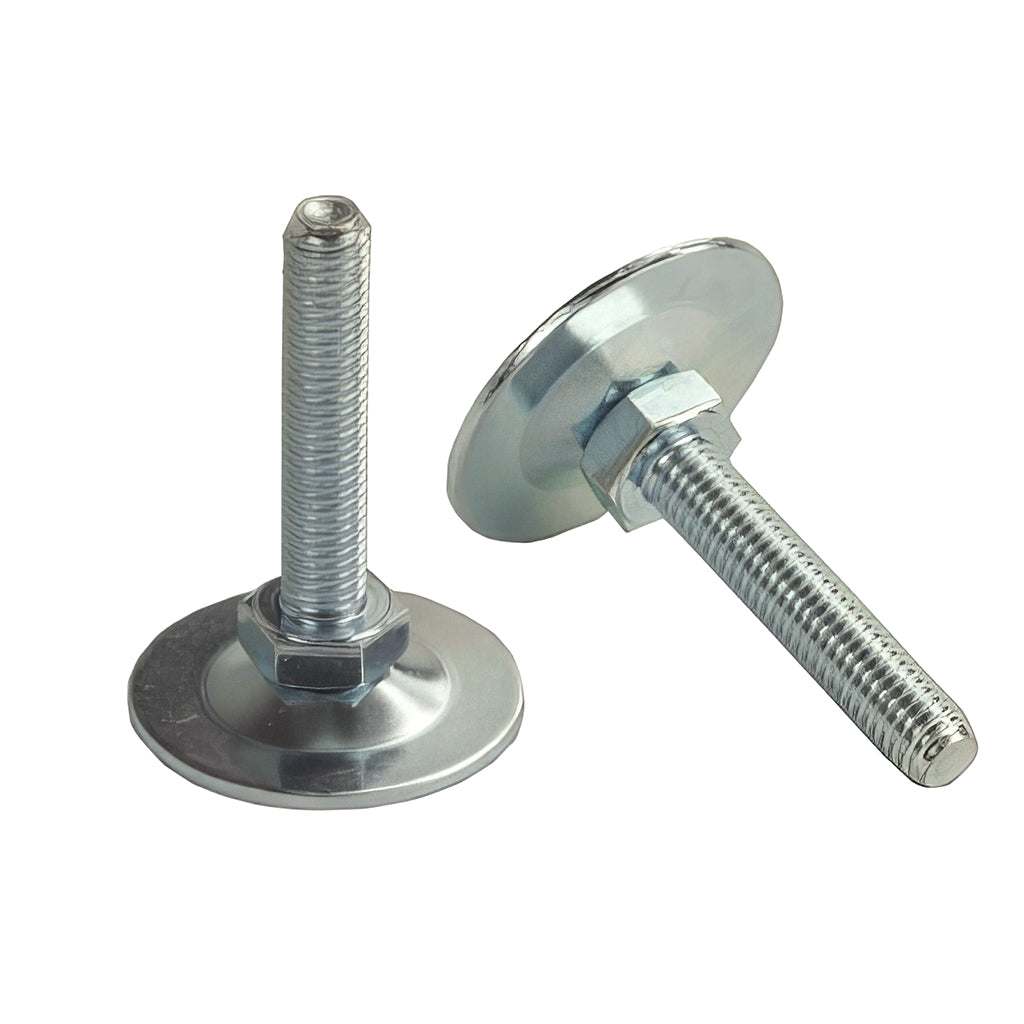

MEDIUM/HEAVY DUTY STATIC/ARTICULATING STEEL ADJUSTABLE FOOT

Pressed steel base and stud in BZP mild steel. Suitable for medium-heavy duty applications. Stud turns independently of base to allow adjustment under load.

Find the right option
  • Medium/heavy duty static articulating steel adjustable foot with pressed steel base and BZP mild steel stud
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Pressed steel base and stud in BZP mild steel.
Suitable for medium-heavy duty applications.
Stud turns independently of base to allow adjustment under load.

Some sizes subject to min quantities - please enquire.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

89 options
Part numberSize / technical detailOther specificationAction
FSM30/08016 30 / 16 / M8 | 6 | 11.5 | 650 —
FSM30/08020 30 / 20 / M8 | 6 | 11.5 | 650 —
FSM30/08030 30 / 30 / M8 | 6 | 11.5 | 650 —
FSM30/08040 30 / 40 / M8 | 6 | 11.5 | 650 —
FSM30/08050 30 / 50 / M8 | 6 | 11.5 | 650 —
FSM30/08060 30 / 60 / M8 | 6 | 11.5 | 650 —
FSM30/08070 30 / 70 / M8 | 6 | 11.5 | 650 —
FSM30/08080 30 / 80 / M8 | 6 | 11.5 | 650 —
FSM30/08090 30 / 90 / M8 | 6 | 11.5 | 650 —
FSM30/08100 30 / 100 / M8 | 6 | 11.5 | 650 —
FSM30/08120 30 / 120 / M8 | 6 | 11.5 | 650 —
FSM30/10016 30 / 16 / M10 | 6 | 12.5 | 650 —
FSM30/10020 30 / 20 / M10 | 6 | 12.5 | 650 —
FSM30/10030 30 / 30 / M10 | 6 | 12.5 | 650 —
FSM30/10040 30 / 40 / M10 | 6 | 12.5 | 650 —
FSM30/10050 30 / 50 / M10 | 6 | 12.5 | 650 —
FSM30/10060 30 / 60 / M10 | 6 | 12.5 | 650 —
FSM30/10070 30 / 70 / M10 | 6 | 12.5 | 650 —
FSM30/10080 30 / 80 / M10 | 6 | 12.5 | 650 —
FSM30/10090 30 / 90 / M10 | 6 | 12.5 | 650 —
FSM30/10100 30 / 100 / M10 | 6 | 12.5 | 650 —
FSM30/10120 30 / 120 / M10 | 6 | 12.5 | 650 —
FSM40/08016 40 / 16 / M8 | 6 | 11.5 | 650 —
FSM40/08020 40 / 20 / M8 | 6 | 11.5 | 650 —
FSM40/08030 40 / 30 / M8 | 6 | 11.5 | 650 —
FSM40/08040 40 / 40 / M8 | 6 | 11.5 | 650 —
FSM40/08050 40 / 50 / M8 | 6 | 11.5 | 650 —
FSM40/08060 40 / 60 / M8 | 6 | 11.5 | 650 —
FSM40/08070 40 / 70 / M8 | 6 | 11.5 | 650 —
FSM40/08080 40 / 80 / M8 | 6 | 11.5 | 650 —
FSM40/08090 40 / 90 / M8 | 6 | 11.5 | 650 —
FSM40/08100 40 / 100 / M8 | 6 | 11.5 | 650 —
FSM40/08120 40 / 120 / M8 | 6 | 11.5 | 650 —
FSM40/10016 40 / 16 / M10 | 6 | 12.5 | 650 —
FSM40/10020 40 / 20 / M10 | 6 | 12.5 | 650 —
FSM40/10030 40 / 30 / M10 | 6 | 12.5 | 650 —
FSM40/10040 40 / 40 / M10 | 6 | 12.5 | 650 —
FSM40/10050 40 / 50 / M10 | 6 | 12.5 | 650 —
FSM40/10060 40 / 60 / M10 | 6 | 12.5 | 650 —
FSM40/10070 40 / 70 / M10 | 6 | 12.5 | 650 —
FSM40/10090 40 / 90 / M10 | 6 | 12.5 | 650 —
FSM40/10100 40 / 80 / M10 | 6 | 12.5 | 650 —
FSM40/10120 40 / 120 / M10 | 6 | 12.5 | 650 —
FSM45/08020 45 / 20 / M8 | - | 12.5 | N/A —
FSM45/08030 45 / 30 / M8 | - | 12.5 | N/A —
FSM45/08040 45 / 40 / M8 | - | 12.5 | N/A —
FSM45/08050 45 / 50 / M8 | - | 12.5 | N/A —
FSM45/08060 45 / 60 / M8 | - | 12.5 | N/A —
FSM45/08070 45 / 70 / M8 | - | 12.5 | N/A —
FSM45/08080 45 / 80 / M8 | - | 12.5 | N/A —
FSM45/08090 45 / 90 / M8 | - | 12.5 | N/A —
FSM45/08100 45 / 100 / M8 | - | 12.5 | N/A —
FSM45/08120 45 / 120 / M8 | - | 12.5 | N/A —
FSM45/10020 45 / 20 / M10 | - | 13.5 | N/A —
FSM45/10030 45 / 30 / M10 | - | 13.5 | N/A —
FSM45/10040 45 / 40 / M10 | - | 13.5 | N/A —
FSM45/10050 45 / 50 / M10 | - | 13.5 | N/A —
FSM45/10060 45 / 60 / M10 | - | 13.5 | N/A —
FSM45/10070 45 / 70 / M10 | - | 13.5 | N/A —
FSM45/10090 45 / 90 / M10 | - | 13.5 | N/A —
FSM45/10100 45 / 80 / M10 | - | 13.5 | N/A —
FSM45/10120 45 / 120 / M10 | - | 13.5 | N/A —
FSM45/12030 45 / 30 / M12 | - | 15 | N/A —
FSM45/12040 45 / 40 / M12 | - | 15 | N/A —
FSM45/12050 45 / 50 / M12 | - | 15 | N/A —
FSM45/12060 45 / 60 / M12 | - | 15 | N/A —
FSM45/12070 45 / 70 / M12 | - | 15 | N/A —
FSM45/12090 45 / 90 / M12 | - | 15 | N/A —
FSM45/12120 45 / 80 / M12 | - | 15 | N/A —
FSM50/08016 50 / 16 / M8 | 11.5 | 11.5 | 650 —
FSM50/08020 50 / 20 / M8 | 11.5 | 11.5 | 650 —
FSM50/08030 50 / 30 / M8 | 11.5 | 11.5 | 650 —
FSM50/08040 50 / 40 / M8 | 11.5 | 11.5 | 650 —
FSM50/08050 50 / 50 / M8 | 11.5 | 11.5 | 650 —
FSM50/08060 50 / 60 / M8 | 11.5 | 11.5 | 650 —
FSM50/08070 50 / 70 / M8 | 11.5 | 11.5 | 650 —
FSM50/08080 50 / 80 / M8 | 11.5 | 11.5 | 650 —
FSM50/08090 50 / 90 / M8 | 11.5 | 11.5 | 650 —
FSM50/08100 50 / 100 / M8 | 11.5 | 11.5 | 650 —
FSM50/08120 50 / 120 / M8 | 11.5 | 11.5 | 650 —
FSM50/10016 50 / 16 / M10 | 12.5 | 12.5 | 650 —
FSM50/10020 50 / 20 / M10 | 12.5 | 12.5 | 650 —
FSM50/10030 50 / 30 / M10 | 12.5 | 12.5 | 650 —
FSM50/10040 50 / 40 / M10 | 12.5 | 12.5 | 650 —
FSM50/10050 50 / 50 / M10 | 12.5 | 12.5 | 650 —
FSM50/10060 50 / 60 / M10 | 12.5 | 12.5 | 650 —
FSM50/10070 50 / 70 / M10 | 12.5 | 12.5 | 650 —
FSM50/10090 50 / 90 / M10 | 12.5 | 12.5 | 650 —
FSM50/10100 50 / 100 / M10 | 12.5 | 12.5 | 650 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

MEDIUM/HEAVY DUTY STATIC/ARTICULATING STEEL ADJUSTABLE FOOT
FSM30/08016

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Base Dia mm Stud Thread Size H H1 Load Cap kg
FSM30/08016 30 16 M8 6 11.5 650
FSM30/08020 30 20 M8 6 11.5 650
FSM30/08030 30 30 M8 6 11.5 650
FSM30/08040 30 40 M8 6 11.5 650
FSM30/08050 30 50 M8 6 11.5 650
FSM30/08060 30 60 M8 6 11.5 650
FSM30/08070 30 70 M8 6 11.5 650
FSM30/08080 30 80 M8 6 11.5 650
FSM30/08090 30 90 M8 6 11.5 650
FSM30/08100 30 100 M8 6 11.5 650
FSM30/08120 30 120 M8 6 11.5 650
FSM30/10016 30 16 M10 6 12.5 650
FSM30/10020 30 20 M10 6 12.5 650
FSM30/10030 30 30 M10 6 12.5 650
FSM30/10040 30 40 M10 6 12.5 650
FSM30/10050 30 50 M10 6 12.5 650
FSM30/10060 30 60 M10 6 12.5 650
FSM30/10070 30 70 M10 6 12.5 650
FSM30/10080 30 80 M10 6 12.5 650
FSM30/10090 30 90 M10 6 12.5 650
FSM30/10100 30 100 M10 6 12.5 650
FSM30/10120 30 120 M10 6 12.5 650
FSM40/08016 40 16 M8 6 11.5 650
FSM40/08020 40 20 M8 6 11.5 650
FSM40/08030 40 30 M8 6 11.5 650
FSM40/08040 40 40 M8 6 11.5 650
FSM40/08050 40 50 M8 6 11.5 650
FSM40/08060 40 60 M8 6 11.5 650
FSM40/08070 40 70 M8 6 11.5 650
FSM40/08080 40 80 M8 6 11.5 650
FSM40/08090 40 90 M8 6 11.5 650
FSM40/08100 40 100 M8 6 11.5 650
FSM40/08120 40 120 M8 6 11.5 650
FSM40/10016 40 16 M10 6 12.5 650
FSM40/10020 40 20 M10 6 12.5 650
FSM40/10030 40 30 M10 6 12.5 650
FSM40/10040 40 40 M10 6 12.5 650
FSM40/10050 40 50 M10 6 12.5 650
FSM40/10060 40 60 M10 6 12.5 650
FSM40/10070 40 70 M10 6 12.5 650
FSM40/10090 40 90 M10 6 12.5 650
FSM40/10100 40 80 M10 6 12.5 650
FSM40/10120 40 120 M10 6 12.5 650
FSM45/08020 45 20 M8 - 12.5 N/A
FSM45/08030 45 30 M8 - 12.5 N/A
FSM45/08040 45 40 M8 - 12.5 N/A
FSM45/08050 45 50 M8 - 12.5 N/A
FSM45/08060 45 60 M8 - 12.5 N/A
FSM45/08070 45 70 M8 - 12.5 N/A
FSM45/08080 45 80 M8 - 12.5 N/A
FSM45/08090 45 90 M8 - 12.5 N/A
FSM45/08100 45 100 M8 - 12.5 N/A
FSM45/08120 45 120 M8 - 12.5 N/A
FSM45/10020 45 20 M10 - 13.5 N/A
FSM45/10030 45 30 M10 - 13.5 N/A
FSM45/10040 45 40 M10 - 13.5 N/A
FSM45/10050 45 50 M10 - 13.5 N/A
FSM45/10060 45 60 M10 - 13.5 N/A
FSM45/10070 45 70 M10 - 13.5 N/A
FSM45/10090 45 90 M10 - 13.5 N/A
FSM45/10100 45 80 M10 - 13.5 N/A
FSM45/10120 45 120 M10 - 13.5 N/A
FSM45/12030 45 30 M12 - 15 N/A
FSM45/12040 45 40 M12 - 15 N/A
FSM45/12050 45 50 M12 - 15 N/A
FSM45/12060 45 60 M12 - 15 N/A
FSM45/12070 45 70 M12 - 15 N/A
FSM45/12090 45 90 M12 - 15 N/A
FSM45/12120 45 80 M12 - 15 N/A
FSM50/08016 50 16 M8 11.5 11.5 650
FSM50/08020 50 20 M8 11.5 11.5 650
FSM50/08030 50 30 M8 11.5 11.5 650
FSM50/08040 50 40 M8 11.5 11.5 650
FSM50/08050 50 50 M8 11.5 11.5 650
FSM50/08060 50 60 M8 11.5 11.5 650
FSM50/08070 50 70 M8 11.5 11.5 650
FSM50/08080 50 80 M8 11.5 11.5 650
FSM50/08090 50 90 M8 11.5 11.5 650
FSM50/08100 50 100 M8 11.5 11.5 650
FSM50/08120 50 120 M8 11.5 11.5 650
FSM50/10016 50 16 M10 12.5 12.5 650
FSM50/10020 50 20 M10 12.5 12.5 650
FSM50/10030 50 30 M10 12.5 12.5 650
FSM50/10040 50 40 M10 12.5 12.5 650
FSM50/10050 50 50 M10 12.5 12.5 650
FSM50/10060 50 60 M10 12.5 12.5 650
FSM50/10070 50 70 M10 12.5 12.5 650
FSM50/10090 50 90 M10 12.5 12.5 650
FSM50/10100 50 100 M10 12.5 12.5 650
