fasteners

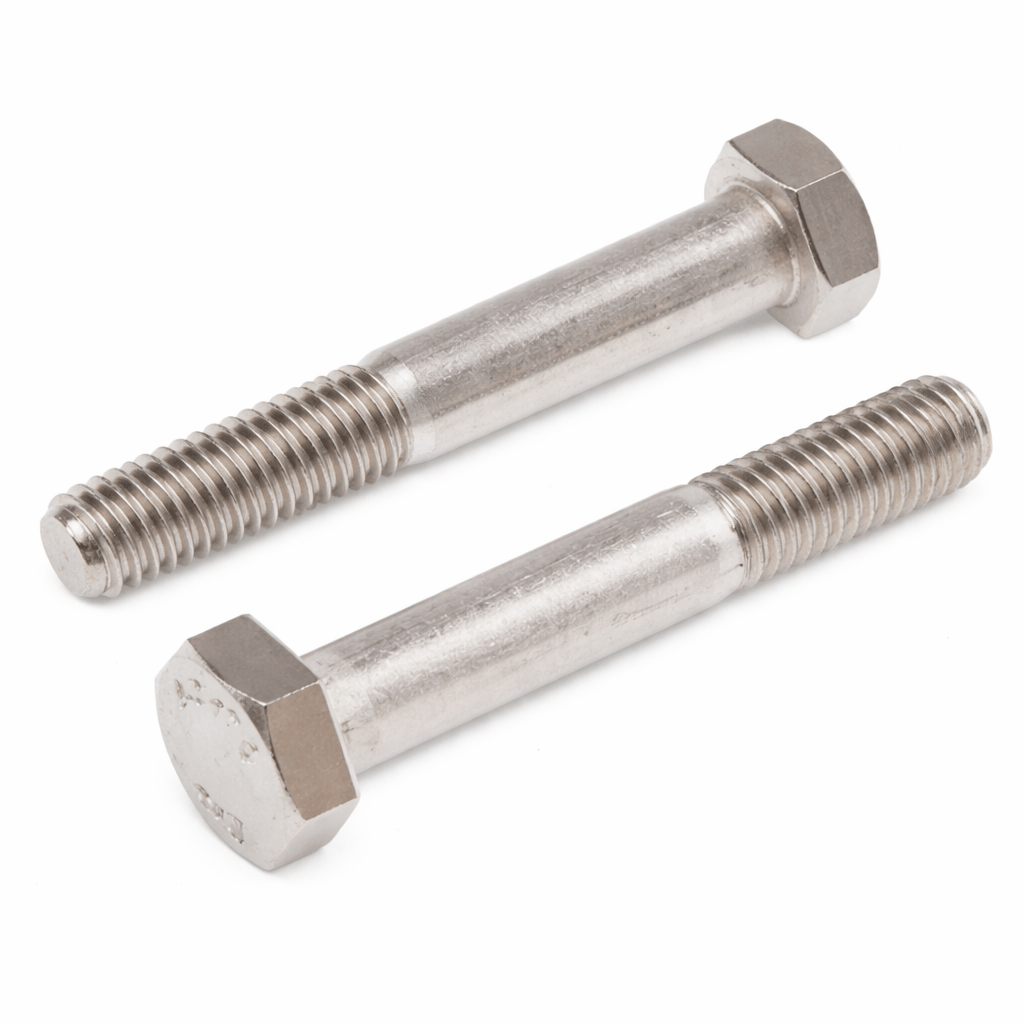

HEXAGON HIGH TENSILE GRADE 8.8 STEEL ZINC BOLT

High tensile grade 8.8 partially threaded bolt

Find the right option
  • Hexagon high tensile grade 8.8 steel zinc bolt partially threaded fastener
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

High tensile grade 8.8 partially threaded bolt

Please note: the size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

28 options
Part numberSize / technical detailOther specificationAction
AHBM06050Z High tensile steel / 18 / Zinc | M6 x 50 | 200 | 10 | 4 —
AHBM06060Z High tensile steel / 18 / Zinc | M6 x 60 | 200 | 10 | 4 —
AHBM08050Z High tensile steel / 22 / Zinc | M8 x 50 | 200 | 13 | 5.5 —
AHBM08060Z High tensile steel / 22 / Zinc | M8 x 60 | 200 | 13 | 5.5 —
AHBM10050Z High tensile steel / 26 / Zinc | M10 x 50 | 100 | 17 | 6.4 —
AHBM10060Z High tensile steel / 26 / Zinc | M10 x 60 | 100 | 17 | 6.4 —
AHBM10070Z High tensile steel / 26 / Zinc | M10 x 70 | 100 | 17 | 6.4 —
AHBM10075Z High tensile steel / 26 / Zinc | M10 x 75 | 100 | 17 | 6.4 —
AHBM10080Z High tensile steel / 26 / Zinc | M10 x 80 | 100 | 17 | 6.4 —
AHBM12050Z High tensile steel / 30 / Zinc | M12 x 50 | 100 | 19 | 7.5 —
AHBM12060Z High tensile steel / 30 / Zinc | M12 x 60 | 100 | 19 | 7.5 —
AHBM12070Z High tensile steel / 30 / Zinc | M12 x 70 | 50 | 19 | 7.5 —
AHBM12075Z High tensile steel / 30 / Zinc | M12 x 75 | 50 | 19 | 7.5 —
AHBM16050Z High tensile steel / 38 / Zinc | M16 x 50 | 50 | 24 | 10 —
AHBM16060Z High tensile steel / 38 / Zinc | M16 x 60 | 50 | 24 | 10 —
AHBM16070Z High tensile steel / 38 / Zinc | M16 x 70 | 25 | 24 | 10 —
AHBM16075Z High tensile steel / 38 / Zinc | M16 x 75 | 25 | 24 | 10 —
AHBM16080Z High tensile steel / 38 / Zinc | M16 x 80 | 25 | 24 | 10 —
AHBM16100Z High tensile steel / 38 / Zinc | M16 x 100 | 25 | 24 | 10 —
AHBM16120Z High tensile steel / 38 / Zinc | M16 x 120 | 25 | 24 | 10 —
AHBM20070Z High tensile steel / 46 / Zinc | M20 x 70 | 25 | 30 | 12.5 —
AHBM20075Z High tensile steel / 46 / Zinc | M20 x 75 | 25 | 30 | 12.5 —
AHBM20080Z High tensile steel / 46 / Zinc | M20 x 80 | 25 | 30 | 12.5 —
AHBM20100Z High tensile steel / 46 / Zinc | M20 x 100 | 25 | 30 | 12.5 —
AHBM20120Z High tensile steel / 46 / Zinc | M20 x 120 | 25 | 30 | 12.5 —
AHBM24090Z High tensile steel / 54 / Zinc | M24 x 90 | 10 | 36 | 15 —
AHBM24100Z High tensile steel / 54 / Zinc | M24 x 100 | 10 | 36 | 15 —
AHBM24120Z High tensile steel / 54 / Zinc | M24 x 120 | 10 | 36 | 15 —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

HEXAGON HIGH TENSILE GRADE 8.8 STEEL ZINC BOLT
AHBM06050Z

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
Choose by specification: filter the options above, compare the full table below, and select any matching part number. Both views stay in sync.Ask our technical team →
Full technical specifications — select a part numberReal product dimensions and technical details from Indifit's catalogue
TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Material Thread Length Finish Size Box qty head a/f Head height
AHBM06050Z High tensile steel 18 Zinc M6 x 50 200 10 4
AHBM06060Z High tensile steel 18 Zinc M6 x 60 200 10 4
AHBM08050Z High tensile steel 22 Zinc M8 x 50 200 13 5.5
AHBM08060Z High tensile steel 22 Zinc M8 x 60 200 13 5.5
AHBM10050Z High tensile steel 26 Zinc M10 x 50 100 17 6.4
AHBM10060Z High tensile steel 26 Zinc M10 x 60 100 17 6.4
AHBM10070Z High tensile steel 26 Zinc M10 x 70 100 17 6.4
AHBM10075Z High tensile steel 26 Zinc M10 x 75 100 17 6.4
AHBM10080Z High tensile steel 26 Zinc M10 x 80 100 17 6.4
AHBM12050Z High tensile steel 30 Zinc M12 x 50 100 19 7.5
AHBM12060Z High tensile steel 30 Zinc M12 x 60 100 19 7.5
AHBM12070Z High tensile steel 30 Zinc M12 x 70 50 19 7.5
AHBM12075Z High tensile steel 30 Zinc M12 x 75 50 19 7.5
AHBM16050Z High tensile steel 38 Zinc M16 x 50 50 24 10
AHBM16060Z High tensile steel 38 Zinc M16 x 60 50 24 10
AHBM16070Z High tensile steel 38 Zinc M16 x 70 25 24 10
AHBM16075Z High tensile steel 38 Zinc M16 x 75 25 24 10
AHBM16080Z High tensile steel 38 Zinc M16 x 80 25 24 10
AHBM16100Z High tensile steel 38 Zinc M16 x 100 25 24 10
AHBM16120Z High tensile steel 38 Zinc M16 x 120 25 24 10
AHBM20070Z High tensile steel 46 Zinc M20 x 70 25 30 12.5
AHBM20075Z High tensile steel 46 Zinc M20 x 75 25 30 12.5
AHBM20080Z High tensile steel 46 Zinc M20 x 80 25 30 12.5
AHBM20100Z High tensile steel 46 Zinc M20 x 100 25 30 12.5
AHBM20120Z High tensile steel 46 Zinc M20 x 120 25 30 12.5
AHBM24090Z High tensile steel 54 Zinc M24 x 90 10 36 15
AHBM24100Z High tensile steel 54 Zinc M24 x 100 10 36 15
AHBM24120Z High tensile steel 54 Zinc M24 x 120 10 36 15
