THROUGH BOLT MASONRY ANCHOR

Heavy to medium duty anchor. – pre-drill hole – place shield in hole – align product and drop bolt through to mate with shield – the tightening of the anchor causes it to expand and grip securely.

Find the right option

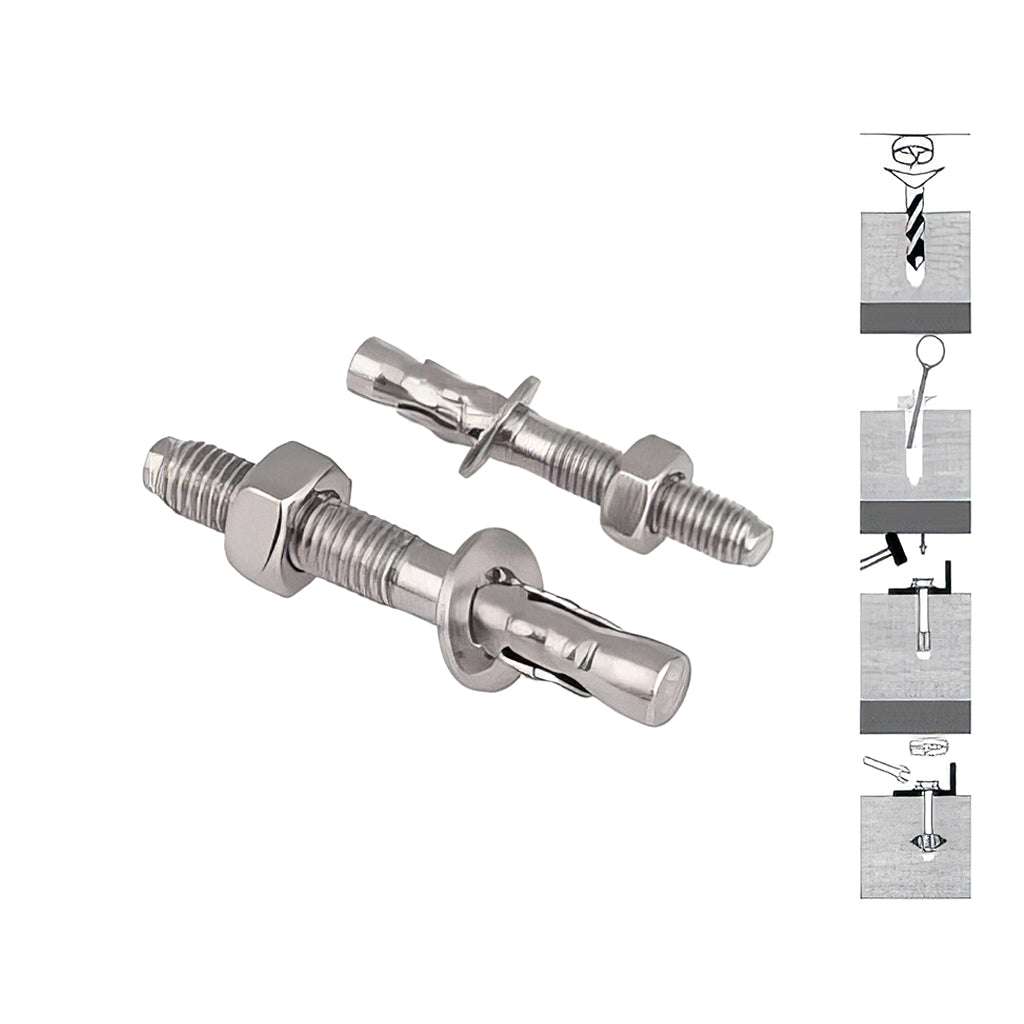

  • Through bolt masonry anchor installed in concrete wall for heavy duty fastening
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Heavy to medium duty anchor. – pre-drill hole – place shield in hole – align product and drop bolt through to mate with shield – the tightening of the anchor causes it to expand and grip securely.

Typical applications are for fitting racking, handrails, brackets, machinery, seating and many others.

Please note: The size range shown in the listed table is a selection of the most popular fasteners we sell. However, the size range we can supply is too vast to be listed here, so if the size or specification you require is not shown, please call the sales office and we will endeavour to supply to your requirement.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

21 options
Part numberSize / technical detailOther specificationAction
ATB06040Z Male through bolt / Steel / Zinc | 100 | M6 x 40mm | 6mm —
ATB06055Z Male through bolt / Steel / Zinc | 100 | M6 x 55mm | 6mm —
ATB06085Z Male through bolt / Steel / Zinc | 100 | M6 x 85mm | 6mm —
ATB08050Z Male through bolt / Steel / Zinc | 100 | M8 x 50mm | 8mm —
ATB08080Z Male through bolt / Steel / Zinc | 100 | M8 x 75mm | 8mm —
ATB08090Z Male through bolt / Steel / Zinc | 100 | M8 x 95mm | 8mm —
ATB10065Z Male through bolt / Steel / Zinc | 50 | M10 x 60mm | 10mm —
ATB10075Z Male through bolt / Steel / Zinc | 50 | M10 x 80mm | 10mm —
ATB10095Z Male through bolt / Steel / Zinc | 50 | M10 x 100mm | 10mm —
ATB10120Z Male through bolt / Steel / Zinc | 50 | M10 x 120mm | 10mm —
ATB12080Z Male through bolt / Steel / Zinc | 50 | M12 x 80mm | 12mm —
ATB12100Z Male through bolt / Steel / Zinc | 50 | M12 x 100mm | 12mm —
ATB12120Z Male through bolt / Steel / Zinc | 25 | M12 x 120mm | 12mm —
ATB12140Z Male through bolt / Steel / Zinc | 25 | M12 x 140mm | 12mm —
ATB16090Z Male through bolt / Steel / Zinc | 20 | M16 x 90mm | 16mm —
ATB16105Z Male through bolt / Steel / Zinc | 20 | M16 x 105mm | 16mm —
ATB16125Z Male through bolt / Steel / Zinc | 20 | M16 x 125mm | 16mm —
ATB16150Z Male through bolt / Steel / Zinc | 20 | M16 x 150mm | 16mm —
ATB20130Z Male through bolt / Steel / Zinc | 10 | M20 x 130mm | 16mm —
ATB20160Z Male through bolt / Steel / Zinc | 10 | M20 x 160mm | 16mm —
ATB24175Z Male through bolt / Steel / Zinc | 10 | M24 x 180mm | 16mm —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

THROUGH BOLT MASONRY ANCHOR
ATB06040Z

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU Type Material Finish Pack Qty Size Drill size
ATB06040Z Male through bolt Steel Zinc 100 M6 x 40mm 6mm
ATB06055Z Male through bolt Steel Zinc 100 M6 x 55mm 6mm
ATB06085Z Male through bolt Steel Zinc 100 M6 x 85mm 6mm
ATB08050Z Male through bolt Steel Zinc 100 M8 x 50mm 8mm
ATB08080Z Male through bolt Steel Zinc 100 M8 x 75mm 8mm
ATB08090Z Male through bolt Steel Zinc 100 M8 x 95mm 8mm
ATB10065Z Male through bolt Steel Zinc 50 M10 x 60mm 10mm
ATB10075Z Male through bolt Steel Zinc 50 M10 x 80mm 10mm
ATB10095Z Male through bolt Steel Zinc 50 M10 x 100mm 10mm
ATB10120Z Male through bolt Steel Zinc 50 M10 x 120mm 10mm
ATB12080Z Male through bolt Steel Zinc 50 M12 x 80mm 12mm
ATB12100Z Male through bolt Steel Zinc 50 M12 x 100mm 12mm
ATB12120Z Male through bolt Steel Zinc 25 M12 x 120mm 12mm
ATB12140Z Male through bolt Steel Zinc 25 M12 x 140mm 12mm
ATB16090Z Male through bolt Steel Zinc 20 M16 x 90mm 16mm
ATB16105Z Male through bolt Steel Zinc 20 M16 x 105mm 16mm
ATB16125Z Male through bolt Steel Zinc 20 M16 x 125mm 16mm
ATB16150Z Male through bolt Steel Zinc 20 M16 x 150mm 16mm
ATB20130Z Male through bolt Steel Zinc 10 M20 x 130mm 16mm
ATB20160Z Male through bolt Steel Zinc 10 M20 x 160mm 16mm
ATB24175Z Male through bolt Steel Zinc 10 M24 x 180mm 16mm

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
