DIECAST ZINC CAM LATCH CYLINDER LOCK

Quarter-turn cam lock.

Find the right option

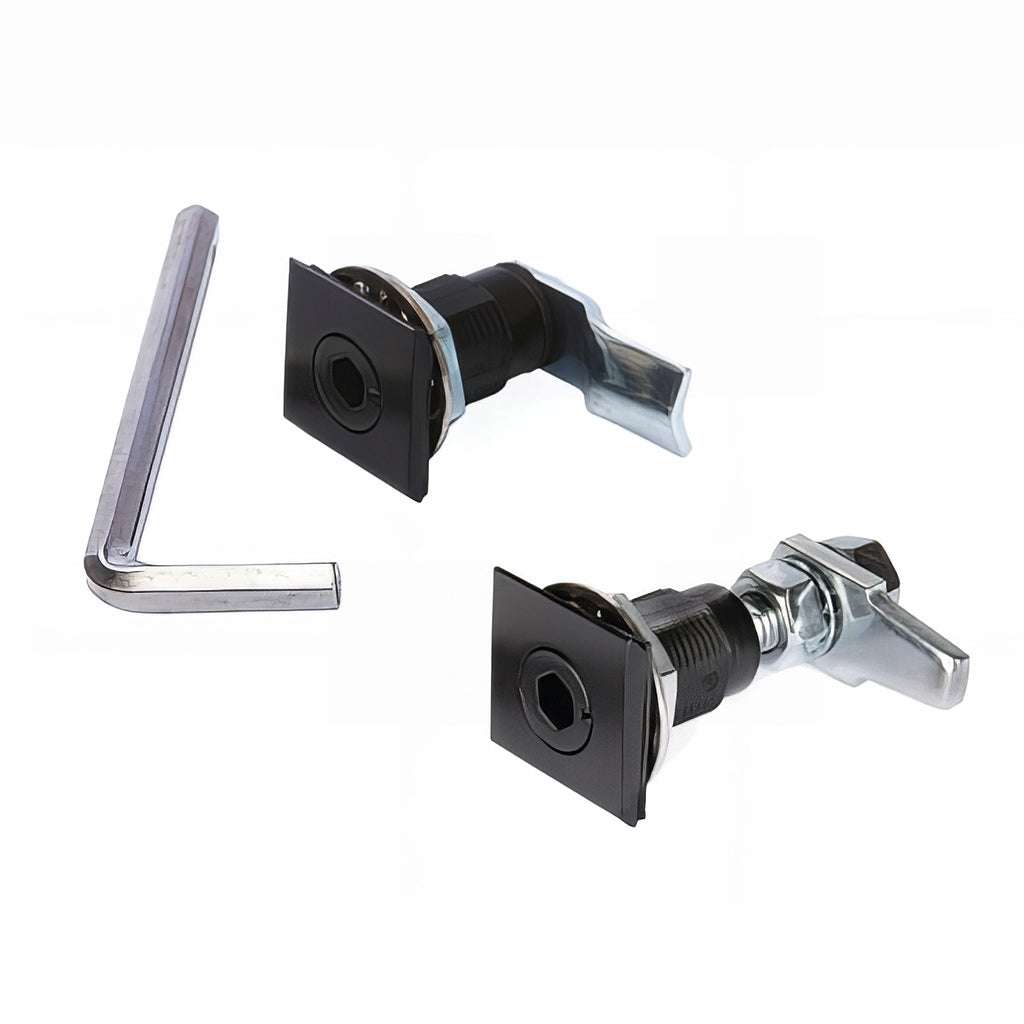

  • Diecast zinc cam latch quarter-turn cam lock with socket wrench and steel cam
1 1

Technical guidanceExpert support for the right solution

Samples availableGet the right part before you commit

UK & European sourcingAlternatives beyond the catalogue

Trade enquiries welcomeFrom one-off parts to ongoing supply

Read full product description

Quarter-turn cam lock.

Socket wrench operated (included), in adjustable and non-adjustable configurations.

Body die cast zinc, cam BZP steel.

FIND THE RIGHT COMPONENT

Available product options.

Search by size, dimensions or specification, select a matching product and add it to your quotation basket.

QUOTE ONLY · NO PAYMENT

Available options

Choose a matching part to review its specifications

2 options
Part numberSize / technical detailOther specificationAction
Part No: ERX83951 34 / 35 / 27 | 17 | 19 | 18 | 32 | 48 | 4 | 6 | 3 | N/A | N/A | 1" 20 UNF | NO —
Part No: ERR44161 34 / 32 / 27 | 17 | 19 | 21 | 31 | 33 | N/A | N/A | 4 | 34 | 5 | 1" 20 UNF | YES —

Select an option to view its full specifications and choose a quantity for your quote.

Your selected product

DIECAST ZINC CAM LATCH CYLINDER LOCK
Part No: ERX83951

Choose a part number and quantity to request a quotation. No online payment is taken.

How does requesting a quote work?
  1. Find the size and product code you need from table below.
  2. Enter product code and quantities required
  3. Click Add To Quote
  4. Repeat on any other product pages as needed.
  5. Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details
01 · START HERE

Check the dimensions. Find your part number.

Use the full specification table below to identify the correct size and part number. Then return to Available product options above to select that exact part and request a quote.

Select your part & request a quote

Full technical specifications compare sizes & part numbers

Find your part in the table below, then select the matching option above to request a quote.

ALL SPECIFICATIONS VISIBLE

Check each column heading for the relevant measurements and product details. ↔ Swipe sideways to see every column.

TECHNICAL DETAILS

Product specifications.

Find part numbers and compare available options
SKU A B C D E F G H I J K L M Thread Adjustable
Part No: ERX83951 34 35 27 17 19 18 32 48 4 6 3 N/A N/A 1" 20 UNF NO
Part No: ERR44161 34 32 27 17 19 21 31 33 N/A N/A 4 34 5 1" 20 UNF YES

Found the correct part number? Select it from the available options above and add it to your quote list.

Choose this part in Available options
