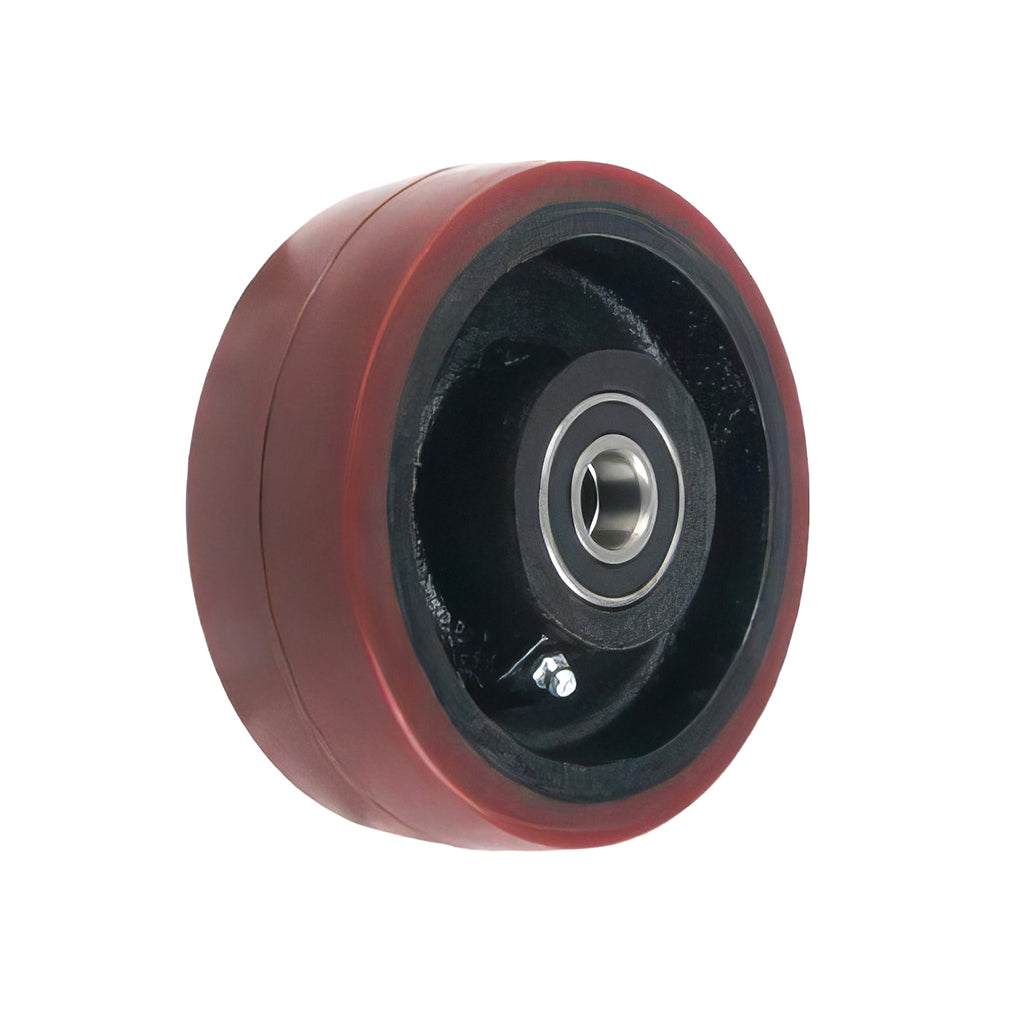

Heavy Duty Wheel – Brown Polyurethane Tyre with Cast Iron Centre 80 – 3500 KG

Name: Heavy Duty Wheel – Brown Polyurethane Tyre with Cast Iron Centre 80 – 3500 KG
Brand: Indifit
SKU: CW040/HWPTBJM10
Availability: InStock

Heavy Duty Wheel combines a robust cast iron centre with a high-performance brown polyurethane tyre to deliver an exceptional balance of strength, durability, traction and floor protection. Engineered for medium to extreme load capacities (80 kg up to 3500 kg per wheel), this wheel is ideal for heavy trolleys, material handling carts, warehouse equipment, machinery platforms and other demanding industrial applications where reliable movement under heavy loads is essential.

Key Features & Benefits

Heavy-Duty Cast Iron Centre: The rugged cast iron wheel hub provides outstanding structural strength and longevity, making it suitable for tough industrial environments and heavy loads where resilience and stability are critical.

Brown Polyurethane Tyre: The polyurethane tread is highly abrasion-resistant, tear-resistant and smooth-rolling, giving excellent traction and cushioning while remaining quieter and gentler on hard floors compared with harder wheel types.

Broad Load Range: Designed to support loads from 80 kg up to 3500 kg per wheel (depending on diameter, bearing type or configuration), enabling use in applications from medium-duty carts to heavy industrial platforms.

Smooth, Low-Resistance Operation: Polyurethane tyres combined with optional plain, roller or ball bearings help reduce rolling resistance and operator effort — ideal for wheeled equipment that frequently moves heavy loads.

Floor-Friendly Design: The polyurethane tyre absorbs shocks and reduces noise while protecting floors from marks — a big advantage over harder metal wheels in many workshop or warehouse settings.

Versatile Industrial Use: Perfect for warehouses, factories, logistics depots, production lines, fabrication workshops and any environments where heavy-load mobility and reliable performance matter most.

Why Choose Polyurethane Wheels on Cast Iron Centres?

Polyurethane wheels on cast iron centres are popular in heavy-use industrial roles because they combine high load-bearing capability with smooth, cushioned rolling performance, excellent wear resistance and floor protection. Their hard-wearing construction makes them suitable for workflows that involve frequent movement under significant weight, including warehouse trolleys, heavy-load platforms, machine bases and custom mobile rigs.

How to Request a Quote

Find the size and product code you need from table below.
Enter product code and quantities required
Click Add To Quote
Repeat on any other product pages as needed.
Once done, submit your quote to our sales team who will be in touch within 1 hour.

Alternatively feel free to call us now on 01279 656189 for an immediate response!

View full details

SKU	Wheel Dia	Wheel Type	Tread Width	Load Cap kg	Bearing	Hub Bore	Hub Width
CW040/HWPTBJM10	40mm	Brown polyurethane/cast iron	35	100	Ball journal	10	35
CW050/HWPT	50mm	Brown polyurethane/cast iron	14	80	Plain	12	17
CW050/HWPTBJM12	50mm	Brown polyurethane/cast iron	35	120	Ball journal	12	35
CW060/HWPTBJM12	60mm	Brown polyurethane/cast iron	35	180	Ball journal	12	37
CW075/HWPTBJM15	75mm	Brown polyurethane/cast iron	40	300	Ball journal	15	40
CW075/HWPTM12	75mm	Brown polyurethane/cast iron	30	150	Plain	12	40
CW100/HWPTBJM15	100mm	Brown polyurethane/cast iron	30	250	Ball journal	15	30
CW100/HWPTBJM20	100mm	Brown polyurethane/cast iron	40	300	Ball journal	20	40
CW100/HWPTM23	100mm	Brown polyurethane/cast iron	40	300	Plain	23	50
CW100/HWPTRBM15	100mm	Brown polyurethane/cast iron	40	300	Roller	15	50
CW100/MHPTM20	100mm	Brown polyurethane/cast iron	30	250	Plain	20	45
CW100/MHWPTRBM12	100mm	Brown polyurethane/cast iron	30	250	Roller	12	45
CW100/XHWPTBJM20	100mm	Brown polyurethane/cast iron	50	400	Ball journal	20	60
CW125/HWPTBJM15	125mm	Brown polyurethane/cast iron	30	300	Ball journal	15	30
CW125/HWPTBJM20	125mm	Brown polyurethane/cast iron	40	400	Ball journal	20	50
CW125/HWPTM23	125mm	Brown polyurethane/cast iron	40	350	Plain	23	50
CW125/HWPTRBM15	125mm	Brown polyurethane/cast iron	40	350	Roller	15	50
CW125/MHWPTM20	125mm	Brown polyurethane/cast iron	30	300	Plain	20	45
CW125/MHWPTRBM12	125mm	Brown polyurethane/cast iron	30	300	Roller	12	45
CW125/XHWPTBJM20	125mm	Brown polyurethane/cast iron	50	500	Ball journal	20	60
CW125/XHWPTBJM20/50	125mm	Brown polyurethane/cast iron	50	500	Ball journal	20	50
CW150/MHWPTBJM20	150mm	Brown polyurethane/cast iron	40	500	Ball journal	20	40
CW150/XHWPTBJM25WT	150mm	Brown polyurethane/cast iron	60	1000	Ball journal	25	60
CW150/XHWPTJBM20	150mm	Brown polyurethane/cast iron	50	750	Ball journal	20	60
CW150/XHWPTRBM20	150mm	Brown polyurethane/cast iron	50	750	Roller	20	60
CW150/XHWPTRBM254	150mm	Brown polyurethane/cast iron	50	750	Roller	25.4	60
CW160/XHWPTBJM20	160mm	Brown polyurethane/cast iron	50	750	Ball journal	20	60
CW200/HWPTBJM25	200mm	Brown polyurethane/cast iron	45	1000	Ball journal	25	45
CW200/XHWPTBJM25WT	200mm	Brown polyurethane/cast iron	60	1300	Ball journal	25	60
CW200/XHWPTJBM20	200mm	Brown polyurethane/cast iron	50	1000	Ball journal	20	60
CW200/XHWPTRBM20	200mm	Brown polyurethane/cast iron	50	1000	Roller	20	60
CW200/XHWPTRBM254	200mm	Brown polyurethane/cast iron	50	1000	Roller	25.4	60
CW200/XPHWPTBJM30	200mm	Brown polyurethane/cast iron	75	1600	Ball journal	30	82
CW200/XXHWPTBJM50	200mm	Brown polyurethane/cast iron	100	2000	Ball journal	50	100
CW250/HWPTBJM25	250mm	Brown polyurethane/cast iron	60	1400	Ball journal	25	60
CW250/PMHWPTBJM25	250mm	Brown polyurethane/cast iron	50	1200	Ball journal	25	60
CW250/XPHWPTBJM30	250mm	Brown polyurethane/cast iron	75	1800	Ball journal	30	82
CW250/XXHWPTBJM50	250mm	Brown polyurethane/cast iron	100	2500	Ball journal	50	100
CW300/HWPTBJM30	300mm	Brown polyurethane/cast iron	75	2200	Ball journal	30	82
CW300/XXHWPTBJM50	300mm	Brown polyurethane/cast iron	100	3000	Ball journal	50	100
CW400/MHWPTBJM50	400mm	Brown polyurethane/cast iron	100	3500	Ball journal	50	100
